Model No.: | CSCDFB020 |
Fuel Tank Volume: | 20 CBM |
Overall Dimensions(LxWxH): | 9,800×2,496×3,800mm |
Chassis Brand: | HOWO |
Drive Type: | 6X4 |
Wheelbase: | 4,300+1,350mm |
Max. Driving Speed: | 102km/h |
Engine Model: | WD615.87 |
Engine Power: | 290HP |
Emission Standard: | Euro II |
Fuel Tank Material: | Carbon steel, stainless steel, aluminum alloy |
BRIEF

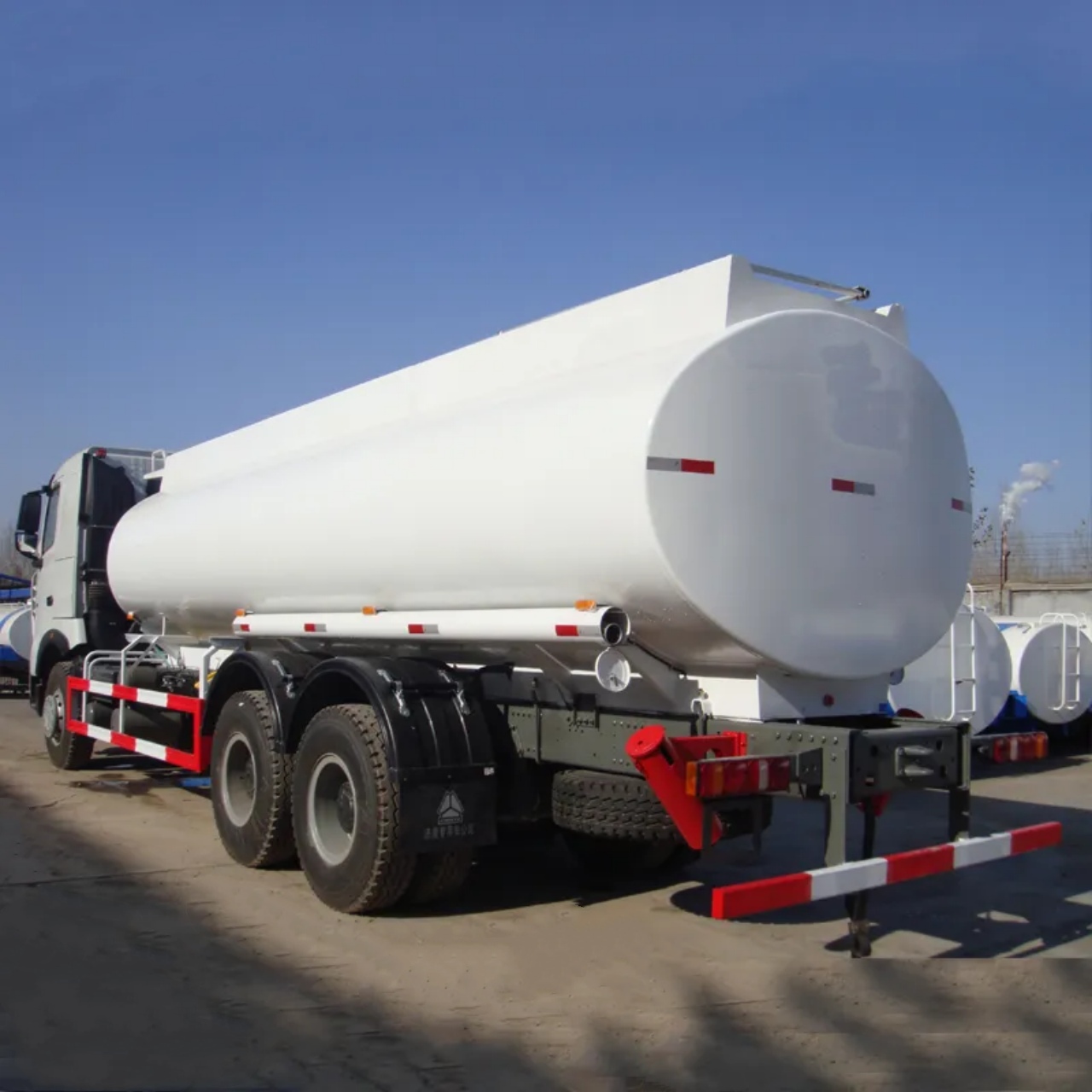

The HOWO 20 CBM diesel fuel bowser, produced by CSCTRUCK China Tank Truck, is a versatile and efficient fuel transportation solution. Designed with a focus on durability and performance, this tanker truck is equipped to meet the needs of industries requiring safe and reliable fuel delivery.
Built on the robust HOWO chassis, the fuel bowser features a 6×4 drive type, providing excellent stability and maneuverability across diverse terrains. The vehicle can achieve a maximum driving speed of 102 km/h, ensuring timely fuel distribution over long distances.
At the heart of the truck is the WD615.87 engine, delivering 290 horsepower. This powerful engine adheres to the Euro II emission standard, balancing performance with environmental considerations.
The tank, with a capacity of 20 cubic meters, offers ample space for fuel storage and is customizable based on operational requirements. Customers can choose from carbon steel, stainless steel, or aluminum alloy materials for the tank, providing flexibility in weight and durability to suit specific applications.
CSCTRUCK China Tank Truck‘s HOWO 20 CBM diesel fuel bowser is designed for operational efficiency and safety, equipped with advanced features for secure fuel handling. Its sturdy construction, coupled with high engine performance and material customization options, makes it an ideal choice for industries such as logistics, mining, and construction.
This tanker truck exemplifies the balance of quality engineering and cost-effectiveness, making it a valuable asset for organizations seeking dependable fuel transportation solutions.
FEATURES
- Fuel Tank Capacity and Material Options:
- 20 CBM (cubic meters) fuel tank volume.
- Tank material options include carbon steel, stainless steel, or aluminum alloy for varying durability and application needs.
- Chassis and Drive Type:
- Built on a HOWO chassis.
- Features a 6×4 drive type for enhanced traction and stability, making it suitable for rugged and uneven terrains.
- Engine Specifications:
- Equipped with a WD615.87 engine model.
- Delivers a powerful 290HP (horsepower) and complies with Euro II emission standards.
- Performance:
- Offers a maximum driving speed of 102 km/h, providing efficient fuel transport over long distances.
- Manufacturer and Customization:
- Manufactured by CSCTRUCK China Tank Truck, a reputable Chinese truck manufacturer.
- Offers custom configurations to meet specific operational requirements.
SPECIFICATION
Cabin | Driving type 6×4 LHD/RHD | |
HW76 Lengthen cab, single bunk, safety belts, left-hand driving, air conditioner. | ||
Overall Dimensions(LxWxH) | 9,800×2,496×3,800 mm | |
Wheel Base | 4,300+1,350 mm | |
GVW | 25,000kg | |
Front axle loading capacity | 1 x 7,000 | |
Rear axle loading capacity | 2 x 16,000 | |
Engine | Brand | Sinotruk |
Model | WD615.87 | |
Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |
Displacement | 9.726L | |
Bore x Stroke | 126x130mm | |
Horse Power(HP) | 290 | |
Emission standard | Euro II | |
Max Speed | 102 km/h | |
Tire | 12.00-20, 12.00R20 | |
Transmission | HW19710 or HW19710 transmission, 10 forward & 2 reverse, with PTO | |
Steering | ZF8098 | |
Oil Tank | 300L | |
Tank Volume | 20 CBM | |
Brake System | Service brake: Dual circuit compressed air brake | |
Parking brake (emergency brake): Spring energy, compressed air operating on rear wheels | ||
Auxiliary brake: Engine exhaust valve brake | ||
Electrics | Operating voltage: 24V,negative grounded | |
Batteries: 2×12 V,165 Ah | ||
Horn, headlamps, fog lights, brake lights, indicators, and reverse lights. | ||
Option | Vertical Muffler, ABS, Automatic Break Clearance Adjusting Arm, Traveling Data Recorder, Metal Pipeline, Engine Protective Board. |
Tank Mounted on Chassis Brand |
---|
