Model No.: | CSCDFB010 |
Fuel Tank Volume: | 10,000 Liters |
Overall Dimensions(LxWxH): | 7,300×2,470×2,800mm |
Chassis Brand: | Dongfeng |
Drive Type: | 4×2 |
Wheelbase: | 4,500mm |
Max. Driving Speed: | 80km/h |
Engine Brand/Model: | Cummins/B160-33 |
Engine Power: | 118kW |
Emission Standard: | Euro III |
Fuel Tank Material: | Carbon steel, stainless steel, aluminum alloy |
BRIEF

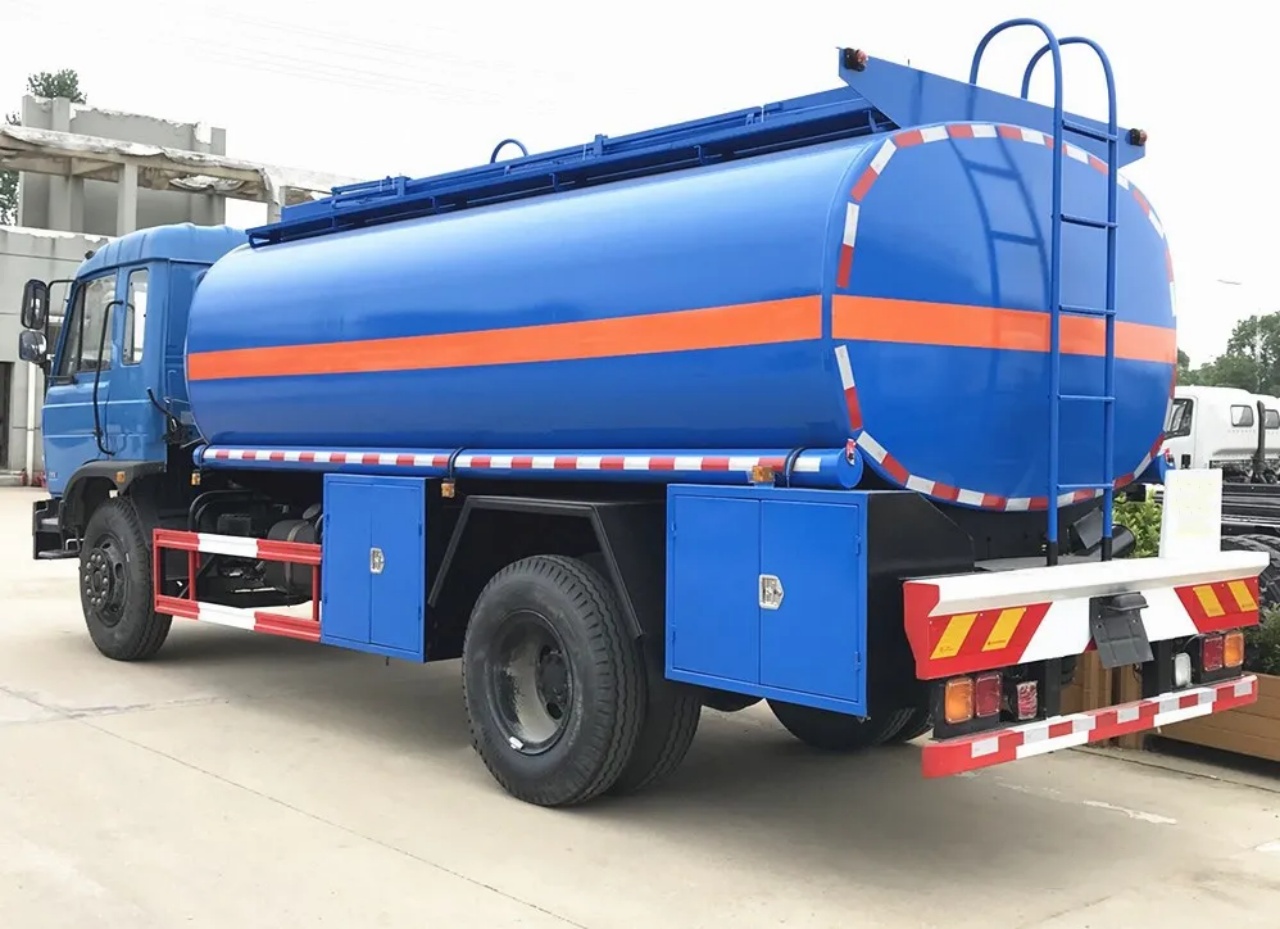

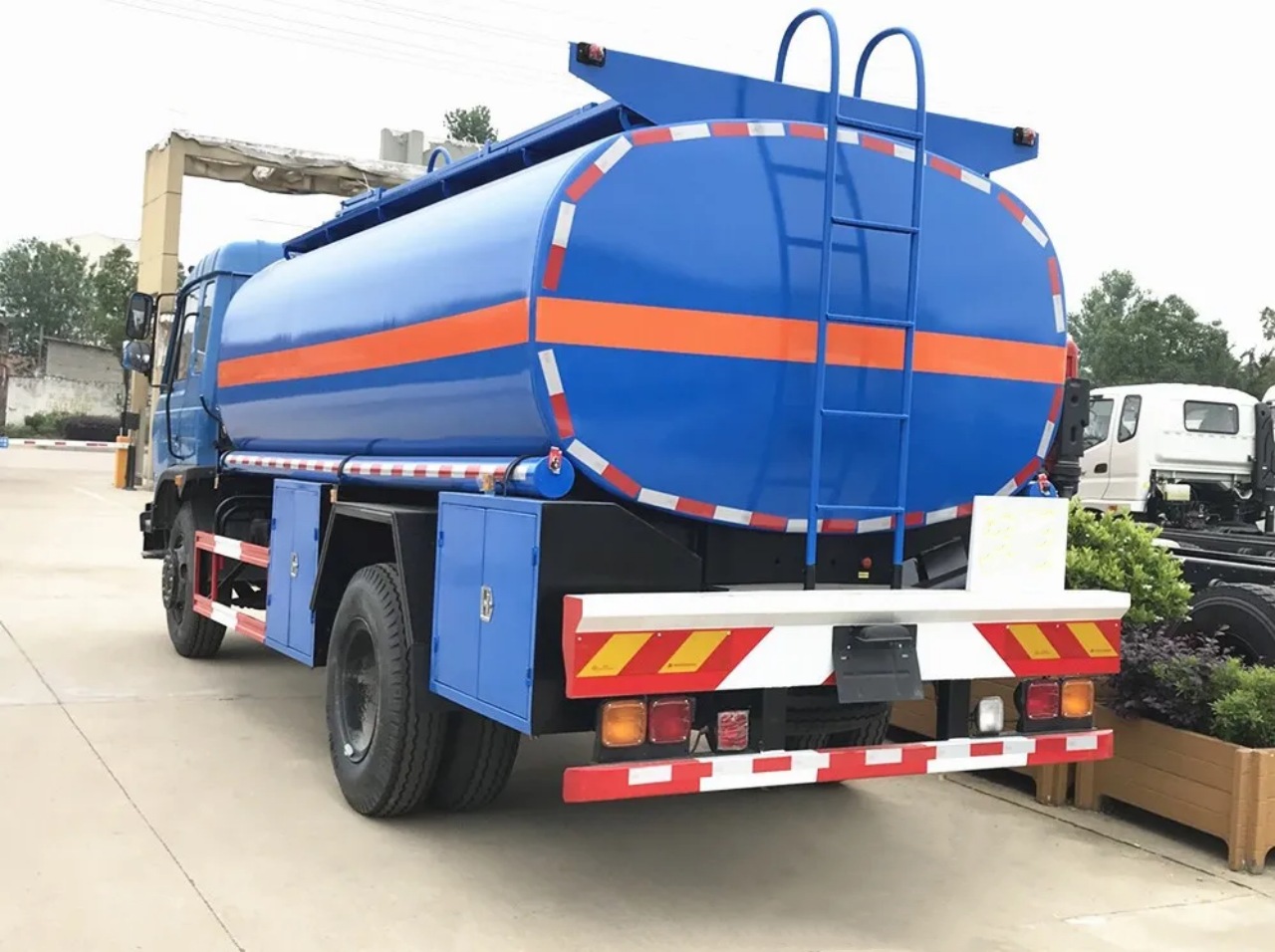

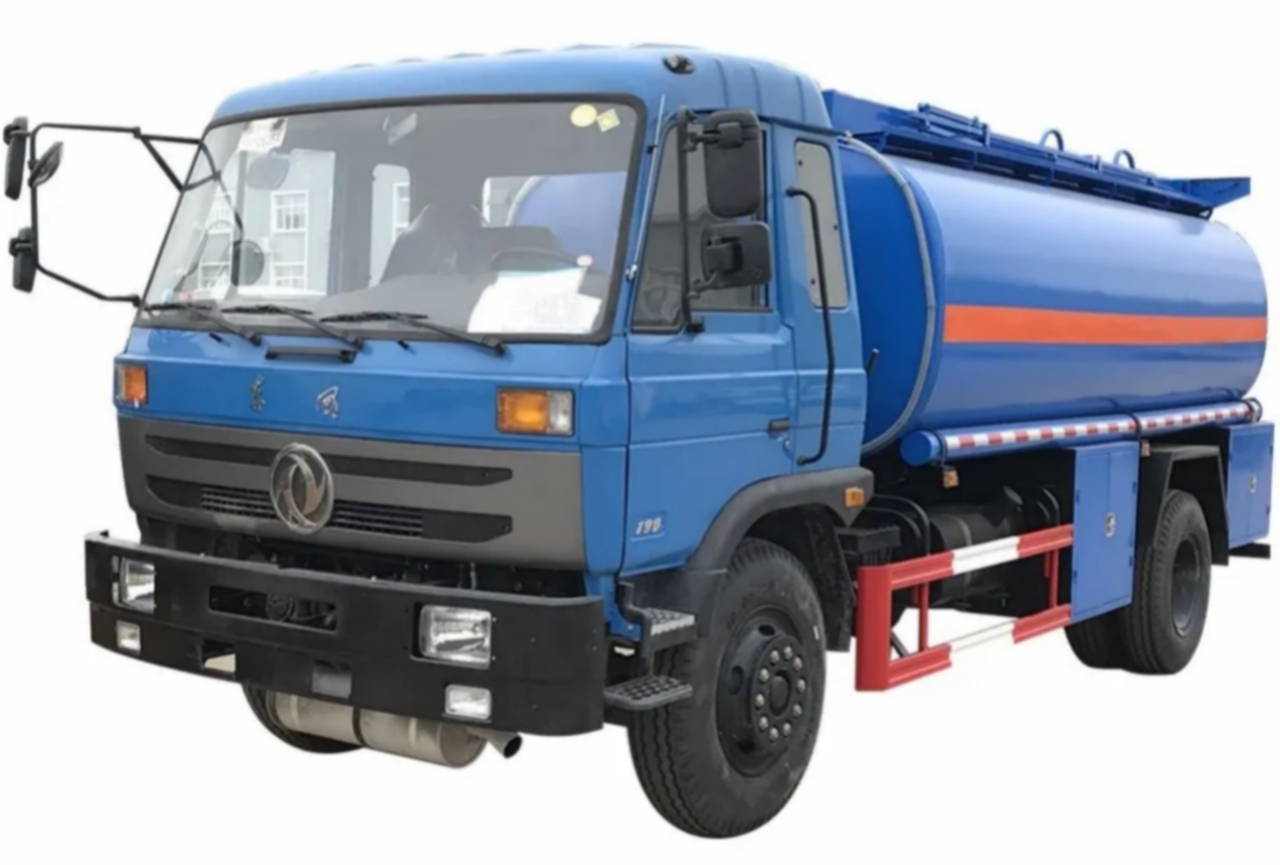

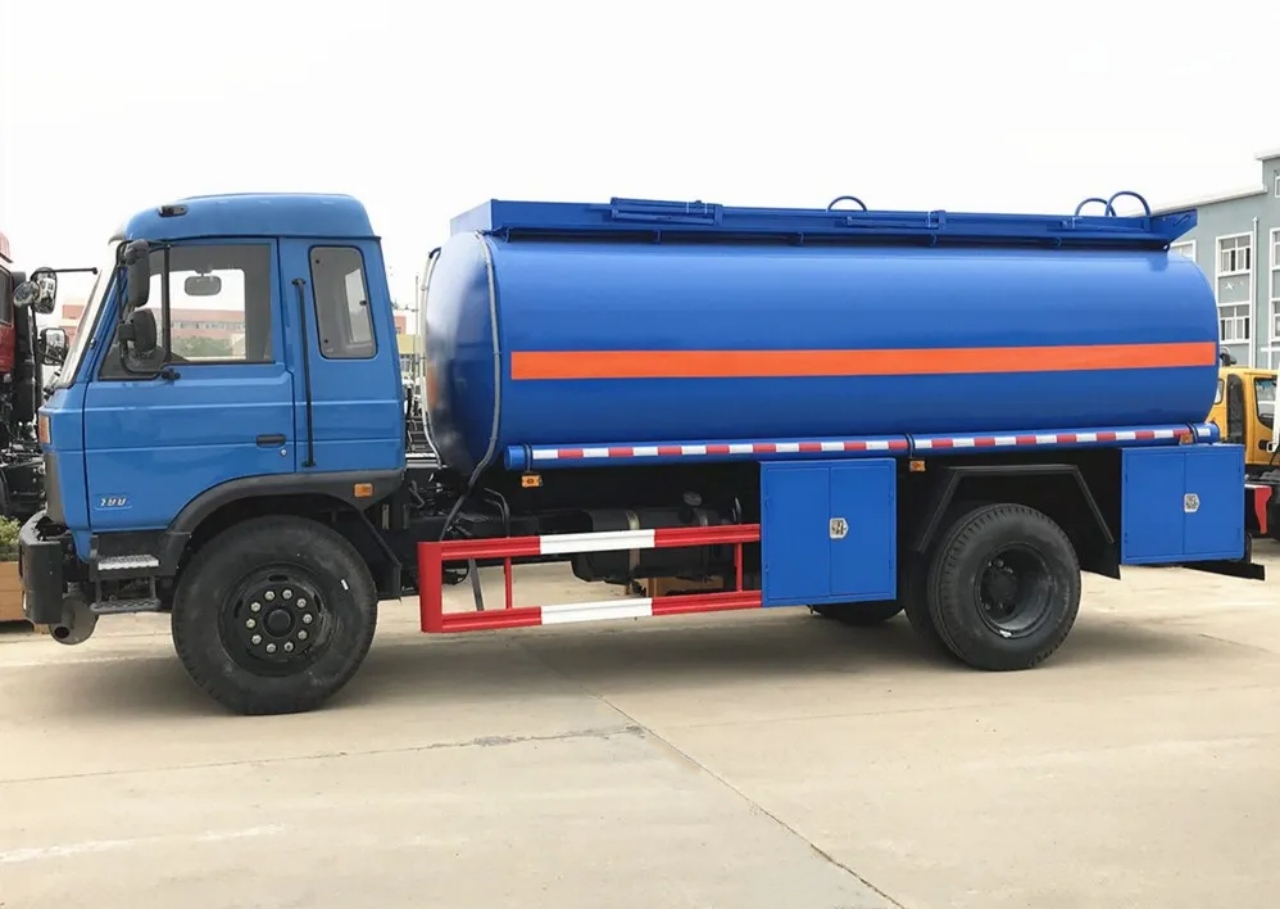

The 6-wheeler diesel fuel bowser, manufactured by CSCTRUCK China Tank Truck, is a robust and reliable fuel transportation solution designed for various commercial and industrial applications. Built on a Dongfeng chassis, this tanker operates with a 4×2 drive type, offering optimal maneuverability and efficiency for both urban and rural environments.
The bowser features a 10,000-liter fuel tank capacity, which is available in different materials, including carbon steel, stainless steel, and aluminum alloy, to cater to specific durability and weight requirements. Its maximum driving speed of 80 km/h ensures timely delivery without compromising safety or fuel economy.
Under the hood, the diesel fuel bowser is powered by the Cummins B160-33 engine, delivering an engine power of 118 kW (approximately 160 HP). This reliable and fuel-efficient engine meets the Euro III emission standard, making it an environmentally considerate choice in its class.
Designed for practicality and performance, this fuel tanker is ideal for fuel supply operations, mining sites, construction projects, and commercial refueling services. The durable build and efficient drivetrain make it suitable for carrying diesel and other fuel types over long distances and varying terrains.
In summary, the CSCTRUCK China Tank Truck 6-wheeler diesel fuel bowser combines advanced engineering with versatile functionality. It provides a high-capacity, dependable, and environmentally compliant fuel transport solution tailored to meet the demands of diverse industries.
FEATURES
- Capacity & Tank Construction:
- Fuel Tank Volume: 10,000 liters.
- Material Options: Carbon steel, stainless steel, or aluminum alloy for the fuel tank construction.
- Chassis & Drive Type:
- Built on a Dongfeng chassis.
- Drive Configuration: 4×2 drive type for efficient maneuverability.
- Engine Performance:
- Equipped with a Cummins B160-33 engine.
- Engine power of 118 kW (160 HP) and compliance with Euro III emission standards.
- Speed & Efficiency:
- Maximum driving speed of 80 km/h, making it suitable for urban and rural operations.
- Robust Design:
- Mounted on a 6-wheeler configuration, offering durability and stability for fuel transportation.
SPECIFICATION
Item |
Unit |
Parameter |
||
Product Name | 6 Wheelers 10000 Liters Diesel Fuel Bowser | |||
Chassis model | EQ1121GKJ | |||
Overall dimensions(LxWxH) | mm | 7,300X2,470X2,800 | ||
Fact cubage | L | 10,000 | ||
Net Weight | kg | 5,445 | ||
Tank dimensions | mm | 4,500×2,200×1,400 | ||
Wheelbase | 4,500 | |||
Approach/departure angle | ° | 28/20 | ||
Exhaust/hp | ml/kw | 4,260/118 | ||
Max speed | km/h | 80 | ||
Tire specification | 9.00-20 | Engine type | B160-33 | |
Traction system | 4×2 | Transmission | 5 Forward,1 Reverse | |
Number of axles | 2 | Electric system | 24v | |
Operation control  system | Power steering | Allowable passengers in the cab | 3 | |
Equipment | Can choose an oil pump, flow meter, level meter, refueling reel, filling machine, static line wheel, pneumatic bottom valve, AIP valve, preventing overflow valve, and oil and gas recovery system. | |||
Engine | Dongfeng Cummins diesel engine (Euro III) |
Tank Mounted on Chassis Brand |
---|
