Model No.: | CSCFTST045 |
Fuel Tank Volume: | 45,000 Liters |
Overall Dimensions(LxWxH): | 13,000*2,500*3,800mm |
Tank Material: | Carbon Steel/Aluminum/Stainless Steel |
Axles: | 13T/16/20/25 to BPW or Starway, Fuwa |
Compartment: | 1 to 9 |
Manhole: | 3 sets, Aluminum, Anti-Explosion |
Kingpin: | 2 inch or 3.5 inch JOST Brand |
Landing Gears: | Jost brand 2-speed Manual operating heavy duty 28 ton |
Description
BRIEF

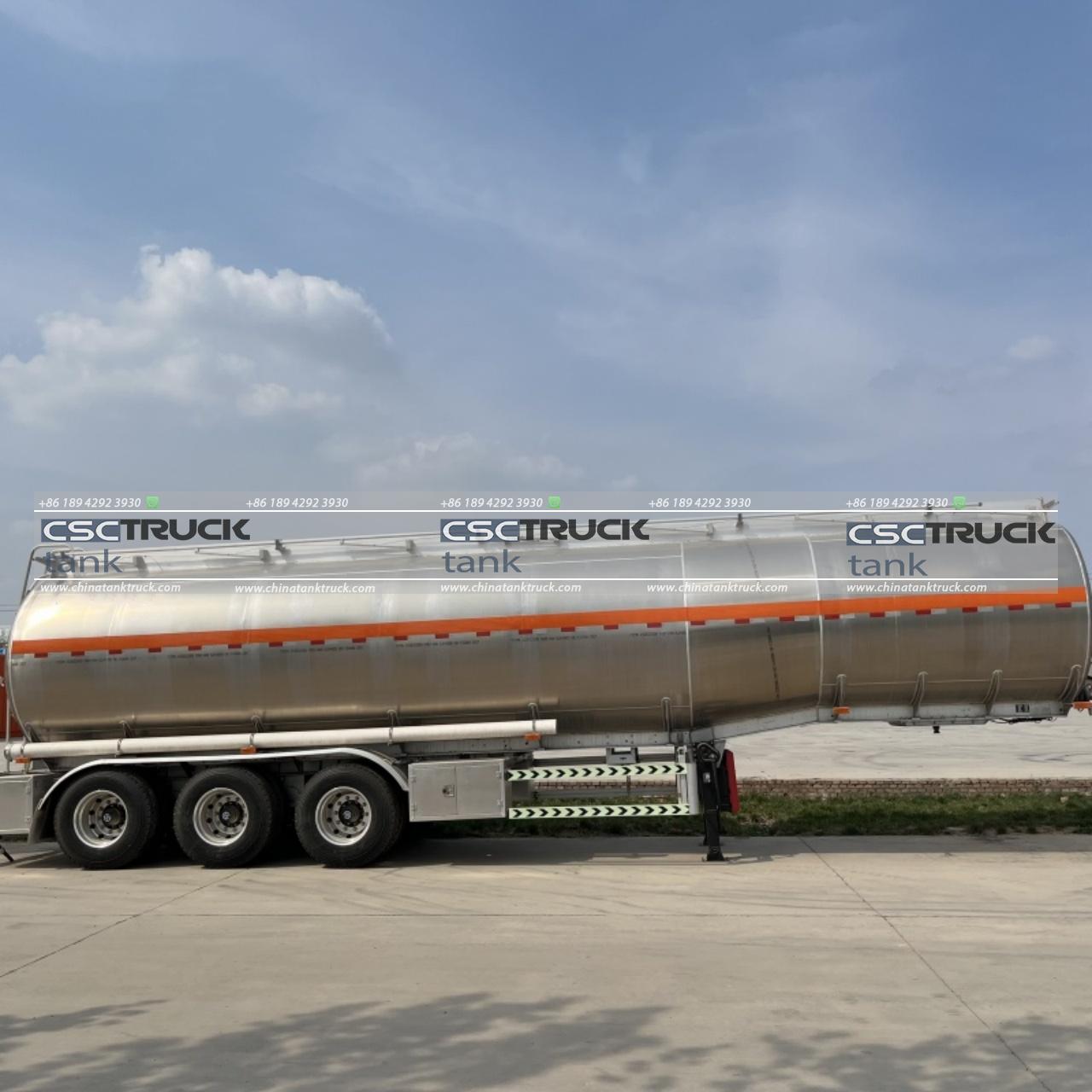

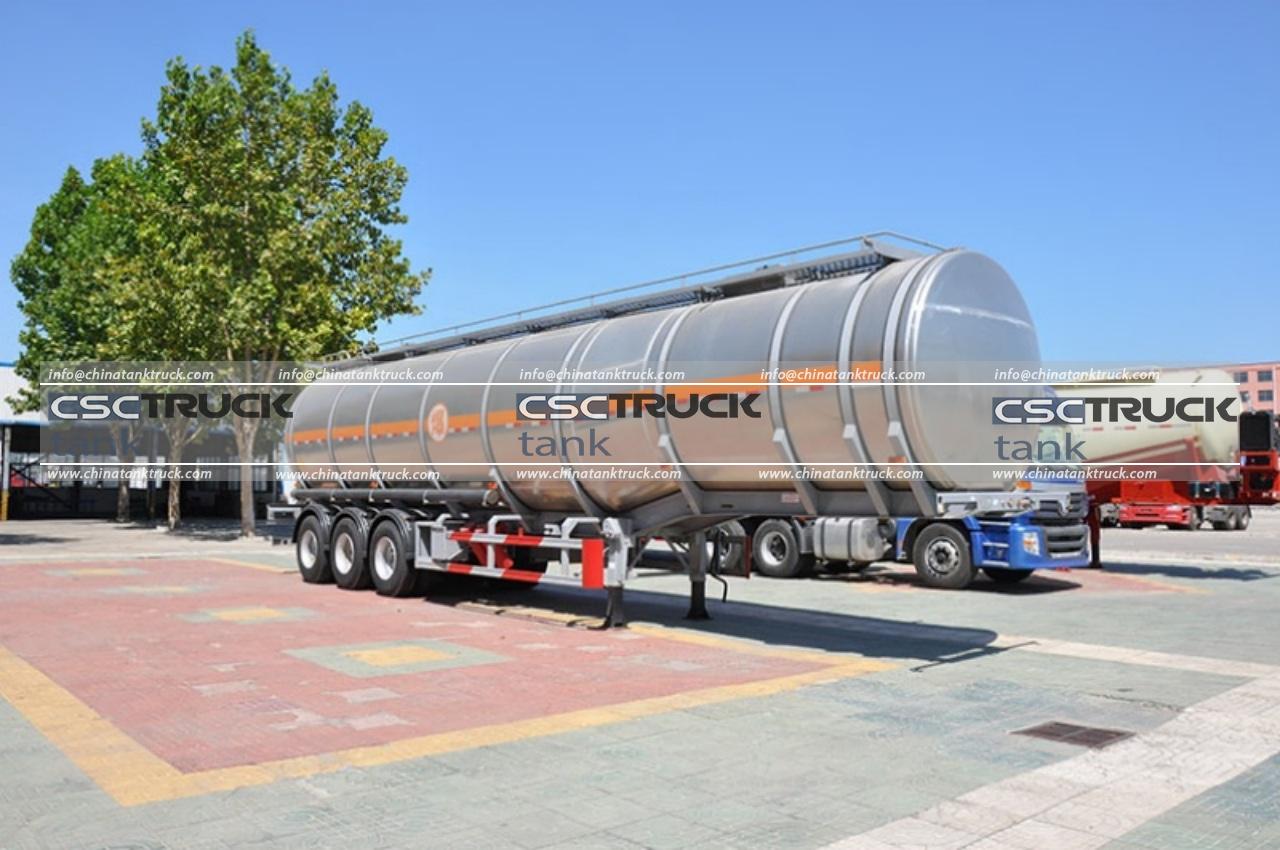

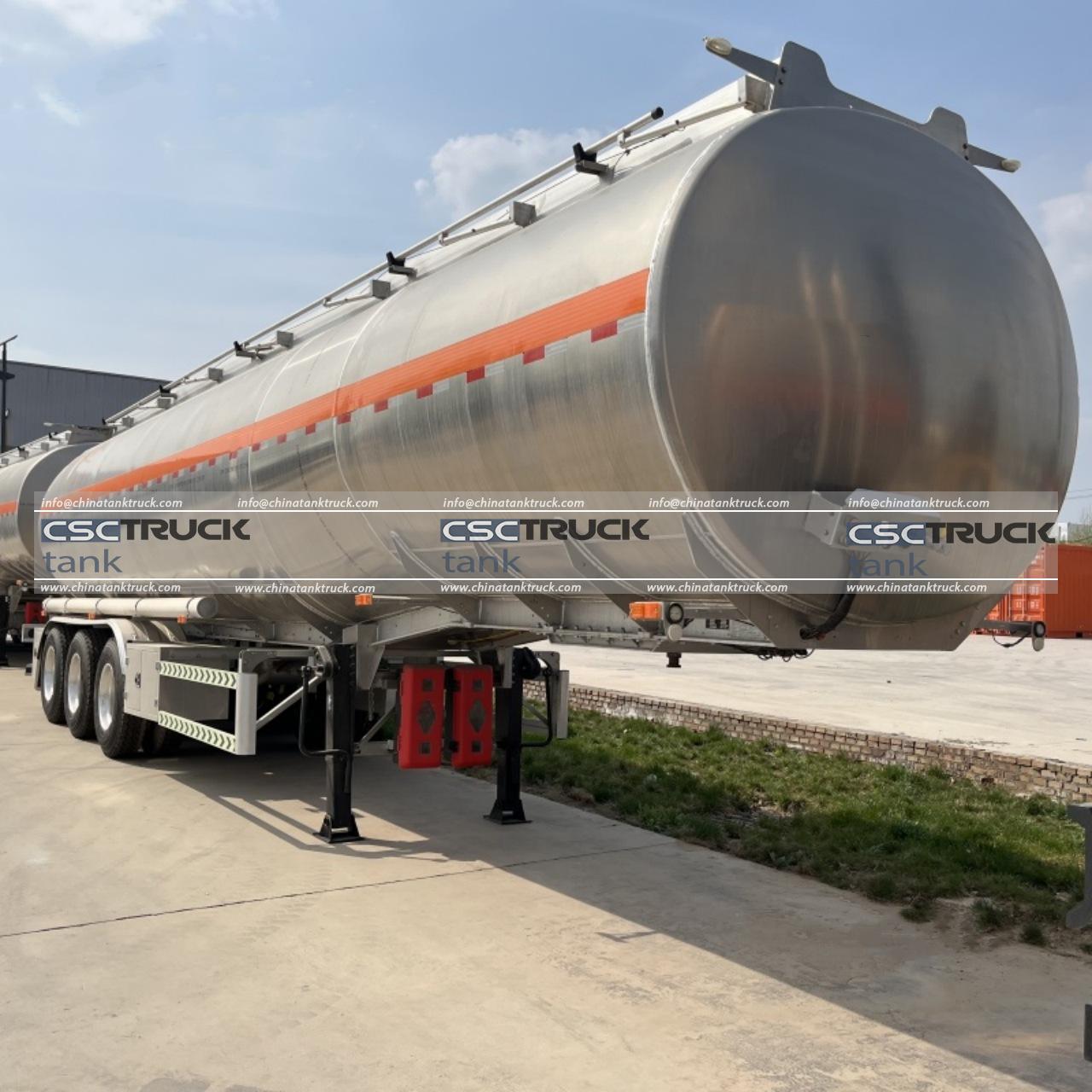

The 45,000-liter fuel tanker semi-trailer produced by CSCTRUCK China Tank Truck is a highly specialized and robust vehicle designed to safely and efficiently transport large volumes of fuel. It has a capacity of 45,000 liters and features nine compartments, allowing for transporting different fuel types or grades within a single trip.
The tanker is constructed using lightweight yet durable aluminum material, which helps reduce overall weight and ensures corrosion resistance. Each compartment is equipped with anti-explosion manholes, enhancing safety during fuel transport, especially in high-risk environments.
The discharge system includes 2-3 inch valves for efficient fuel offloading and a 4-inch aluminum bottom valve for easy control. A 3-inch rubber hose, combined with a 6mm/each discharge pipe, ensures smooth and controlled fuel flow. The trailer comes with 2 hose carriers, made of carbon steel or aluminum, providing added durability and convenience.
The semi-trailer is fitted with a JOST brand kingpin, either 2 inches or 3.5 inches in diameter, offering a reliable connection to the towing vehicle. The braking system includes a Wabco valve with an air chamber brake system, delivering high safety standards and stopping power. Additionally, the heavy-duty JOST 28-ton landing gears are manually operated with 2-speed functionality, ensuring stability during loading and unloading.
This fuel tanker trailer embodies the latest in safety, reliability, and efficiency for large-scale fuel transportation.
FEATURES
1. Capacity and Compartments: The tanker has a total capacity of 45,000 liters and is divided into 9 compartments, allowing for the separation of different types of fuel or chemicals.
2. Construction Material: The tanker is made from aluminum, providing a lightweight yet strong build, which is highly resistant to corrosion. It also features anti-explosion manholes for enhanced safety.
3. Valves and Hose System: Equipped with a 2-3 inch discharge valve and a 4-inch aluminum bottom valve for controlled unloading. It also includes 3-inch rubber hoses and 6mm discharge pipes for efficient fuel transfer.
4. Heavy-Duty Components: The tanker uses JOST brand Kingpins (available in 2-inch or 3.5-inch options) for secure trailer coupling, and JOST heavy-duty 28-ton landing gears for stability when stationary.
5. Braking and Safety Systems: The braking system is equipped with a Wabco Valve with an air chamber brake system, providing reliable and responsive braking for the tanker, and enhancing road safety.
SPECIFICATION
Overall Dimensions(LXWXH)
|
13,000×2,500×3,800mm
|
Material
|
Carbon Steel/Aluminum/Stainless Steel
|
Apply
|
Fuel, Oil, etc Liquid Cargo Transporting Apply
|
Tire
|
11.00R20,12R22.5,12.00R20,385/65R22.5 Trangle/Hankook/Brigestone brand
|
Axles
|
13T /16/20/25 to BPW or Starway, Fuwa brand
|
Tank Thickness
|
5mm
|
Dish End Thickness
|
6mm
|
Buffle Thickness
|
4mm
|
Compartment
|
1 to 9
|
Manhole
|
3 sets, Aluminum, Anti-Explosion
|
Discharge Valve
|
2-3 inch
|
Bottom Valve
|
4 inch Aluminum
|
Discharge Pipe
|
3 inch rubbber hose, 6mm/each
|
Hose Carrier
|
2 pcs Carbon Steel/Aluminum
|
Kingpin
|
2 inch or 3.5 inch JOST Brand
|
Brake Syestem
|
Wabco Valve with air chamber
|
Landing Gears
|
Jost brand 2-speed Manual operating heavy duty 28 ton
|
Suspension
|
Starway Vehicle Bogie suspension, spring suspension, Air suspension
|
Extinguisher
|
3mm, 4mm, 6mm diamond steel plate
|
Other parts
|
2 tool boxes, 2 spare tire carrier
|
