Dry bulk tanker trucks are specialized vehicles designed for transporting powdered and granular materials. They integrate storage, transfer, and unloading operations for solid powders and granular goods such as fly ash, cement, lime powder, mineral powder, grains, etc. These trucks have 2 unloading methods: pneumatic unloading and gravity unloading. When using pneumatic unloading, materials can be conveyed over a certain distance or to a specified height into storage containers.
Classification varies depending on the perspective. The most common classification is by transport medium and tank structure:
- By transport medium, they can be divided into: Bulk flour trucks, bulk feed trucks, bulk cement trucks, dry-mixed mortar trucks, etc.
- By tank structure, they can be divided into: horizontal dry bulk tanker trucks, vertical dry bulk tanker trucks, and tilting (lifting) dry bulk tanker trucks.
Comparison of Advantages and Disadvantages of Tank Structure
| Structure | Horizontal Dry Bulk Tank Truck | Vertical Dry Bulk Tank Truck | Tilting Dry Bulk Tank Truck |
|---|---|---|---|
| Advantages | 1. Lower center of gravity, more stable; 2. Larger tank volume; 3. Faster unloading speed; 4. Easier to operate during work. | 1. Suitable for a wide range of materials; 2. Very low material residue. | 1. Fastest unloading speed; 2. Extremely broad material compatibility; 3. Negligible residual material; 4. Simple internal tank structure. |
| Disadvantages | 1. Limited to good fluidizing materials. | 1. Slightly higher center of gravity than horizontal type; 2. Longer unloading time; 3. More complex manufacturing process and higher cost. | 1. Slightly thicker tank wall; 2. Higher one-time investment; 3. Requires more demanding work site conditions. |

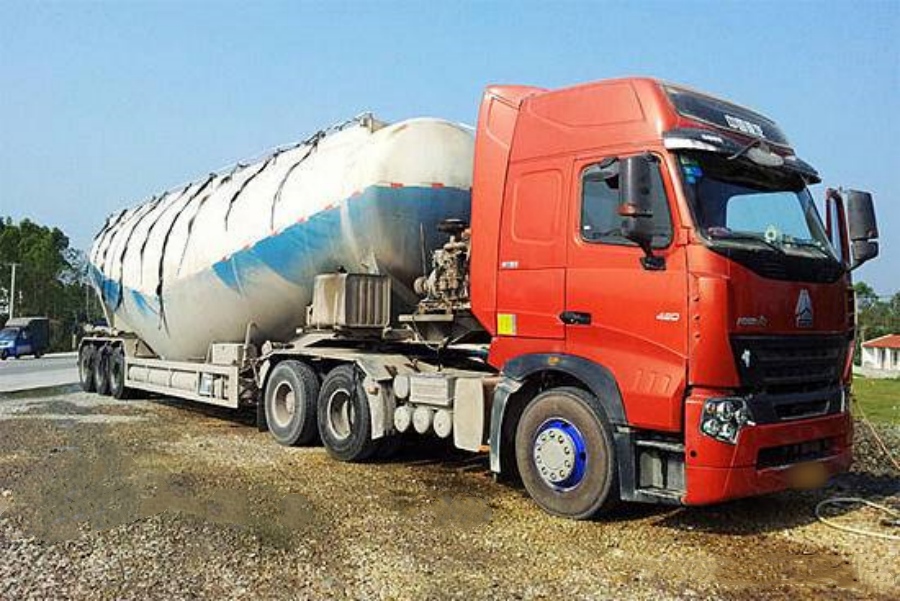

● Analysis of Horizontal Dry Bulk Tank Truck
As the name suggests, horizontal dry bulk tanker trucks have tanks positioned horizontally. Inside, a V-shaped fluidized bed aids in unloading. When compressed air is introduced below the fluidized bed, the material flows toward the lowest point and exits through the discharge outlet into a storage container.
Advantages:
- Lower vehicle center of gravity, providing better stability during driving.
- Larger tank volume.
- Faster unloading: usually equipped with a single silo; short pressurization time inside the tank allows quick unloading.
- Easy to operate during work.
Disadvantage:
- Only suitable for transporting bulk powders with good fluidity.

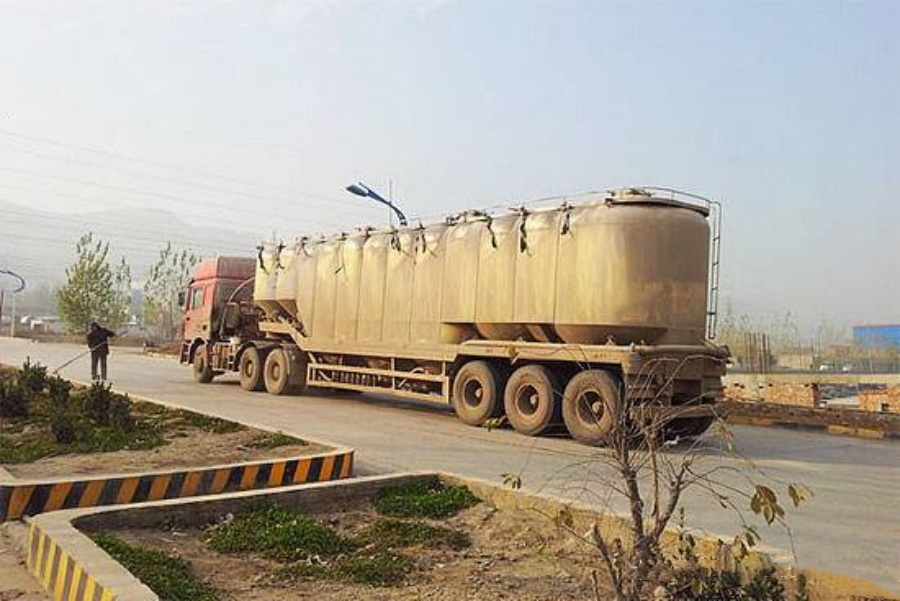

● Analysis of Vertical Dry Bulk Tank Truck
The vertical dry bulk tanker truck features a tank structure composed of multiple inverted cones and a horizontally placed cylinder. Each cone has a fluidized bed at the bottom with a steep angle, ensuring the material inside slides smoothly to the bed. When compressed air is introduced, the material flows through pipelines to designated storage containers.
Advantages:
- Compatible with a wide range of materials: Powders, granules, and even lumpy materials. Pneumatic unloading can be used for powders and granules; gravity self-unloading for lumps.
- Very low residual material: the steep cone angles ensure complete flow, and the small fluidized bed area results in minimal leftover material.
Disadvantages:
- Higher center of gravity compared to horizontal type.
- Longer unloading time than horizontal trucks with the same capacity, due to the multi-compartment structure. After each compartment is unloaded, pressure must be rebuilt to unload the next one.
- More complex manufacturing process and higher cost compared to horizontal types.

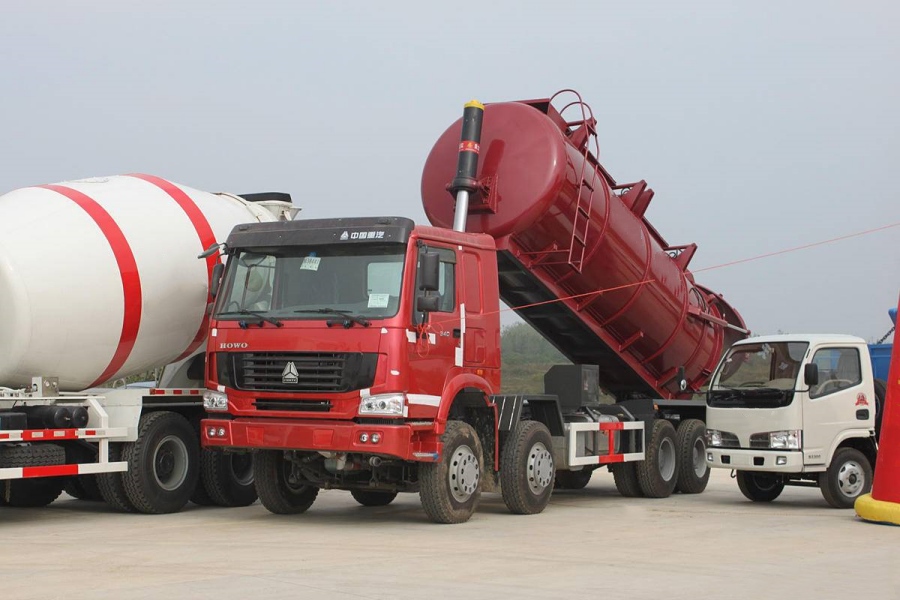

● Analysis of Tilting (Lifting) Dry Bulk Tank Truck
The tilting (lifting) dry bulk tanker truck has a relatively simple tank structure. A hydraulic lift cylinder is installed at the front of the tank, and a conical structure is welded to the rear of the cylindrical tank. The fluidized bed and discharge port are located at the bottom of the cone.
Advantages:
- Single-compartment structure allows for fast unloading—faster than both horizontal and vertical types. When lifted, it functions like a single silo of a vertical truck.
- Broad material compatibility: Powders, granules, and lumps. Supports both pneumatic and gravity unloading.
- Very low residual material due to the small fluidized bed area—nearly negligible. This is especially advantageous for food-grade and high-quality materials with strict standards.
- Simple internal tank design: Easy to clean, disassemble, and reconfigure the fluidized bed, making it suitable for transporting multiple material types with the same tank.
Disadvantages:
- Slightly thicker tank wall compared to horizontal and vertical types.
- Higher upfront cost due to the addition of a hydraulic lifting system.
- High site requirements: Needs level ground, sufficient height clearance, and low wind conditions for safe operation.
