▎Specialized Hazardous Materials Version Tractor Shows Clear Professional Advantages:
This Foton Auman EST series tractor, aside from the front yellow warning sign indicating “Hazardous Materials“, has little difference in appearance from standard long-haul logistics trucks.

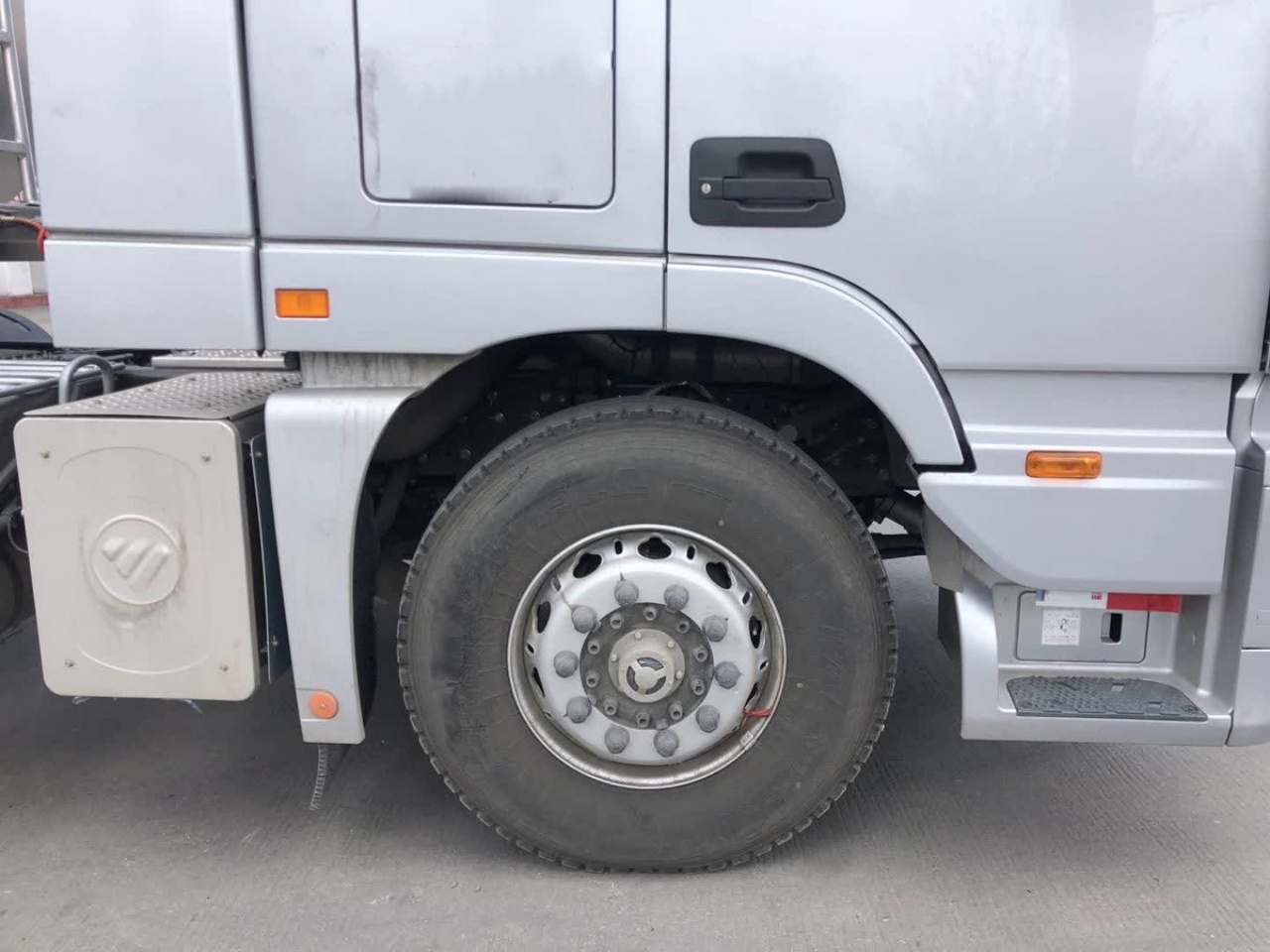

The front steering axle of this Auman EST series is equipped with disc brakes—a standard configuration for hazardous materials transport vehicles—and also features maintenance-free ConMet wheel hubs. For lightweight design, the truck uses steel wheels with composite bolt patterns and parabolic leaf spring suspension suitable for long-haul logistics transport.

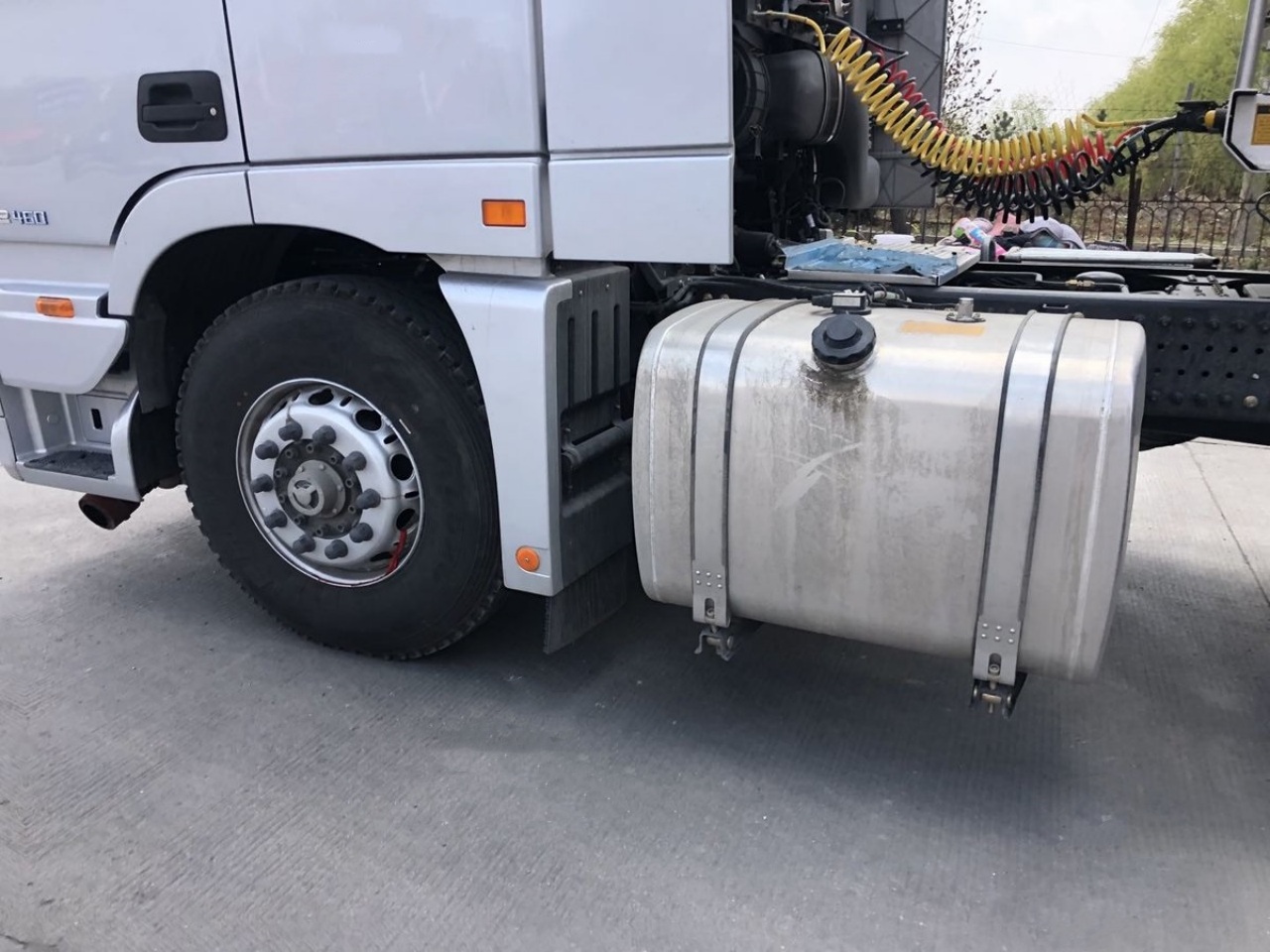

To reduce potential safety hazards during oil transport, the exhaust pipe with a fire cap is placed beneath the step. This hazardous materials truck is fitted with a 400-liter aluminum fuel tank, and the reason for not selecting a larger capacity tank is based on the company’s dedicated routes, which focus on fixed-point fuel deliveries within 1,000 km.
Since it is used for medium- and short-distance transport, this Foton Auman EST 49 CBM fuel tanker truck is equipped with a 40-liter urea tank. Its compact design also improves long-haul usability.
Areas for Improvement:

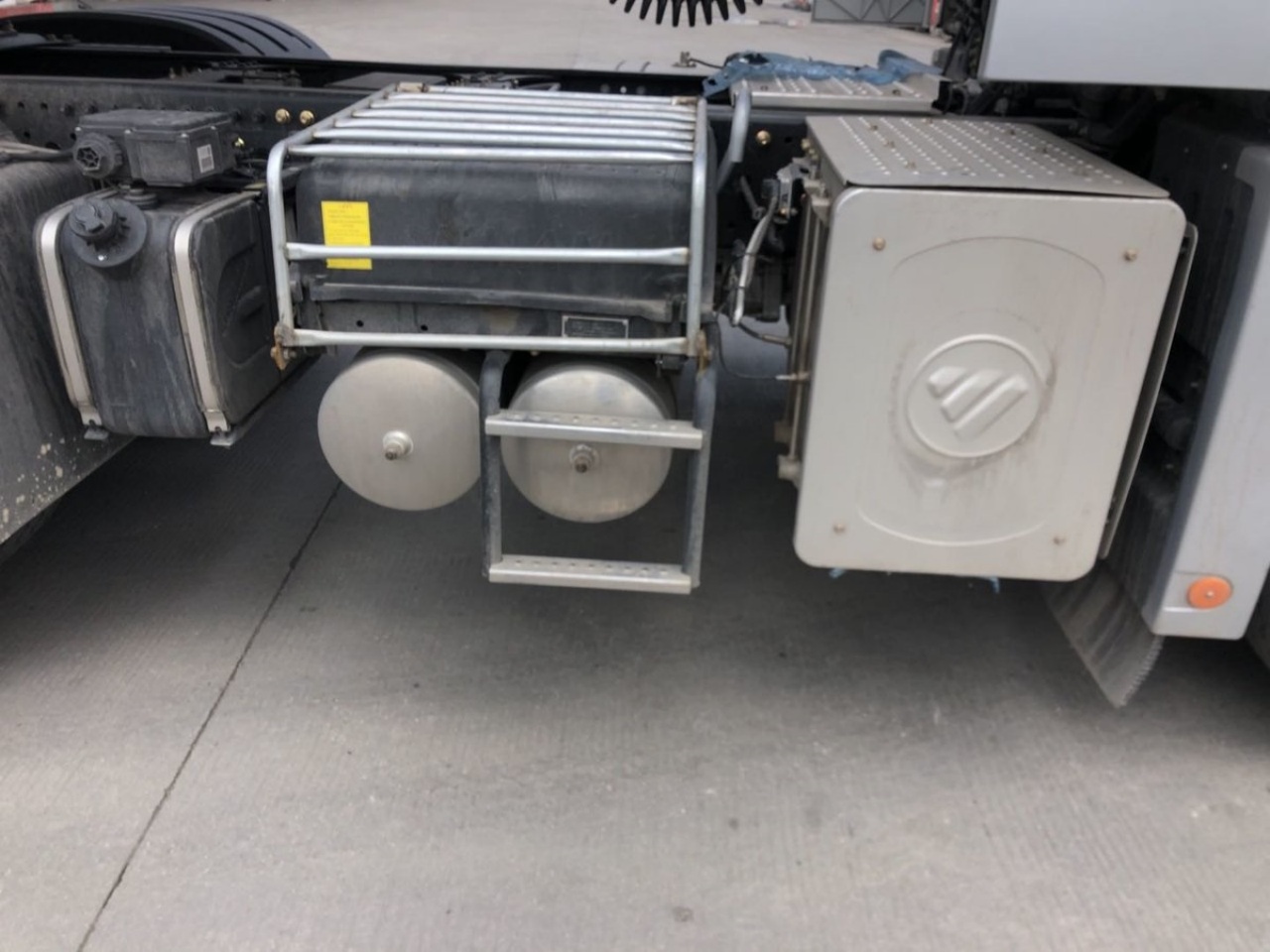

The step located beneath the battery and outside the aluminum air storage tank is convenient for getting in and out of the vehicle. However, to reduce the risk of damage to the battery’s plastic casing, its layout or protective measures should be improved.

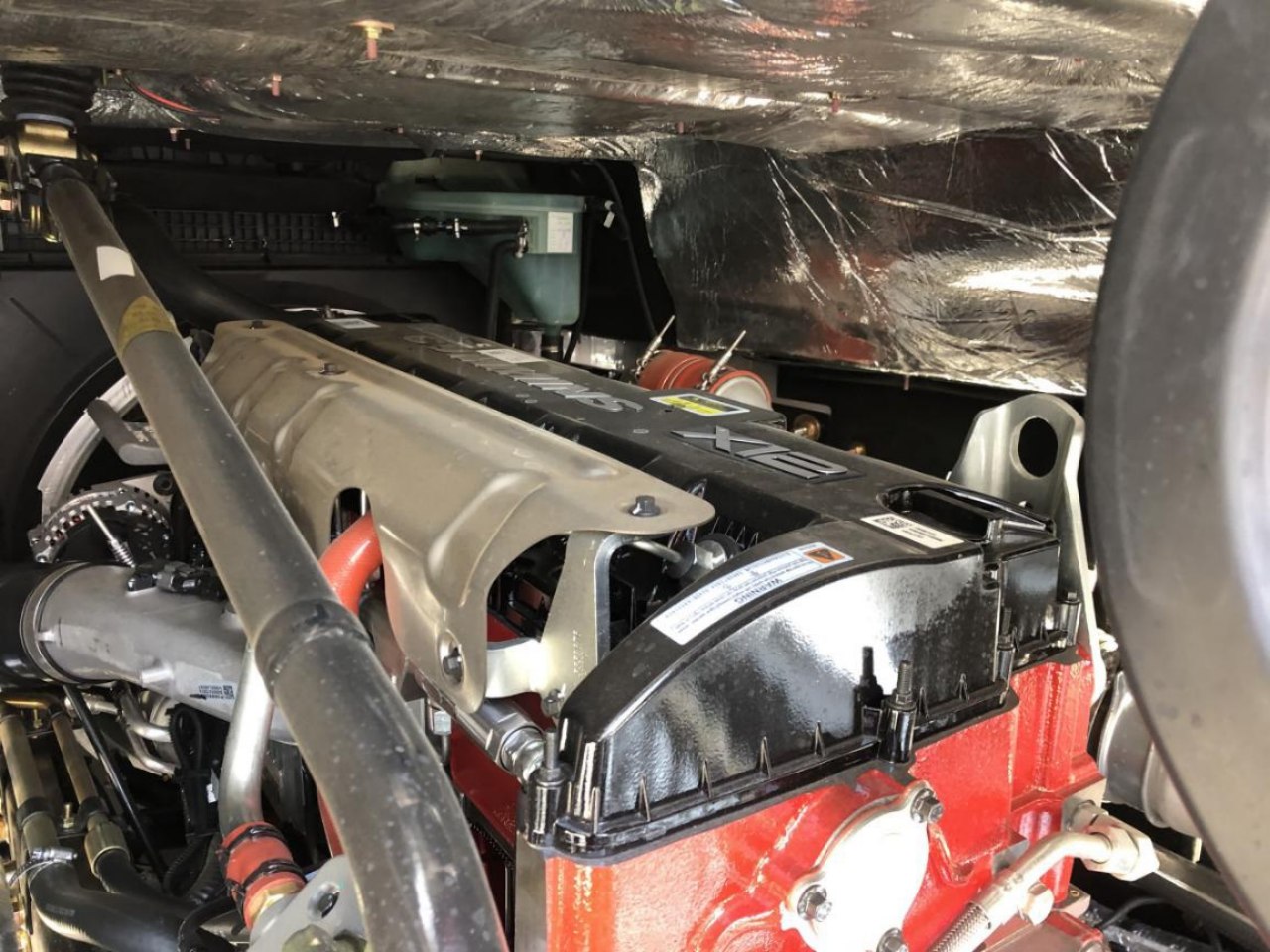

This Foton Auman EST 49 CBM fuel tanker truck is powered by a Foton Cummins X12 engine, equipped with an integrated I-brake engine braking system. This provides a significant safety advantage for everyday transport on primarily flat routes.
It’s worth noting that, due to varying regional policies, this truck has not been equipped with a hydraulic retarder, despite it being a mandatory configuration for hazardous materials trucks in some regions.
It must be clarified that current regulations do not mandate the installation of a hydraulic retarder. The engine’s built-in compression braking system is also a viable option.

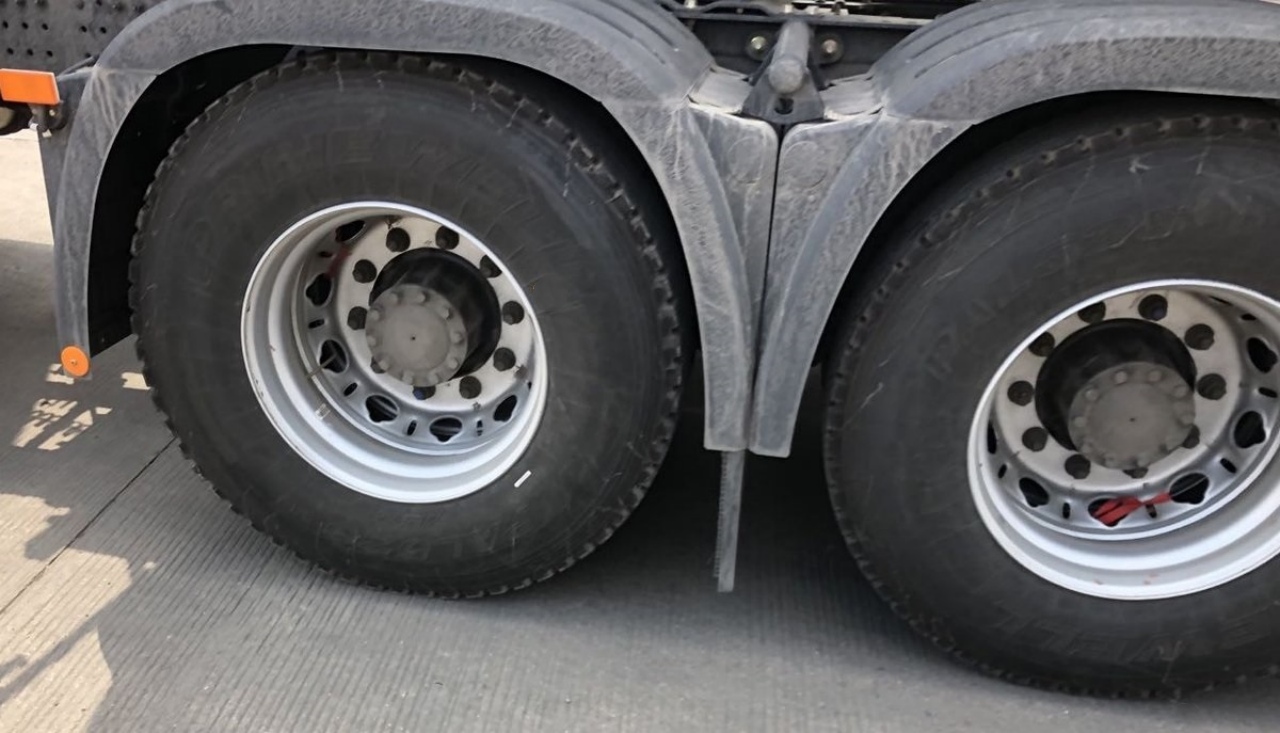

The 469 drum brake rear axle uses a 3-leaf steel spring suspension configuration. With a main reduction ratio of 3.7, fuel consumption remains stable at engine speeds between 1,100 and 2,000 rpm. This model is equipped with an 80 km/h speed limiter, and the company also utilizes a vehicle speed monitoring system, ensuring operational safety.
Optional configurations for this truck include Alcoa lightweight aluminum wheels, tire pressure monitoring, lane departure warning, and electronic stability control (ESC).
▎Advantages of Disc Brake Axles:

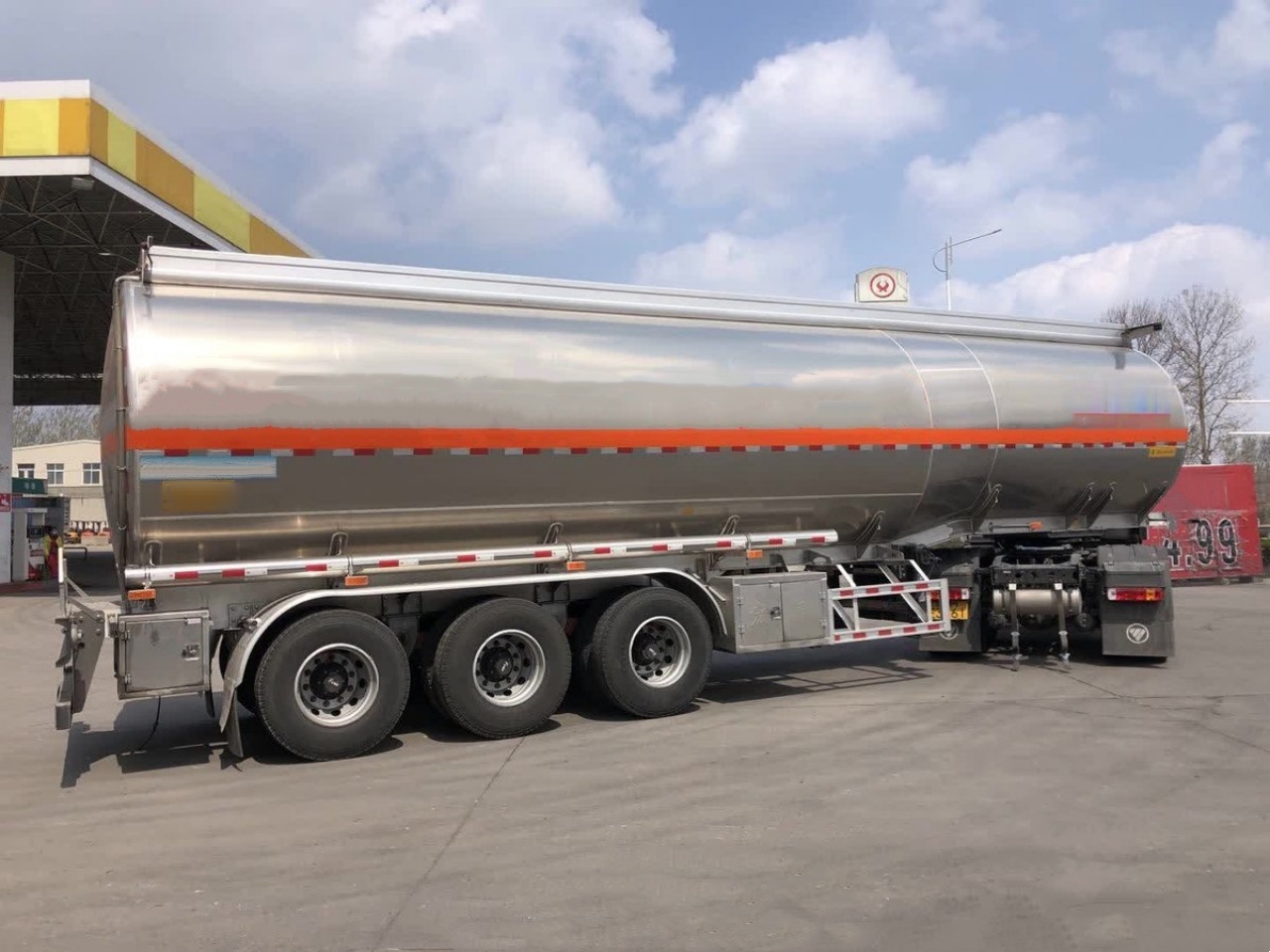

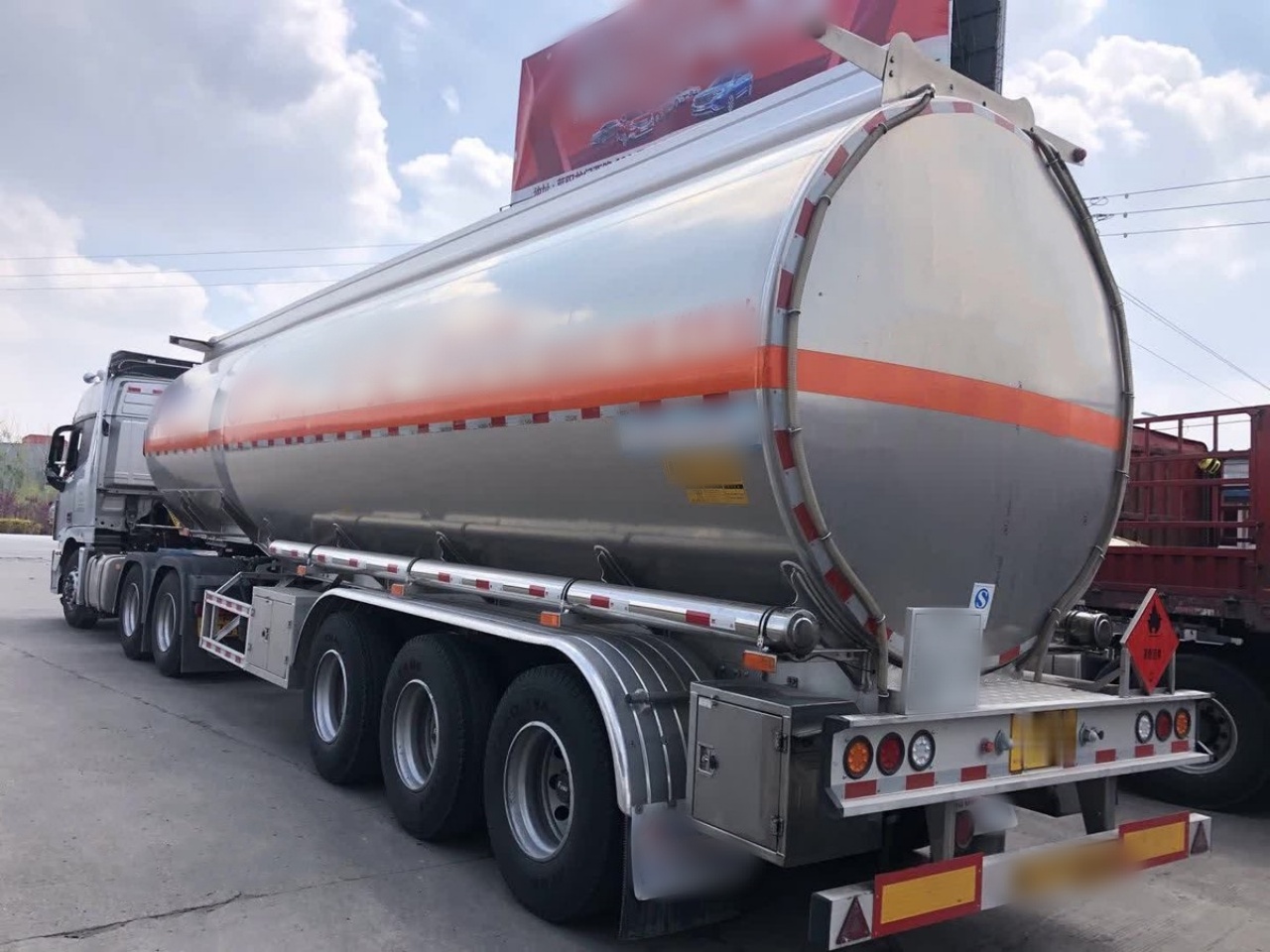

At first glance, this truck appears quite similar to standard oil transport vehicles. The aluminum alloy tank has a total capacity of 49 cubic meters and features an internal structure with 7 independent baffle compartments. This significantly reduces fuel sloshing caused by sudden braking or rough roads. Both the main tractor and trailer are equipped with insulated grounding rubber straps.
The side underrun protection uses lightweight alloy materials, with reliability and safety considered from the start when selecting optional configurations for long-term use.
Since fuel transport doesn’t generate intense vehicle vibrations, the truck adopts the mainstream steel spring suspension configuration common in fuel transport, which helps reduce purchase costs.

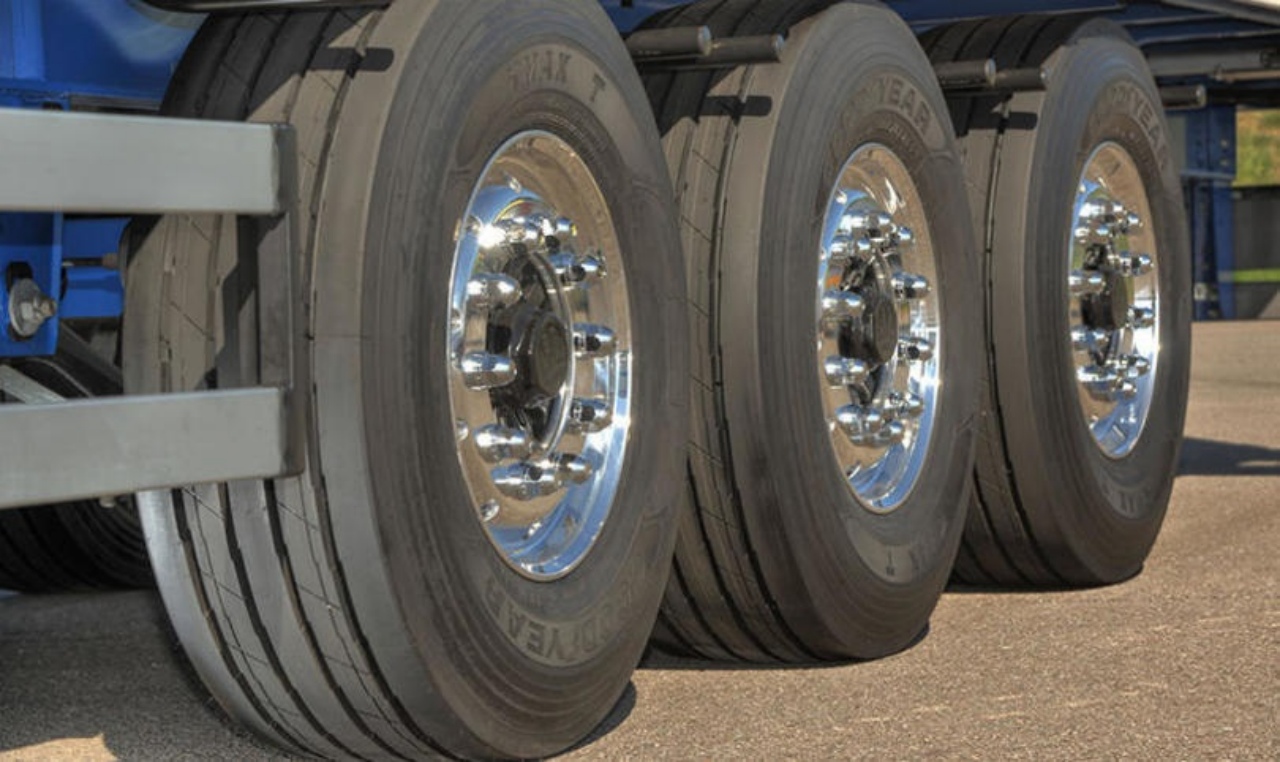

Mainstream logistics companies often opt for 12.00R22.5-sized tubeless tires for 2 main reasons:
- Bulk purchases of standardized tire sizes help significantly reduce overall transportation costs.
- Although these tires have wider tread surfaces compared to 425 wide single tires, they offer greater safety. In case of a flat tire on 1 side, the other can still provide partial support.

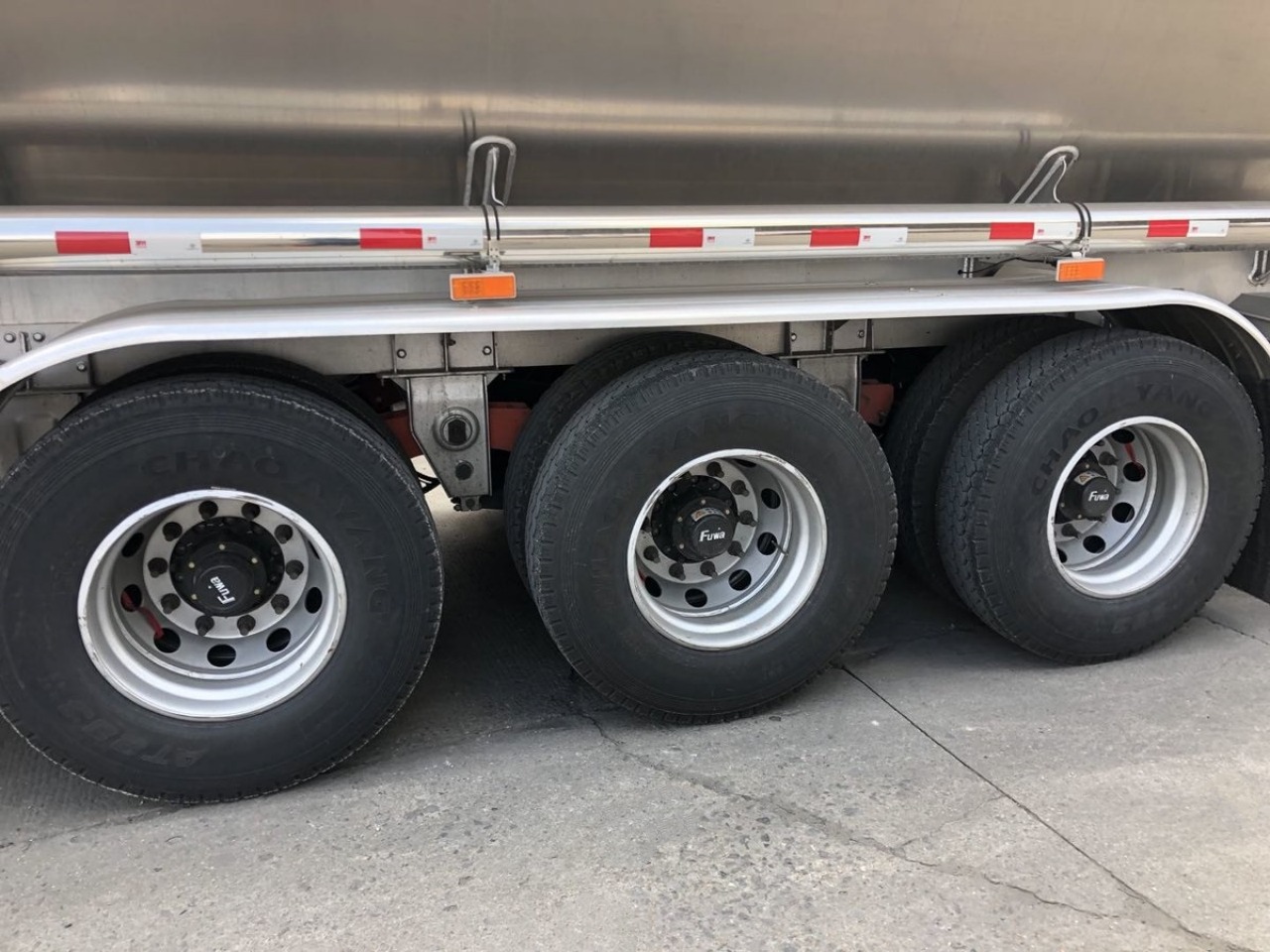

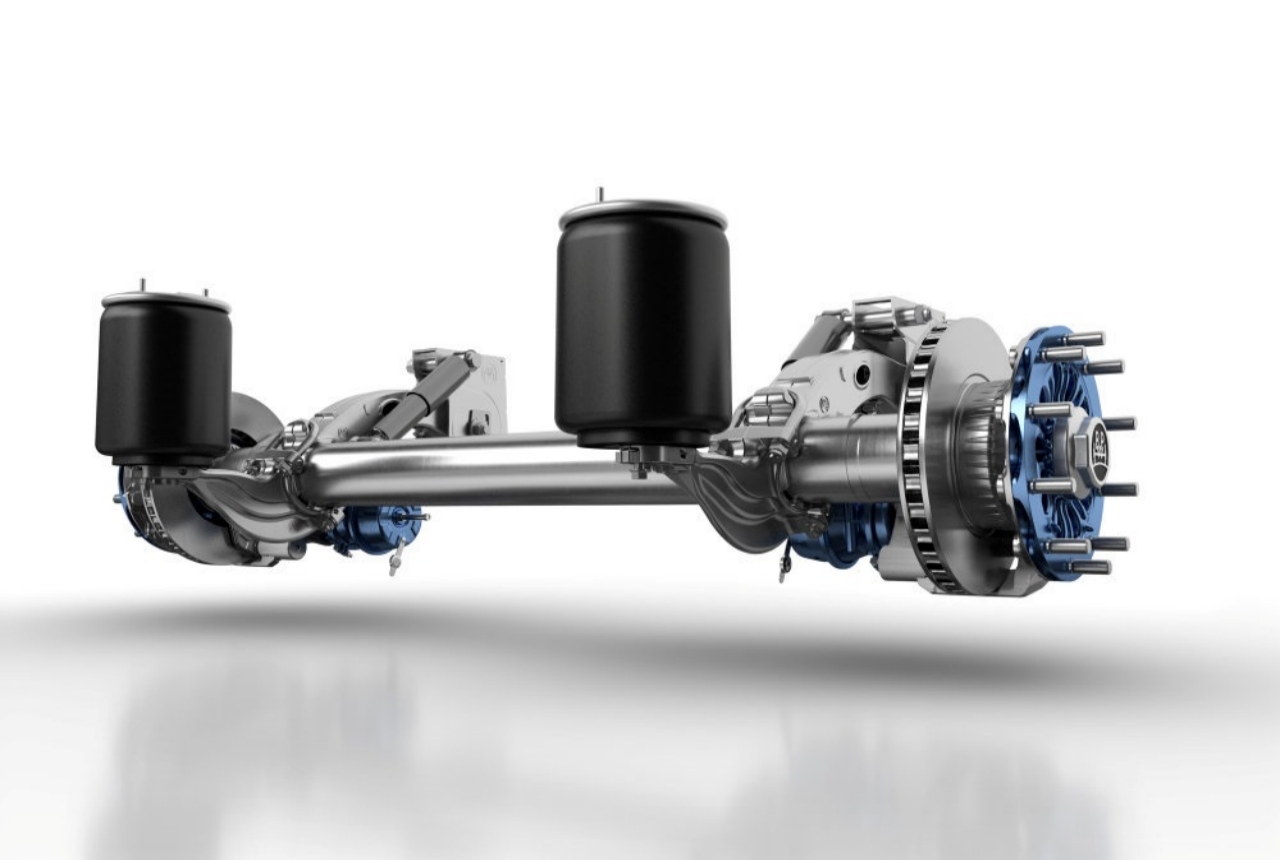

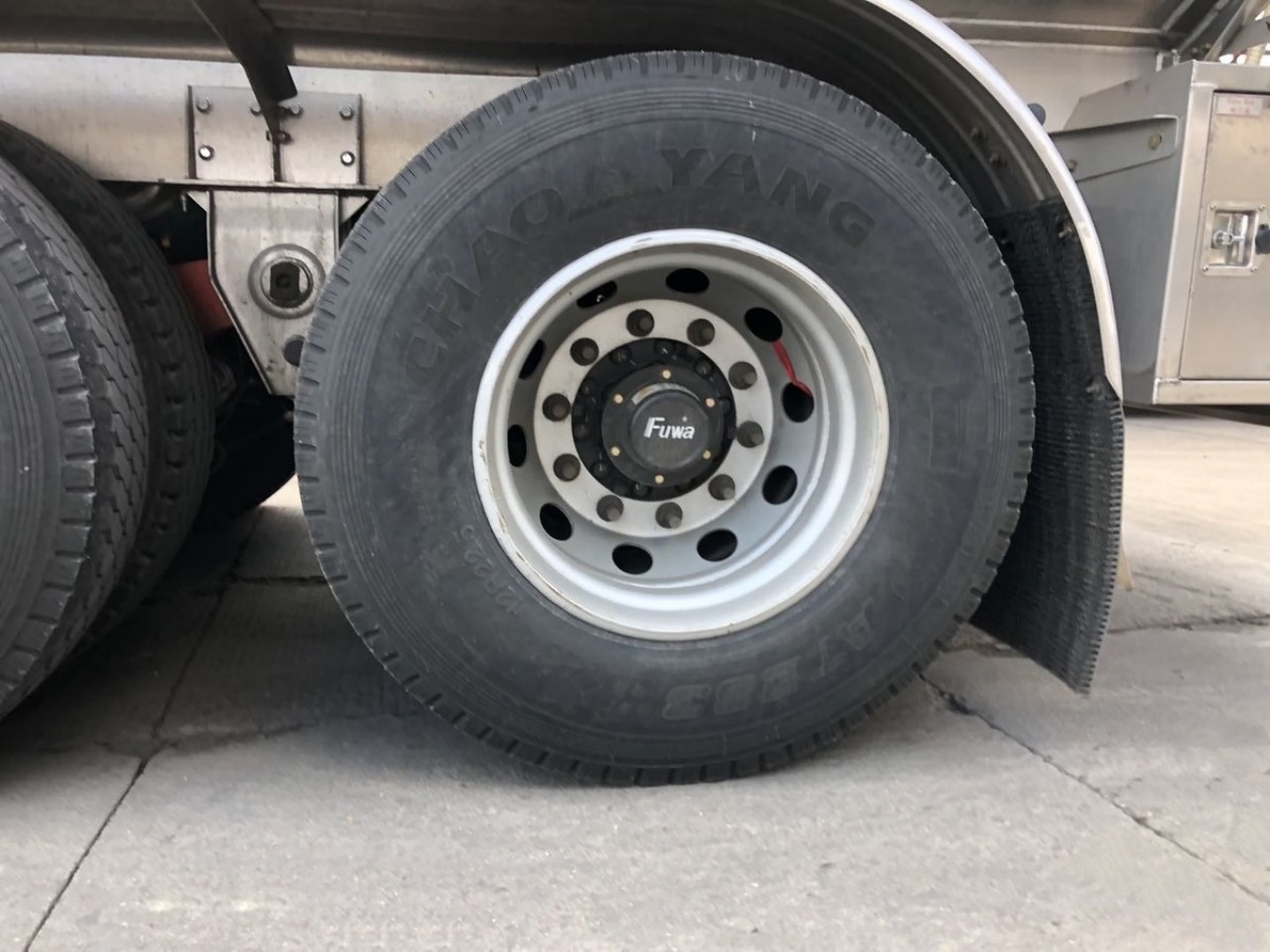

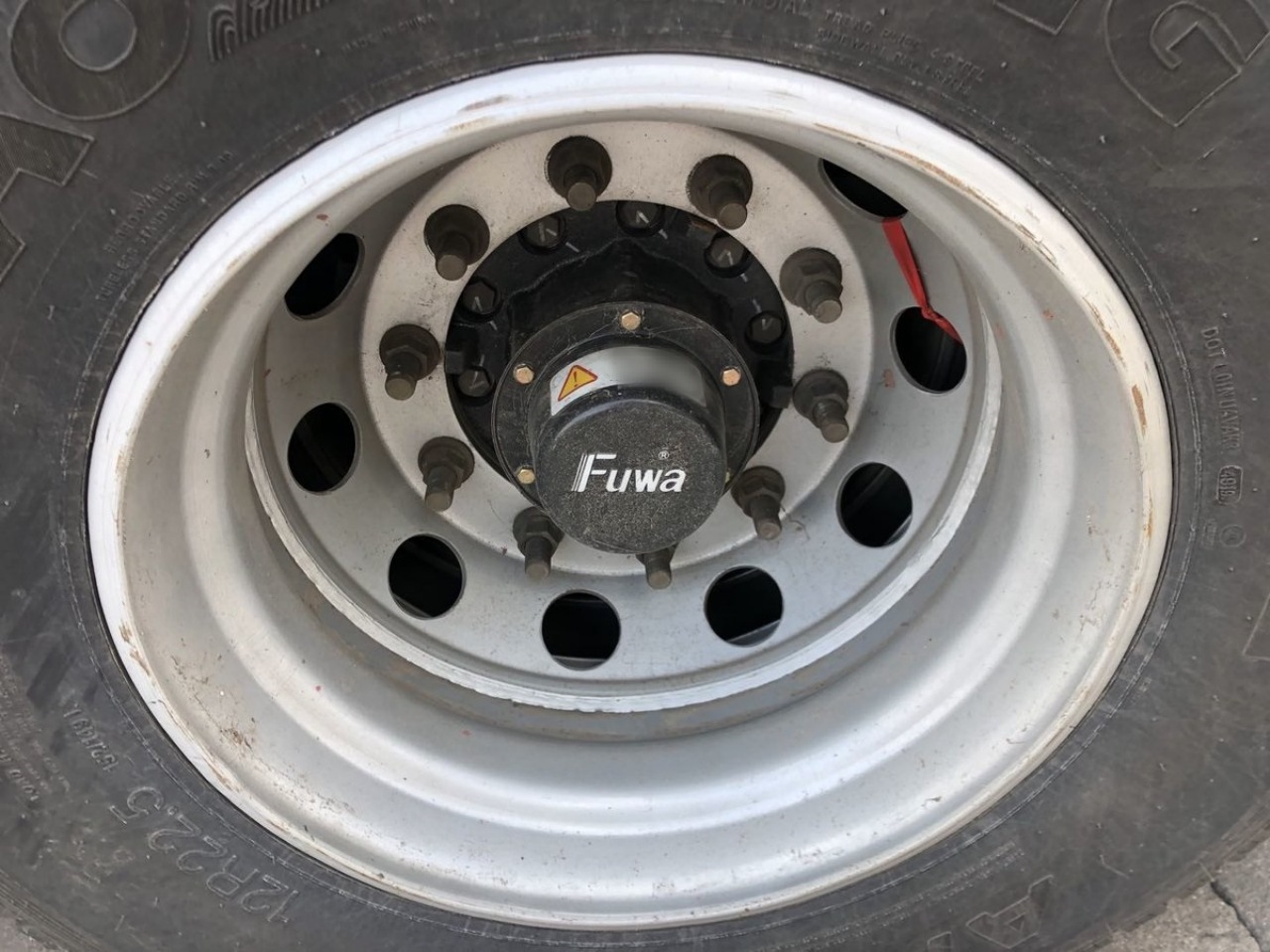

This truck is fitted with the 2020 disc brake axle model from Fuwa Axle, and for bulk purchases, the manufacturer provides a dedicated after-sales service network.
▎Precautions for Using Disc Brake Axles:
1. Road conditions are especially important:
Disc brake axles are mainly intended for long-distance highway logistics. Their reliability drops significantly in harsh environments like quarries or coal mines. These environments demand extremely safe driving operations. Drivers must make full use of the hydraulic retarder or engine compression brake for optimal braking.
2. Do not use water spray tanks:
Many trailers that transport bulk goods add large-capacity water tanks to their frames to cool the axles.
However, using water spray systems on disc-braked trailers can lead to cracked brake pads, reduced braking performance, and a shorter lifespan. These issues greatly increase long-term maintenance costs.
3. EBS is mandatory:
Vehicles with disc brake axles must be equipped with an Electronic Braking System (EBS), which offers shorter brake response times and quicker pressure build-up. This effectively addresses the issues of delayed mechanical braking and poor brake effectiveness.
While regular maintenance is important to extend service life, drivers must also practice safe operation during daily use to prevent problems before they arise.
