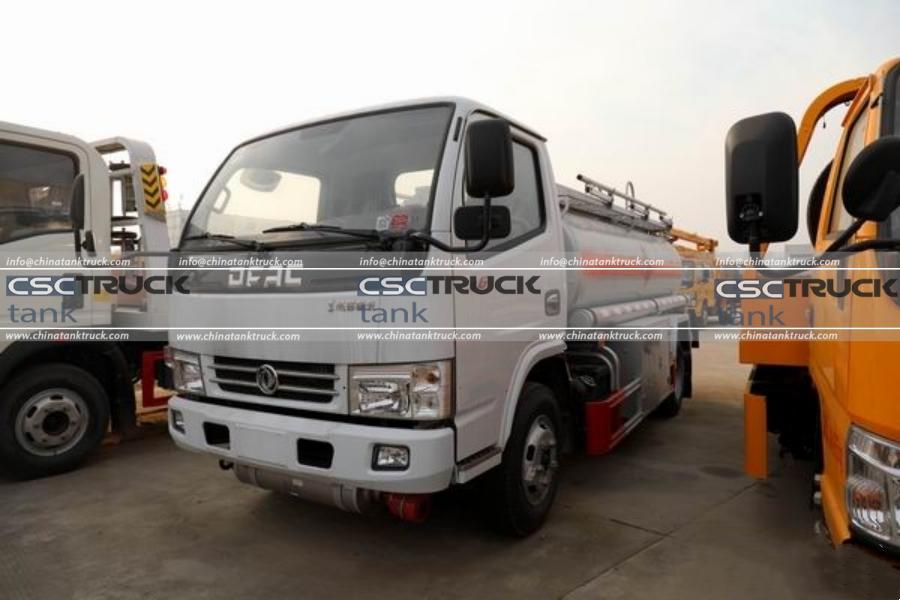

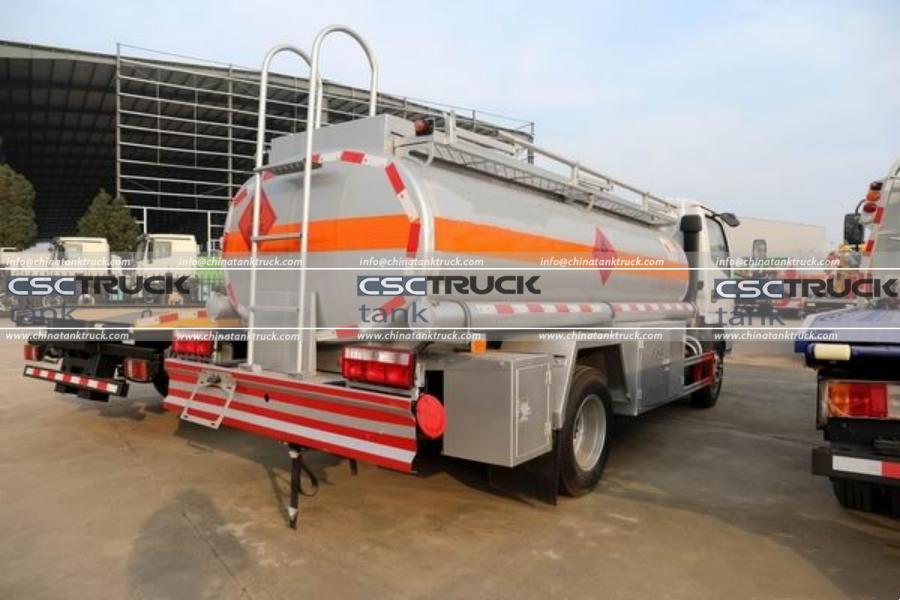

This fuel tanker truck is equipped with a tank body that has an effective volume of 4.35 cubic meters. The tank is made of high-quality carbon steel and is formed in one go using advanced rolling technology. It is coated with shot blasting and baking paint for excellent corrosion resistance. The tank undergoes metal flaw detection to ensure quality. Inside the tank, anti-surge baffles are installed to enhance driving stability when fully loaded. On top of the tank is a European-style manhole cover, a mesh anti-slip platform, and liftable guardrails on both sides.
On the left side of the chassis, inside the protective railing, a Zhengxing fuel dispenser is installed, which allows refueling by amount or volume. The dispenser comes with a fuel nozzle and hose. Inside the right-side protective railing are features including a pump-in and pump-out system, a vapor recovery device, an anti-overflow probe socket, and an emergency shut-off device.
| Category | Specification |
|---|---|
| Engine | Yuchai 115 |
| Emission Standard | EURO V |
| Max Torque | 300 Nm |
| Displacement | 2.98 L |
| Power Features | Solid power, excellent fuel efficiency |
| Cab | Single-row, forward-tilting (Duolika D6 series) |
| Transmission | Dongfeng 5-speed manual |
| Vehicle Length | 5.99 meters |
| Vehicle Width | 2.05 meters |
| Vehicle Height | 2.5 meters |
| Wheelbase | 3,308 mm |
| Tires | 7.00R16 steel radial tires |
Standard chassis features include factory-installed air conditioning, electric windows, front disc brakes, ABS, a driving recorder, a speed limiter, front-mounted exhaust piping, and a fireproof cap on the exhaust pipe—enhancing driving safety.
