Model No.: | CSCPGTT035 |
Propane Tank Volume: | 35 CBM |
Overall Dimensions(LxWxH): | 10,650×2,495×3,740mm |
Chassis Brand: | JAC |
Drive Type: | 8X4 |
Wheelbase: | 1,950+4,550+1,350mm |
Engine Model: | WD615.69 |
Engine Power: | 336HP |
Emission Standard: | EURO II |
Max Driving Speed: | 95 km/h |
Tank Material: | Q345R |
BRIEF

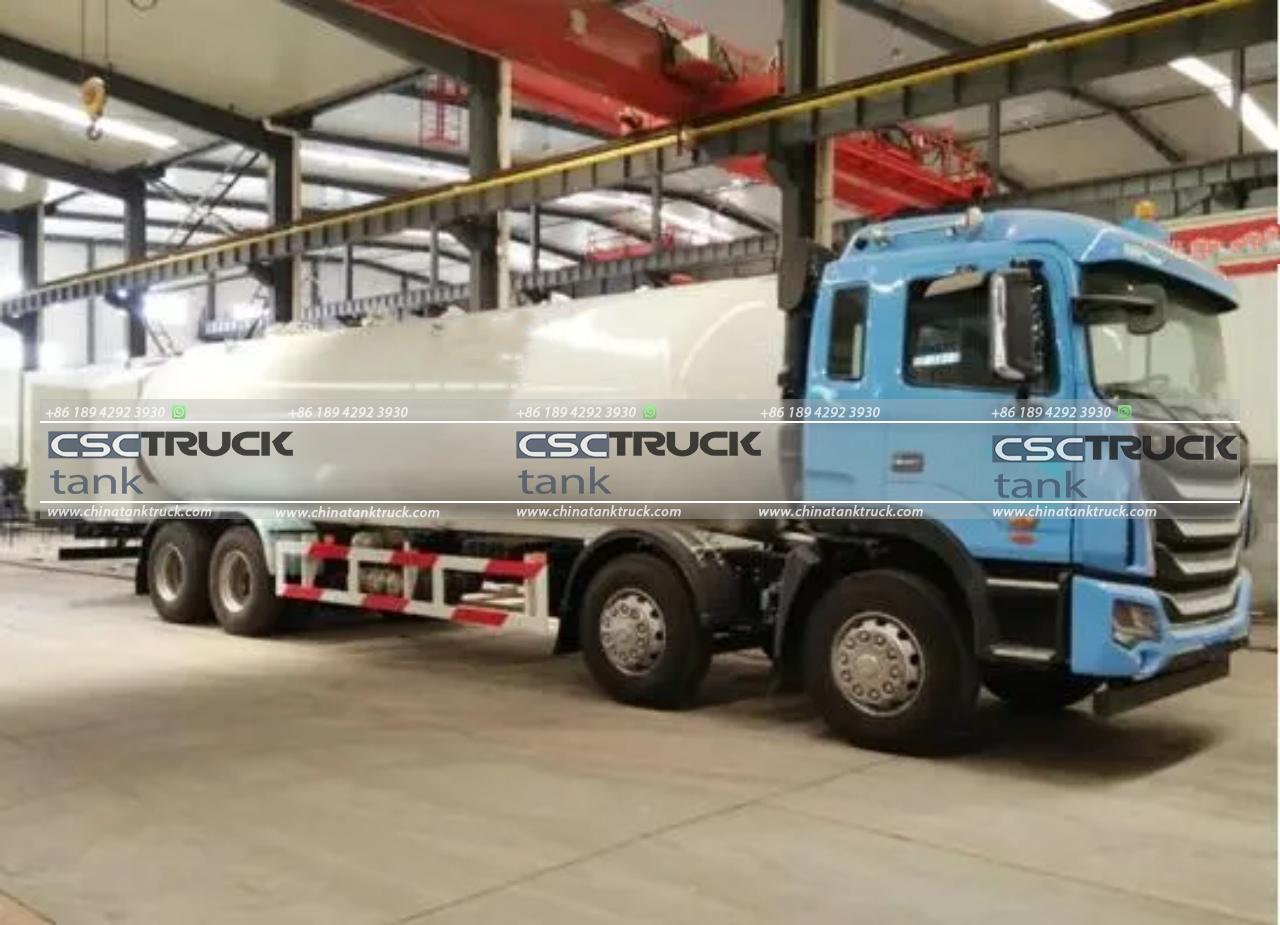

The JAC 35 CBM propane gas tanker truck, produced by CSCTRUCK China Tank Truck, is a robust and efficient vehicle designed for the transportation of propane and other liquefied petroleum gases (LPG). This model features a 35 cubic meter (CBM) propane tank, offering ample capacity for large-volume deliveries. Built on a JAC chassis, the truck utilizes an 8×4 drive configuration, which ensures superior stability and payload distribution, especially in challenging terrain or under heavy loads.
Powering the vehicle is a WD615.69 engine, providing 336 horsepower (HP). This engine, coupled with the 8×4 drive system, enables the tank truck to operate with high efficiency, even at full capacity. The engine meets the EURO II emission standard, ensuring compliance with environmental regulations in various regions. The maximum driving speed of the JAC propane gas tanker is 95 km/h, making it suitable for both urban and highway operations.
The tank is constructed from Q345R steel, a material known for its durability and resistance to wear and tear, which is particularly important when handling pressurized gases. Q345R offers high strength and toughness, ensuring the tank can withstand the demands of frequent use and potential impact scenarios.
Overall, the JAC 35 CBM propane gas tanker is an ideal solution for propane transport, combining a reliable powertrain, substantial payload capacity, and safe, durable construction. It is designed to meet the needs of commercial and industrial propane distribution while adhering to international safety and environmental standards.
FEATURES
- High Payload Capacity: The truck has a 35 CBM (cubic meter) propane tank volume, designed for transporting large quantities of propane gas efficiently.
- Powerful Engine: It is powered by a WD615.69 engine with a 336 horsepower output, ensuring robust performance for long-distance and heavy-duty transport.
- Durable Tank Construction: The propane tank is made of Q345R material, a high-strength low-alloy steel that offers excellent durability and resistance to pressure, ensuring the safe transport of propane.
- Efficient Drive System: The truck is built on a JAC chassis with an 8×4 drive type, offering enhanced stability, load-bearing capacity, and traction, especially for carrying heavy cargo like propane.
- Compliance with Emission Standards: The EURO II emission standard ensures that the vehicle meets environmental regulations, making it suitable for use in regions with strict emissions laws.
SPECIFICATION
Item No. |
Parameters |
Overall Dimensions(LxWxH) | 10,650×2,495×3,740 mm |
Driving Model | Left-hand drive |
Gross Vehicle Weight | 31,000 kg |
Curb Weight | 16,000 kg |
Payload | 17,000 kg(17Ton) |
Wheel Base | 1,950+4,550+1,350 mm |
Front/rear Tread | 2,022/1,830 mm |
Approach/Departure Angle | 16/12Â degree |
Front Axle | HF7, 7,000kgx2 |
Rear Axle | ST16, 16,000kgX2 |
Engine | WD615.69, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inner cooling. |
Engine horsepower | 336HP, EURO II |
Displacement | 9,760ml (Diesel) |
Max Driving Speed | 95Â km/h |
Gearbox | HW19710 |
Cabin | Standard HW76 cabin, 2~3 Passenger allowed, with Air Conditioner |
Tire | 12R22.5Â (12Â pcs with one spare) |
LPG tank | |
Volume: | 34.5CBM |
Tank material: | Q345R |
Tank diameter: | 2,450mm |
Tank thickness: | 12mm |
End plate | 12mm |
Tank length: | 7,769mm |
Gas phase | DN50 |
Liquid Phase | DN50 and DN80 according to the Nigerian market |
Filling gas | Propane(LPG) |
Design Pressure: | 1.61Mpa |

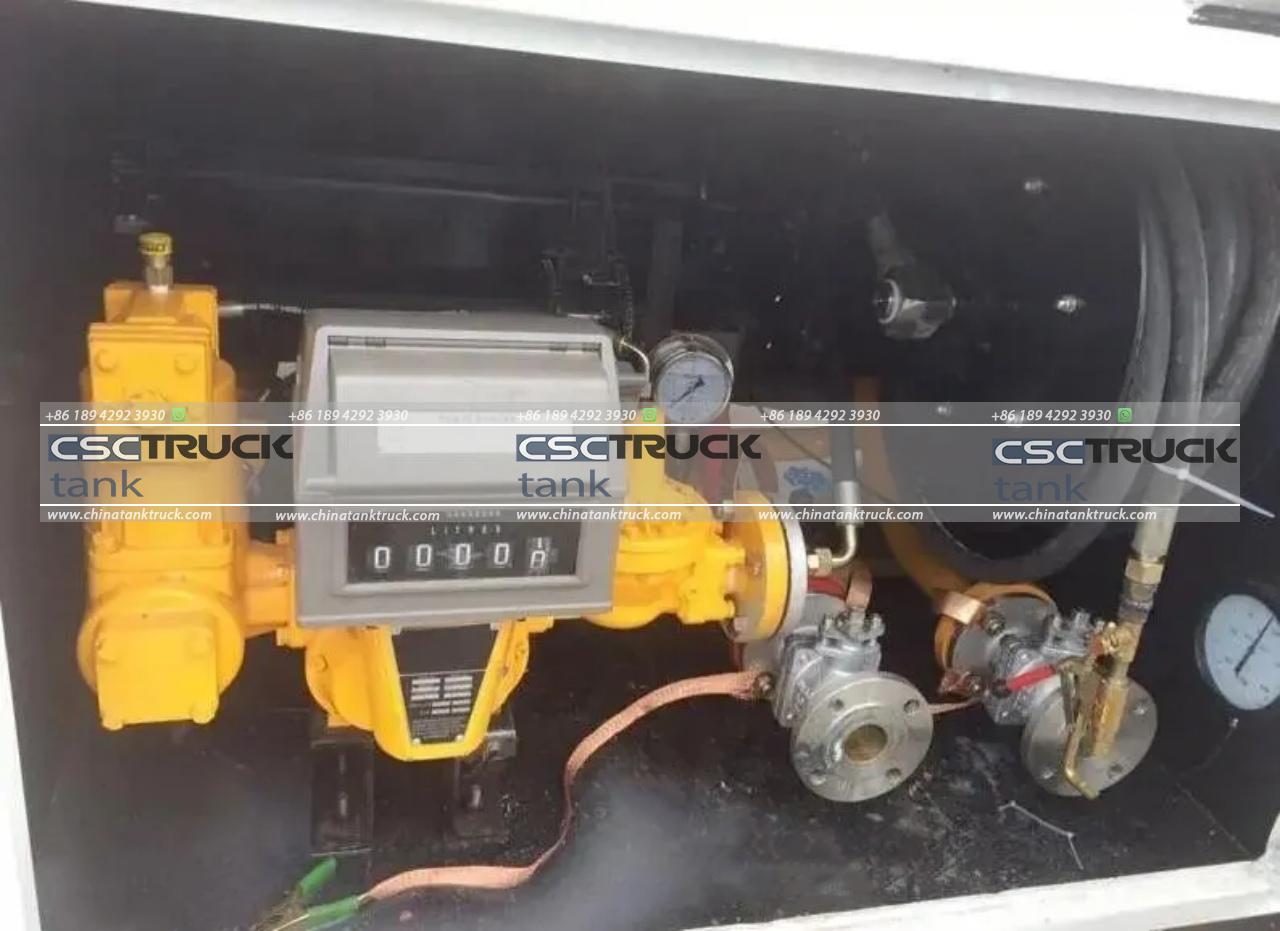

Accessory | |
Level Gauge | Manual rotation type, at the rear of the tank. |
Safety Valve | 1, DN80 |
Tool and Valve Box | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Emergency Valve | 1 |
Fender | Steel |
Fire Extinguisher | 2 |
Exhaust shaft | At the front of the truck for safety |
