BRIEF

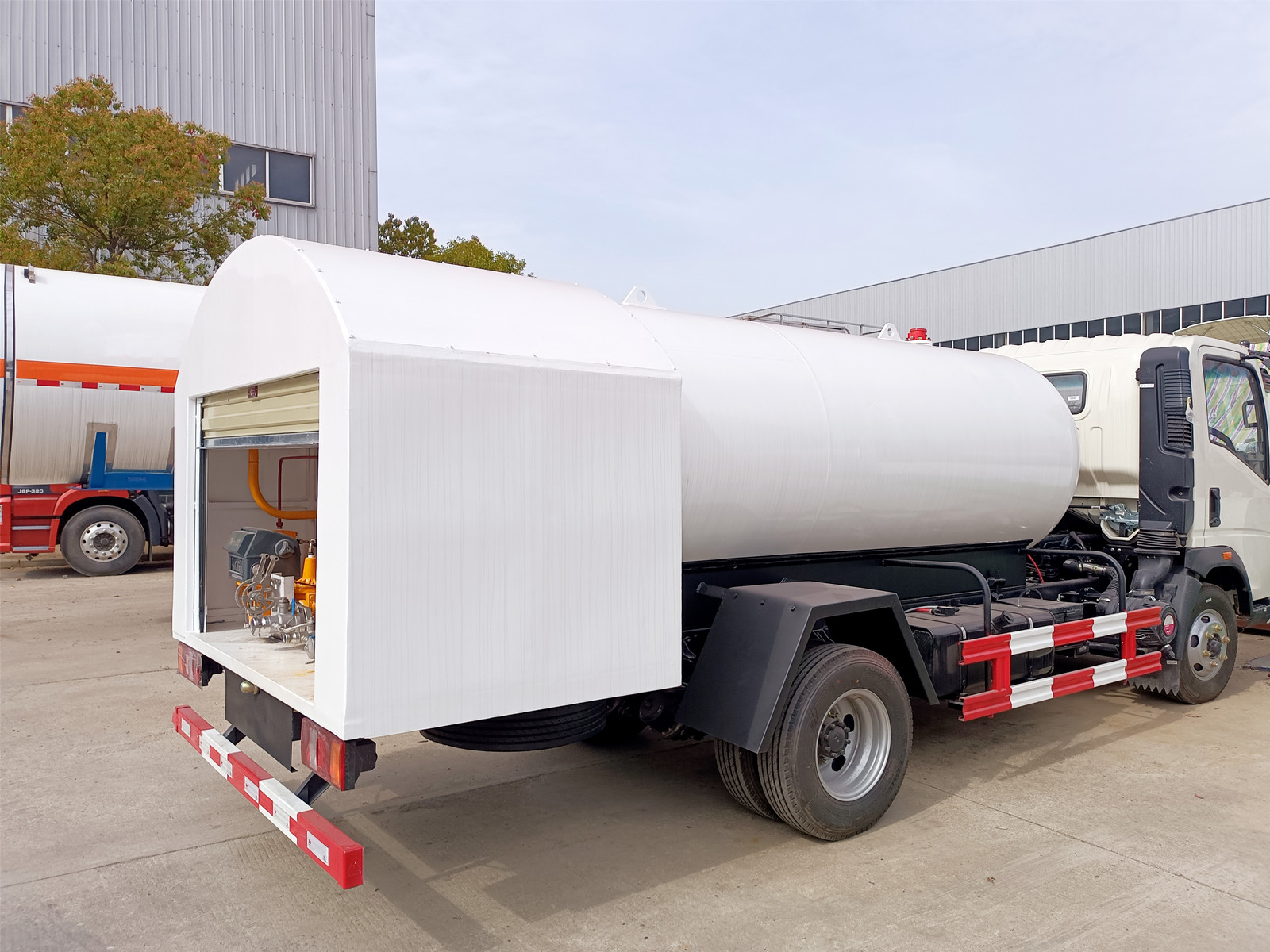

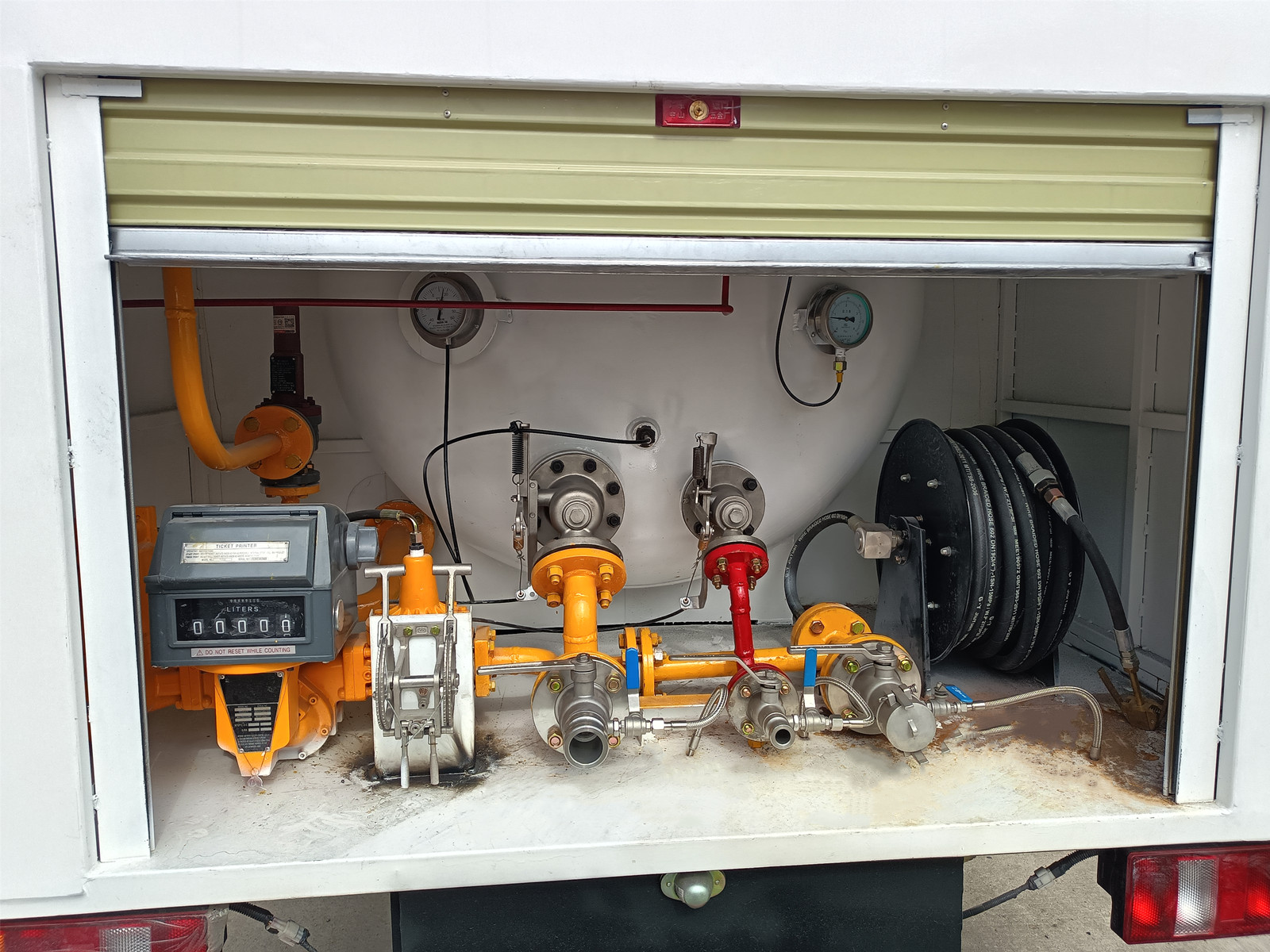

HOWO 2 Ton LPG Bobtail Truck is a purpose-built vehicle that comprises a HOWO truck chassis, an LPG tank, an LPG vane pump, and an integrated PLG filling system. This system includes essential components like a flow meter, a temperature gauge, a 15-meter filling hose, and a reliable filling gun. The LPG tank is designed for the safe transport of liquid gas, specifically when it consists of a mixture of butane and propane, with the maximum permissible proportion of propane limited to 30%. The versatility of this vehicle allows you to choose between a flow meter and an LPG dispenser based on your specific requirements, making it an excellent choice to kickstart your LPG delivery business.
FEATURES

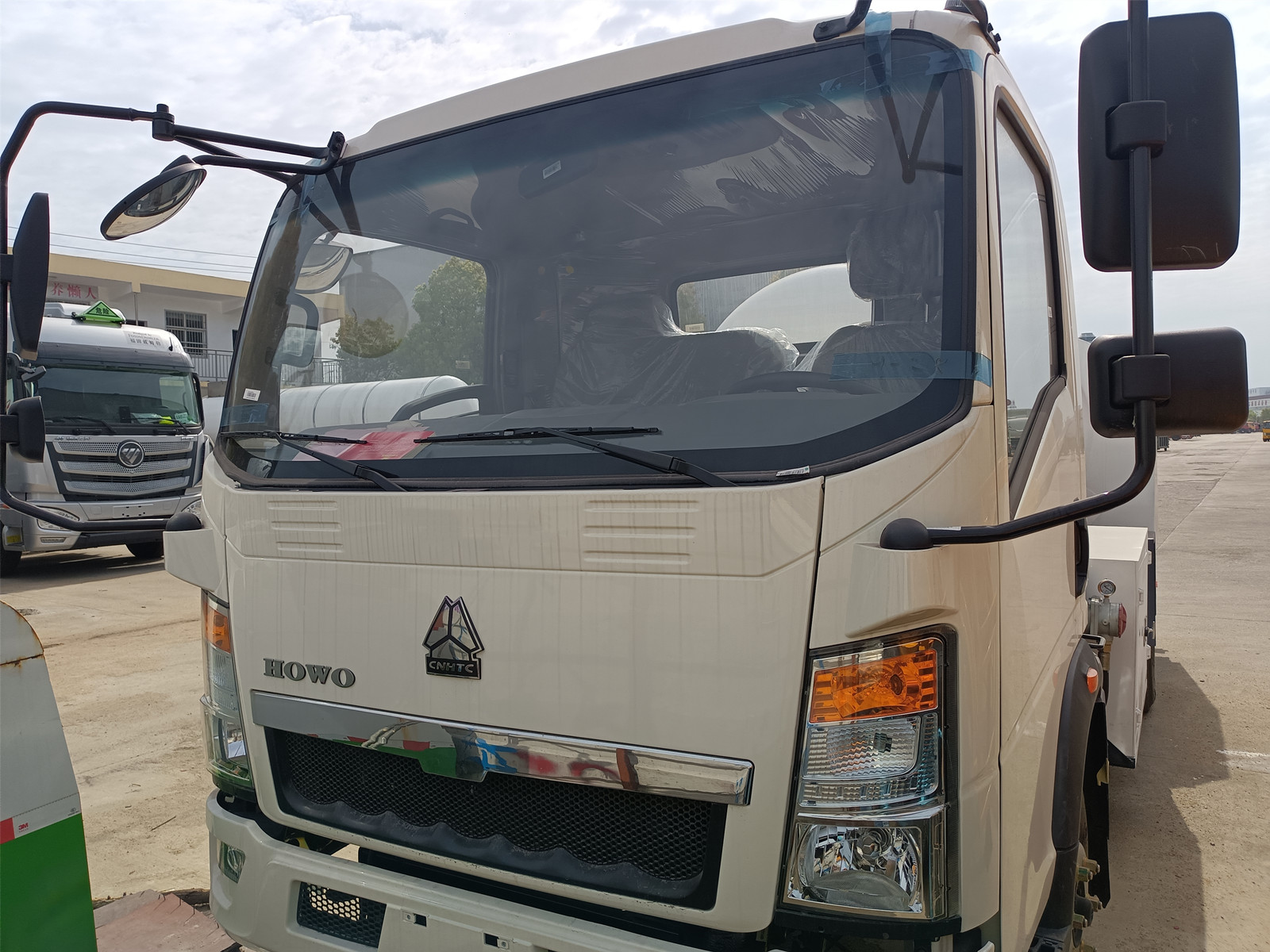

- HOWO Truck Chassis: This LPG Bobtail Truck is built on a robust HOWO truck chassis, equipped with a 116hp engine that adheres to Euro 2 emission standards. The vehicle boasts a 6-speed manual transmission and rides on durable 7.50R16 tires.
- USA Corken Vane Pump: The model Z2000 vane pump from Corken, a renowned American brand, ensures reliable and efficient LPG transfer.

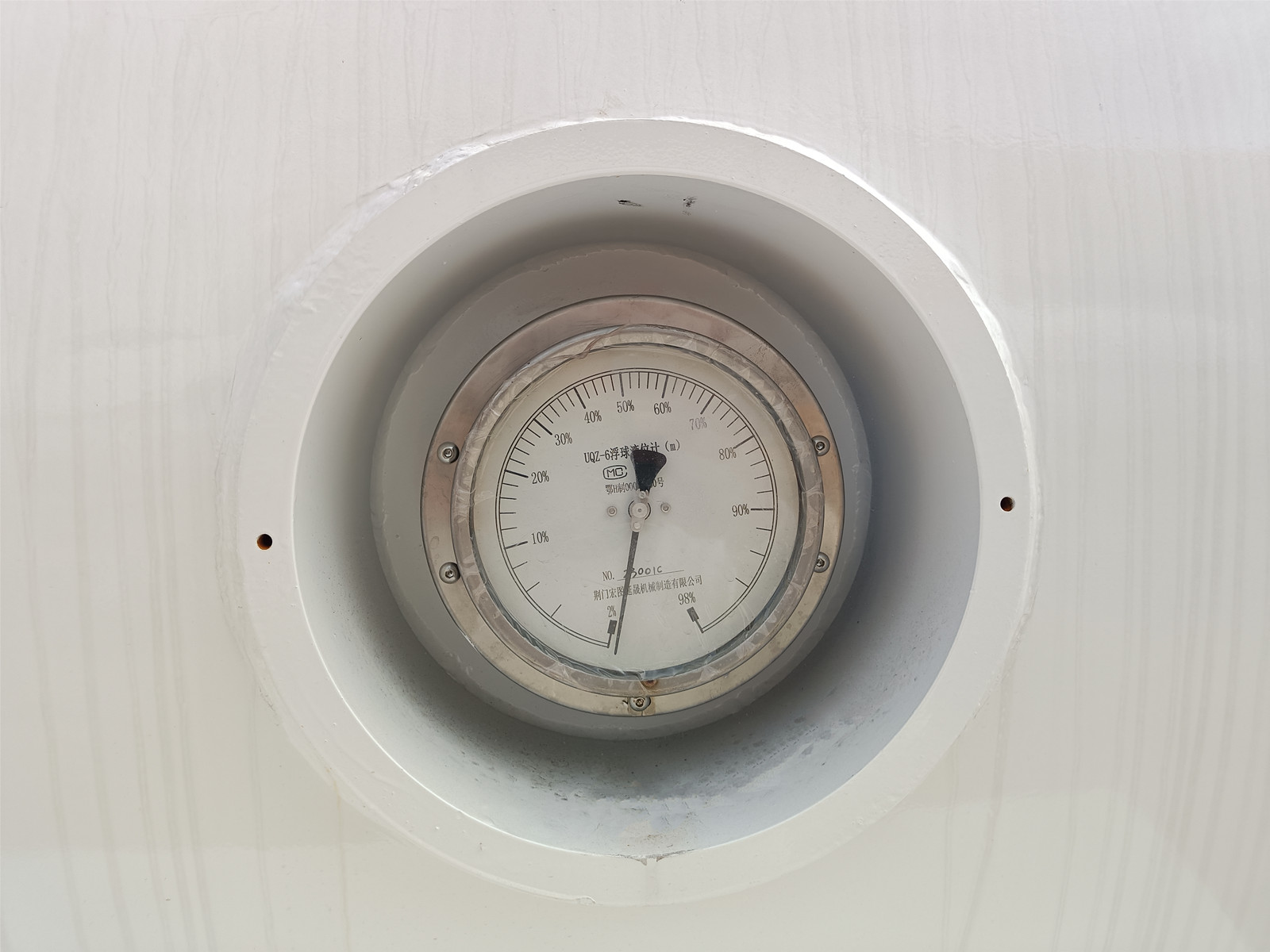

- 5,000 Liters LPG Tank: The LPG tank, constructed from Q345R material with a 10mm thickness, can carry up to 2 tons of LPG. It includes standard pressure and temperature meters, with an optional electronic scale.
SPECIFICATION
Category |
Specifications |
|---|---|
| Chassis | |
| Size | 5,900 x 2,400 x 2,650 mm |
| GVW/Curb Weight/Payload | 8,160/5,850/2,310 kg |
| Wheelbase | 3,360 mm |
| Tire | 7.50R16, 6+1 tires |
| Engine | |
| Type | Diesel |
| Make/Model | YUNNEI/YN4102QBZL/116hp/Euro 2 |
| Transmission | |
| Model | WLY/WLY646 |
| Gears | 6F+1R |
| Operation | Manual |
| Cabin | |
| Driving | HOWO, 4×2, LHD/RHD |
| Type | Seats, radio, MP3 |
| Passenger No. | 3 |
| LPG TANK | |
| Filling Medium | LPG |
| Capacity | 2 tons/5,000 Liters |
| Working Temperature | -40 ~ 50°C |
| Tank Material | Q345 |
| Tank Diameter | 1,600 mm |
| Tank Thickness | 10 mm |
| End Plate Thickness | 10 mm |
| Tank Length | 3,070 mm |
| Gas Phase | Flange Type |
| Liquid Phase | Flange Type |
| Working Pressure | 1.61 Mpa |
| Design Pressure | 1.71 Mpa |
| Testing Pressure | 2.21 Mpa |
| Corrosion Allowances | 1.0 mm |
