Description

BRIEF

A milk tank truck, alternatively referred to as a fresh milk transporter, milk tanker, or liquid food transporter, features a tank body constructed from food-grade stainless steel plate. To maintain the freshness of the milk, the exterior of the tank body necessitates insulation. Internally, the tank body must boast a smooth and immaculate surface, devoid of sharp angles. Typically, each milk compartment is equipped with a CIP (cleaning device) for thorough sanitation. Widely employed for the transportation of milk or other consumable liquids, these tankers ensure the preservation of milk freshness and temperature consistency for up to 24 hours.

FEATURES

1. Capacity: The 8-wheeler 20 CBM milk tank truck manufactured by CSCTRUCK CHINA TANK TRUCK boasts a substantial 20 cubic meters (CBM) milk tank volume, ensuring efficient transportation of large quantities of milk.

2. Drive Type: With a 6×2 drive configuration, this tank truck ensures stability and maneuverability on various road conditions, providing reliability in both urban and rural environments.

3. Engine Brand: Equipped with a Dongfeng Cummins engine, renowned for its durability and performance, ensuring consistent power delivery and reliability throughout the truck’s lifespan.

4. Engine Power: Featuring a robust 230 horsepower (HP) engine, this tank truck delivers ample power to handle demanding transportation tasks while maintaining fuel efficiency.

5. Emission Standard: Compliant with Euro II emission standards, the truck minimizes its environmental footprint by reducing harmful exhaust emissions, contributing to cleaner air quality.

6. Tank Material: Constructed with high-quality 304 stainless steel, the milk tanker ensures hygiene and durability, maintaining the freshness and quality of the transported milk while withstanding corrosion and wear.

7. Safety Features: Incorporating advanced safety features such as an anti-lock braking system (ABS) and traction control, the truck prioritizes driver and cargo safety, minimizing risks during transportation operations.

8. Customization Options: CSCTRUCK CHINA TANK TRUCK offers customization options to meet specific customer requirements, including variations in tank capacity, drive configurations, and additional features tailored to different operational needs.

SPECIFICATION

Vehicle Description
Overall dimensions(LxWxH)	10,300×2,500×3,200mm
GVW	20,500kg
Curb weight	7,750kg
Chassis brand	Dongfeng
Traction type	6×2, left/right-hand drive
Chassis Description
Model	DFL1203A-K44E-977-010J
Cab	Sleeper cab, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable driver’s seat, air conditioning system, electrical windows, central lock.
Wheelbase	1,950+5,350mm
Tire specification	315/80R22.5 18PR
Tire quantity	8+1 units
Engine	Engine model	Dongfeng Cummins
	Emission standard	Euro 2
	Exhaust/output	8,300ml/170kW
	Horsepower	230hp
Gearbox	Model	9JS119TB
	Type	9 forward gears& 1 reverse, synchronized
Brake system	Full air brake system split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake.
Axle	Front	5T-Elliot type, I beam section
	Rear	13T-Single reduction, ratio 4.875
Suspension	Front	8- Leaf spring with shock absorber
	Rear	(9+9)-Leaf spring
Battery	Voltage	12V*2
	Capacity	165A.h*2
Fuel tanker	Type	Aluminum fuel tank with lockable cap
	Capacity	350L
Up-part Description
Tanker volume	20CBM

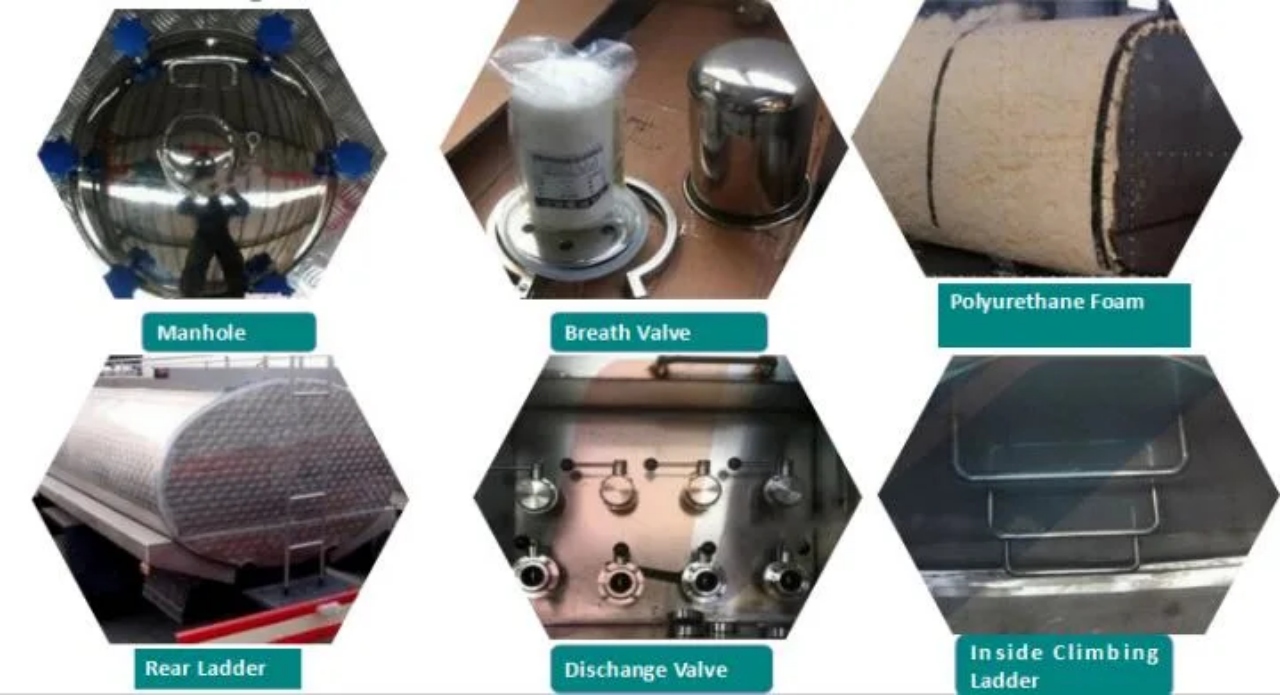

Tanker material	1. The inner layer is made of 4mm 304 Stainless Steel
	2. The middle layer of the tank is made of 80mm thick polyurethane
	3. The outer layer of the tank is made of stainless steel.
The temperature	The temperature rise or fall during transportation is less than or equal to 2 degree within 24 hours.
Automatic cleaning system	An automatic cleaning system is adopted in the tank and the cleaning device rotates 360 degrees to ensure no residual milk.
Optional configuration	ABS ETC
