BRIEF
The Electric 50 CBM Bulk Feed Transport Vehicle (Model CSCEBFTV050) produced by CSCTRUCK China Tank Truck is a modern, high-capacity solution designed for efficient, clean, and intelligent bulk feed logistics. Built with an advanced electric drive system and a robust 8×4 chassis configuration, this vehicle is engineered to serve large-scale livestock farms, feed processing plants, and agricultural distribution networks requiring high-volume and low-loss material handling.
With a total tank volume of 50 m³, the unit provides significant carrying capacity while maintaining stable performance under full load conditions. The vehicle’s overall dimensions of 10,700 × 2,550 × 3,995 mm and a wheelbase of 1,900 + 3,600 + 1,350 mm ensure balanced weight distribution and improved driving stability on varied road conditions. It supports a full load mass of 31,000 kg, with a standard load of 16,200 kg and a curb weight of 14,500 kg, making it suitable for intensive daily operations.
Powered by the D7.0NS6B350 engine with a 7,698 ml displacement, the vehicle delivers reliable propulsion with a maximum speed of 89 km/h. Its electric drive mode enhances energy efficiency, reduces emissions, and supports sustainable agricultural transportation practices. The discharge system is highly efficient, achieving a discharge speed of 600–700 kg/min with an extremely low residual rate of less than 0.02%, ensuring minimal material waste.
Operational flexibility is further enhanced by a maximum conveying height of 10.5 meters, a pitching angle range of -20° to 60°, and a twisting rotation of ±180°, allowing precise and adaptable feed delivery in complex farm environments. Built with high-quality carbon steel cabinetry and equipped with 12R22.5 18PR tires, the vehicle ensures durability, safety, and long service life.
Overall, this electric bulk feed transport vehicle represents a next-generation solution combining capacity, precision, and sustainability for modern agricultural logistics.
FEATURES
- High-capacity 50 CBM tank design
Built with a 50 m³ bulk feed tank on a stable 8×4 chassis, the vehicle ensures large-volume transportation with excellent weight distribution for heavy-duty agricultural logistics. - Advanced electric drive system
The fully electric propulsion setup enhances energy efficiency, reduces emissions, and supports sustainable operations, making it suitable for modern, eco-friendly farming and feed distribution. - Ultra-efficient discharge performance

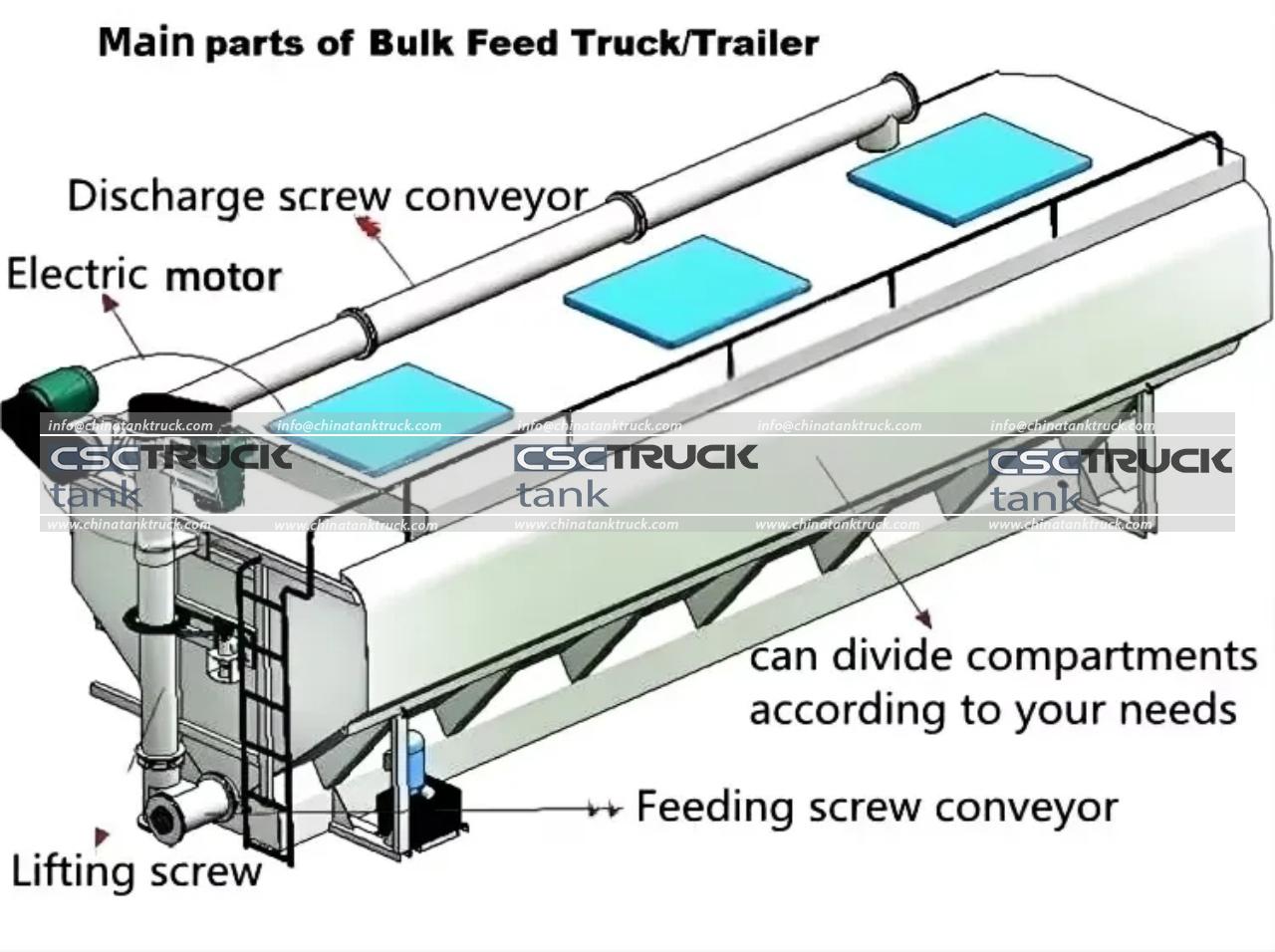

Equipped with a pneumatic conveying system delivering 600–700 kg/min discharge speed and an extremely low residual rate (<0.02%), ensuring minimal feed waste and high operational efficiency. - Flexible and precise conveying operation
With a maximum conveying height of 10.5 m, rotation of ±180°, and a pitching range from -20° to 60°, it enables accurate feed delivery in complex farm layouts and hard-to-reach storage areas. - Robust engineering and reliable performance
Developed by CSCTRUCK China Tank Truck, the vehicle is powered by the D7.0NS6B350 engine, reaches up to 89 km/h, and uses durable structural materials and heavy-duty tires for long service life and stable operation.
SPECIFICATION
| Technical Parameters | |
| Brand | CSCTRUCK China Tank Truck |
| Model No. | CSCEBFTV050 |
| Vehicle Size(mm)(LxWxH) | 10,700*2,550*3,995 |
| Tank Size(mm)(LxWxH) | 8,300×2,550×2,600 |
| Full Load Mass(kg) | 31,000 |
| Curb Weight(kg) | 14,500 |
| Standard Load Weight(kg) | 16,200 |
| Tank Volume(m³) | 50 |
| Discharge Speed(kg/min) | 600-700 |
| Residual Rate(%) | <0.02% |
| Drive Type | 8X4 |
| Wheelbase(mm) | 1,900+3,600+1,350 |
| Engine Type | D7.0NS6B350 |
| Displacement Volume(ml) | 7,698 |
| Max. Speed(km/h) | 89 |
| Tire Specification | 12R22.5 18PR |
| Drive Mode | Motor drive |
| Cabinet Material | High Quality Carbon Steel |
| Cab Number | 4 or customized |
| Max. Conveying Height(m) | 10.5 |
| Hanging Dragon Pitching Angle(°) | -20-60 |
| Twisting Dragon Rotation(°) | ±180 |
