Model No.: | CSCFTST040 |
Fuel Tank Volume: | 40 CBM |
Overall Dimensions(LxWxH): | 11,850×2,500×3,550mm |
Tank Material: | 5mm, Q345 steel |
Axles: | 3 axles, 13 T |
Compartments: | 3 |
Manhole: | Cover 3 pcs, 500mm(diameter), Aluminum European type manhole cover |
Kingpin: | JOST 2.5 or 3.0 inches |
Landing Gears: | JOST E100, double-speed type |
Electrical System: | 24V system |
Categories: Carbon Steel Tank Truck, Fuel Tank Truck
Description
BRIEF

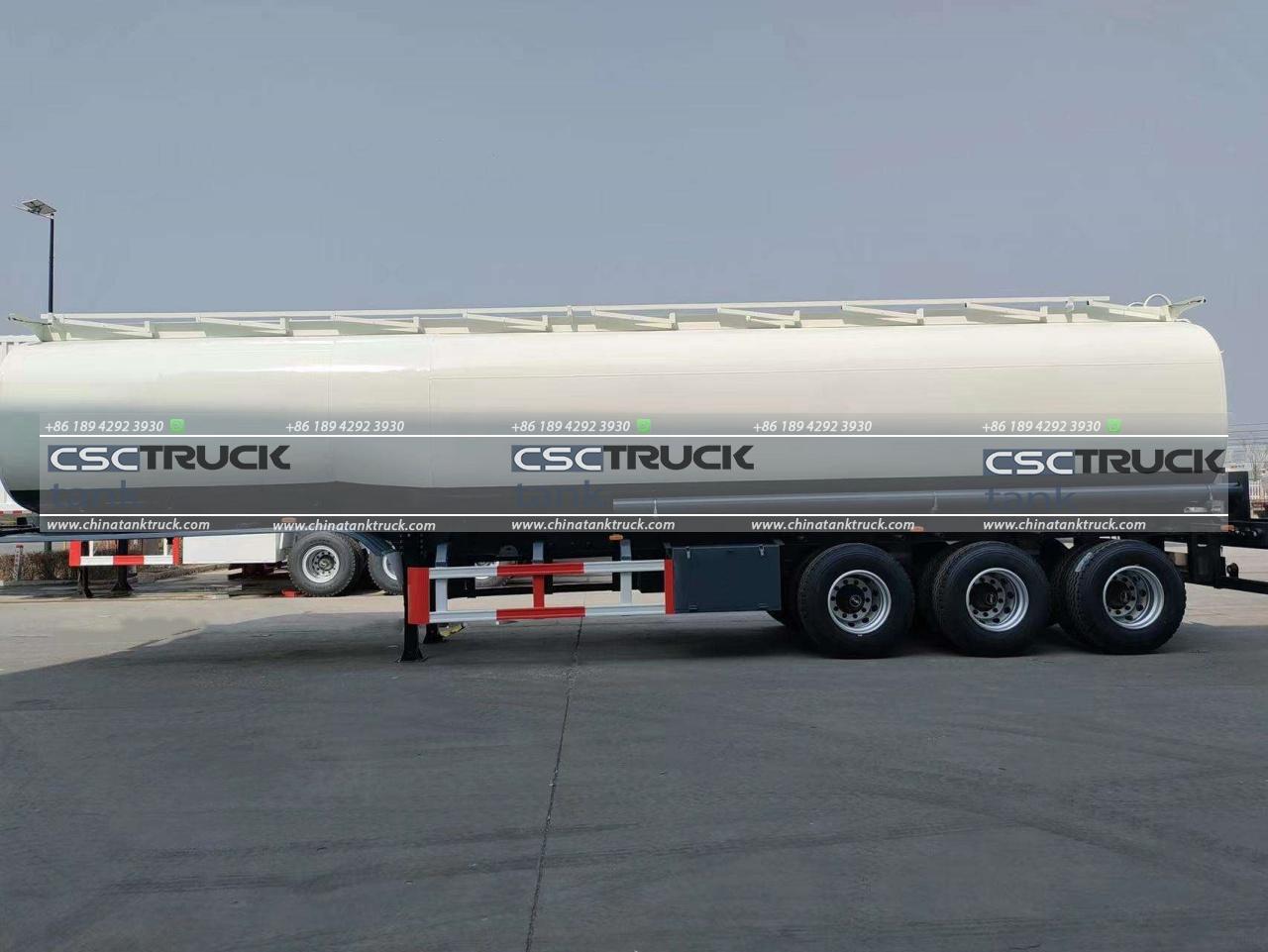

The 40 CBM fuel tanker semi-trailer, produced by CSCTRUCK China Tank Truck, is a robust and efficient vehicle designed for the safe transportation of fuel. The tank is constructed using Q345 steel with a 5mm thickness, providing durability and resistance to corrosion. This semi-trailer is equipped with a 40-cubic-meter capacity fuel tank, divided into 3 compartments, allowing for the transportation of different types of fuel simultaneously.

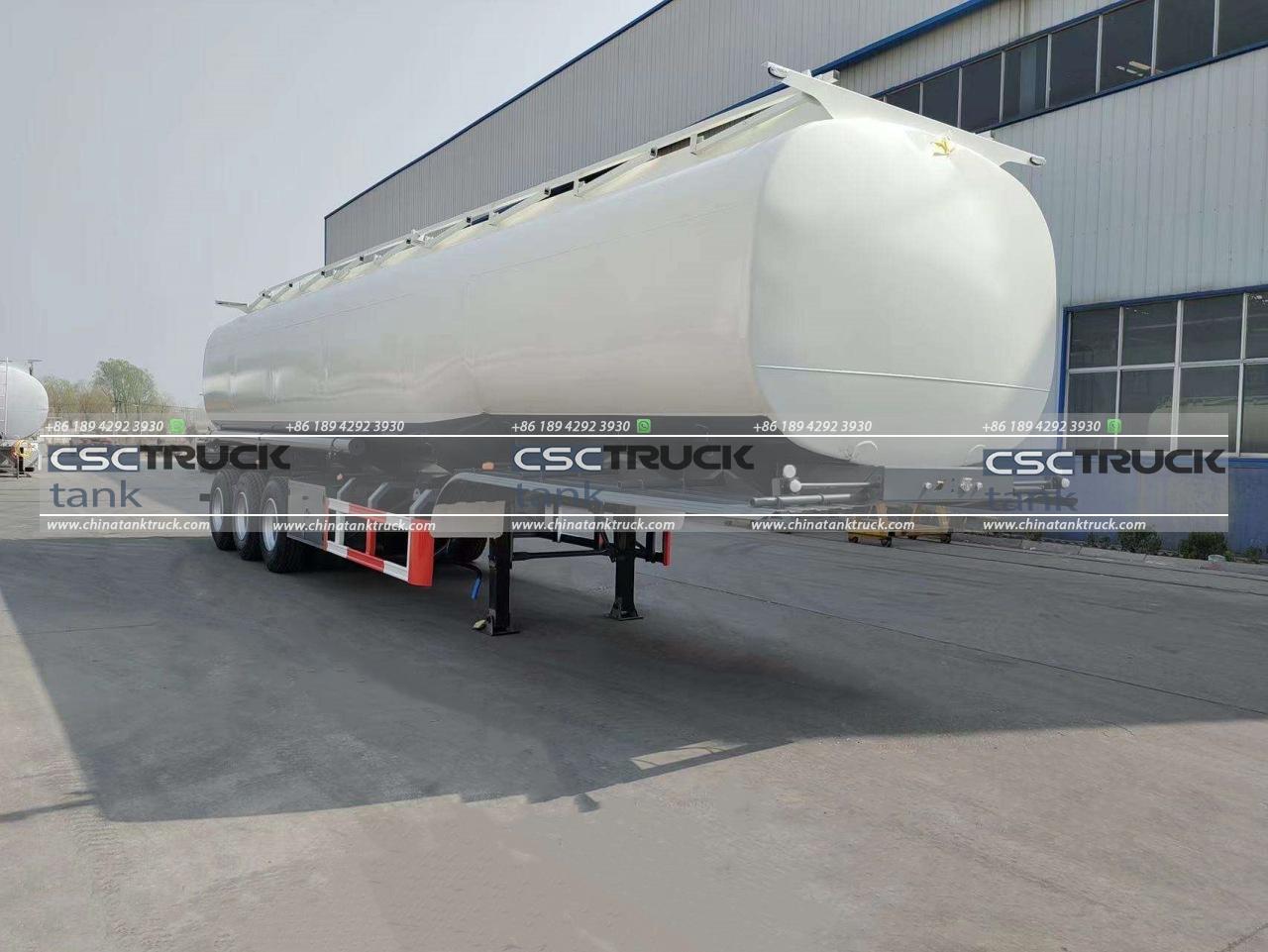

Each compartment features 500mm-diameter aluminum European-type manhole covers, ensuring secure access and fuel containment. The tanker runs on 3 axles, with each axle supporting a 13-ton payload, making it suitable for heavy-duty operations. For stability and ease of operation, the fuel tanker semi-trailer is equipped with a JOST E100 double-speed type landing gear, ensuring easy connection and detachment from the tractor.
The kingpin, which connects the trailer to the tractor, is available in either 2.5 or 3.0 inches, offering flexibility for different configurations. The 24V electrical system powers the lighting and essential safety features, ensuring visibility and road safety during transportation.
Overall, the 40 CBM fuel tanker semi-trailer is engineered for efficient fuel transportation, offering reliability, flexibility, and safety in its design, making it an ideal choice for fuel distribution businesses.
FEATURES
1. Fuel Tank Capacity and Material: The tanker has a 40 cubic meter (CBM) fuel capacity and is made from 5mm thick Q345 steel, offering durability and strength for fuel transportation.
2. Axles and Payload: It is equipped with 3 axles and has a 13-ton payload capacity, making it suitable for carrying heavy loads.
3. Compartment Design: The tanker features 3 compartments, enhancing safety by minimizing fuel movement and allowing for different types of fuel to be carried.
4. Manhole Cover: The fuel tank is fitted with 500mm aluminum European-type manhole covers, providing secure access points for fuel loading and maintenance.
5. Landing Gear and Kingpin: It comes with JOST double-speed type landing gear and a JOST 2.5 or 3.0-inch Kingpin, ensuring stable support when detached and reliable coupling to the truck.
SPECIFICATION
Tank Body |
|
Shape
|
Double D
|
Overall Dimensions(LxWxH):
|
11,850mm×2,500mm×3,550mm
|
Total Volume(m3)
|
40m³
|
Compartments:
|
3
|
Tanker Body Material:
|
5mm, Q345 steel
|
Front/End Plate:
|
6mm, Q345 steel
|
Wave board:
|
5mm, Q345 steel
|
Manhole:
|
Cover 3 pcs, 500mm(diameter), Aluminum European-type manhole cover.
|

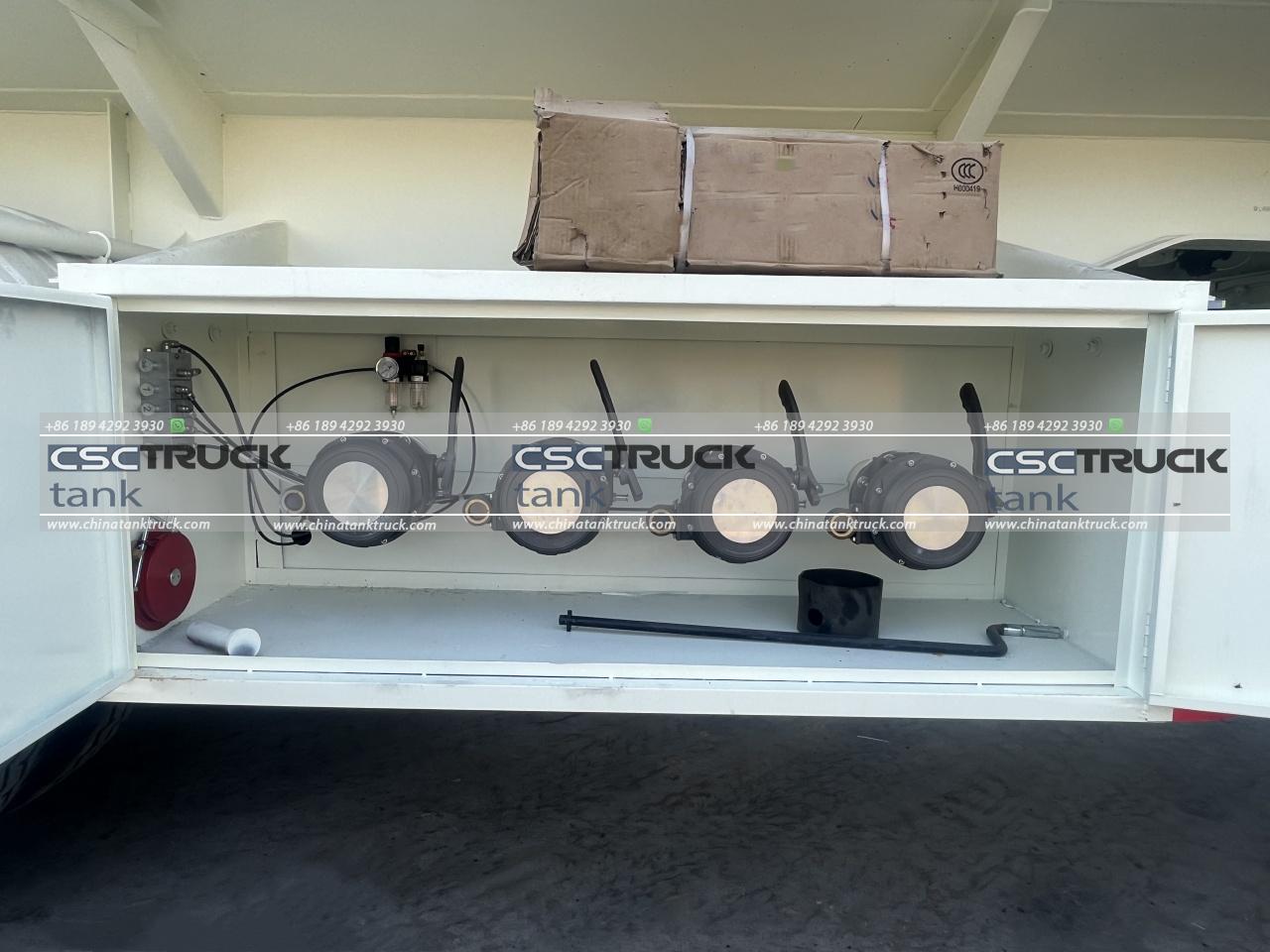

Bottom Valve:
|
3 pcs 4 inches Aluminum alloy pneumatic subsea valve.
|
Discharging Valve:
|
3 pcs, 4 inches Aluminum API outlet.
|
Discharging Pipe
|
2 pcs
|
Cat Walk:
|
On the front of the tank
|
Chassis |
|
Axle:
|
3 axles, 13 T
|
Landing Gear:
|
JOST E100, double speed type
|
King Pin:
|
JOST 2.5 or 3.0 inches
|
Suspension:
|
American mechanical suspension
|
Leaf Spring:
|
90(W)mm×13(Thickness)mm×10layers, 6 units
|
Pneumatic Braking System:
|
WABCO RE 6 relays valve; Spring braking chambers; 2 pcs of 45L air tank
|
Rim:
|
9.00-22.5 ,12pcs
|
Tire:
|
12R22.5,12pcs;
|
ELECTRICAL SYSTEM:
|
Supplied by a 24V system according to CE regulations, complete of reflectors, and one ISO standard socket of 7 poles, all sets of lights should be equipped on the trailer.
|
Accessories:
|
• Spare wheel carrier for one spare wheels with lifting mechanism.
• 2 pcs fire extinguishers, 8kg powder each, with relevant holder. • 2 pcs earth plate straps for loading-off electrostatic charges. • “Flammable” adhesive warning panels fitted at rear head of the tank and at the sides of the tank. • 1 pc lockable toolbox, mounted sideways the chassis. • 2 pcs Rear reflecting panels. • Rear bumper with rear lights. • Front ladder for access to the manhole. • Mudguards covering the rear wheels. |
