| Model No.: | CSCJFRT015 |
| Fuel Tank Volume: | 15,000L |
| Overall Dimensions(LxWxH): | 8,500×2,100×3,250mm |
| Chassis Brand/Model: | Dongfeng/EQ1190 |
| Wheelbase: | 4,500mm |
| Engine brand/model: | Cummins/ISB 210-30 |
| Engine Power: | 210hp |
| Emission standard: | Euro 3 |
| Fuel Tank Material: | Aluminum-magnesium 5083 |
| Compartment: | 1 |
| Filter Model: | 80WGF-24/10 |
| Rated flow: | 24m³/h |
| Work pressure: | 1.0Mpa |
| Maximum work temperature: | 46ºC |
| Pump brand: | SANJIANG YOJE 80/60 Aluminium alloy pump |
| Fuel filling device: | 20-meter hose reel and filling nozzle. |
BRIEF

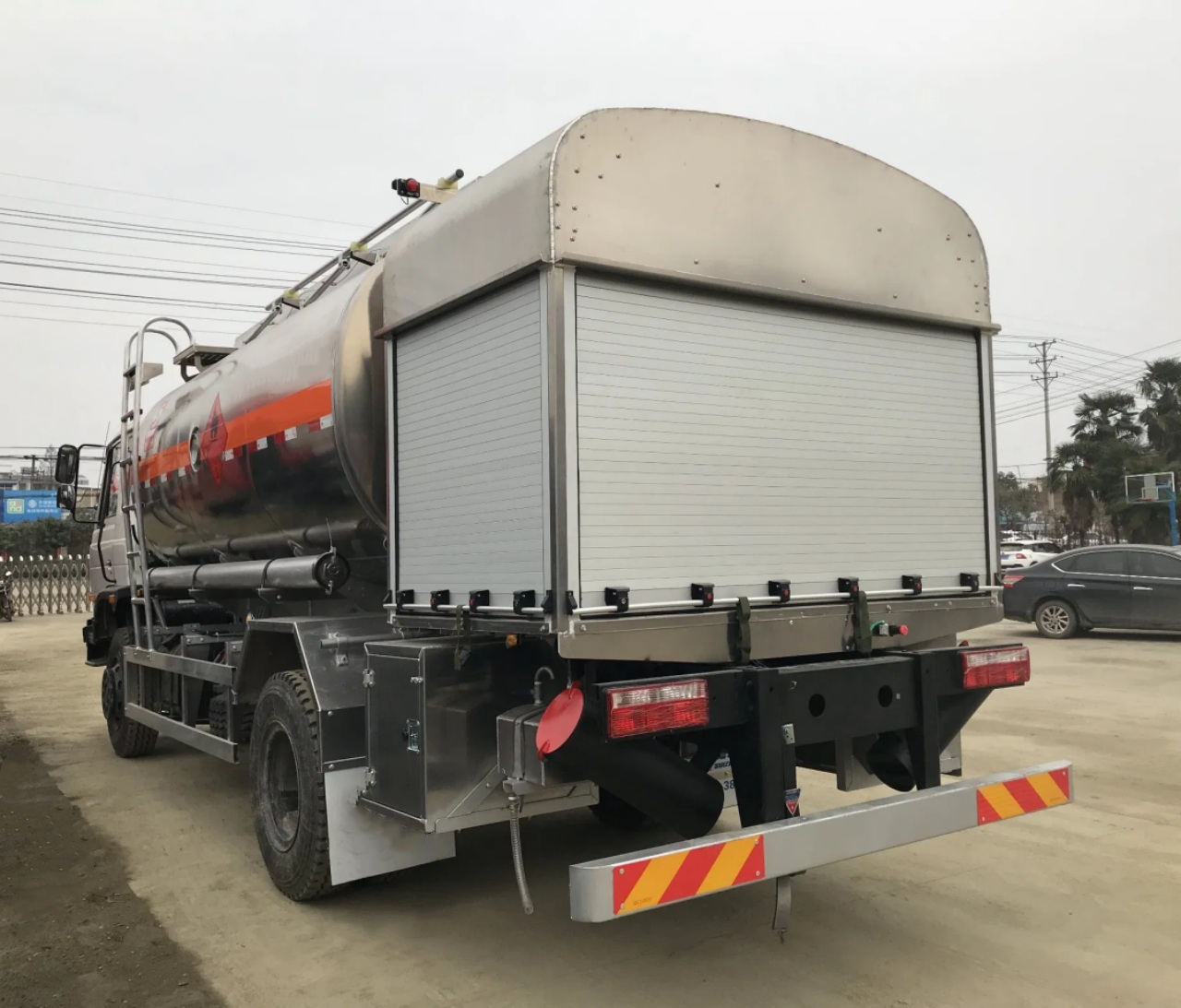

The 15,000-liter jet fuel refueling truck produced by CSCTRUCK China Tank Truck is designed for efficient and reliable transportation and refueling of jet fuel. It features a 15,000L fuel tank capacity, providing ample storage for large-scale refueling operations. The truck is built on a Dongfeng/EQ1190 chassis model, ensuring durability and a robust foundation for the vehicle.
Powering the vehicle is the Cummins ISB 210-30 engine, delivering 210 horsepower, which enables the truck to handle heavy loads and operate in various conditions. With a Euro 3 emission standard, the engine complies with environmental regulations, minimizing its carbon footprint.
The fuel tank is constructed using high-quality aluminum-magnesium alloy (5083), which provides superior strength while reducing the vehicle’s overall weight. This material also offers excellent corrosion resistance, ensuring the longevity of the tank. The 15,000-liter jet fuel refueling truck features a single compartment for storing jet fuel, which ensures optimal management and separation of different fuel types.
For effective filtration and maintenance of fuel quality, the truck is equipped with an 80WGF-24/10 filter model, providing a rated flow rate of 24m³/h and working at a pressure of 1.0 MPa. The maximum working temperature of the system is 46ºC, making it suitable for diverse operational environments.
Fuel dispensing is managed via a SANJIANG YOJE 80/60 aluminum alloy pump, known for its reliability and performance. The system includes a 20-meter hose reel and filling nozzle, making refueling operations efficient and user-friendly. This 15,000-liter jet fuel refueling truck is ideal for high-demand, professional refueling tasks at airports and other aviation facilities.
FEATURES
- Fuel Tank Capacity & Material: The truck is equipped with a 15,000L fuel tank made from durable Aluminium-magnesium 5083 alloy, known for its corrosion resistance and lightweight properties, ideal for transporting jet fuel.
- Powerful Engine & Chassis: It runs on a Cummins ISB 210-30 engine that provides 210hp, paired with a Dongfeng/EQ1190 chassis model that offers strong support and stability for heavy-duty fuel transport.
- High Flow Rate Pump: The refueling truck features a SANJIANG YOJE 80/60 Aluminium alloy pump with a 24m³/h rated flow, ensuring efficient and fast fuel dispensing during refueling operations.
- Advanced Filtration & Safety: Equipped with an 80WGF-24/10 filter capable of handling up to 1.0 MPa working pressure, this system ensures fuel is filtered and meets high standards of cleanliness for sensitive aviation applications.
- Operational Features: The truck includes a 20-meter hose reel and filling nozzle, offering flexibility and reach during refueling, while it also supports a maximum work temperature of 46ºC, making it suitable for use in varying climates and conditions.
SPECIFICATION
| Model | CSCJFRT015 | ||||
| General specification | Gross weight | 18,000kg | |||
| Curb weight | 5,000kg | ||||
| Overall dimensions(LxWxH) | 8,500*2,100*3,250mm | ||||
| Chassis specification | Chassis model | EQ1190 | |||
| Chassis brand | Dongfeng | ||||
| Drive mode | 4X2 | ||||
| Fuel type | Diesel | ||||
| Steering type | LHD/RHD | ||||
| Rated passenger | 3 | ||||
| Tire number | 6+1spare tire | ||||
| Tire type | 10.00R20 | ||||
| Wheelbase | 4,500mm | ||||
| Front tread/Rear tread | 1,130/2,070mm | ||||
| Gearbox | 8 forward+1 reverse | ||||
| Emission standard | Euro 3 | ||||
| Engine specification | Engine Brand | Cummins | |||
| Engine model | ISB 210-30 | ||||
| Tank specification | Tank shape | Elliptical | |||
| Tank material | Aluminum-magnesium 5083 | ||||
| Tank thickness | 6mm | ||||
| Tank capacity | 15,000L | ||||
| Compartment | 1 | ||||
| Filter | Model | 80WGF-24/10 | |||
| Rated flow | 24m³/h | ||||
| Capacity | 145L | ||||
| Work pressure | 1.0Mpa | ||||
| Maximum work temperature | 46ºC | ||||
| Pump | Brand | SANJIANG YOJE 80/60 Aluminium alloy pump |
| Accessories | Fire extinguisher | 2 units (4kg/unit) |
| Discharge hose | 2 units | |
| Discharge hose housings | 2 units | |
| Ladder | On the rear | |
| Railing Material | Aluminum alloy | |
| Fuel filling device | 20-meter hose reel and filling nozzle | |
| Level instrument | Shanghai Leihang 50. |
| Tank Mounted on Chassis Brand |
|---|
