Model No.: | CSCFTT035 |
Fuel Tank Volume: | 35 CBM |
Overall Dimensions(LxWxH): | 11,950×2,550×3,650mm |
Chassis Brand: | HOWO |
Drive Type: | 8×4 |
Wheelbase: | 1,800+4,575+1,400mm |
Max. Driving speed(km/h): | 95 |
Gross vehicle weight: | 40,000kg |
Engine Model: | WP12.400E201 |
Engine Power: | 400hp |
Emission Standard: | EURO II |
Electrical system: | 24V, negative grounded |
Category: Fuel Tank Truck
Description
BRIEF

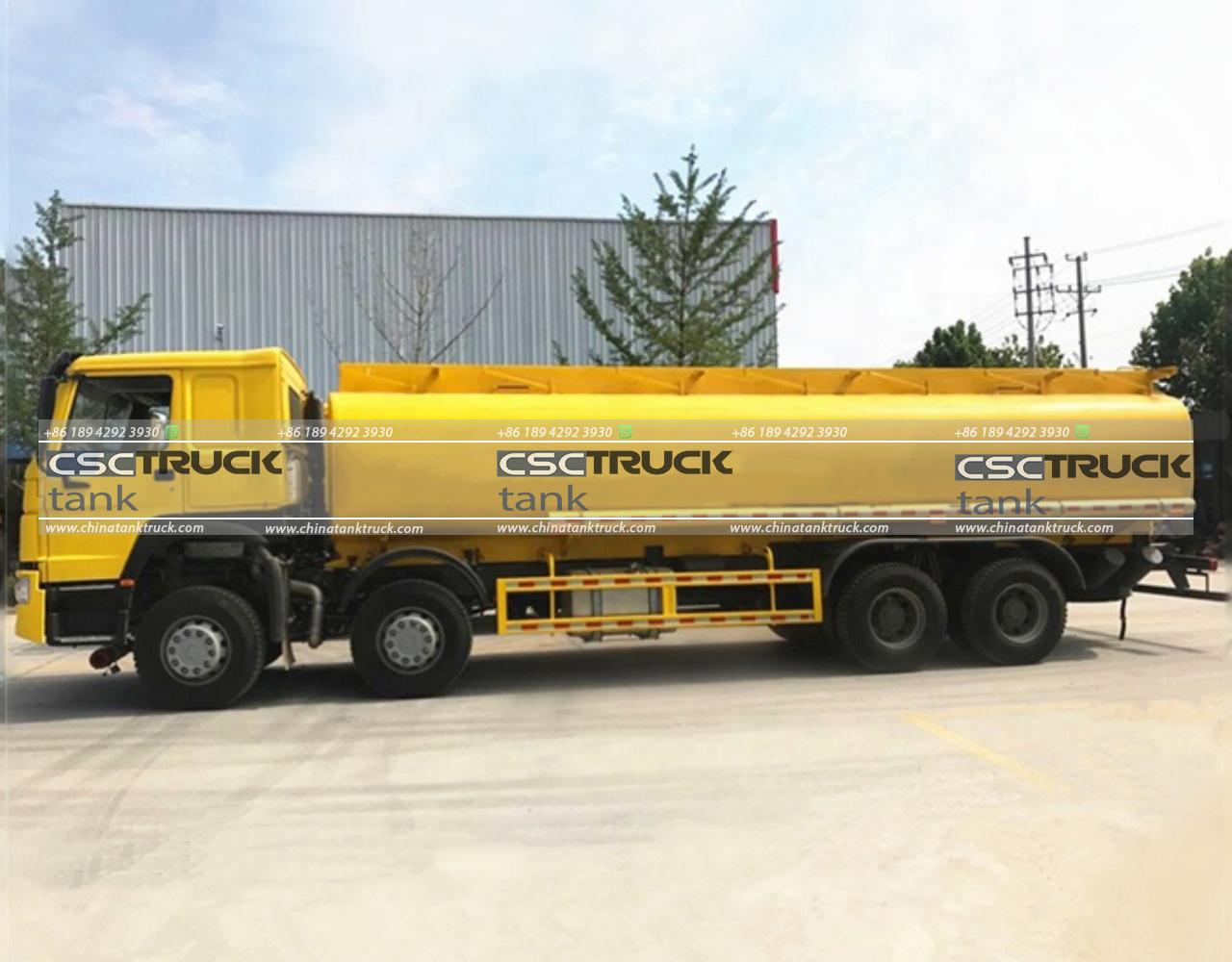

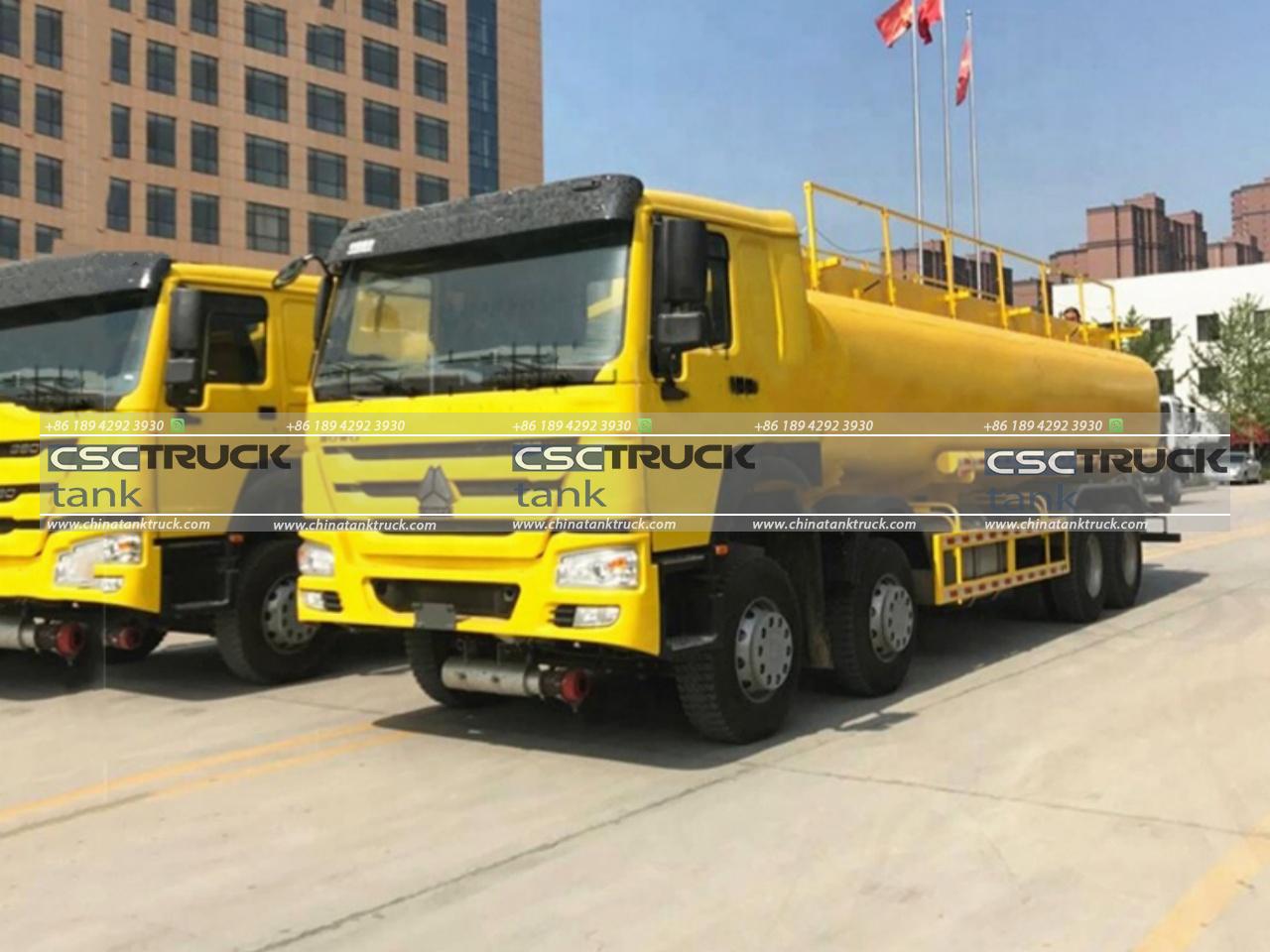

The HOWO 35 CBM fuel tank lorry, produced by CSCTRUCK China Tank Truck, is a high-capacity fuel transport vehicle built on a robust HOWO chassis. It is designed for efficient and safe fuel transportation and offers a tank volume of 35 cubic meters. The truck has an 8×4 drive system, ensuring excellent traction and stability across various terrains, making it suitable for long-haul fuel transportation.
Powered by the WP12.400E201 engine model, this lorry delivers an impressive engine power of 400 horsepower, providing the necessary strength for hauling heavy loads. It meets the EURO II emission standard, making it relatively environmentally friendly, though not as advanced as later emission standards. The truck’s electrical system operates at 24 volts, supporting the power requirements of its operations.
The HOWO fuel tank lorry can reach a maximum driving speed of 95 km/h, which is sufficient for highway travel while maintaining safety. With a gross vehicle weight (GVW) of 40,000 kilograms, it is designed to handle substantial loads while remaining reliable and durable over long distances. This truck combines powerful performance, high fuel capacity, and dependable engineering, making it a versatile choice for fuel transportation in industrial and commercial settings. Its specifications highlight its capacity for heavy-duty work and long-lasting performance.
FEATURES
1. Fuel Tank Capacity: The lorry has a large 35 CBM (cubic meters) fuel tank, making it suitable for transporting significant amounts of fuel.
2. Chassis and Drive Type: It is built on the HOWO chassis with an 8×4 drive type, providing stability and power distribution to all wheels.
3. Engine Power: Equipped with a WP12.400E201 engine model, it delivers 400 horsepower, offering robust performance for heavy-duty transportation.
4. Gross Vehicle Weight: The lorry has a 40,000kg gross vehicle weight, enabling it to carry heavy loads efficiently.
5. Emission Standard: The truck complies with the EURO II emission standard, ensuring moderate environmental impact within older regulations.
SPECIFICATION
HOWO 35 CBM Fuel Tank Lorry Specification
|
||
Chassis Model
|
ZZ1317N4667W(Left Hand Drive )
|
|
Chassis Brand
|
SINOTRUK-HOWO
|
|
Dimension (LxWxH) (unloaded)mm
|
11,950×2,550×3,650
|
|
Tank volume(m³)
|
35m³ 3 C, 3 holes, 3 subsea valves, dipstick, 2 units 6m 4″ hoses. Flow meter: Return to zero flow meter Refueling gun: 1 inch Other: fire extinguisher, Front exhaust pipe with fireproof cap. The standard configuration of the remaining items in the factory.
|
|
Approaching angle/ Departure angel (°)
|
16/15
|
|
Overhang (front/rear) (mm)
|
1,500/2,625
|
|
Wheelbase (mm)
|
1,800+4,575+1,400
|
|
Max. Driving speed (km/h)
|
95
|
|
Front axle loading capacity (kg)
|
2*9,500
|
|
Rear axle loading capacity(kg)
|
2*16,000
|
|
Curb weight (kg)
|
15,850
|
|
Gross vehicle weight
|
40,000
|
|
Cab Model
|
SINOTRUK HW76 Lengthen cab, single bunk, all-steel forward control, 55o hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-drivers seat, heating & ventilation system, adjustable roof flap, with stereo radio/MP3, sun visor, and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber with transverse stabilizer, safety belt, air conditioner.
|
|
Engine Model
|
Model
|
WP12.400E201(EURO II), 400hp, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.
|
Rated Power (kW/rpm)
|
294/2,100
|
|
Make WEICHAI, Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan.
|
||
Clutch
|
SINOTRUK Φ430 diaphragm-spring clutch, hydraulically operating with air assistance
|
|
Transmission
|
Model
|
SINOTRUK HW19710 transmission, 10 forward and 2 reverse.
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
Parking Brake (emergency brake)
|
Spring energy, compressed
|
|
Steering system
|
Model
|
BOSCH Steering Gear Box, hydraulic steering with power assistance. (Left-hand driving)
|
Front axle
|
SINOTRUK VGD95 Front Axle, new 2*9.5-ton front axles equipped with drum brakes.
|
|
Rear axle
|
SINOTRUK 2*16,000 Heavy reduction drive axle, STR hub-reduction with differential locks between wheels and axles, enforced STR axle, ratio: 4.8; The basic configuration of HOWO series construction vehicle can be used in such bad environments as bad road condition, heavy impact, and overloading, which is the best choice for heavy construction vehicle customers.
|
|
Wheels &Tire
|
Rims: 10 hole-steel; Tyres: 12.00R20 radial tire with 1 Spare tire.
|
|
Electrical system
|
Electrics Operating voltage
|
24V, negative grounded
|
Starter
|
24V, 7.5 Kw
|
|
Alternator
|
3-phase, 28V, 1,500W
|
|
Batteries
|
2×12 V, 165 Ah
|
|
Horn, headlamps, fog lights, brake lights, indicators, and reverse lights.
|
||
Oil Tank
|
400L fuel tank
|
|
Packing
|
Nude Pack. The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, and be suitable for long-distance transportation of ocean and inland. The Seller shall take measures against moisture, shocks, and rust according to the special needs of the commodity.
|
