Milk transportation requires specialized vehicles that can protect dairy products from contamination, temperature changes, and unnecessary handling during transit. A FOTON Milk Tank Truck combines a FOTON commercial vehicle chassis with a hygienic stainless-steel milk tank, creating a practical solution for collecting and transporting raw milk from farms, collection centers, and dairy facilities.
CSCTRUCK China Tank Truck is a China-based manufacturer and supplier of specialized tank trucks, including milk tank trucks, fuel tankers, water tankers, chemical tankers, and other liquid-transport vehicles. Its milk tanker range covers different capacities and chassis configurations for various transportation requirements.
What Is a FOTON Milk Tank Truck?
A FOTON Milk Tank Truck is a food-grade tanker designed specifically for transporting milk and other suitable liquid dairy products. Unlike an ordinary cargo truck, it uses a dedicated stainless-steel tank with hygienic fittings and milk-handling equipment.
CSCTRUCK China Tank Truck currently offers FOTON milk tank trucks in different capacities. For example, its FOTON 5,000-liter milk transport truck uses a 4×2 FOTON chassis, a 3,360 mm wheelbase, a 141 HP engine, and a stainless-steel milk tank. Its overall dimensions are approximately 5,995 × 2,150 × 2,080 mm.
For larger dairy transportation operations, CSCTRUCK China Tank Truck also offers a FOTON 10,000-liter milk tank truck. One current configuration uses a FOTON chassis, 4×2 left-hand drive, a 4,500 mm wheelbase, a 220 HP YUCHAI engine, and a 10,000-liter 304-2B stainless-steel tank.
FOTON Milk Tank Truck Specifications
The exact specifications depend on the selected chassis, tank capacity, engine, emission standard, and destination-market requirements. The following examples illustrate typical CSCTRUCK China Tank Truck configurations:
| Parameter | FOTON 5,000L | FOTON 10,000L |
|---|---|---|
| Tank Capacity | 5,000 L | 10,000 L |
| Drive Type | 4×2 | 4×2 LHD |
| Wheelbase | 3,360 mm | 4,500 mm |
| Engine Power | 141 HP | 220 HP |
| Tank Material | Stainless steel | 304-2B stainless steel |
| Overall Dimensions | 5,995 × 2,150 × 2,080 mm | Approx. 8,400 × 2,500 × 3,260 mm |
| Application | Milk collection and transport | Medium-scale dairy transportation |
The specifications shown above are representative configurations rather than universal specifications. The final truck can be customized according to local regulations, road conditions, required capacity, steering configuration, emissions requirements, and customer application.
1. Food-Grade Stainless-Steel Tank
One of the most important components of a milk tanker is the tank itself. Milk is a food product, so the tank must be designed for hygienic handling and cleaning.
CSCTRUCK China Tank Truck‘s FOTON milk tank configurations use stainless steel, including 304-2B stainless steel on its 10,000-liter model. Stainless steel provides good corrosion resistance, durability, and a smooth internal surface suitable for food-product transportation.
The tank construction can also incorporate reinforcement and hygienic welding techniques. On the referenced 10,000-liter configuration, the inner tank uses 3 mm 304-2B stainless steel, with reinforced construction and automatic argon-arc welding.
2. Insulation and Temperature Protection
Maintaining suitable milk temperature is an important part of dairy logistics. A milk tanker is therefore normally designed with insulation to reduce heat transfer between the transported milk and the external environment.
For larger FOTON milk tanker configurations, CSCTRUCK China Tank Truck specifies an insulated tank structure and polyurethane foaming as part of the tank design. This helps reduce temperature changes during transportation and provides additional protection for the milk cargo.
The exact temperature-control requirements should be determined according to the milk collection process, transportation distance, climate, and applicable food-safety regulations. For long-distance transportation, customers may also require additional cooling equipment.
3. CIP Cleaning System
Cleaning is essential after milk transportation because milk residues can support bacterial growth if the tank is not properly cleaned.
A modern milk tank truck can therefore incorporate a CIP (Clean-in-Place) system that allows the interior of the tank and associated pipelines to be cleaned without completely dismantling the system.
CSCTRUCK China Tank Truck‘s FOTON 10,000-liter configuration includes a CIP valve. Its published tank configuration also describes a rotating spray cleaning system designed to provide 360-degree coverage and allow individual compartments to be cleaned.
This makes CIP equipment particularly valuable for commercial dairy fleets that perform frequent milk collection and delivery operations.

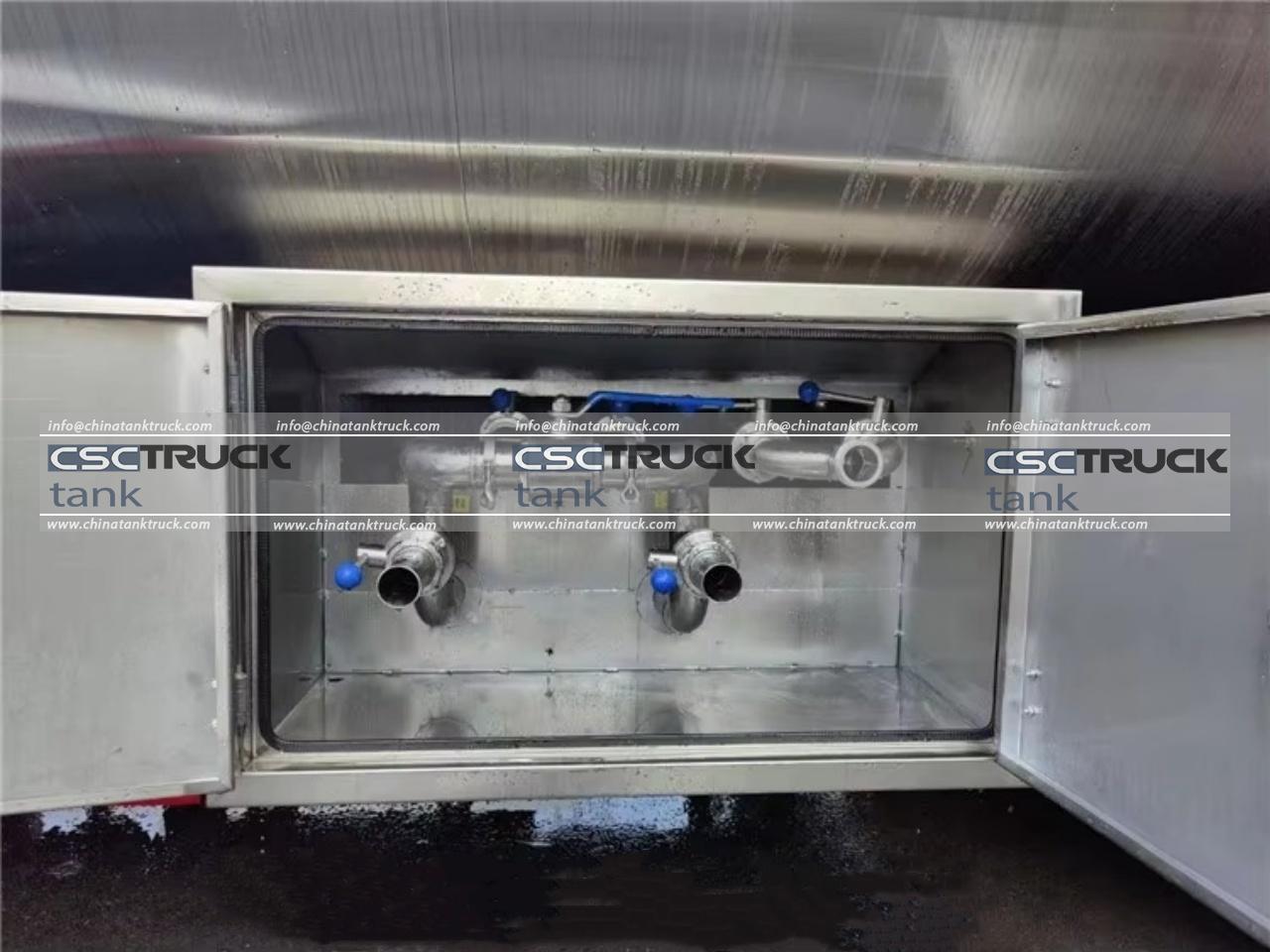

4. Milk Loading and Discharge System
A milk tanker needs more than a storage tank. It also requires hygienic loading, unloading, and pipeline equipment.
Typical equipment can include:
- Milk inlet and outlet pipelines
- Food-grade stainless-steel discharge pipes
- Butterfly valves
- CIP connections
- Pressure/vacuum breathing equipment
- Inspection manholes
- Temperature gauges
- Milk pumps or compatible external pumping systems
For example, the published FOTON 10,000-liter specification describes a stainless-steel milk discharge pipe, a butterfly discharge valve, and dedicated cleaning-pipeline connections.
These components allow milk to be transferred between farms, collection points, processing plants, and other facilities with reduced manual handling.
5. Different Capacity Options
Milk transportation requirements vary significantly between small dairy farms and large milk-processing companies. Choosing the correct tank capacity can therefore have a major impact on operating efficiency.
A 3,000-liter FOTON milk tank truck, for example, is suitable for relatively small-scale milk collection and short-distance transportation. CSCTRUCK China Tank Truck‘s listed model uses a 4×2 chassis, a 3,000-liter 304-2B stainless-steel tank, a 78 HP engine, and a maximum speed of 80 km/h.
A 5,000-liter model provides additional capacity while retaining a relatively compact vehicle configuration. Larger 10,000-liter models are more suitable for higher-volume dairy logistics and longer collection routes.
Applications of FOTON Milk Tank Trucks
Dairy Farm Milk Collection
One of the most common applications is collecting raw milk directly from dairy farms. The tanker travels between farms and collection points, consolidating milk into a dedicated food-grade tank before transportation to a processing facility.
Milk Processing Plants
FOTON milk tank trucks can transport raw milk from collection centers to dairy factories. Their stainless-steel tanks and hygienic transfer equipment are designed for repeated commercial use.
Rural and Regional Dairy Logistics
Compact FOTON configurations are particularly practical for rural milk collection routes where roads can be narrower, and collection volumes are relatively small.
Inter-Plant Transportation
Larger milk tank trucks can be used to move dairy liquids between processing plants, storage facilities, and distribution centers. Capacity selection should be based on transportation distance, daily milk volume, loading infrastructure, and local regulations.
Why Choose a FOTON Milk Tank Truck?
FOTON provides a broad range of commercial vehicle chassis, allowing milk tanker manufacturers to configure vehicles for different payloads and operating environments. When combined with a purpose-built stainless-steel milk tank, the result is a specialized vehicle for dairy logistics.
The main considerations when selecting a FOTON milk tanker include:
- Tank capacity – Match capacity with daily milk volume and route length.
- Chassis configuration – Select 4×2 or another configuration according to payload and road conditions.
- Tank material – Food-grade stainless steel is essential for hygienic milk transportation.
- Insulation – Important for limiting temperature changes during transportation.
- CIP system – Helps simplify regular tank cleaning and sanitation.
- Pump and piping configuration – Select equipment according to the loading and unloading facilities.
- Emission standard – The chassis should comply with the destination country’s requirements.
- Steering configuration – LHD or RHD should be selected according to the target market.
Why Buy from CSCTRUCK China Tank Truck?
CSCTRUCK China Tank Truck provides customized tank truck solutions based on different chassis brands, capacities, tank materials, and customer requirements. Its milk tanker range includes compact and medium-capacity models as well as larger commercial configurations. The company’s milk tank truck category emphasizes hygienic transportation, temperature protection, pumping systems, and food-safety requirements.
For customers purchasing a FOTON Milk Tank Truck for export, the final configuration can be discussed according to the destination country’s regulations, road conditions, required tank capacity, engine emission standard, driving side, and dairy transportation process.
Conclusion
The FOTON Milk Tank Truck is a practical solution for farms, milk collection companies, dairy processors, and regional food-transport operators. Its combination of a FOTON commercial chassis and stainless-steel milk tank provides a dedicated platform for hygienic dairy transportation.
From compact 3,000-liter and 5,000-liter models to larger 10,000-liter configurations, CSCTRUCK China Tank Truck can provide different specifications according to transportation volume and operating requirements. With food-grade stainless-steel tanks, insulation, CIP connections, hygienic discharge equipment, and customizable chassis configurations, a FOTON milk tanker can support efficient milk collection and delivery throughout the dairy supply chain.
