Specification |
Details |
|---|---|
| Chassis | Foton Forland Star |
| Cab Type | Single-row cab |
| Engine | Quanchai 115 hp, inline 4-cylinder, turbocharged, intercooled, common rail |
| Emission Standard | EURO VI |
| Transmission | 5-speed manual |
| Overall Dimensions (L×W×H) | 5.6 m × 1.95 m × 2.15 m |
| Tire Specification | 6.5R16 steel radial tires |
| Exhaust Pipe Position | Front-mounted |
| Braking System | Air brake (spring brake) |
| Air Conditioning | Equipped |

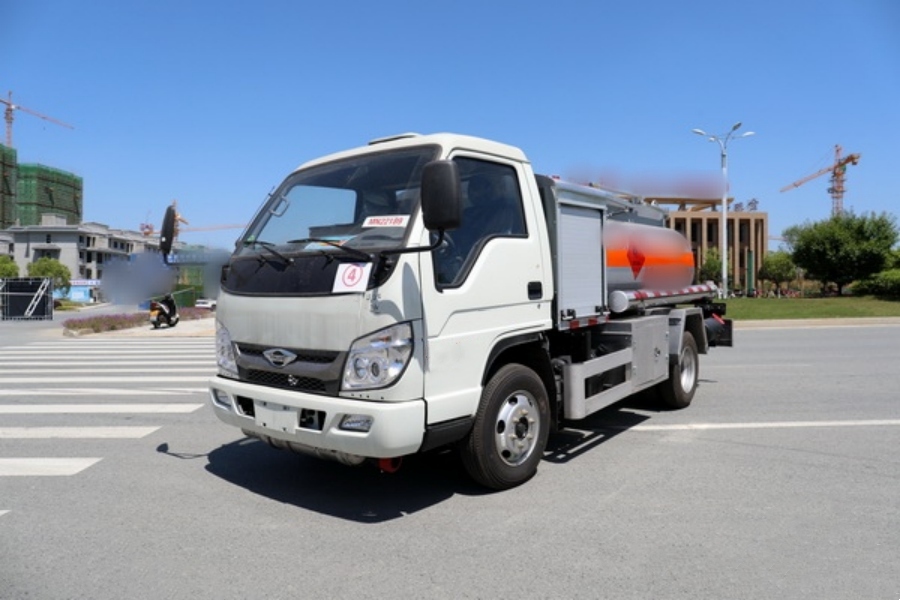

The upper-mounted fuel tank of the Foton Forland Star 3m³ small mobile fuel delivery truck has a declared capacity of 2.1 cubic meters and is engineered with precision for both performance and durability. Constructed from a 5 mm thick high-quality steel plate, the tank body is formed in a single roll process, ensuring structural integrity and uniformity. The front and rear tank heads are manufactured using hydro-expansion pressing technology and are further strengthened through a spinning flange process. This advanced method results in components with minimal deformation and enhanced strength, contributing to a longer service life and better resistance to pressure during operation.
Inside the tank, anti-surge baffles are strategically installed at intervals of 2 meters. These baffles play a critical role in stabilizing the liquid movement during transportation, particularly when the vehicle is fully loaded. By reducing fluid impact and sway, they help protect the vehicle’s chassis and improve overall driving stability and safety. The entire tank is assembled using automatic seamless welding, which produces smooth, continuous welds that are not only visually clean but also contribute to leak prevention and enhanced durability.
Before delivery, the tank undergoes a thorough quality assurance process. This includes non-destructive testing such as liquid penetration inspection, air pressure tests, and flaw detection using advanced equipment. These rigorous procedures are designed to ensure the tank meets all required quality and safety standards before it is put into service.
Designed primarily as a mobile refueling truck, the tank is typically configured with a single compartment for streamlined use. It comes equipped with a domestically renowned oil pump, known for its reliability and performance. The pump is housed in a dedicated pump box featuring European-standard handle locks for security and convenience. In line with international practices, the system also includes key European-standard components such as a manhole cover, bottom valve, and gravity valve, ensuring compatibility and operational efficiency.
To support mobile fueling operations, the tank is fitted with a tax-controlled fuel dispenser. This dispenser is user-friendly and designed for ease of operation in various working environments. Customers can choose from different fuel dispenser brands based on their preferences or specific functional requirements, with price variations depending on the selected brand.
For safety during inspection and refueling procedures, the tank of the Foton Forland Star 3m³ small mobile fuel delivery truck is equipped with a foldable safety railing on the top. Access is facilitated by a mold-pressed, non-slip ladder that ensures secure footing and minimizes the risk of slips or falls. All remaining accessories are provided as standard, offering a complete and ready-to-use solution for mobile fuel transport and dispensing applications.
