Model No.: | CSCWTT025 |
Water Tank Volume: | 25,000 Liters |
Overall Dimensions(LxWxH): | 10,200×2,500×3,500mm |
Chassis Brand: | SAIC IVECO HONGYAN |
Drive Type: | 6×4 |
Wheelbase: | 4,350+1,350mm |
Engine Model: | Cursor 9 390 |
Engine Power: | 390HP |
Emission Standard: | EURO III |
Rated Loading Weight: | 25,000kg |
Water Cannon range: | ≥50m |
Water pump flow rate: | 1,000L/minute |
Water pump suction depth: | ≥7m |
Sprayer system range: | ≥16m |
High-pressure water cannon shooting range: | >=50m |
BRIEF

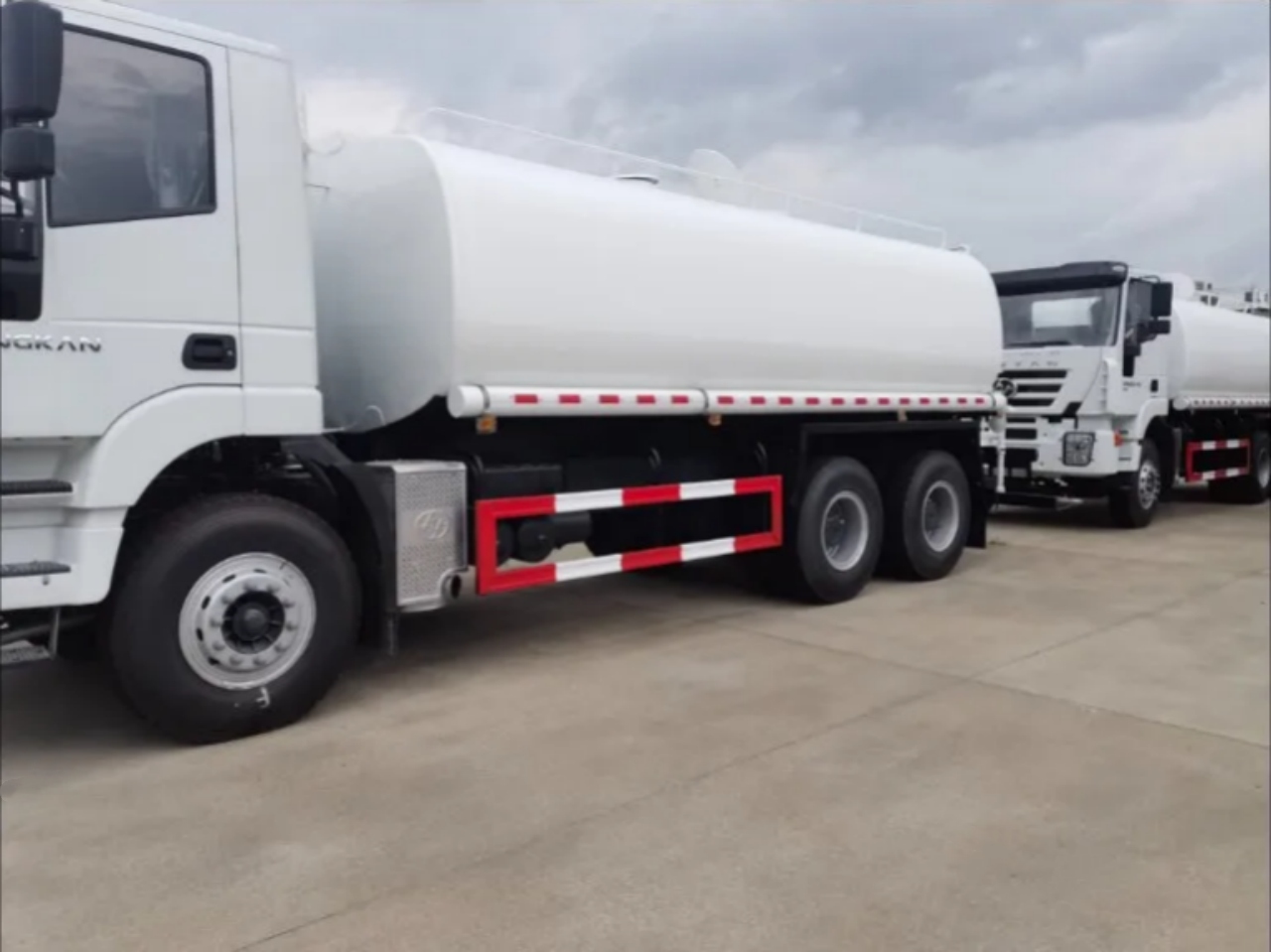

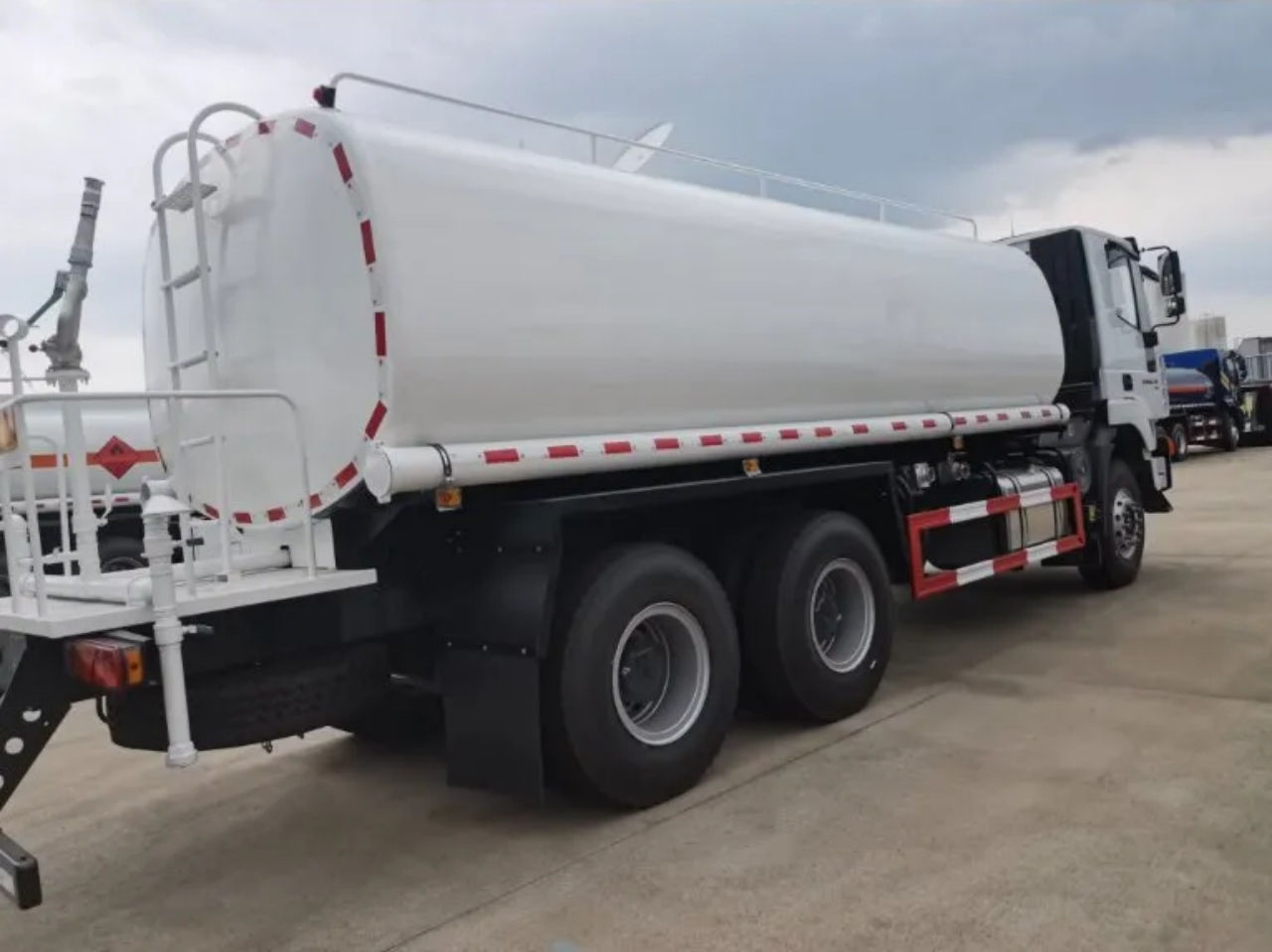

The IVECO 25,000-liter water tanker truck, manufactured by CSCTRUCK China Tank Truck, is a robust and efficient vehicle designed for water transportation and distribution. Built on the SAIC IVECO HONGYAN chassis, it features a 6×4 drive configuration, ensuring optimal performance across diverse terrains. The truck is powered by a Cursor 9 engine delivering 390 horsepower and adhering to the EURO III emission standard, balancing power and environmental responsibility.
With a 25,000-liter water tank capacity, this tanker is ideal for large-scale water transportation needs, such as firefighting, irrigation, or dust suppression. Its water pump boasts a flow rate of 1,000 liters per minute, enabling rapid and effective water discharge. The pump supports a suction depth of ≥7 meters, making it suitable for sourcing water from rivers, lakes, or reservoirs.
The water tanker truck is equipped with a high-pressure water cannon capable of shooting water up to 50 meters, providing significant reach for firefighting or cleaning operations. Additionally, the sprayer system extends up to 16 meters, ensuring effective distribution for agricultural or industrial applications. The vehicle’s loading weight capacity is an impressive 25,000 kilograms, underscoring its heavy-duty capabilities.
The IVECO 25,000-liter water tanker truck offers a blend of reliability, performance, and versatility. Its advanced engineering and comprehensive features make it an essential solution for industries requiring efficient water transportation and distribution systems.
FEATURES
- High-Capacity Tank and Powerful Pumping System
- Tank Volume: 25,000 liters for extensive water storage.
- Pump Flow Rate: 1,000 liters per minute, ensuring efficient water delivery.
- Suction Depth: Capable of drawing water from a depth of ≥7 meters.
- Advanced Chassis and Drivetrain
- Chassis: SAIC IVECO HONGYAN, providing durability and reliability.
- Drive Type: 6×4 configuration, optimized for tough terrains and heavy loads.
- Engine Performance and Compliance
- Engine Model: Cursor 9 390 with 390HP power output.
- Emission Standard: Compliance with EURO III, ensuring lower emissions.
- Effective Water Dispersal Systems
- Water Cannon Range: High-pressure water cannon with a shooting range of ≥50 meters.
- Sprayer System Range: Spraying range of ≥16 meters for broad area coverage.
- Heavy-Duty Capacity
- Loading Weight: Supports up to 25,000 kg, accommodating water and equipment.
- Multi-Purpose Functionality: Suitable for firefighting, dust suppression, and other utility applications.
SPECIFICATION
IVECO 25000 Liters Water Tanker Truck | |
Chassis Model | CQ1254HTG434 (Left/ Right Hand Driving Type Optional) |
Engine | Model: Cursor 9 390, Euro 3 6-cylinder in-line with water cooling, turbo-charging, and intercooling, diesel engine Displacement: 8.7 L |
Clutch | Single-plate dry diaphragm spring clutch, diameter 430mm, hydraulically operating with air assistance |
Gearbox | FAST brand,10 forward and 2 reverse, with Power Take-Off (PTO) |
Front Axles | 9,000kg with drum brake system |
Rear Axles | 16,000kg with 2 axles combined |
Suspension | Front suspension: Leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer. |
Rear suspension: Leaf springs with bogie spring and stabilizer, | |
Steering System | Power steering, hydraulic steering with power assistance |
Braking System | Front drum rear drum brake, 4-circuit protection valve Service brake: Dual circuit compressed air brake Parking Brake(emergency brake): Spring energy, compressed air operating on rear wheels Auxiliary brake (optional): Engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms. |
Tires | 11.00R20 or 12.00R20, with 1 spare tire. |
Fuel Tank Volume (L) | 300 |
Curb Weight(kg) | 11,500 |
Gross Vehicle Weight (kg) | 25,000 |
Rated Loading Weight (kg) | 25,000 |
Overall Dimension (LxWxH) (mm) |
10,200×2,500×3,500 |
Wheelbase (mm) | 4,350+1,350 |
Tank volume (m³) | 25m3 |
Tank material | Stainless steel SUS304. Carbon steel-Q235 or Aluminum alloy 5083, 5454 are optional. |
Remark (Engine power option) | 390HP |
25,000 Liters water tanker configuration | ||
Tank material: Carbon steel-Q235; Stainless steel SUS304 or Aluminum 5083/5454 are optional. Shell thickness: 4mm, wave plate(baffle): 4mm, Shell cover: 5mm. |
||
Water tank spray system specifications & function | ||

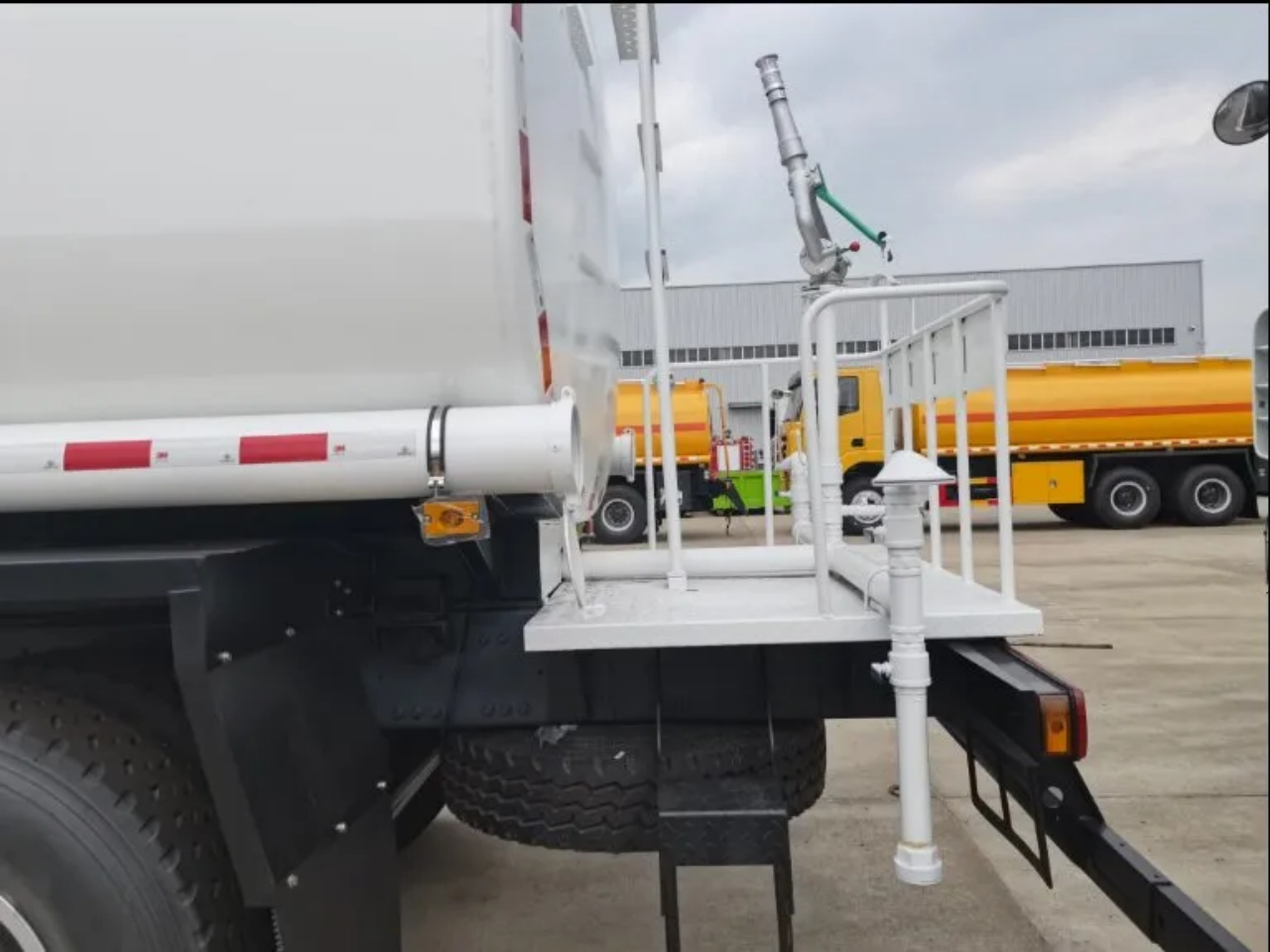

Water cannon | A water cannon was installed at the rear of the truck, with an operation plate form. It can be used to clean roads, and trees, and also for emergency fire fighting. Water cannon range: ≥50m, it can rotate with 360°degree freely by manual operation. |
|
Water pump | Water pump flow rate(L/m): 1,000L/minute Water pump suction depth: ≥7m Water suction loading time: About 20 minutes. |
|
Sprayer system | Front spray: On the left and right side, sprinkling range: ≥16m | |
Rear sprinkler: On the left and right, shooting range: ≥16m | ||
Working platform: Operator standing there to operate the water cannon High-pressure water cannon: Shooting range:>=50m. |
||
Water tank configurations | ||
1. Manhole: 1 unit quick opening manhole with cover | ||
2. Air valve: 1 unit air valve | ||
3. Water Inlet: 2 types of water loading systems, Manhole loading, and water pump suction loading | ||
4. Discharge outlet: 1 unit DN80mm stainless steel ball valve type outlet | ||
5. Discharge hose: 2 units 5m delivery hose with quick couplings (Male and female coupling) | ||
6. Man walkway: Anti-skidding steel walkway on top | ||
7. Climbing Ladder: Extra Strength climb ladder fixed on the rear bumper | ||
8. Reflective tape: ‘3M’ reflective tap on the side of the tanker and rear of the tanker | ||
9. Fire extinguisher holder: 2 pcs holders and 2 units 4 kg fire extinguisher | ||
10. Side fender: Installed at both sides of the tank. Manufacturer’s standard | ||
11. Rear Bumper: Steel made, Manufacturer’s standard design | ||
12. Tank coating: First by sandblasted, second by anti-rust coating, third by base coating, and fourth by finishing coats. Tank color and LOGO per client’s requirement. |
Tank Mounted on Chassis Brand |
---|
