| Model No.: | CSCWT020 |
| Water Tank Volume: | 20,000 liters |
| Overall Dimensions(LxWxH): | 10,200×2,500×3,450mm |
| Chassis Brand: | IVECO |
| Drive Type: | 6×4 |
| Wheelbase: | 4,600+1,350mm |
| Max. Payload Weight: | 20,000kg |
| Max Speed: | 90km/h |
| Engine Model: | WP10.380 |
| Max. output: | 279kW/380PS |
| Emission standard: | EURO 3 |
| Tank material: | Stainless steel-SS304 |
| Water cannon range: | >=50m |
| Water pump flow rate: | 1,000L/m |
| Water pump suction depth: | >=7m |
| High-pressure water cannon shooting range: | >=50m |
BRIEF

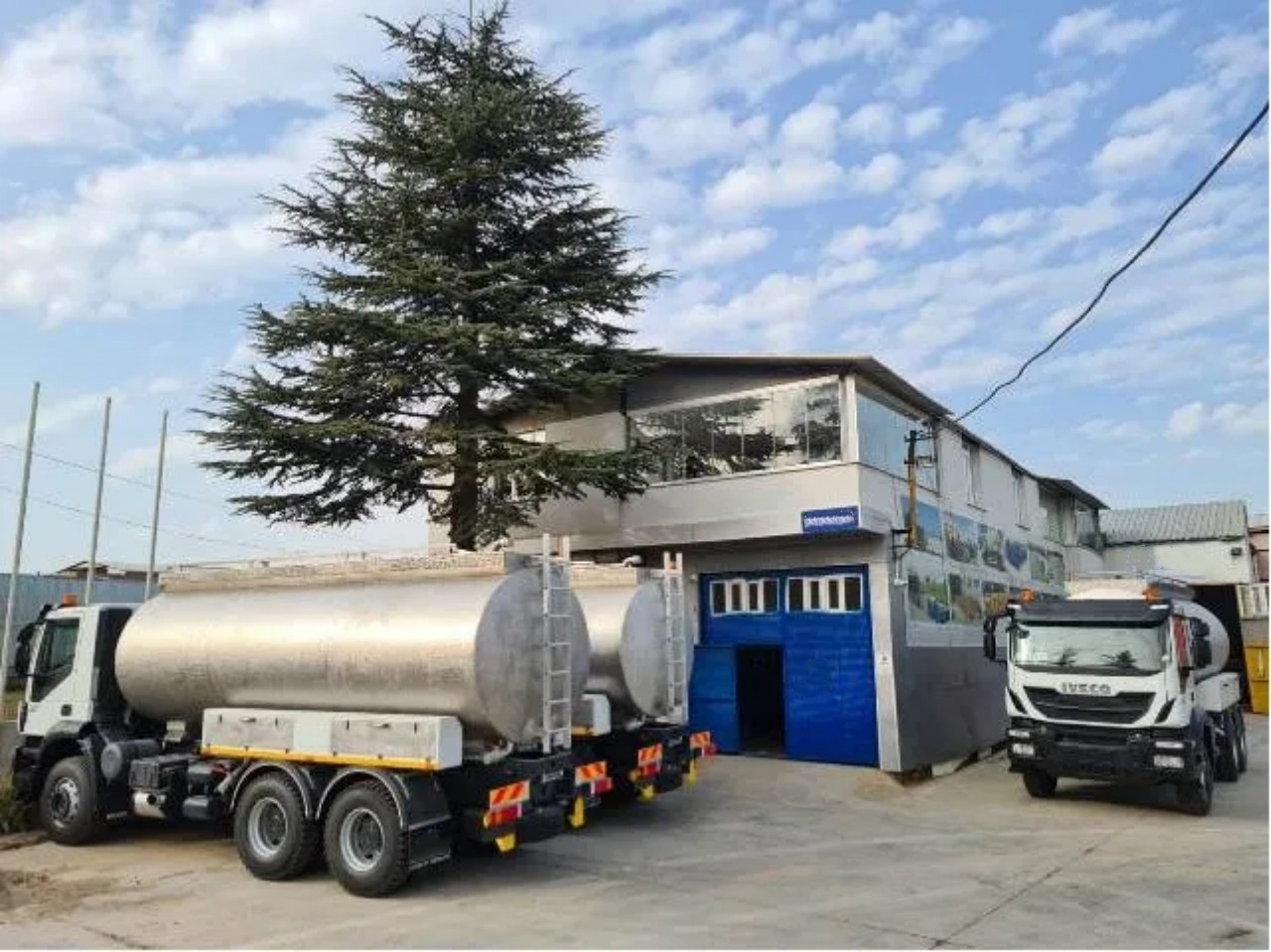

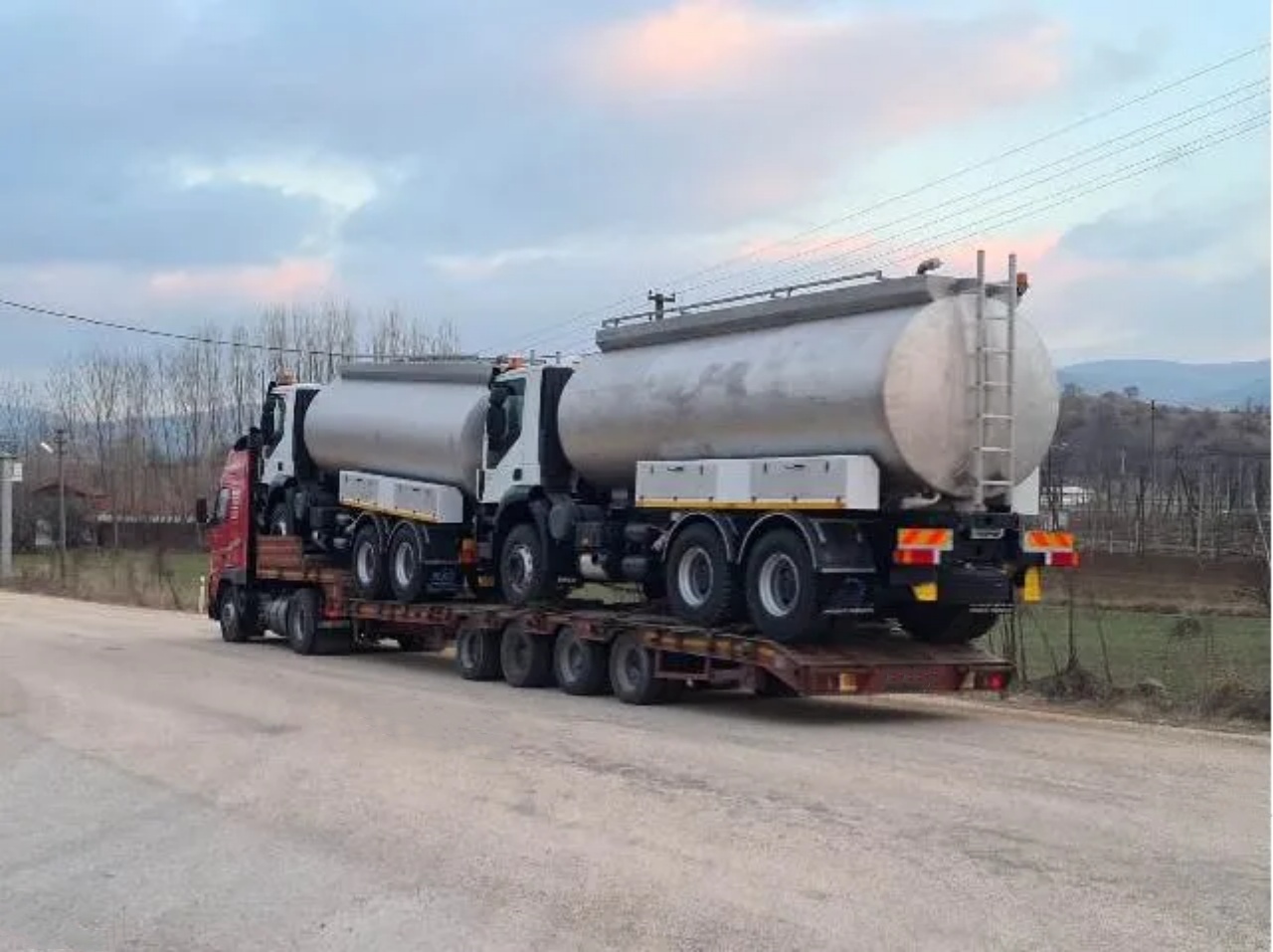

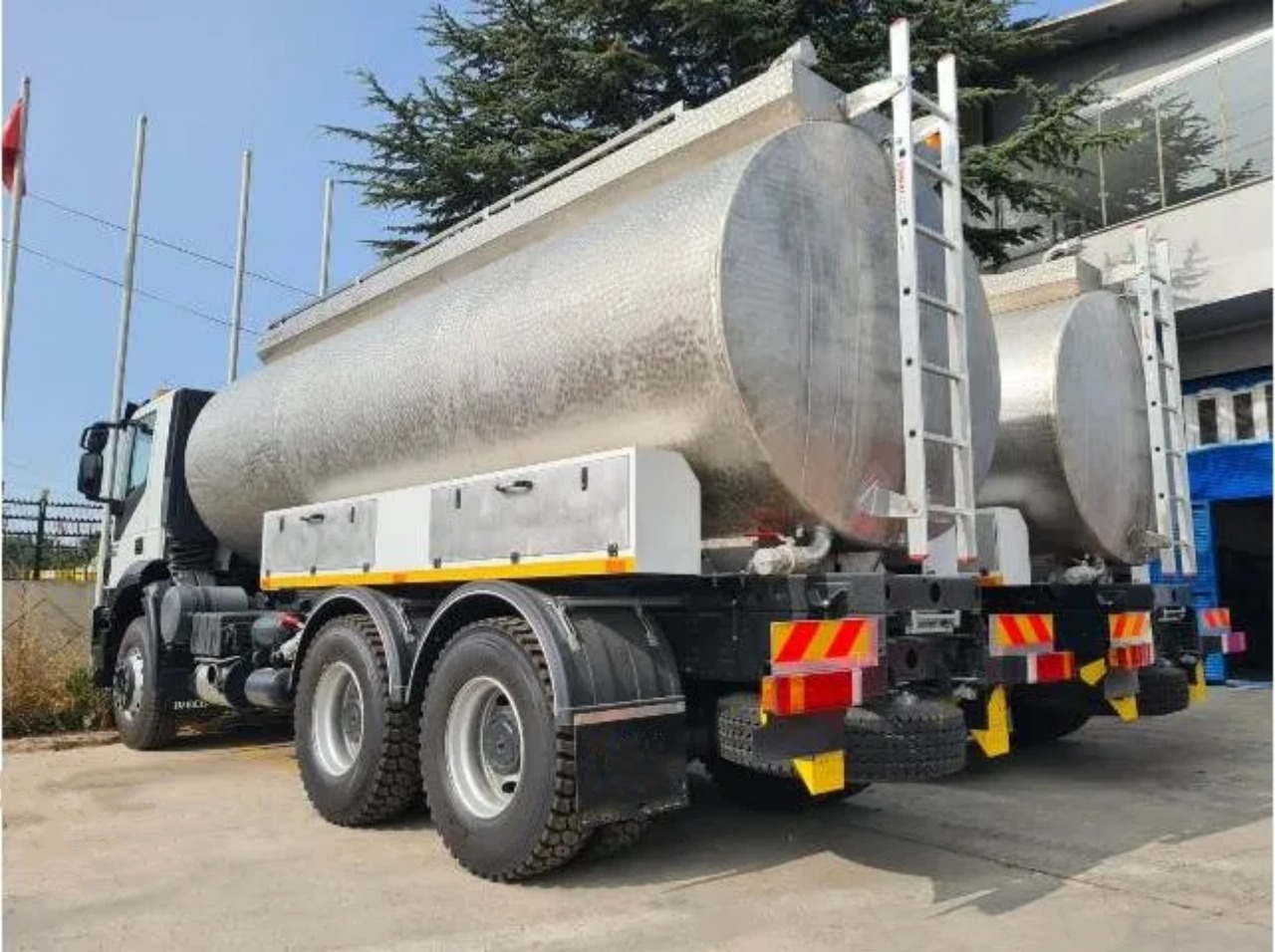

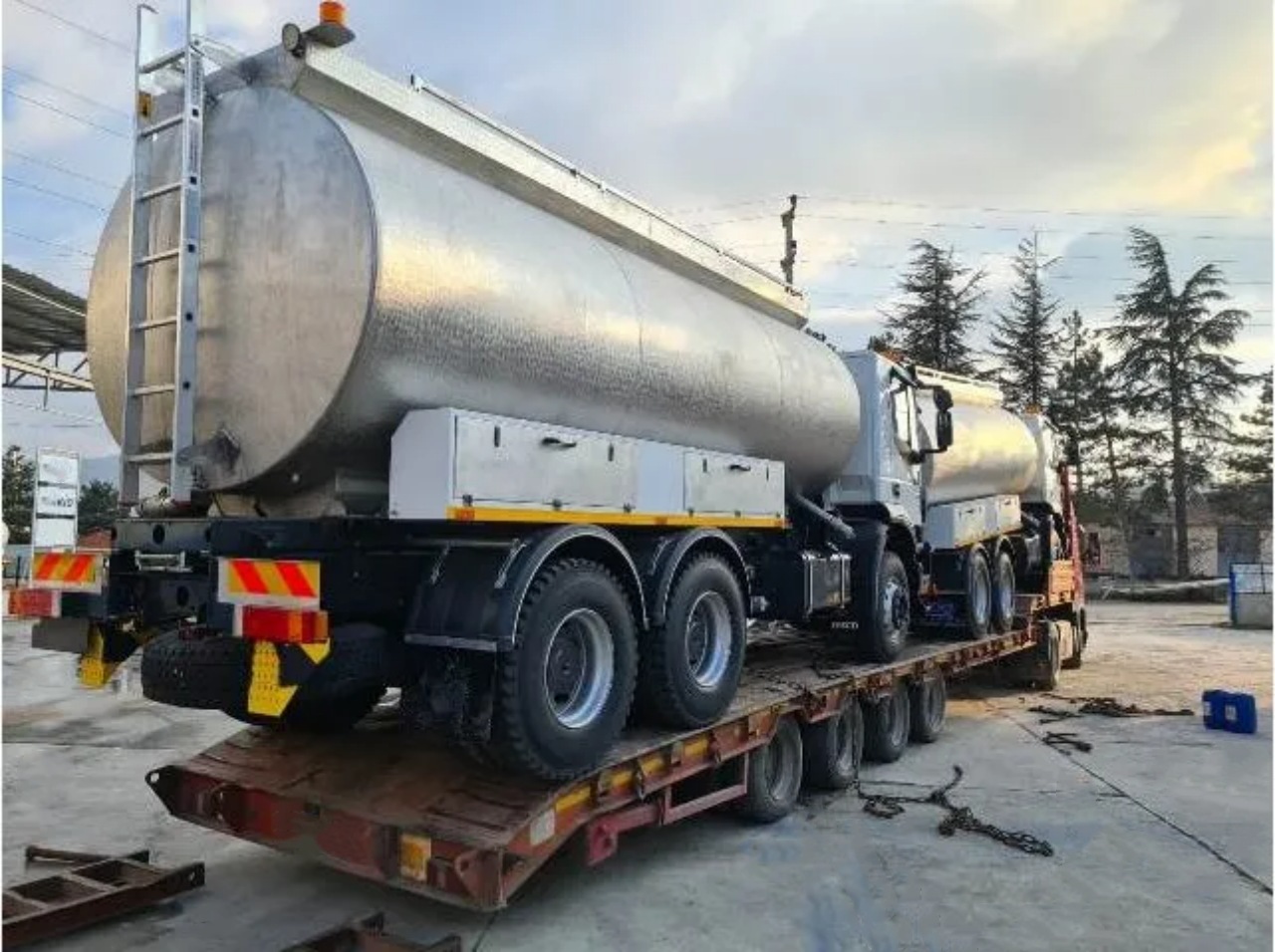

The IVECO 20,000-liter water truck, produced by CSCTRUCK China Tank Truck, is a robust and versatile vehicle for efficient water transportation and distribution. Built on the durable IVECO chassis, the truck features a 6×4 drive configuration, ensuring optimal traction and stability in various terrains. It boasts a maximum loading weight of 20,000 kg and can reach a top driving speed of 90 km/h, making it both powerful and agile for operational needs.
At its core, the vehicle is powered by the WP10.380 engine, delivering a maximum output of 279 kW (380 PS). This engine complies with the EURO 3 emission standard, balancing performance and environmental considerations. The stainless steel SS304 water tank, with a 20,000-liter capacity, ensures durability and hygiene, suitable for both firefighting and water delivery.
The water truck is equipped with a high-performance water pump with a flow rate of 1,000 liters per minute and a suction depth of at least 7 meters. Its high-pressure water cannon boasts an impressive shooting range of over 50 meters, making it effective for firefighting and cleaning tasks. The water cannon is highly versatile and capable of operating in various modes to suit different operational demands.
Designed for reliability and efficiency, this water truck is ideal for applications such as municipal services, firefighting, and water supply in remote areas. Its combination of advanced features, robust construction, and high-capacity tank positions it as a valuable asset for industries requiring dependable water transport solutions.
FEATURES
- Massive Water Capacity: Equipped with a 20,000-liter stainless steel (SS304) water tank, designed for efficient water storage and corrosion resistance.
- Powerful Engine and Chassis: Built on an IVECO chassis with a WP10.380 engine delivering 279kW/380PS maximum output, compliant with the EURO 3 emission standard.
- High-Performance Water System: Includes a water pump with a flow rate of 1,000L/min and a suction depth of ≥7m, ensuring reliable water delivery even in challenging conditions.
- Extended Water Cannon Range: Features a high-pressure water cannon capable of shooting water to a distance of ≥50m, suitable for firefighting or irrigation.
- Robust Design and Efficiency: Supports a 6×4 drive type with a maximum loading weight of 20,000kg and a top speed of 90km/h, ensuring durability and operational efficiency across varied terrains.
SPECIFICATION
| IVECO 20000 Liters Water Truck | ||
| Â Emission Standard | Â EURO 3 | |
| Â Model Name | Â CSCWT020 | |
| Â Chassis model | Â IVECO 6×4 | |
|  Driving Type |  6×4 rear axle drive type | |
| Â Water tank capacity(L) | Â 20,000 Liters | |
| Â Dimensions | ||
| Â Wheelbase(mm) | Â 4,600+1,350 | |
|  Overall dimension(LxWxH)(mm) |  10,200×2,500×3,450 | |
| Â Weight parameter | ||
| Â GVW(kg) | Â 25,000 | |
|  Max. payload weight(kg) |  20,000 | |
| Â Curb weight(kg) | Â 12,450 | |
| Â IVECÂ 6x4Â truck chassis specification | ||
| Front axle/suspension | 9T heavy-duty axle | |
| Front axle suspension: Leaf spring | ||
| Rear axle/suspension | 16T heavy-duty rear driving axle | |
| Full-floating, in-line tandem type, leaf spring suspension | ||
| Â Front axle span(mm) | Â 2,022 | |
| Â Rear axle span(mm) | Â 1,830/1,830 | |
| Front/rear overhang(mm) | Â 1,500/2,340 | |
| Â Max speed(km/h) | Â 90 | |
|  Tire specification |  11.00R20,total 10 tires+1 spare tire | |
| Â Engine description | ||
|  Engine model |  WP10.380 from Weichai engine cooperation | |
| Â Emission standard | Â EURO 3 | |
| Â Engine type | Â Type 4-cycle, straight 6 cylinders in-line, direct-injection, water-cooling, turbocharged with intercooler diesel engine. | |
| Â Lubrication System | Â Â Forced feed by gear pump | |
| Â Cooling System | Â Forced circulation by centrifugal water pump | |
|  No. of cylinders |  Straight-6 cylinders in line | |
|  Max torque(N·m) |  1460 N·m | |
| Â Max torque speed(rpm) | Â 1,200-1,600 rpm | |
| Â Displacement (L) | Â 9.726L | |
| Â Max.output(kW/PS) | Â 279kW/380PS | |
|  IVEC 6x4 Water truck drive Line | ||
| Â Clutch | Â GFX430, Dry single plate, hydraulically operated clutch | |
| Â Steering | Â Bosc steering wheel, hydraulic power assistance | |
| Â Gearbox/Transmission | Â FAST brand,9 forwarders,s, and 1 reverse gear With power take-off (P.T.O) |
|
| Â Brake System | ||
| Â Service braking | Full air brake on all wheels, dual airline system, internal expand leading,g and shoe-type | |
| Â Parking braking | Â Hand brake Mechanically operated by hand brake lever, internal expanding,duo-servo shoe type acting on the drum at the rear |
|
| Â Auxiliary braking | Engine exhaust braking, with ABS. | |
| Cab | ||
| Â 1. IVECO GENLOVN new cab, one and a half row, one sleeper bed in the cab 2. Cab can be reversible forwardly by manual operation 3. Factory-installed air conditioner & car heater, AM/FM radio player, MP3, USB interface, etc 4. Seat belts for front driver and passenger 5. Electrical windows, central lock |
||
|  20,000 Liters water tanker configuration | ||
|  Tank material: Stainless steel-SS304; Shell thickness: 4mm, Shell cover: 5mm Tank baffle thickness: 4mm, 3 baffle wave plate |
||
| Water tank sprinkler function | ||
| Water cannon(Optional) | Water cannon installed at the rear of the truck, with operation plate-form, It can be used to clean roads, and trees, and also for emergency fire fighting Water cannon range: >=50m, it can rotate with 360°degree freely |
|
| Water pump | Water pump flow rate(L/m): 1000L/minute Water pump suction depth:>=7m Water suction loading time: About 12 minutes |
|
| Sprayer system | Front spray: On the left and right side, sprinkling range:16m | |
| Rear sprinkler: On the left and right, shooting range over 16m | ||
| Working platform: Operator standing there to operate the water cannon High-pressure water cannon: Shooting range: >=50m |
||
| Â Water tank Other configurations | ||
|  1. Manhole: 1 unit stainless steel SS304 quick opening manhole with cover | ||
|  2. Air valve: 1 unit air valve | ||
| Â 3. Water Inlet: 2 types of water loading systems, Manhole loading, and water pump suction loading | ||
|  4. Discharge outlet: 1 unit DN80mm stainless steel ball valve type outlet | ||
|  5. Discharge hose: 2 units 5m delivery hose with quick couplings (Male and female coupling) | ||
| Â 6. Man walkway: Anti-skidding steel walkway on top | ||
| Â 7. Climbing Ladder: Extra Strength climb ladder fixed on the rear bumper | ||
| Â 8. Reflective tape: ‘3M’ reflective tap on the side of the tanker and rear of the tanker | ||
| Â 9. Fire extinguisher holder: 2 pcs holders and 2 units 4Kg’s fire extinguisher | ||
| Â 10. Side fender: Installed at both sides of the tank. Manufacturer’s standard | ||
| Â 11. Rear Bumper: Steel made, Manufacturer’s standard design | ||
| Â 12. Tank coating: First by sandblasted, second by anti-rust coating, third by base coating, and fourth by finishing coats. Tank color and LOGO per client’s requirements. | ||
| Tank Mounted on Chassis Brand |
|---|
