BRIEF

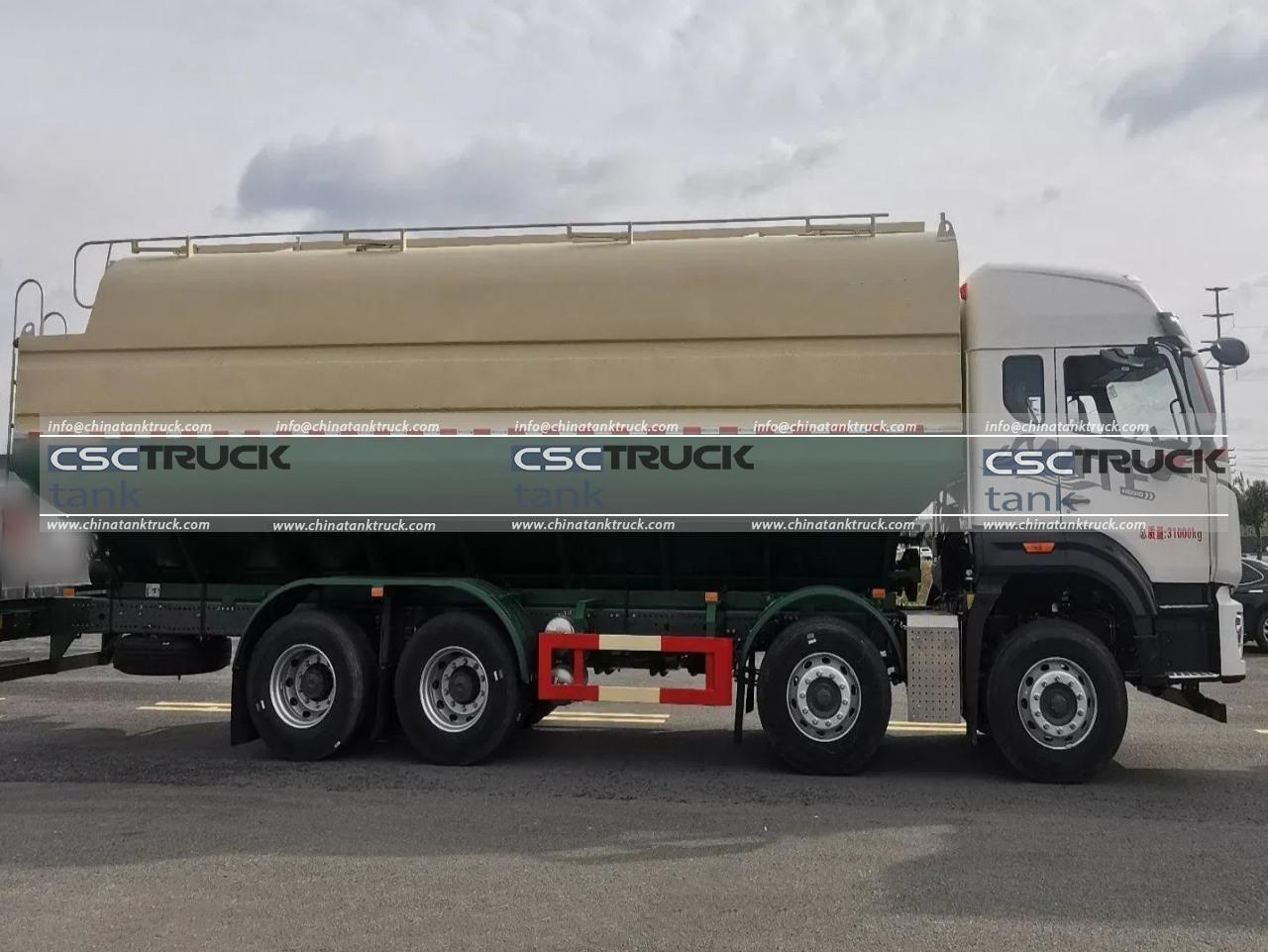

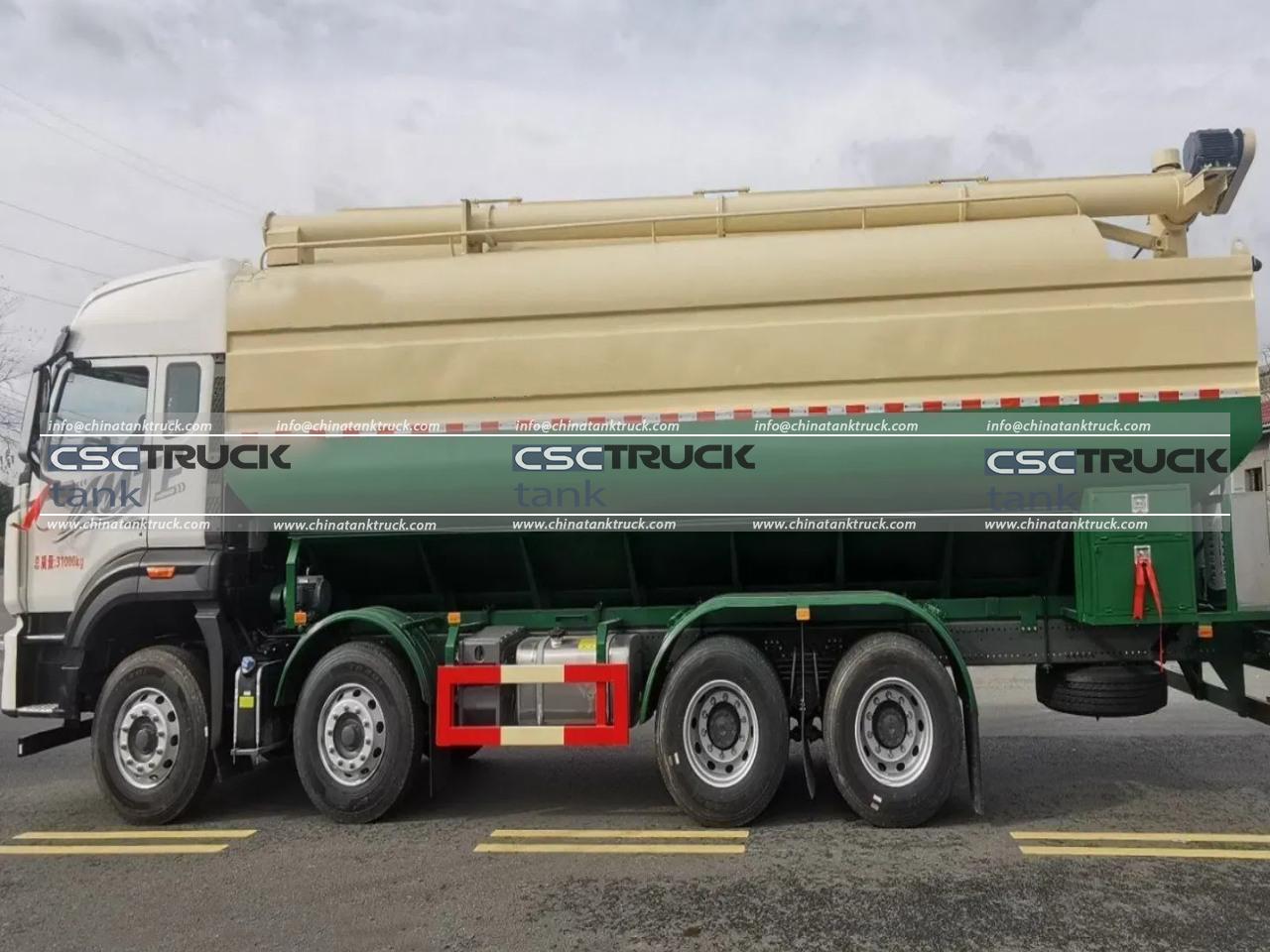

The HOWO 40 CBM Bulk Feeder Truck, manufactured by CSCTRUCK China Tank Truck, is a highly efficient livestock feed vehicle designed for the safe, fast, and automated delivery of bulk feed, grain, powder, and other dry materials. Built on the reliable HOWO-MATE 8×4 heavy-duty chassis, this truck combines large carrying capacity, advanced conveying technology, and dependable performance, making it an ideal solution for modern farms, feed mills, and agricultural distribution operations.
Powered by the robust MC07H.35-61 diesel engine, the vehicle delivers 350 HP (257 kW) and a maximum torque of 2,100 N·m, ensuring strong hauling capability even under full-load conditions. The engine complies with EURO 3 to EURO 6 emission standards, allowing customers to select configurations that meet local environmental regulations. Paired with the HW14712XSTC transmission, the truck offers smooth power delivery, excellent fuel efficiency, and reliable operation across various road conditions.
The bulk feed tank is constructed from high-quality 4 mm carbon steel and features a total volume of 40 CBM, capable of transporting approximately 20–30 tons of feed materials. The tank is divided into 4 independent compartments, enabling the transportation of different feed types in a single trip while preventing cross-contamination. An anti-corrosive paint coating enhances durability and extends service life in demanding environments.

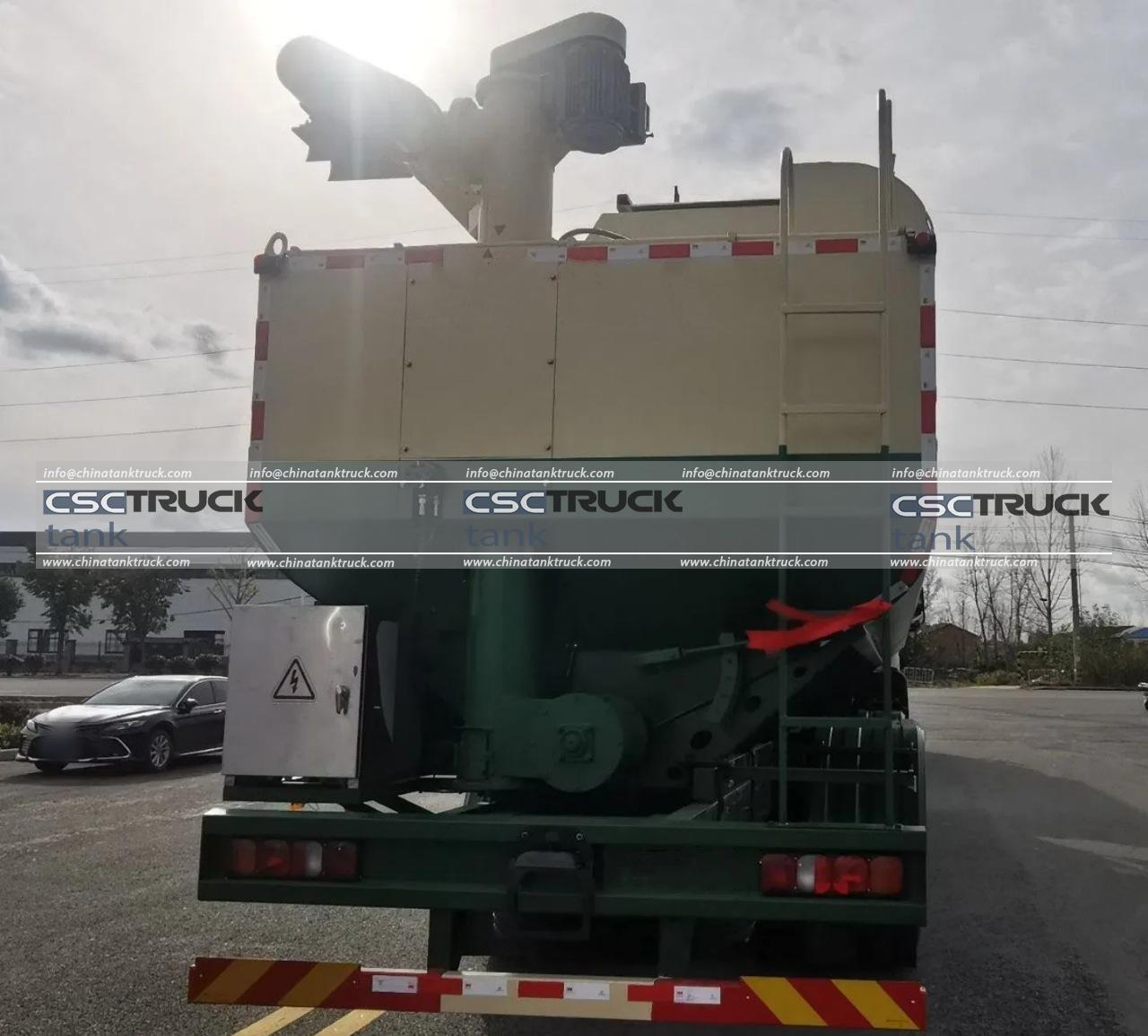

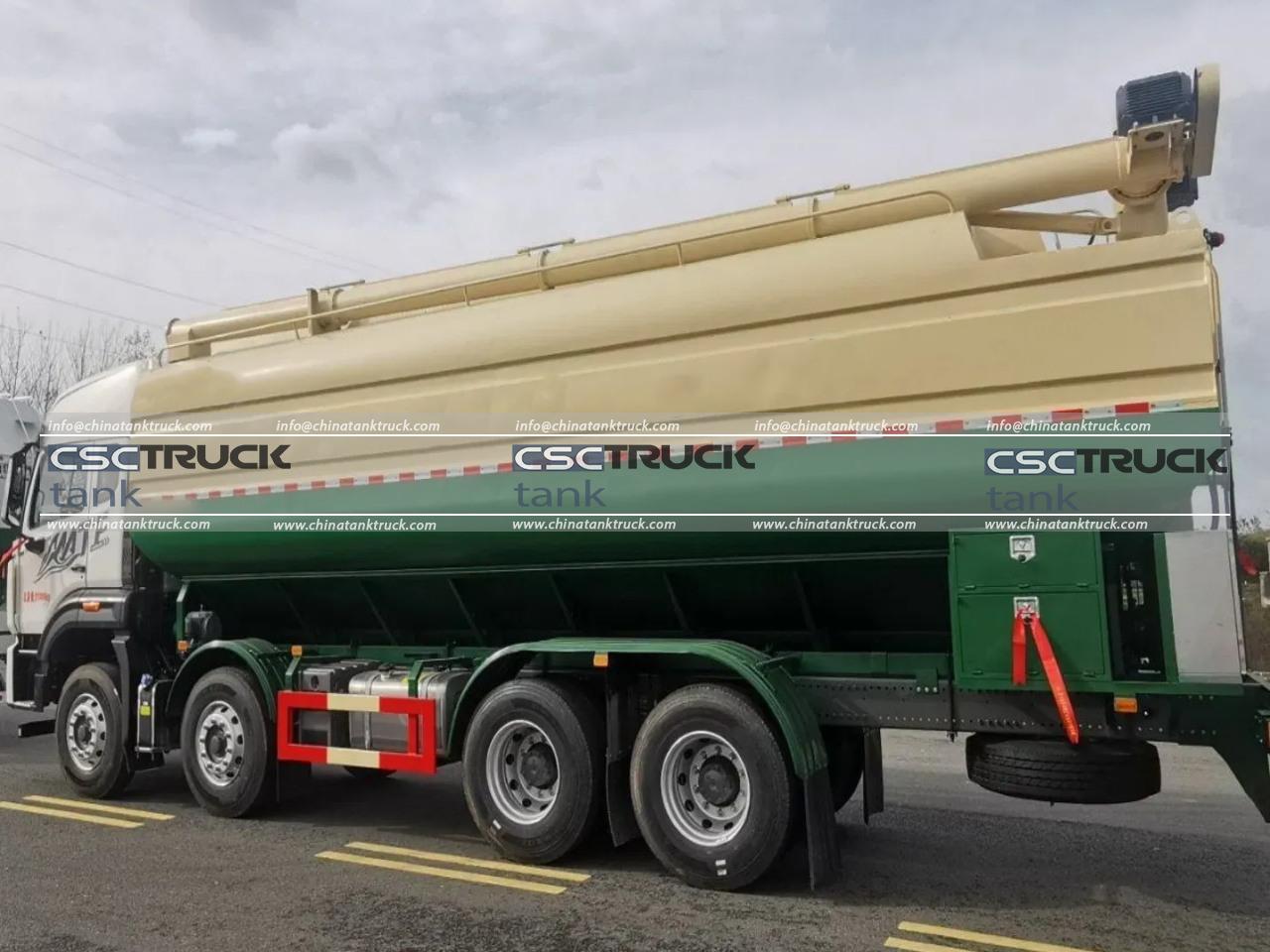

For efficient unloading, the truck is equipped with a fully electric feeding system that includes a mobile conveyor, vertical conveyor, horizontal conveyor, and an 8.5-meter top auger. These components work together to deliver feed quickly and accurately into storage silos or feeding systems. Additional features such as the electric control box, conveyor maintenance ports, operation handles, and access ladder ensure convenient operation and maintenance.
With its large capacity, automated discharge system, and dependable HOWO chassis, the HOWO 40 CBM Bulk Feeder Truck provides a cost-effective and productive solution for bulk feed logistics.
FEATURES
- High-Capacity Bulk Tank – The 40 CBM tank, made of 4 mm carbon steel and divided into 4 compartments, allows transportation of 20–30 tons of feed, supporting multiple feed types per trip without cross-contamination.
- Powerful and Efficient Engine – Equipped with the MC07H.35-61 diesel engine delivering 350 HP (257 kW) and 2,100 N·m torque, compliant with EURO 3–6 emission standards for strong hauling capability and environmental compliance.
- Advanced Transmission – The HW14712XSTC gearbox ensures smooth power delivery, excellent fuel efficiency, and reliable performance under diverse road and load conditions.
- Automated Feeding System – Features a fully electric discharge system including mobile, vertical, and horizontal conveyors, plus an 8.5-meter top auger for fast, precise unloading into silos or feeding systems.
- Durable and User-Friendly Design – Anti-corrosive paint, maintenance ports, electric control box, operation handles, and access ladder enhance longevity, safety, and ease of operation and maintenance.
SPECIFICATION
| Chassis | Model series | HOWO-MATE |
| Emission standard | EURO 3-6 | |
| Driving type | 8×4 | |
| Cabin | Type | HOWO MATE-L cab,4 points full floating, air suspension, driver seat, electrical lifting door windows, electrical adjusting mirrors, one sleeper, with A/C. |
| Seating capacity | 2 | |
| Engine | Model | MC07H.35-61 |
| Type | 6 cylinders in line, 4 strokes, common rail diesel engine, water cooling, Intercooler, Turbocharged | |
| Displacement(cc) | 6,870 | |
| Borexstroke(mm) | 120x155mm | |
| Max.power(HP/rpm) | 350HP(257kW)/1,900rpm | |
| Max.torque(N·m/rpm) | 2,100N·m/1,000-1,400rpm | |
| Gearbox | Brand | HW |
| Model | HW14712XSTC | |
| Gear nos. | HW45ZC | |
| Ratio | F: 15.01/11.67/9.03/9/7.14/5.57/4.38/3.43/2.67/2.06/1.63/1.27/1 R:13.81 | |
| Max torque(Nm/RPM) | 2,500N·m | |
| PTO model | HW70 flange connects PTO | |
| Dimensions | Overall dimensions (L×W×H)(mm) | 9,150*2,550*3,950 |
| Wheelbase(mm) | 1,800+3,500+1,350 | |
| Wheel track (front/rear(mm) | 2,022/1,860 | |
| Overhang(Front/Rear)(mm) | 1,550/2,625 | |
| Approach/departure angle(°) | 13/19 | |
| Weight | GVW(kg) | 31,000 |
Body |
|||
| Loading Medium | Bulk feed, grain, powder, etc. | ||
| Bulk Capacity | 20-30 tons | ||
| Bulk Volume | 40 CBM | ||
| Material | Carbon steel | ||
| Thickness: 4mm | |||
| Rust Resistance | Anti-corrosive paint | ||
| Compartments | Quantity: 4 | ||
| Color | As your request | ||
| Logo | As your request | ||
| Driving form | Electrical driving | ||
| Main Parts | Mobile conveyor | ||
| Vertical conveyor | |||
| Electric operation box | |||
| Conveyor maintenance port | |||
| Horizontal conveyor | |||
| Top auger (8.5m) | |||
| Discharging the operation handle | |||
| Ladder | |||
