| Model No.: | CSCWTT012 |
| Water Tank Volume: | 12,000 Liters |
| Overall Dimensions(LxWxH): | 6,980×2,455×2,980mm |
| Chassis Brand: | Dongfeng |
| Drive Type: | 4×2 |
| Wheelbase: | 4,200mm |
| Max. Payload Weight: | 14,000kg |
| Max Speed: | 90km/h |
| Engine Model: | YC4E160-33 |
| Max. output: | 118kw/160PS |
| Emission standard: | EURO 3 |
| Tank material: | Carbon steel-Q235 |
| Water cannon range: | >=50m |
| Water pump flow rate: | 1,000L/m |
| Water pump suction depth: | >=7m |
| High-pressure water cannon shooting range: | >=50m |
BRIEF

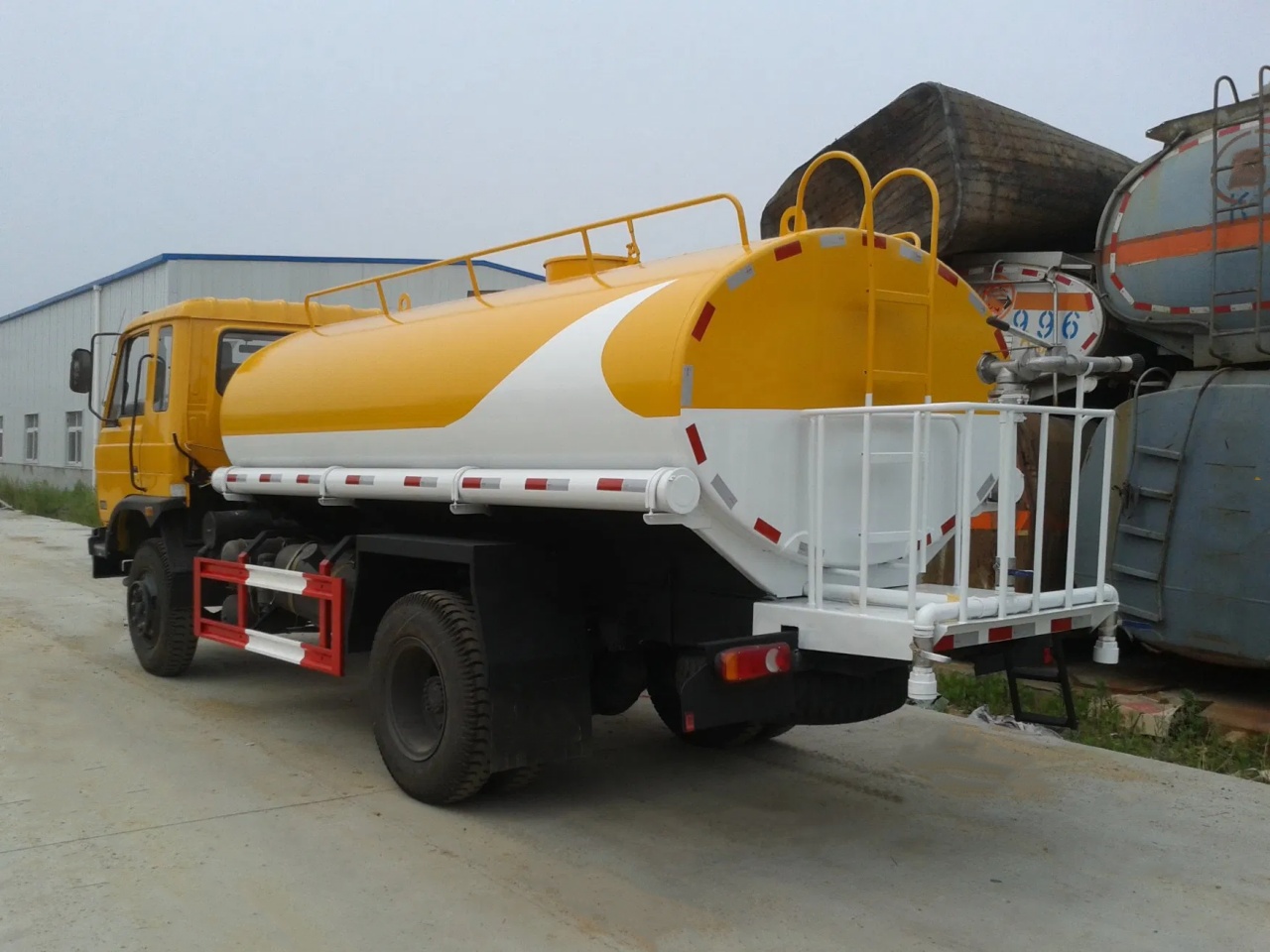

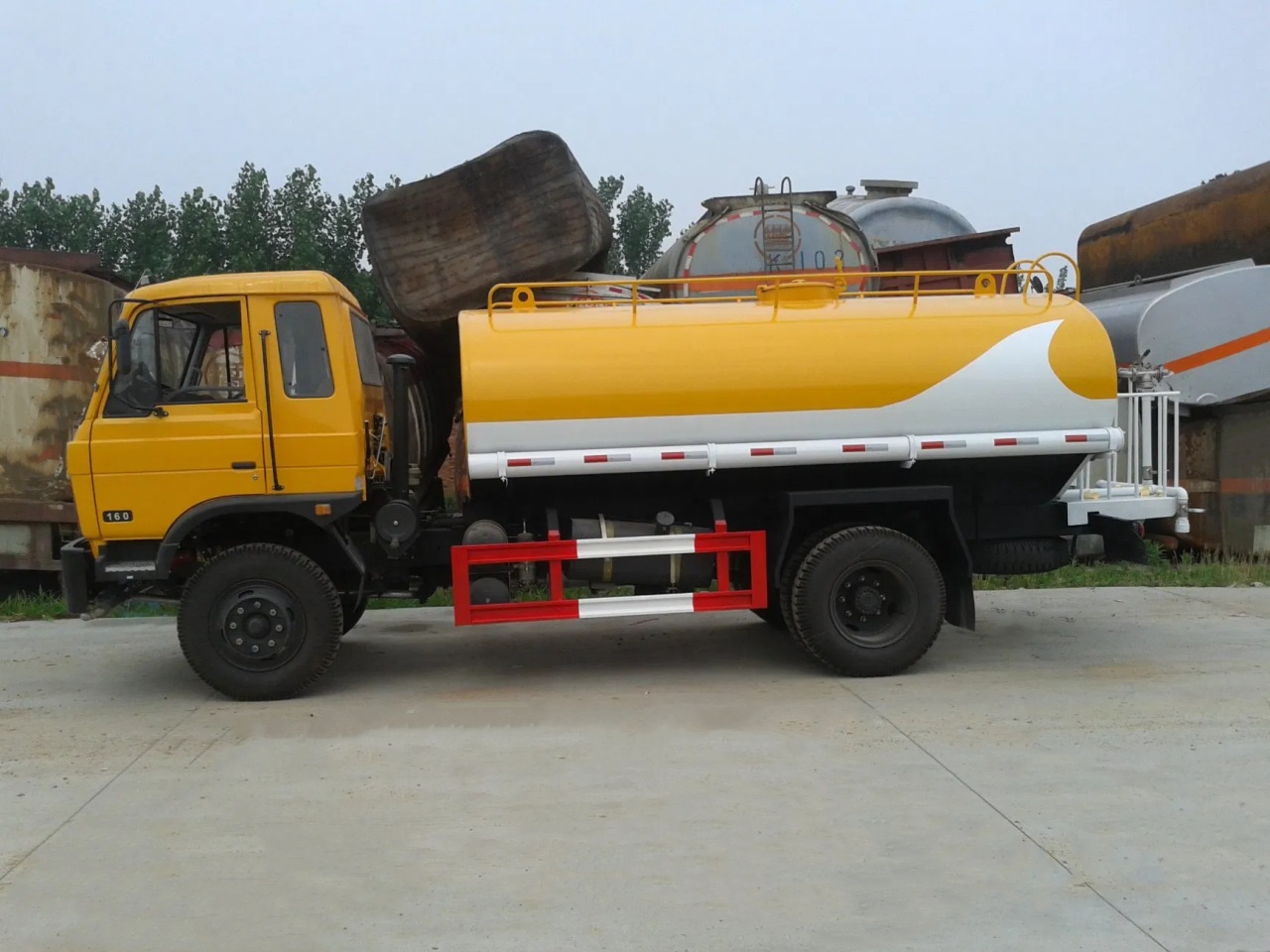

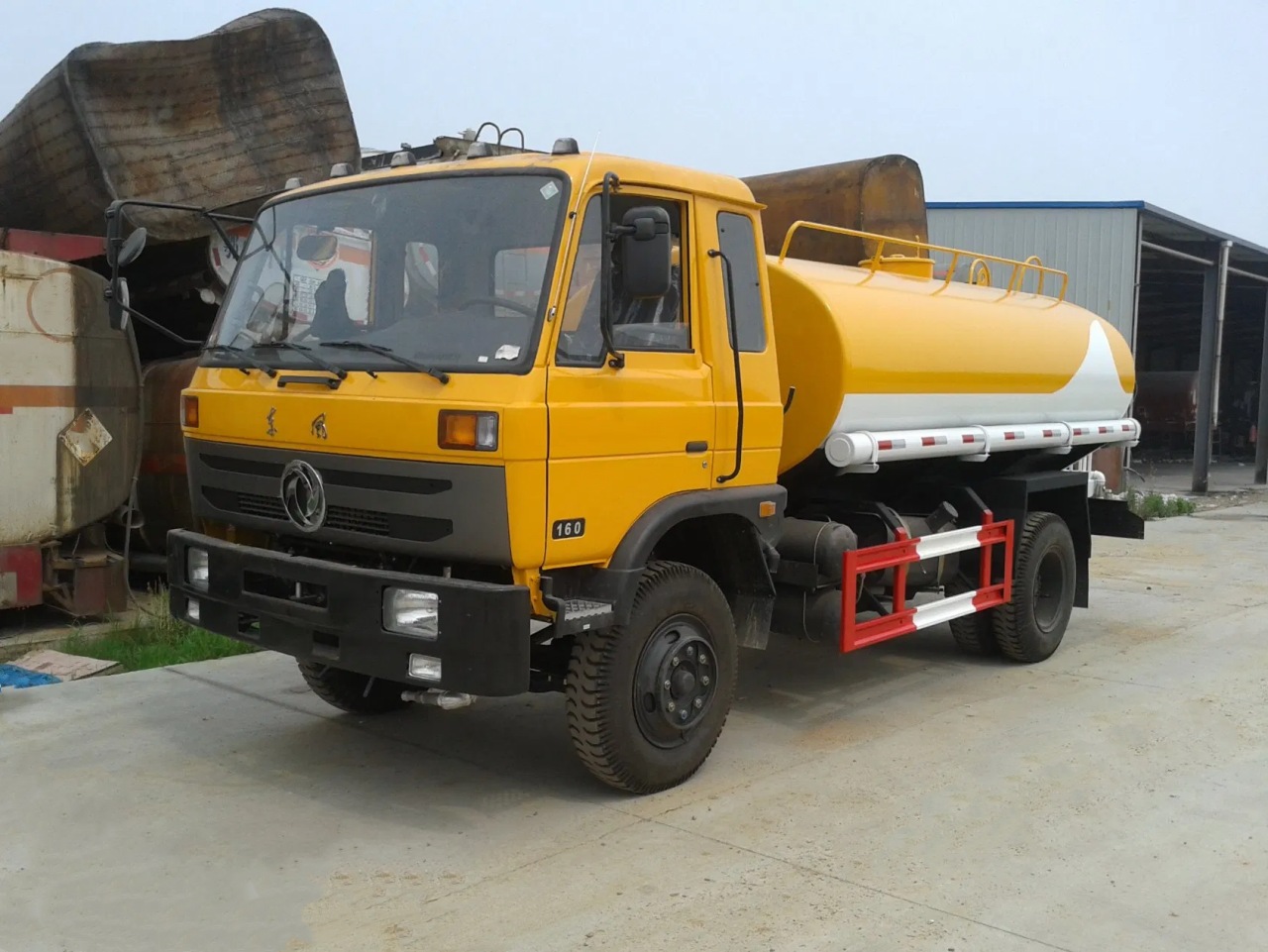

The 6-wheeler 12,000-liter water tanker truck, produced by CSCTRUCK China Tank Truck, is a robust and versatile vehicle designed for water transport and emergency operations. Built on a reliable Dongfeng chassis, it features a 4×2 drive type and supports a maximum payload of 14,000 kg. It is powered by the YC4E160-33 engine, delivering a maximum output of 118 kW (160 PS) and meeting the EURO 3 emission standard. With a top speed of 90 km/h, the truck balances performance with efficiency.
The water tank, constructed from durable carbon steel-Q235, has a 12,000-liter capacity, making it suitable for large-scale water delivery tasks. The high-performance water pump offers a flow rate of 1,000 liters per minute, a suction depth of at least 7 meters, and a high-pressure water cannon with a shooting range exceeding 50 meters. These specifications make the tanker an ideal solution for firefighting, agricultural irrigation, and municipal water supply operations.
The water tanker truck’s standout feature is its high-pressure water cannon, which can spray water over distances greater than 50 meters, ensuring effective reach in firefighting scenarios. Its sturdy design and reliable performance cater to demanding environments, providing a valuable asset for urban and rural operations alike.
With its combination of robust engineering, high-capacity water storage, and advanced pumping capabilities, the CSCTRUCK China Tank Truck 12,000-liter water tanker truck is a dependable and efficient choice for water transportation and emergency response needs.
FEATURES
- Large Water Tank Capacity: The truck features a 12,000-liter water tank made of durable carbon steel-Q235, suitable for firefighting and water transport applications.
- Powerful Engine and Performance: Equipped with the YC4E160-33 engine (118 kW/160 PS max. output), it complies with EURO 3 emission standards and achieves a top speed of 90 km/h.
- Efficient Water Pump System: The truck includes a water pump with a flow rate of 1,000 liters per minute, a suction depth of ≥7 meters, and a high-pressure water cannon with a shooting range of ≥50 meters.
- Robust Chassis and Payload Capacity: Built on a Dongfeng chassis with a 4×2 drive type, it supports a maximum payload weight of 14,000 kg, ensuring reliable and heavy-duty performance.
- Effective Water Cannon: The water tanker features a high-pressure water cannon with a ≥50-meter range, making it highly effective for firefighting and long-distance water delivery tasks.
SPECIFICATION
| 6 Wheelers 12000 Liters Water Tanker Truck | ||
| Â Emission Standard | Â EURO 3 | |
| Â Model Name | Â YQF5140GYYD | |
| Â Chassis model | Â Dongfeng 4×2 | |
| Â Driving Type | Â 4×2Â rear axle drive type | |
|  Water tank capacity (L) |  12,000 Liters | |
| Â Dimensions | ||
| Â Wheelbase(mm) | Â 4,200 | |
|  Overall dimension(mm) |  6,980×2,455×2,980 | |
| Â Weight parameter | ||
| Â GVW(kg) | Â 14,000 | |
|  Max. payload weight (kg) |  14,000 | |
| Â Curb weight (kg) | Â 6,850 | |
| Dongfeng 4×2 truck chassis specification | ||
| Front axle/suspension | 5T axle | |
| Front axle suspension: Leaf spring | ||
| Rear axle/suspension | 9T rear driving axle | |
| Leaf spring suspension | ||
| Â Front axle span(mm) | Â 1,860 | |
| Â Rear axle span(mm) | Â 1,680/1,680 | |
| Front/rear overhang(mm) | Â 1,500/2,340 | |
| Â Max speed(km/h) | Â 90 | |
| Â Tire specification | Â 9.00-20, total 6 tires+1 spare tire | |
| Â Engine description | ||
|  Engine model |  YC4E160-33 from Yuchai engine cooperation | |
| Â Emission standard | Â EURO 3 | |
| Â Engine type | Â Type 4-cycle, 4 cylinders in-line, direct-injection, water-cooling, turbocharged with inter-cooler, diesel engine. | |
| Â Lubrication System | Â Â Forced feed by gear pump | |
| Â Cooling System | Â Forced circulation by centrifugal water pump | |
|  No. of cylinders |  Straight-6 cylinders in line | |
| Â Displacement (L) | Â 4.257L | |
| Â Max.output(kW/PS) | Â 118kW/160PS | |
|  Dongfeng 4x2 Water truck drive Line | ||
| Â Clutch | Â Dry single plate, hydraulically operated clutch | |
| Â Steering | Â Bosc steering wheel, hydraulic power assistance | |
| Â Gearbox/Transmission | Â 6 forwarder and 1 reverse gear, With power take-off (P.T.O) | |
| Â Brake System | ||
| Â Service braking | Full air brake on all wheels | |
| Â Parking braking | Â Hand brake Mechanically operated by hand brake lever, internal expanding,duo-servo shoe type acting on the drum at the rear |
|
| Â Auxiliary braking | Engine exhaust braking, Without ABS | |
| Cab | ||
| Â 1. Old cab, one and a half row, one sleeper bed in the cab 2. Cab can be reversible forwardly by manual operation 3. Factory-installed air conditioner & car heater, AM/FM radio player, etc 4. Seat belts for front driver and passenger |
||
|  12,000 Liters water tanker configuration | ||
|  Tank material: Carbon steel-Q235 ,Stainless steel-SS304 is optional Tank baffle thickness: 4mm, 3 baffle wave plate |
||
| Water tank sprinkler function | ||

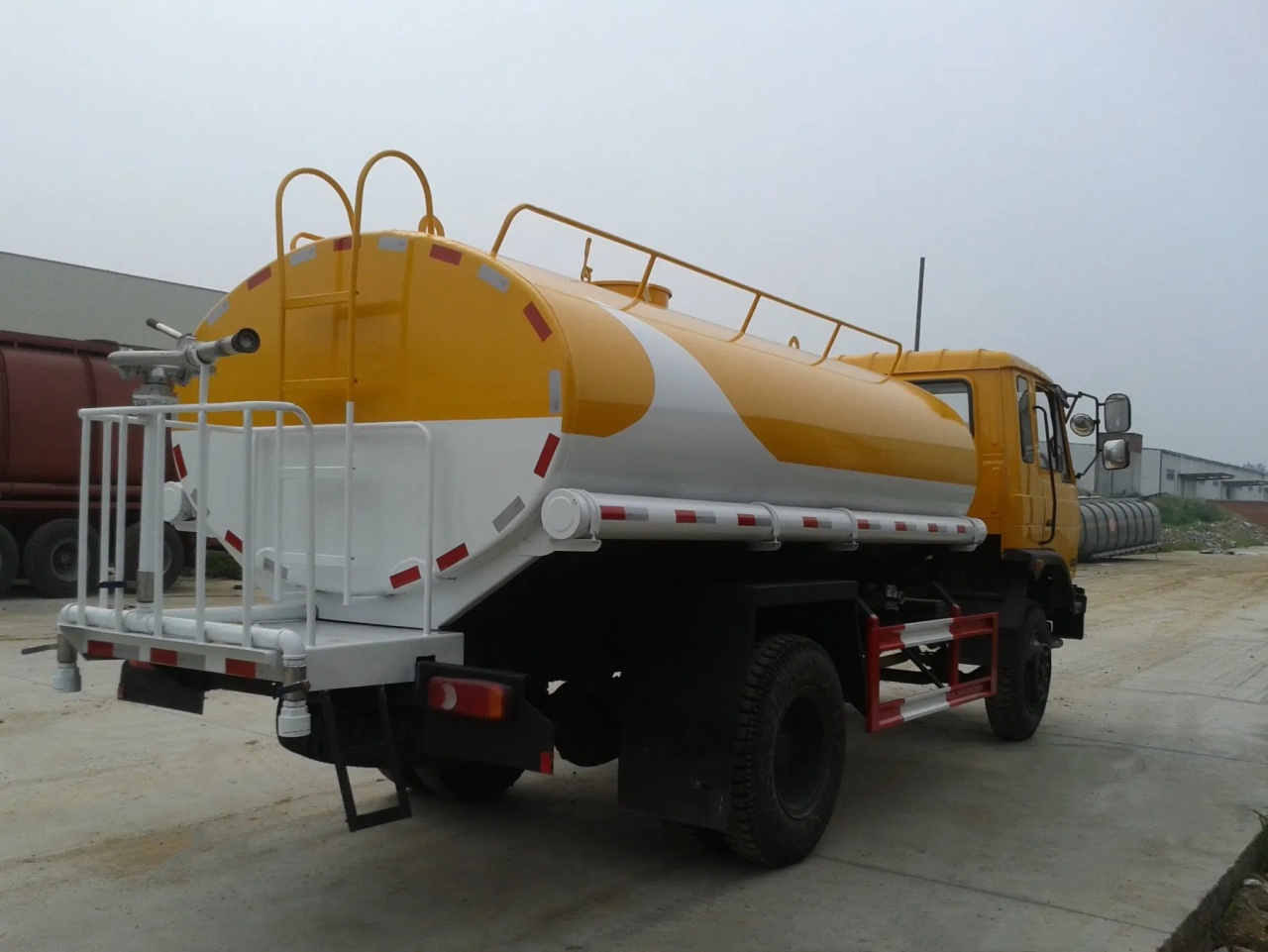

| Water cannon | Water cannon installed at the rear of the truck, with operation plate-form, It can be used to clean roads, and trees, and also for emergency fire fighting. Water cannon range: >=50m, it can rotate with 360°degree freely |
|
| Water pump | Water pump flow rate(L/m): 1,000L/minute Water pump suction depth: >=7m Water suction loading time: About 12 minutes |
|
| Sprayer system | Front spray: On the left and right side, sprinkling range:16m | |
| Rear sprinkler: On the left and right, shooting range over 16m | ||
| Working platform: Operator standing there to operate the water cannon High-pressure water cannon: Shooting range: >=50m |
||
| Â Water tank Other configurations | ||
| Â 1. Manhole: 1 unit Carbon steel, stainless steel SS304 quick opening manhole with cover | ||
|  2. Air valve: 1 unit air valve | ||
| Â 3. Water Inlet: 2 types of water loading systems, Manhole loading, and water pump suction loading | ||
|  4. Discharge outlet: 1 unit DN80mm stainless steel ball valve type outlet | ||
|  5. Discharge hose: 2 units 5m delivery hose with quick couplings (Male and female coupling) | ||
| Â 6. Man walkway: Anti-skidding steel walkway on top | ||
| Â 7. Climbing Ladder: Extra Strength climb ladder fixed on the rear bumper | ||
| Â 8. Reflective tape: ‘3M’ reflective tap on the side of the tanker and rear of the tanker | ||
| Â 9. Fire extinguisher holder: 2 pcs holders and 2 units 4Kg’s fire extinguisher | ||
| Â 10. Side fender: Installed at both sides of the tank. Manufacturer’s standard | ||
| Â 11. Rear Bumper: Steel made, Manufacturer’s standard design | ||
| Â 12. Tank coating: First by sandblasted, second by anti-rust coating, third by base coating, and fourth by finishing coats. Tank color and LOGO per client’s requirements. | ||
| Tank Mounted on Chassis Brand |
|---|
