Introduction
Liquefied Petroleum Gas (LPG) is a vital fuel source for a wide range of applications, including domestic heating, cooking, industrial processes, and automotive fuel. To ensure the safe and efficient transportation of LPG, specialized tank trailers, known as LPG trailers, are used. These trailers are designed to handle the unique properties of LPG, which exists as a liquid under pressure and vaporizes upon release. This article provides an in-depth look at LPG trailers, their design, components, safety features, and regulations governing their use.
Understanding LPG Trailers
An LPG trailer is a specialized tank semi-trailer designed for the bulk transportation of liquefied petroleum gas. These trailers are essential for delivering LPG from production facilities and refineries to distribution centers, filling stations, and industrial consumers.
LPG trailers are typically constructed from high-strength materials capable of withstanding the pressures required to keep the gas in liquid form. The tank is mounted on a chassis and equipped with safety features that prevent leaks, explosions, and accidents during transport.
Components of an LPG Trailer
LPG trailers consist of several key components that ensure the safe and efficient transport of liquefied petroleum gas. These include:
1. Tank Body
- Made from high-strength steel or aluminum alloy.
- Designed to withstand high pressure (typically 100-300 psi).
- Cylindrical shape to distribute pressure evenly.
- Internally coated to prevent corrosion.
2. Chassis and Frame
- Supports the tank and ensures structural integrity.
- Built with reinforced steel to handle the weight and stress of transportation.
3. Valves and Fittings
- Fill valves for loading LPG into the trailer.
- Discharge valves for unloading LPG at the destination.
- Safety relief valves are used to release excess pressure.
4. Piping System
- Transfers LPG between the storage facility and the trailer.
- Made from corrosion-resistant materials.
- Equipped with emergency shut-off features.
5. Suspension and Axles
- Heavy-duty axles to support the weight of the full trailer.
- Air or mechanical suspension to absorb road shocks and vibrations.
6. Braking System
- Includes air brakes and emergency braking systems.
- Anti-lock braking system (ABS) for improved safety.
7. Safety Equipment
- Fire extinguishers and emergency shut-off valves.
- Pressure gauges and monitoring systems.
- Reflective markings and hazard signs for visibility.
Types of LPG Trailers
LPG trailers come in different designs based on their application, capacity, and regional regulations. Common types include:

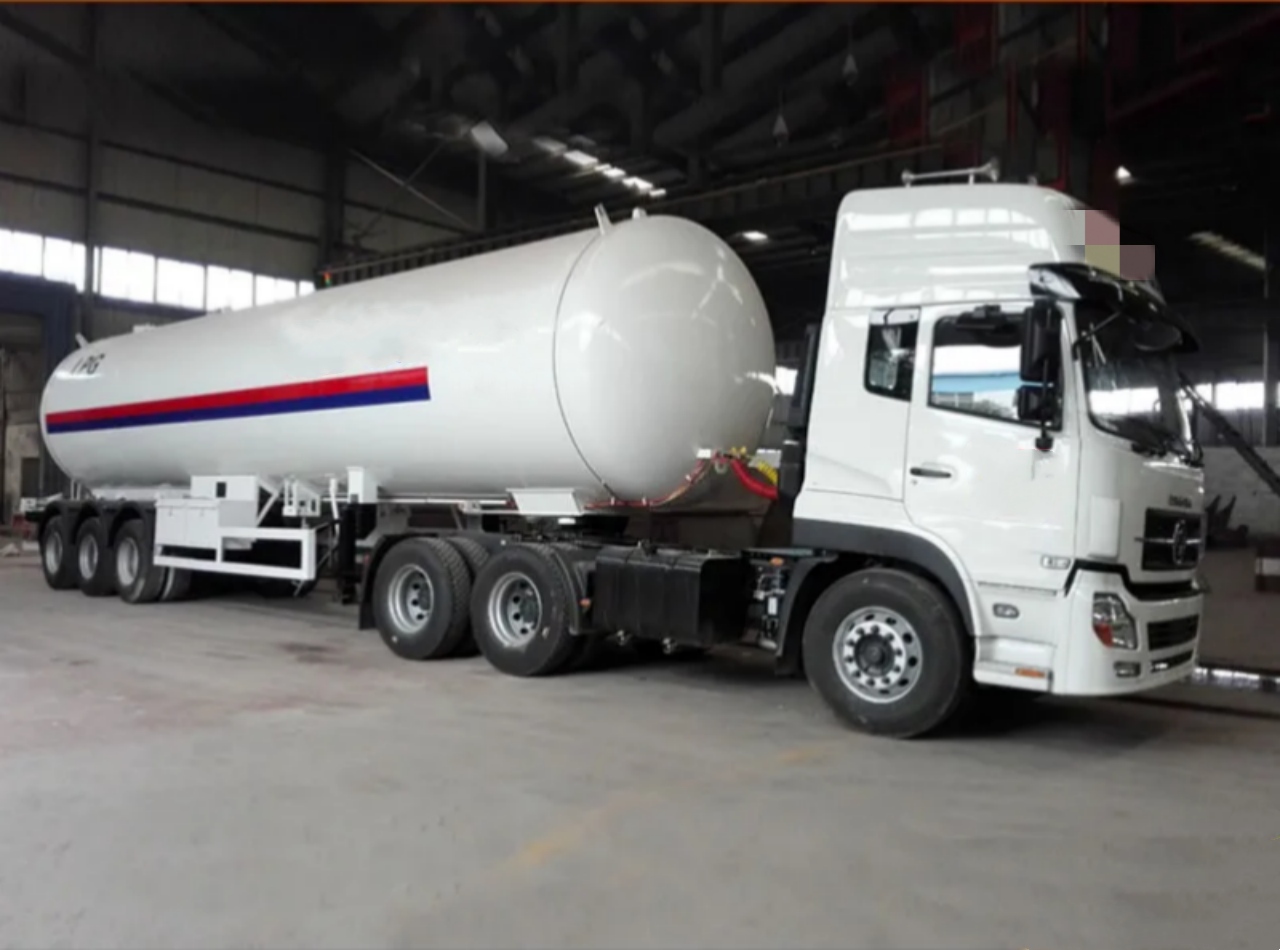

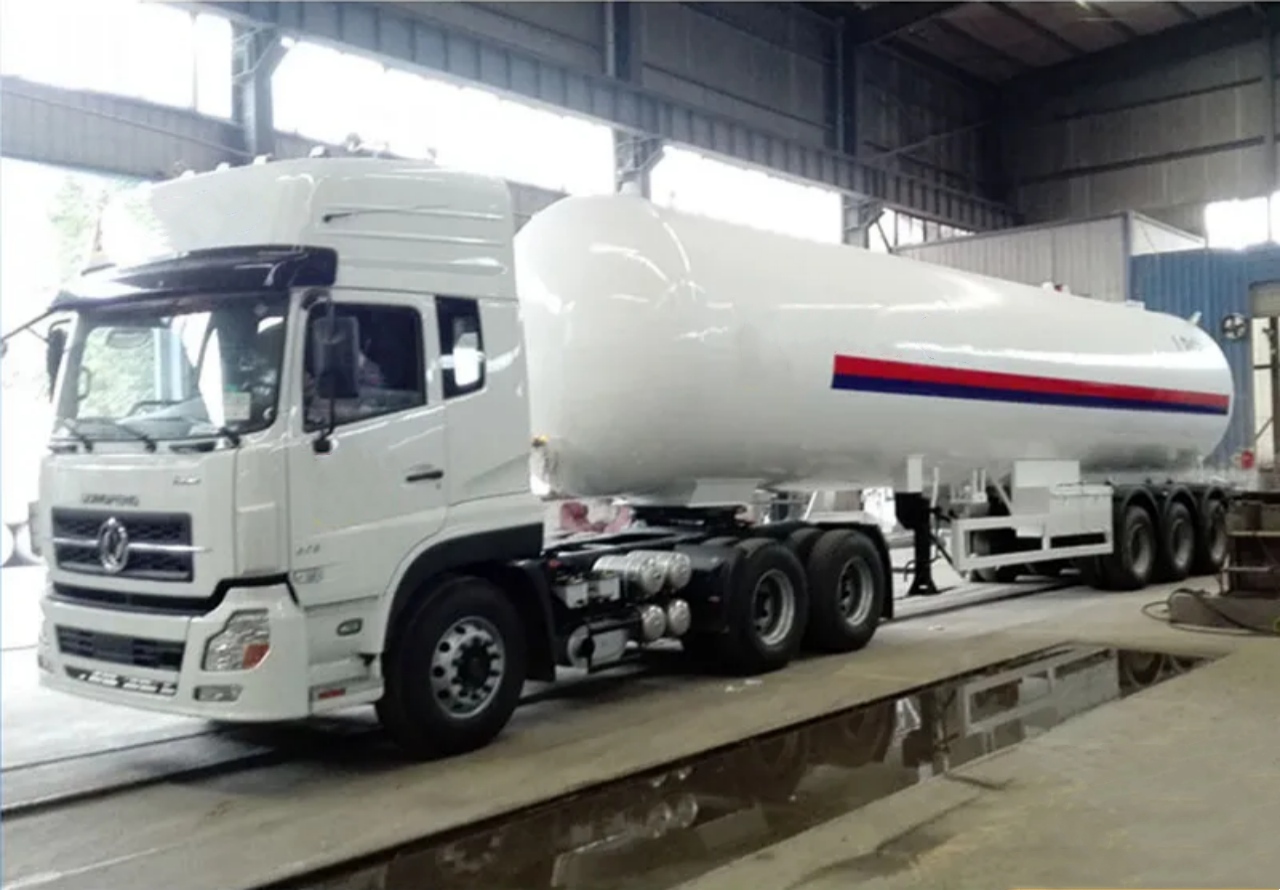

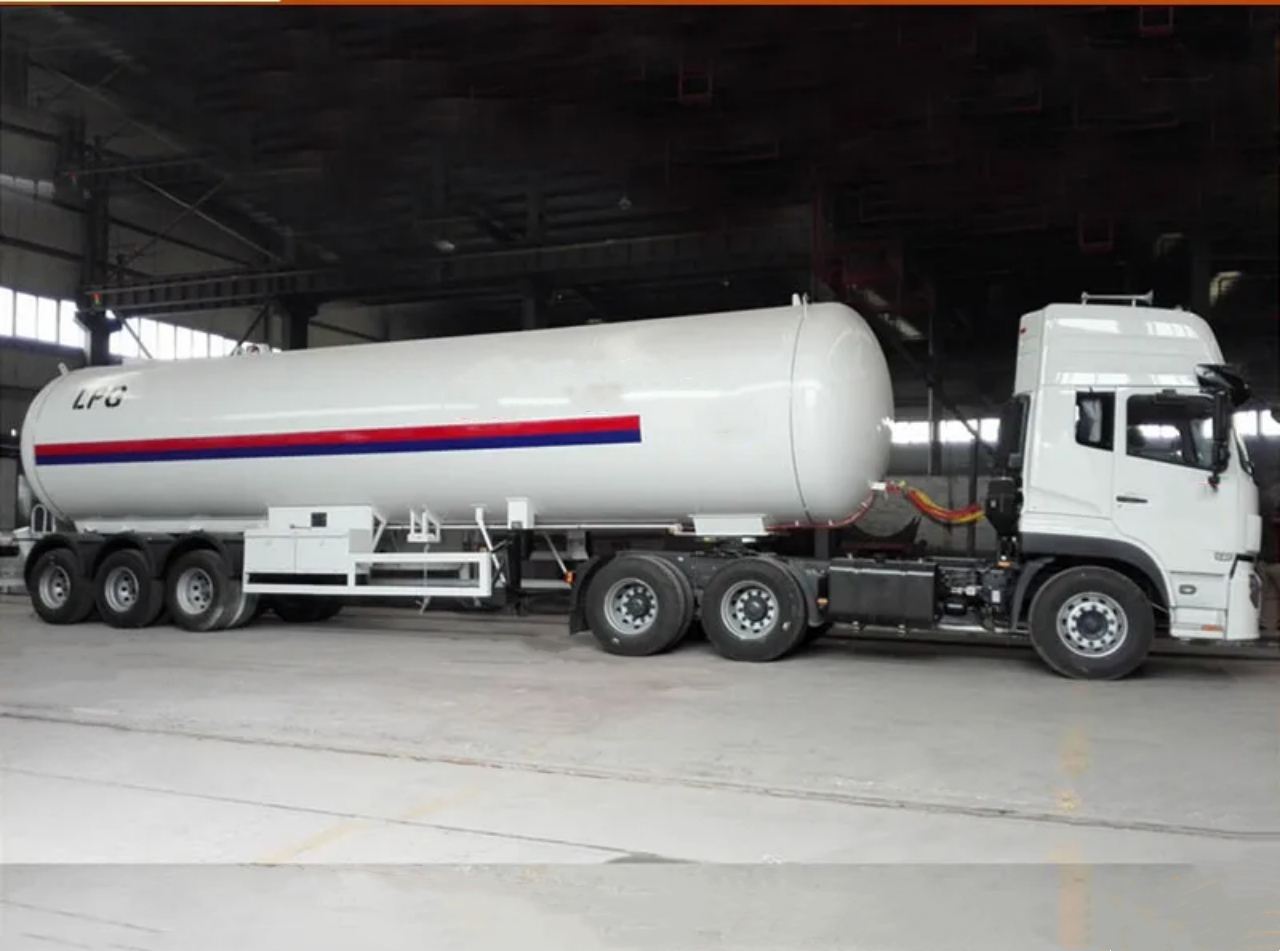

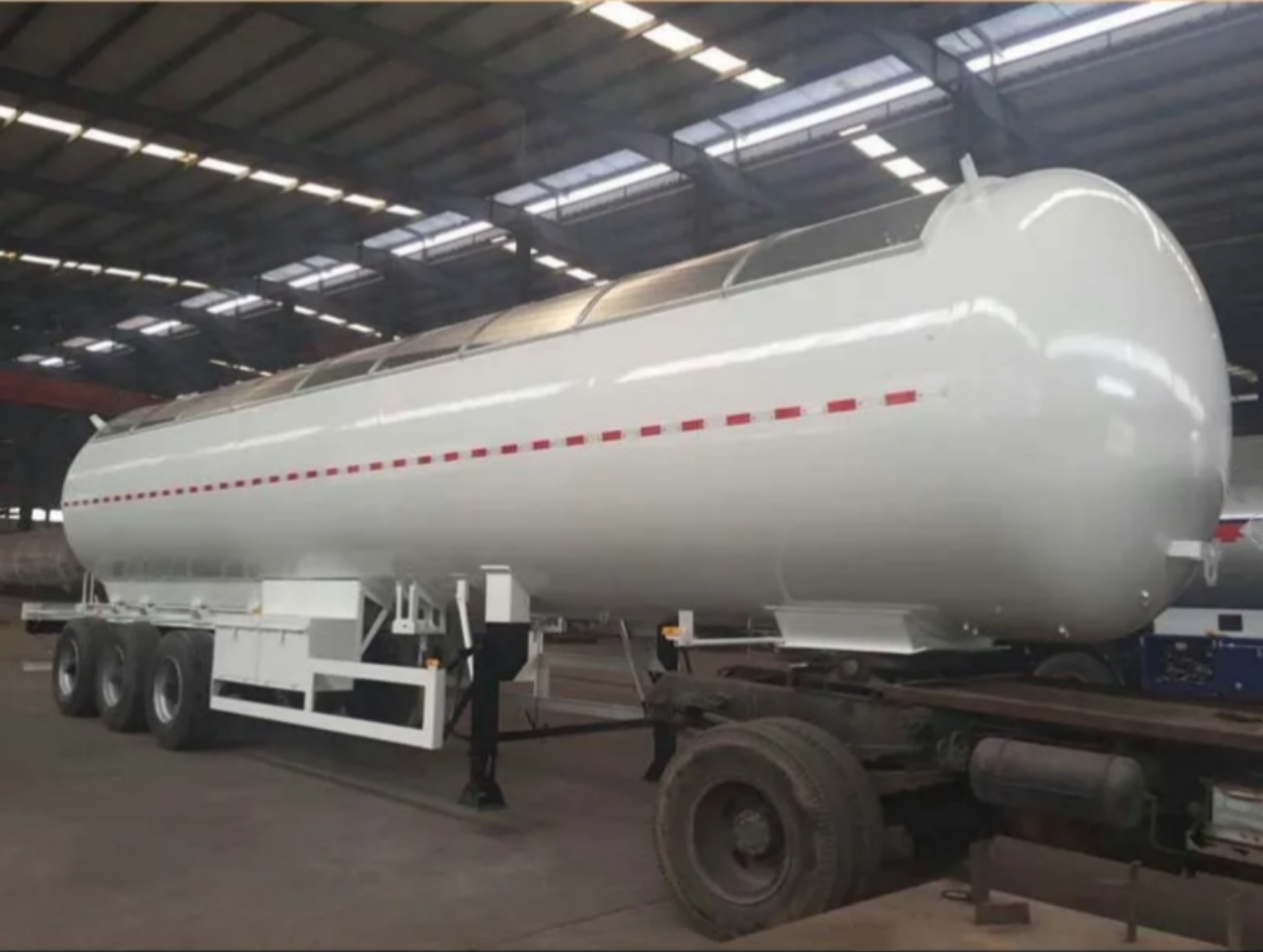

1. Semi-Trailer LPG Tankers
- Most commonly used type.
- Mounted on a chassis and attached to a tractor unit.
- Capacities range from 10,000 to 60,000 liters.
2. Rigid LPG Tankers
- Smaller capacity than semi-trailers.
- Used for shorter distances and urban deliveries.
3. Bobtail LPG Trucks
- Integrated truck and tank design.
- Used for local deliveries to residential and commercial customers.
Safety Features and Regulations
Given the hazardous nature of LPG, LPG trailers are subject to strict safety regulations and must be equipped with advanced safety features. Key safety aspects include:
1. Pressure Relief Systems
- Prevent excessive pressure buildup inside the tank.
- Automatically release pressure if limits are exceeded.
2. Leak Detection Systems
- Sensors detect leaks and trigger alarms.
- Automatic shut-off valves prevent further leakage.
3. Fire-Resistant Coating
- Special coatings prevent ignition in case of external fire.
4. Impact Protection
- Reinforced bumpers and crash bars minimize damage in case of collisions.
Regulations governing LPG trailers vary by country but often include compliance with international standards such as:
- ADR (European Agreement Concerning the International Carriage of Dangerous Goods by Road)
- DOT (U.S. Department of Transportation) regulations
- ASME (American Society of Mechanical Engineers) pressure vessel standards
Advantages of LPG Trailers
LPG trailers play a crucial role in energy transportation, offering several advantages:
- Efficient Bulk Transport: Large-capacity tanks reduce the need for multiple trips, lowering transportation costs.
- Enhanced Safety: Built-in safety features minimize risks associated with LPG transport.
- Versatility: Suitable for industrial, commercial, and residential supply chains.
- Durability: High-quality materials and construction ensure a long service life.
Maintenance and Inspection
Regular maintenance and inspection are essential for ensuring the safe operation of LPG trailers. Key maintenance tasks include:
- Tank Integrity Testing: Periodic pressure tests to check for leaks and structural weaknesses.
- Valve and Fitting Inspections: Ensuring all valves function correctly and do not leak.
- Brake and Suspension Checks: Verifying the braking system and suspension components to prevent accidents.
- Corrosion Control: Recoating the tank interior and exterior to prevent rust and damage.
- Leak Detection Tests: Using gas sensors to check for any signs of leakage.
Conclusion
LPG trailers are an indispensable part of the global energy supply chain, enabling the safe and efficient transport of liquefied petroleum gas. Their design, safety features, and regulatory compliance make them one of the most advanced types of tank trailers used in hazardous material transport. Understanding their components, operation, and maintenance ensures that LPG can be delivered safely to consumers worldwide.
As demand for LPG continues to grow, advancements in trailer technology and safety measures will further enhance their reliability and efficiency. Whether used for long-haul deliveries or local distribution, LPG trailers remain a crucial asset in the logistics of energy transportation.
