BRIEF

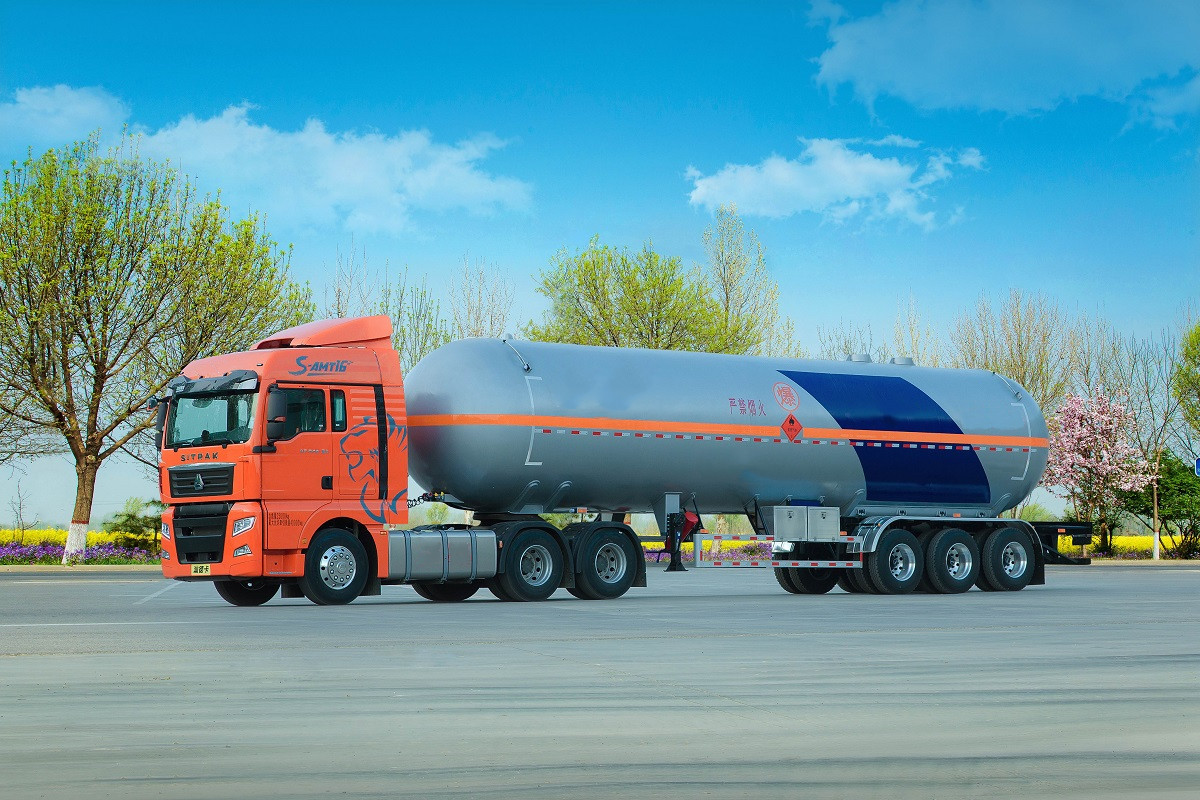

The 50 CBM 25 Ton LPG Semi Trailer is purpose-built for the efficient and safe transportation of large quantities of LPG over long distances. This trailer facilitates the transfer of LPG from major gas stations or terminal stations to smaller LPG stations located in various cities. It’s equipped to handle both liquid and vapor phases, making it a vital asset for gas transport companies. The design conforms to stringent standards, including GB-150, ASME U STAMP, CCC, and ISO regulations.
- Tank Capacity: With a voluminous 49.6CBM capacity, this semi-trailer can transport substantial quantities of LPG efficiently.
- Sturdy Build: The tanker material, constructed from Q345 and featuring a 12mm thickness, ensures durability and safety.
- Robust Axles: Equipped with three 13-ton axles and 12R22.5 tubeless tires, the semi-trailer boasts strong load-bearing capabilities.
- Supporting Legs: JOST brand supporting legs provide stability during loading and unloading.
- Advanced Gauges: Features include a ROCHESTER level gauge, flow meter, and optional sun shelter. Additionally, an LPG pump is available as an option.
- King Pin Options: The trailer offers flexibility with 50 or 90 kingpin options, catering to various towing vehicles.
FEATURES
-
- Tank Capacity: With a voluminous 49.6CBM capacity, this semi-trailer can transport substantial quantities of LPG efficiently.
- Sturdy Build: The tanker material, constructed from Q345 and featuring a 12mm thickness, ensures durability and safety.
- Robust Axles: Equipped with three 13-ton axles and 12R22.5 tubeless tires, the semi-trailer boasts strong load-bearing capabilities.
- Supporting Legs: JOST brand supporting legs provide stability during loading and unloading.
- Advanced Gauges: Features include a ROCHESTER level gauge, flow meter, and optional sun shelter. Additionally, an LPG pump is available as an option.
- King Pin Options: The trailer offers flexibility with 50 or 90 kingpin options, catering to various towing vehicles.
SPECIFICATION
| Tank | |
| Filling Medium | Transporting LPG (flammable Propane) |
| Volume | 49.6CBM |
| Overall Dimensions (LxWxH) | 12,740 x 2,480 x 3,800mm |
| Wheelbase | 6800+1310+1310mm |
| Tank Dimensions (Diameter x length) | 2,300 x 12,372mm |
| Material of Tank | Q345 |
| Thickness of Tank | 12mm |
| Material of the Main Frame | 16Mn |
| Manhole | 1pc DN450 on top of the tank |
| Safety Valve | 2pcs DN80 on top of the tank |
| Designed Temperature | 50°C |
| Designed Pressure | 1.61Mpa |
| Corrosion Allowance | 1.00 |
| Weld Joint Factor | 1 |
| Painting | Sandblasting, two layers of anti-corrosion painting, color & logo customized |
| Weight | |
| G.V.W. | 36,132kg |
| Curb Weight | 15,300kg |
| Capacity | 20,832kg |
| Testing | |
| Heat Treatment | Overall treatment in a furnace, 600°C to 640°C |
| Flaw Detection | 100% flat detection |
| Test Pressure | 1.61Mpa |
| Hydraulic Test | 2.1Mpa |
| Magnaflux Inspection | Aim at the welding line where flaw detection can’t reach |
| Gauges | |
| Emergency Cut-off Valves | 2pcs,1pc for liquid phase and 1pc for vapor phase |
| Ball Valves | 4pcs for loading and discharging at two sides of the tank |
| Liquid Gauge | 1pc |
| Pressure Indicating Thermometer | 1pc |
| Pressure Gauge | 1pc |
| Running System | |
| Axles | 3 pcs 13-ton axles, brands optional |
| Tires | 12R 22.5 Tubeless tires, 12 pcs +1 spare tire |
| Rims | Steel rims standard, aluminum alloy rims optional |
| Supporting Legs | 2pcs JOST brand two-speed, manual operating, heavy-duty supporting legs |
| Suspension | Mechanical suspension, air suspension optional |
| Braking System | Pneumatic braking system |
| King Pin | #50 or #90 |
| Accessories | |
| Toolbox | 2pcs |
| Wheel Carrier | 1pc |
| Fire Extinguisher | 2pcs |
| Fender | 2pcs |
