Model No.: | CSCDFB025 |
Fuel Tank Volume: | 25 CBM |
Overall Dimensions(LxWxH): | 10,067×2,490×3,010mm |
Chassis Brand: | FOTON |
Drive Type: | 6×4 |
Wheelbase: | 4,300+1,300mm |
Max. Driving Speed: | 90km/h |
Engine Model: | YC6E260-33 |
Engine Power: | 260HP |
Emission Standard: | EURO 3 |
Fuel Tank Material: | Q235 Carbon Steel |
API European standard system. |
BRIEF

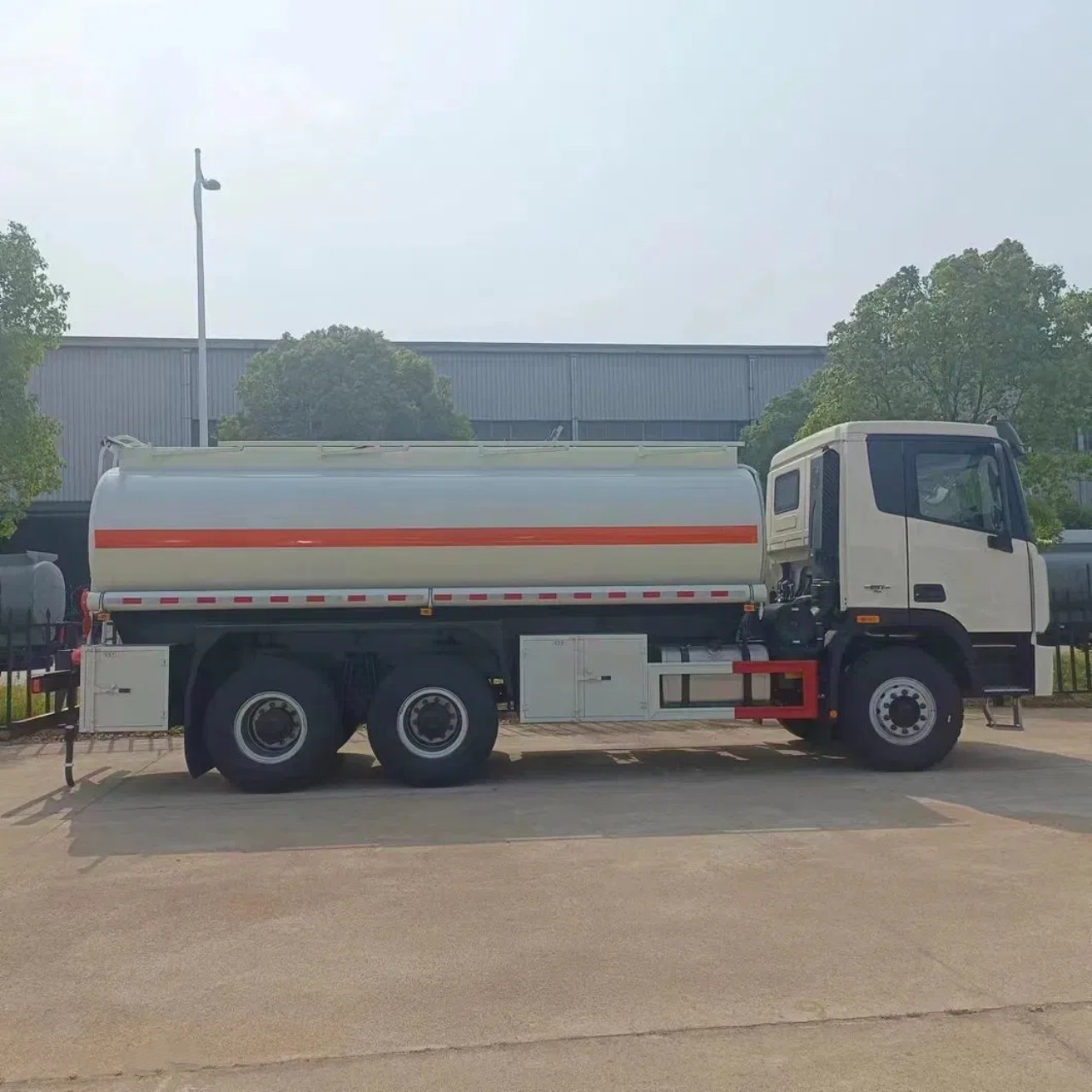

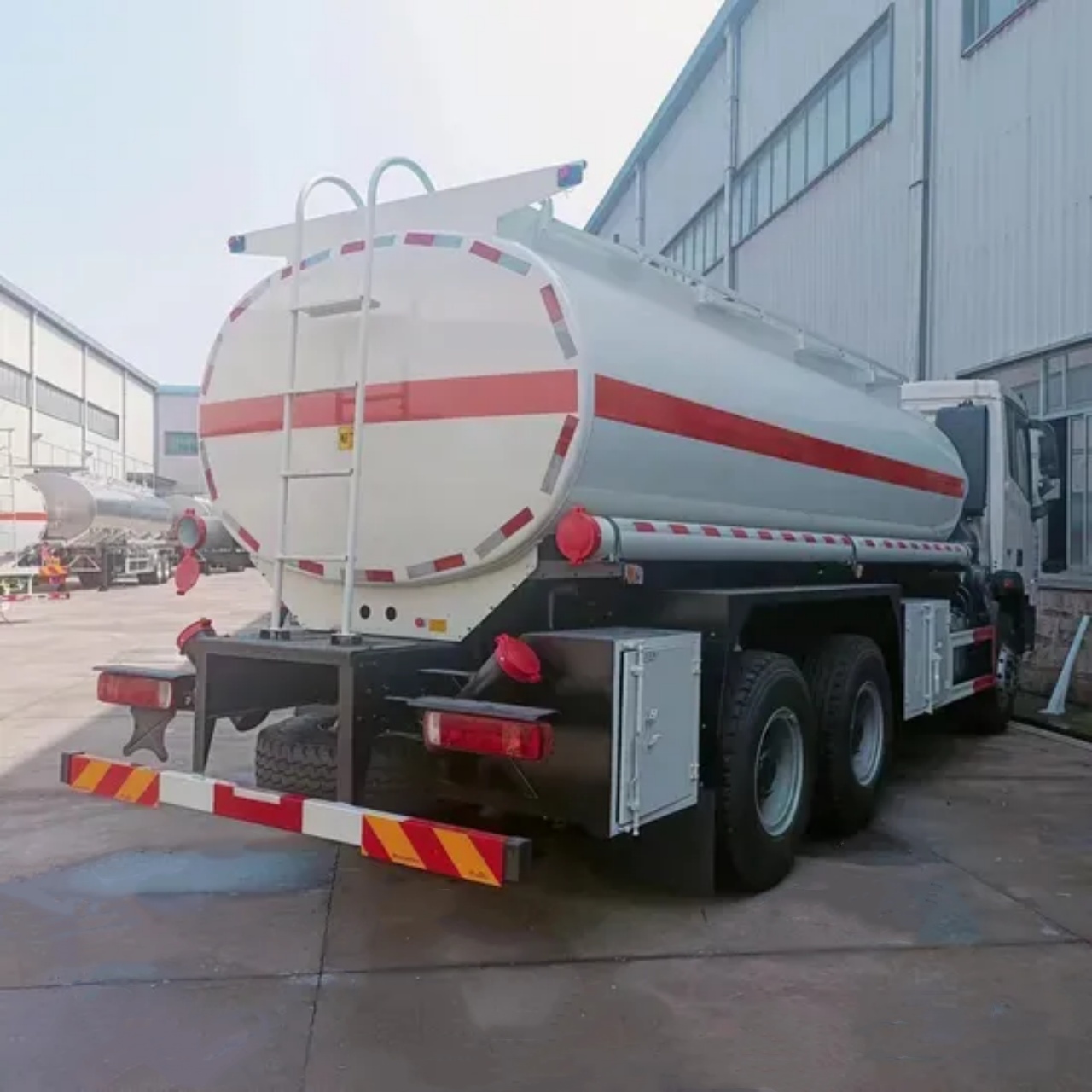

The FOTON 25 CBM diesel fuel bowser, manufactured by CSCTRUCK China Tank Truck, is a robust and efficient solution for fuel transportation. Built on a reliable FOTON chassis with a 6×4 drive configuration, this vehicle ensures excellent traction and stability, even on challenging terrain. It is well-suited for long-distance transportation and has a maximum driving speed of 90 km/h.
This diesel fuel bowser is powered by the YC6E260-33 engine, delivering 260 horsepower for consistent performance. The engine adheres to the EURO 3 emission standard, making it a balanced choice for environments with moderate emission requirements. The Q235 carbon steel fuel tank offers a durable and corrosion-resistant solution, with a generous 25 cubic meter (CBM) capacity for efficient fuel delivery.
Equipped with an API European standard system, the tanker is designed for precise and safe fuel handling, ensuring minimal wastage and adherence to international safety protocols. This standard system enhances operational efficiency and reliability, making it an excellent choice for fuel distribution in commercial or industrial applications.
In summary, the FOTON 25 CBM diesel fuel bowser combines advanced engineering, durable materials, and international standards to deliver a high-performing and dependable fuel transport solution.
FEATURES
- Chassis and Drivetrain:
- Built on a FOTON chassis with a reliable 6×4 drive type, ensuring excellent traction and stability for heavy-duty fuel transport.
- Performance and Speed:
- Equipped with a YC6E260-33 engine, delivering 260HP and adhering to the EURO 3 emission standard, with a maximum driving speed of 90 km/h.
- Fuel Tank Specifications:
- Features a 25 CBM capacity tank constructed from Q235 carbon steel, offering durability and safety for diesel fuel storage.
- Safety and Efficiency:
- Integrated with an API European standard system, ensuring compatibility with international fuel handling and transfer protocols for safety and efficiency.
- Versatility and Reliability:
- Designed for various fuel transportation tasks, with robust engineering to meet the demands of industrial and commercial fuel delivery operations.
SPECIFICATION
General Technical Parameters |
|||
Overall Dimensions(LxWxH) | 10,067×2,490×3,010(mm) | ||
Gross Vehicle Weight | 25,000(Kg) | ||
Curb Weight | 11,805(Kg) | ||
Chassis Specification |
|||

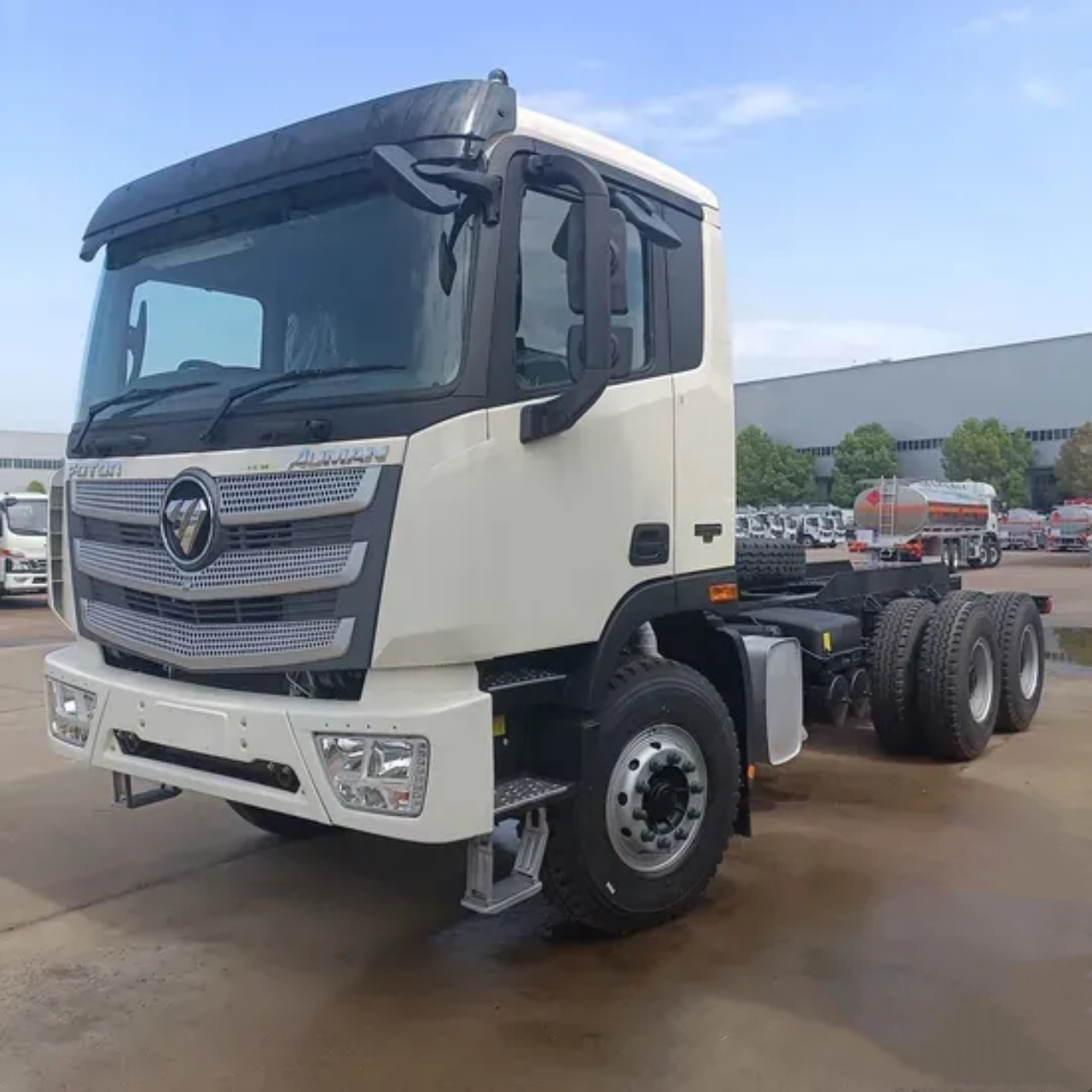

Chassis Brand | FOTON | ||
Drive model | 6×4 | ||
Cabin | Single, Left-Hand Driving, with air conditional | ||
Number of Passengers | 2 | ||
Engine | Model | YC6E260-33, 4-stroke direct injection, 6-cylinder in-line with turbocharged, water cooling, with ABS. | |
Power | 260HP | ||
Emission standard | EUROÂ 3 | ||
Displacement | 5,980(ml) | ||
Fuel type | Diesel | ||
Gearbox | 8JS118TC-B, 7Forwards & 1Reverse | ||
Brake System | Air brake | ||
Wheel Base | 4,300+1,300mm | ||
Front/Rear Axle Loading | 7,000/18,000(Kg) | ||
Overhang | 1,532/2,510(mm) | ||
Tire | 10.00R20, steel wire tire, with 1 spare tire | ||
Max Driving Speed | 90(km/h) |
Upper Structure Specification |
||
Oil Tank | External Dimensions(LxWxH) | 6,800×2,450×1,750 (mm) |
Effective Volume | 25CBM | |
Transport Oil Type | Fuel and Chemical Liquid | |
Tank Material | Q235 Carbon Steel | |
Tank Shape | Square Round | |
API European standard system | Oil Vapor Recovery System | |
Anti-overflow probe | ||
Electrostatic wire reel | ||
Cut-off valve | ||
Unloading valve | ||
Others | Lifting fence, ladder, etc. | |
Options | 1)Refueling System, flow meter, tanker aircraft, etc.
2) The tank can be divided into several separate compartments. |
Tank Mounted on Chassis Brand |
---|
