BRIEF

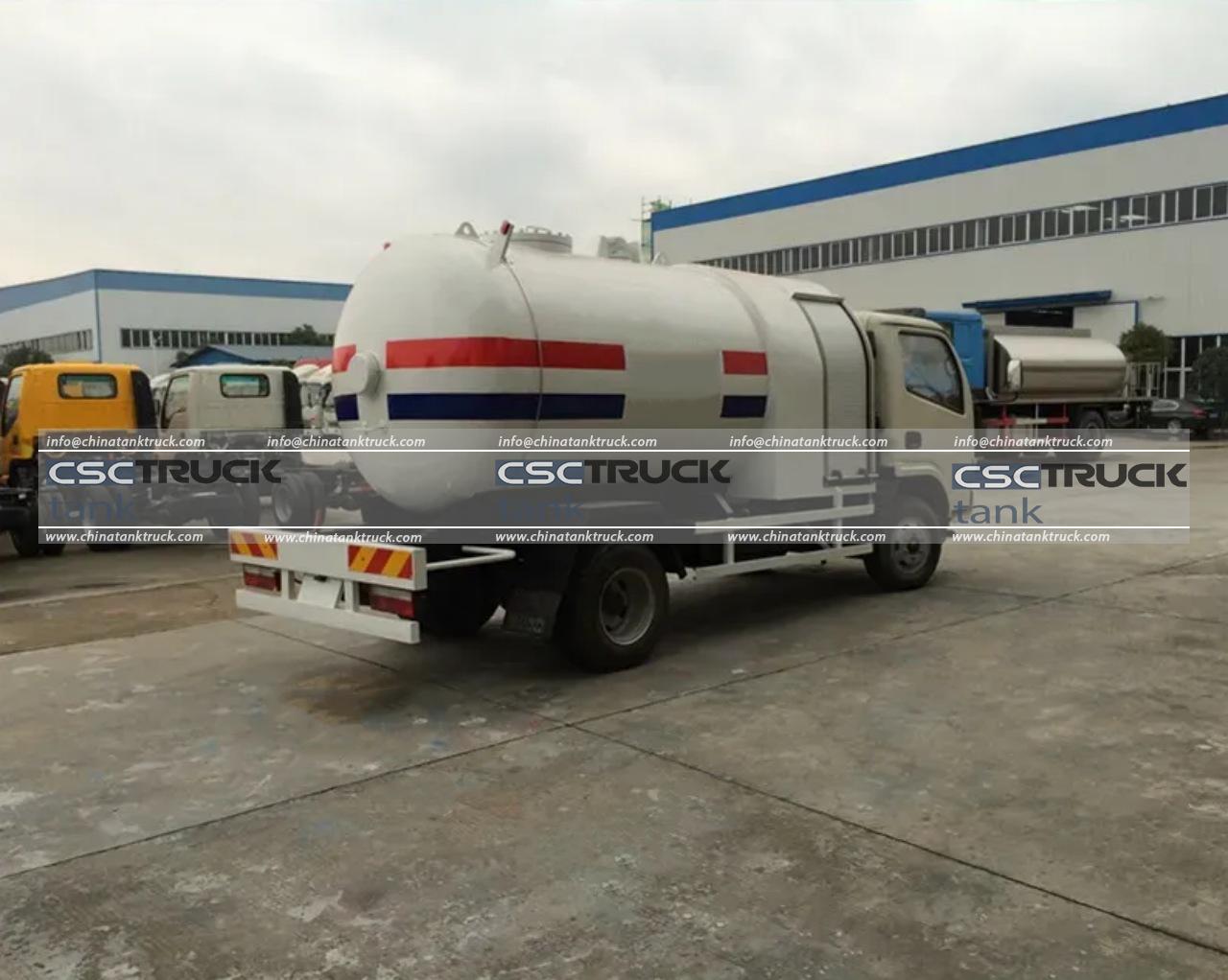

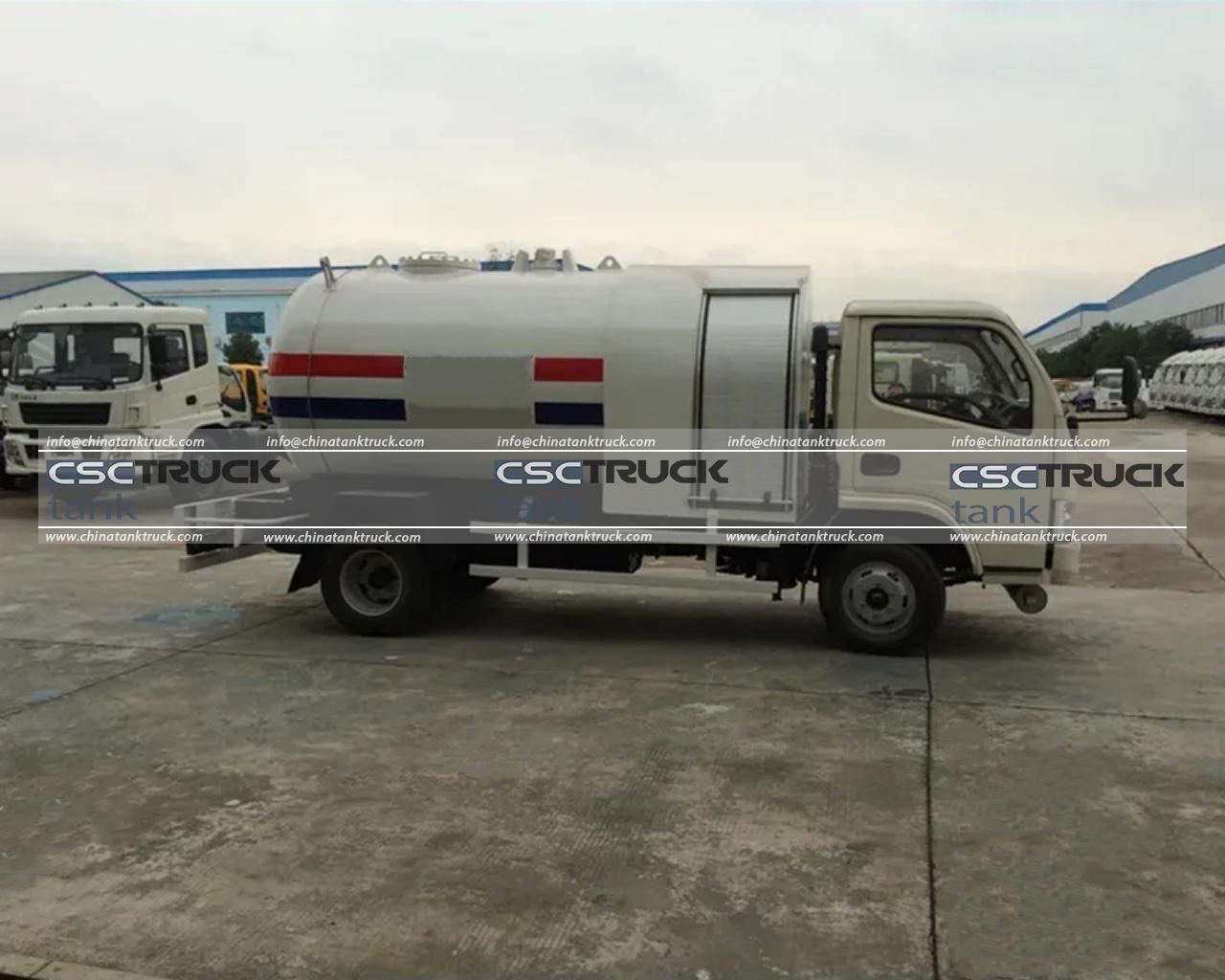

Specifically designed for mobile LPG cylinder filling stations, small-scale distribution depots, rural fuel supply projects, and door-to-door LPG delivery services, the 6000L mobile LPG bobtail truck (Model MLBT006) produced by CSCTRUCK China Tank Truck is a compact and highly efficient solution for flexible gas distribution. It is particularly suitable for emerging markets where centralized LPG infrastructure is limited, and mobility is essential.
The LPG filling truck adopts a 4×2 drive configuration, offering excellent maneuverability in narrow urban streets and remote rural roads. With a gross vehicle weight of 7,495 kg and overall dimensions of 5,900 × 2,045 × 2,600 mm, it balances compact size with a substantial 6,000-liter LPG storage capacity, ensuring stable transportation and efficient fuel delivery.
The LPG tank is constructed from Q345R high-strength carbon steel, featuring a 10 mm thick cylinder and end heads. Designed with a working pressure of 1.77 MPa and a hydrostatic test pressure of 2.66 MPa, the tank ensures structural integrity and long-term durability. It is optimized for propane storage, supporting a filling mass of up to 3,000 kg at a density of 420 kg/m³ (50°C).
Power is supplied by a Chao Chai CY4100Q diesel engine delivering 95 HP (70 kW). This Euro III-compliant, 4-cylinder, water-cooled engine provides dependable performance and fuel efficiency. The chassis includes a 3,300 mm wheelbase, 5-speed manual transmission, air braking system, and power-assisted left-hand steering for enhanced driving stability and operational safety.
For maximum safety, the LPG filling truck is equipped with a pressure gauge, thermometer, safety valve, level gauge, emergency shut-off valve, discharge valve, anti-static grounding tape, and toolboxes. The LPG pump operates at a 15 m³/h flow rate with 2.0 MPa working pressure, while the integrated dispenser supports direct cylinder or tanker filling with a 10–60 L/min flow rate and a 15-meter hose for flexible operation.
Overall, this 6000L mobile LPG bobtail truck is a safe, reliable, and cost-effective choice for professional mobile LPG distribution businesses.
FEATURES
- Compact & Highly Maneuverable Design – The 4×2 drive configuration, combined with overall dimensions of 5,900 × 2,045 × 2,600 mm, allows easy navigation through narrow urban streets and rural roads, making it ideal for mobile LPG distribution and small-scale depots.
- Robust LPG Storage Tank – Constructed from Q345R high-strength carbon steel with 10 mm thick cylinder walls, the tank is designed for a working pressure of 1.77 MPa and hydrostatic test pressure of 2.66 MPa, ensuring safe and durable storage of up to 6,000 liters (3,000 kg) of LPG.
- Efficient Diesel Engine & Chassis – Powered by a Chao Chai CY4100Q 95 HP Euro III diesel engine, coupled with a 3,300 mm wheelbase, 5-speed manual transmission, air brakes, and power-assisted steering, offering stable performance, fuel efficiency, and operational safety.
- Advanced Safety Features – Equipped with pressure gauges, thermometers, safety valves, level gauges, emergency shut-off valves, discharge valves, and anti-static grounding tape, ensuring high safety standards during transport and cylinder filling operations.
- Flexible LPG Dispensing System – Integrated pump with 15 m³/h flow rate (2.0 MPa working pressure) and dispenser supporting 10–60 L/min cylinder or tanker filling with a 15-meter hose, enabling versatile and efficient delivery in diverse locations.
SPECIFICATION
| Items | Descriptions | Specifications and Types | |
| General | Truck Name | LPG dispenser truck | |
| Truck Model | MLBT006 | ||
| Drive Type | 4X2 | ||
| Gross Vehicle Weight(kg) | 7,495 | ||
| Curb Weight (kg) | 4,990 | ||
| Overall Dimensions(mm)(LxWxH) | 5,900×2,045×2,600 mm | ||
| Engine | Engine Brand | Chao Chai | |
| Modle | CY4100Q | ||
| Fuel Type | Diesel | ||
| Power | 95HP/70KW | ||
| Emission Standard | Euro III | ||
| Displacement(ml) | 3,856 | ||
| Engine Type | Diesel Engine, Water-cooled, 4 Stroke, 4 Cylinder in line. | ||
| Chassis | Cab | Single row cab | |
| Tire | 7Nos x 7.00-16 tire | ||
| Wheelbase (mm) | 3,300 | ||
| Axle No. | 2 | ||
| Gear Box | 5-speed forward with 1 reverse, manual | ||
| Brake | Air brake | ||
| Steering Wheel | Left-hand drive with power-assisted | ||
| Tank | Filling Medium | LPG(Propane) | |
| Tank Volume(L) | 6,000 | ||
| Filling Mass(KG) | 3,000 | ||
| Cylinder Design Thickness(mm) | 10 | ||
| Head Design Thickness(mm) | 10 | ||
| Tank Material | Q345R high tension carbon steel, 8mm Thickness Tank Body. | ||
| Density of Medium(kg/m3) | 420(50°) | ||
| Design Pressure(Mpa) | 1.77 | ||
| Hydrostatic Test Pressure(Mpa) | 2.66 | ||
| Equipment for the tank | Pressure gauge, Thermometer, Discharge Valve, Safety Valve, Level Gauge, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. | ||
| Refilling system | |||
| Pump | Medium: Liquid petroleum gas Speed: 15m3/h Input and Output Diameter: 50 mm Working pressure: 2.0 Mpa Working temperature: -40ºC- 50ºC Material: Carbon steel |
||
| Dispenser | Directly Fill Cylinder or Tanker Nozzle Flow Rate: 10 – 60 liters/min Max Working Pressure: 2.5 Mpa Working Temperature: – 30 ~ + 55 ºC |
||
| Filling a gun with a pipe | 1 unit filling gun, 15m filling pipe. | ||
