Model No.: CSCMTT005
Overall Dimensions(LxWxH): 5,995×2,000×2,400mm
Chassis Brand: DONGFENG
Drive Type: 4×2
Wheelbase: 3,300mm
Gross Vehicle Weight(Kg): 7,300
Engine Model: CY4100Q
Engine Power: 82HP
Tank Volume(m³): 5
Milk Tank Body Material: Stainless steel 304
Max speed(km/h): 90
Emission standard: Euro 3
Truck Enquiry
Categories: ,

BRIEF



The 6-wheeler, 5,000-liter milk tanker truck produced by CSCTRUCK China Tank Truck is a reliable and efficient solution for transporting dairy products. Built on a DONGFENG chassis with a 4×2 drive type, it ensures stability and durability for various road conditions. The vehicle has a gross weight of 7,300 kg, making it sturdy enough to carry substantial loads while maintaining maneuverability.
The truck is powered by a CY4100Q engine model, delivering an engine power of 82 horsepower. This engine meets Euro 3 emission standards, making it an environmentally conscious choice with reduced emissions. With a maximum driving speed of 90 km/h, it is capable of ensuring timely deliveries over both short and long distances.
The milk tank itself is constructed from stainless steel 304, known for its excellent corrosion resistance, which is crucial for maintaining the quality and safety of dairy products during transport. The tank’s capacity of 5,000 liters provides sufficient space for bulk milk transportation, catering to the needs of dairy farms and processing facilities.
Overall, this 6-wheeler milk tanker truck from CSCTRUCK China Tank Truck offers a dependable and efficient solution for dairy logistics. Its combination of a robust DONGFENG chassis, a reliable CY4100Q engine, and a hygienic stainless steel tank ensures it meets industry standards for safe and efficient dairy product transportation.



FEATURES



1. High-Capacity Milk Tank: The truck is equipped with a stainless steel 304 milk tank with a total capacity of 5,000 liters, ensuring safe and hygienic transport of milk.
2. Robust DONGFENG Chassis: Built on a reliable DONGFENG chassis, the truck has a 4×2 drive configuration, designed to provide stability and durability for long-distance transportation.
3. Efficient Engine Performance: Powered by the CY4100Q engine model, the truck produces 82 horsepower, meeting Euro 3 emission standards, making it both powerful and environmentally friendly.
4. Optimized for Medium Load Capacity: With a gross vehicle weight of 7,300 kg, the truck is engineered to handle medium load requirements, balancing capacity, and maneuverability.
5. High-Speed Capability: The vehicle can reach a maximum driving speed of 90 km/h, which ensures timely delivery while maintaining a smooth driving experience.



SPECIFICATION



Complete Vehicle Parameter
Vehicle

6 Wheelers 5000 Liters Milk Tanker Truck
Manufacturing year

Brand new
Overall dimensions(mm)(LxWxH)

5,995×2,000×2,400
Milk tanker (L)

5,000
Gross Vehicle Weight (kg)

Appro×7,300
Net weight (kg)

Appro×2,950
Loading (kg)

Appro×4,220
Wheelbase (mm)

3,300
Max speed (km/h)

90

Chassis Parameter
Cabin Single row cabin, power steering, air conditioner, 2 passengers.
Traction system 4×2
Engine

Brand: DONGFENG

Model: CY4100Q

Engine power: 82HP

Type: diesel, 4 cylinders, water-cooled.

Displacement: 3,707ml

Emission standard: Euro 3
Transmission

5 forward, 1 reverse, manually operated
Tire model

7.00R16
No.of tires 6pcs, and a spare tire

Milk Tank Parameter
Characteristics 1. Capacity: 5,000 liters.

2. Inside material: Stainless steel 304, thick 3mm.

3. Outside: Stainless steel mirror finish, thick 2mm.

4. The insulation layer is 80 mm-thick polyurethane.

5. Finish: The interior of the milk tank is very smooth and highly polished, so it does not have any sharp angles.

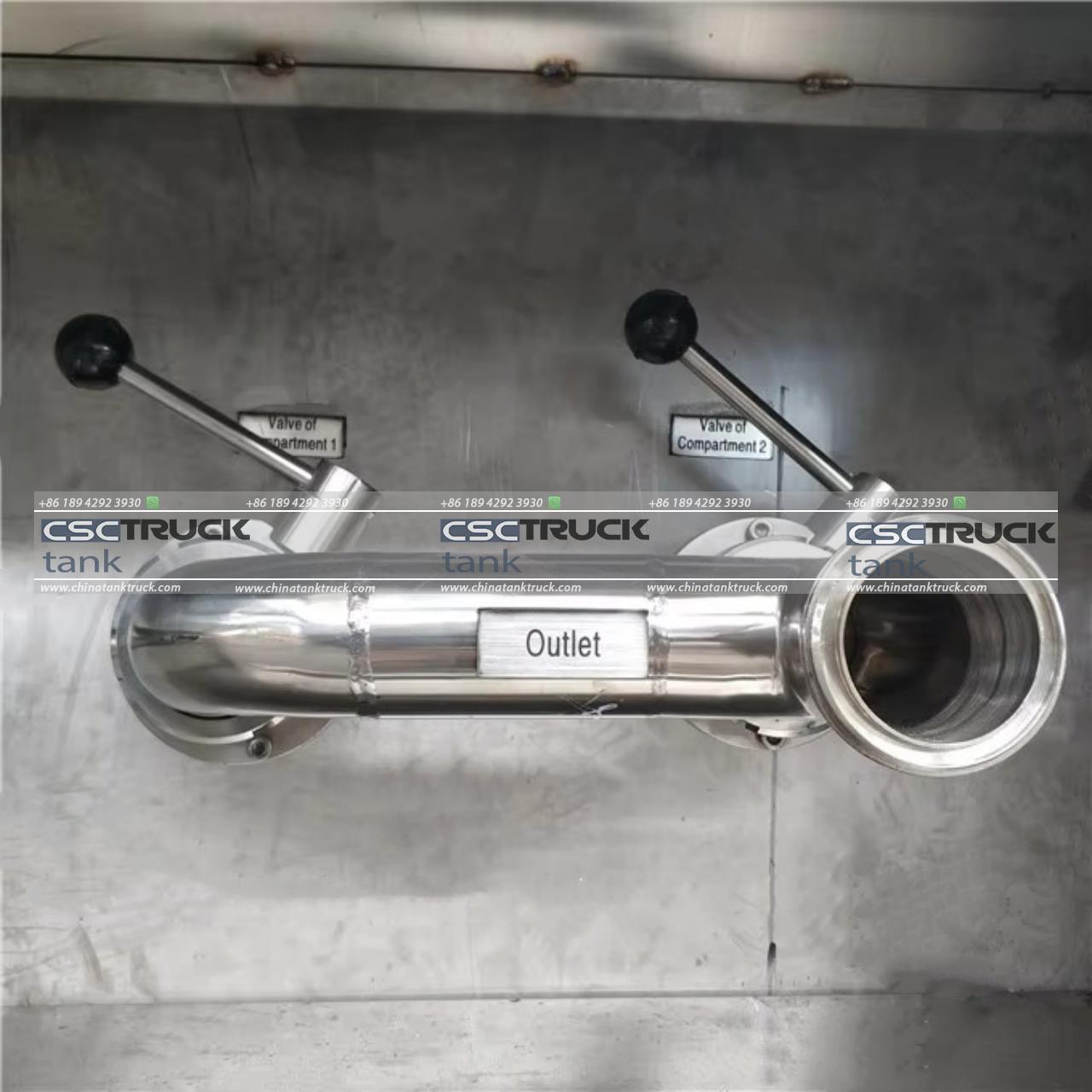

6. Outlet: Butterfly valve at the rear of the milk tank.

7. Inlet: Butterfly valve with a union end.

8. Manhole: With a fixed deep stick to the manhole and a 430 mm diameter.

9. PIC cleaning equipment: 1 spray ball in the compartment, PIC in the feed and return pipe from the compartment with butterfly valves discharge connected to one discharge line.

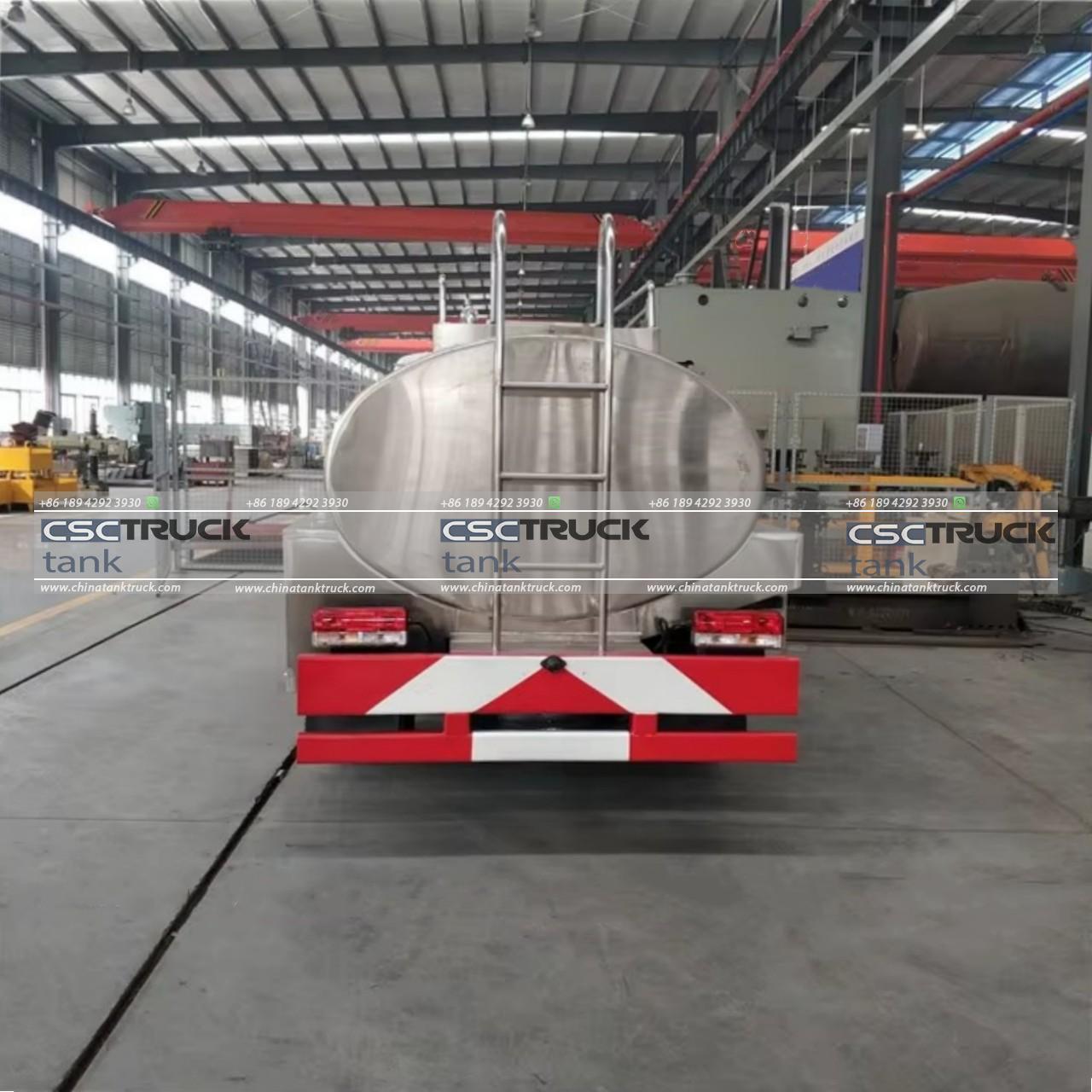

10. Accessories: Stainless steel ladder to the top of the milk tank and anti-slippery walkway.
Performance The heat preservation effect can keep <1 ºC for 24 hours.



Tank Mounted on Chassis Brand
