BRIEF

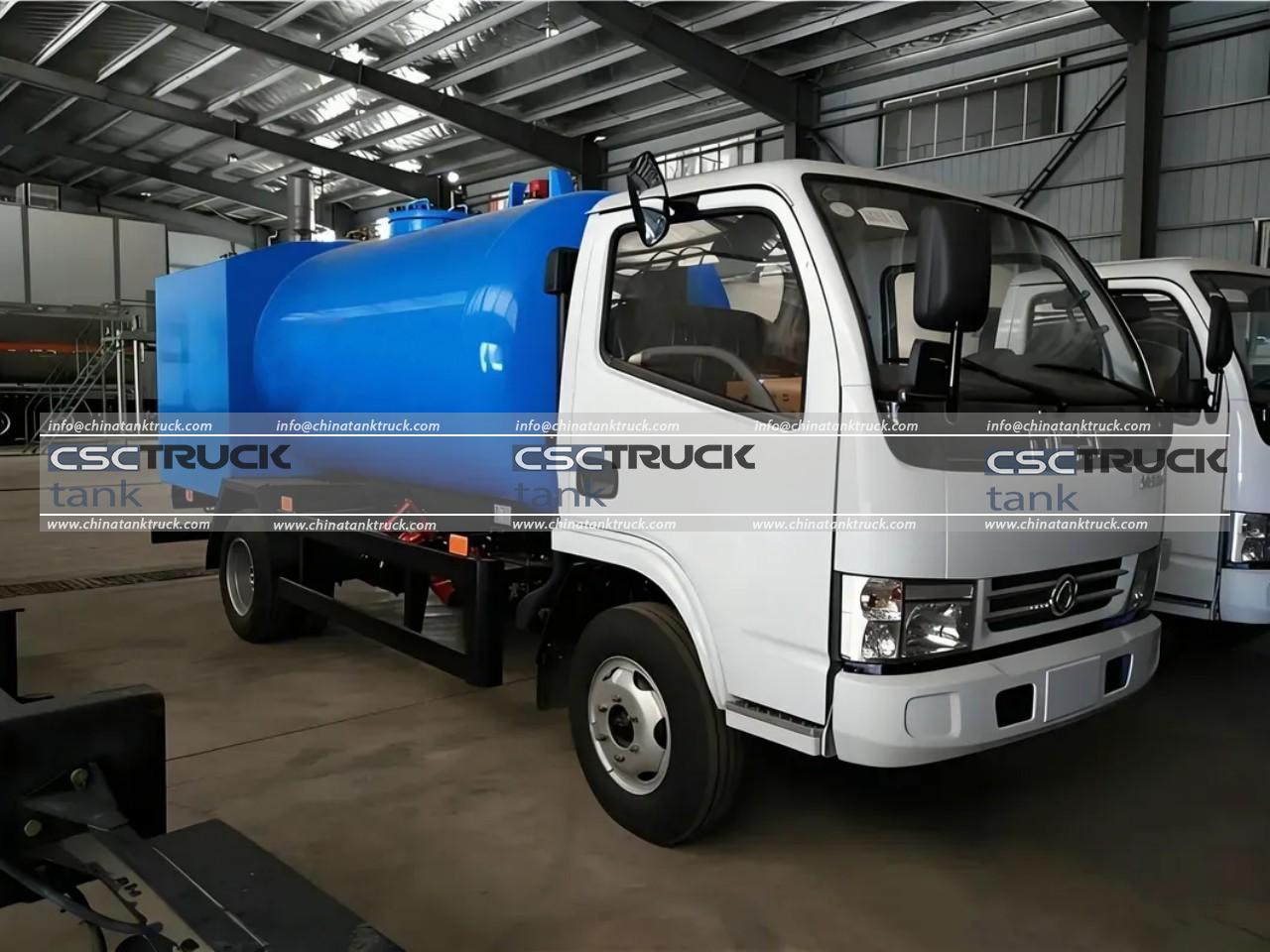

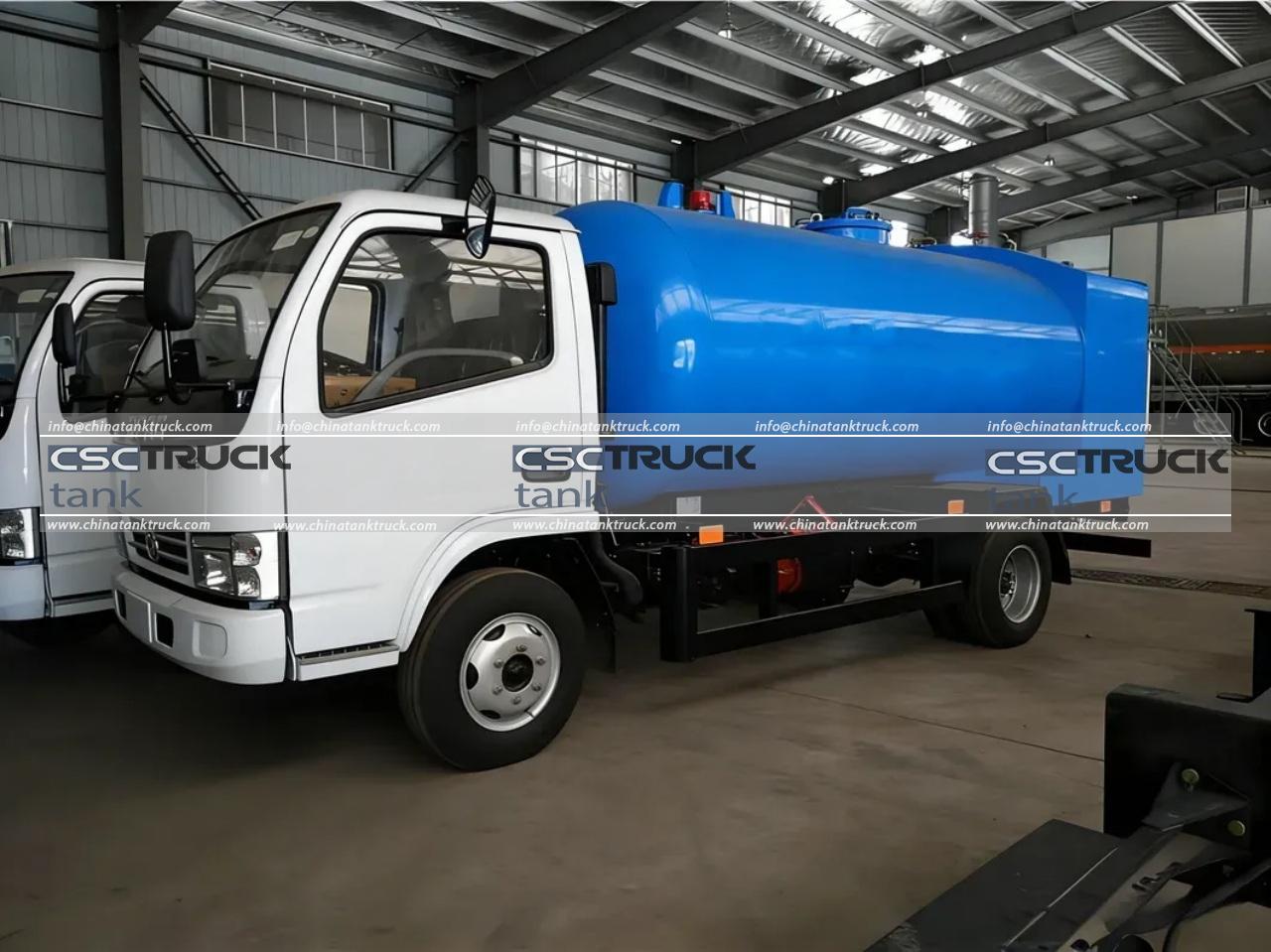

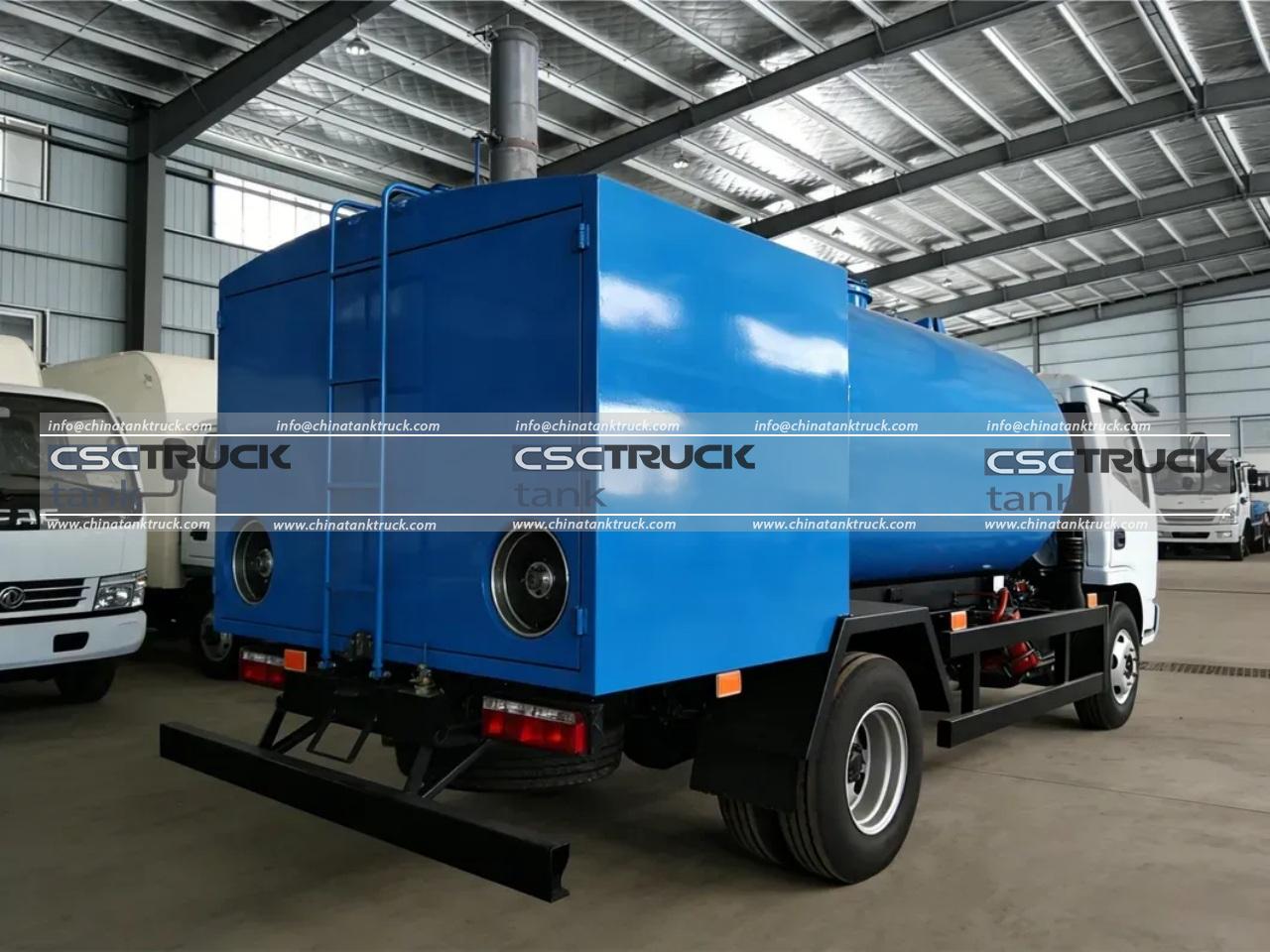

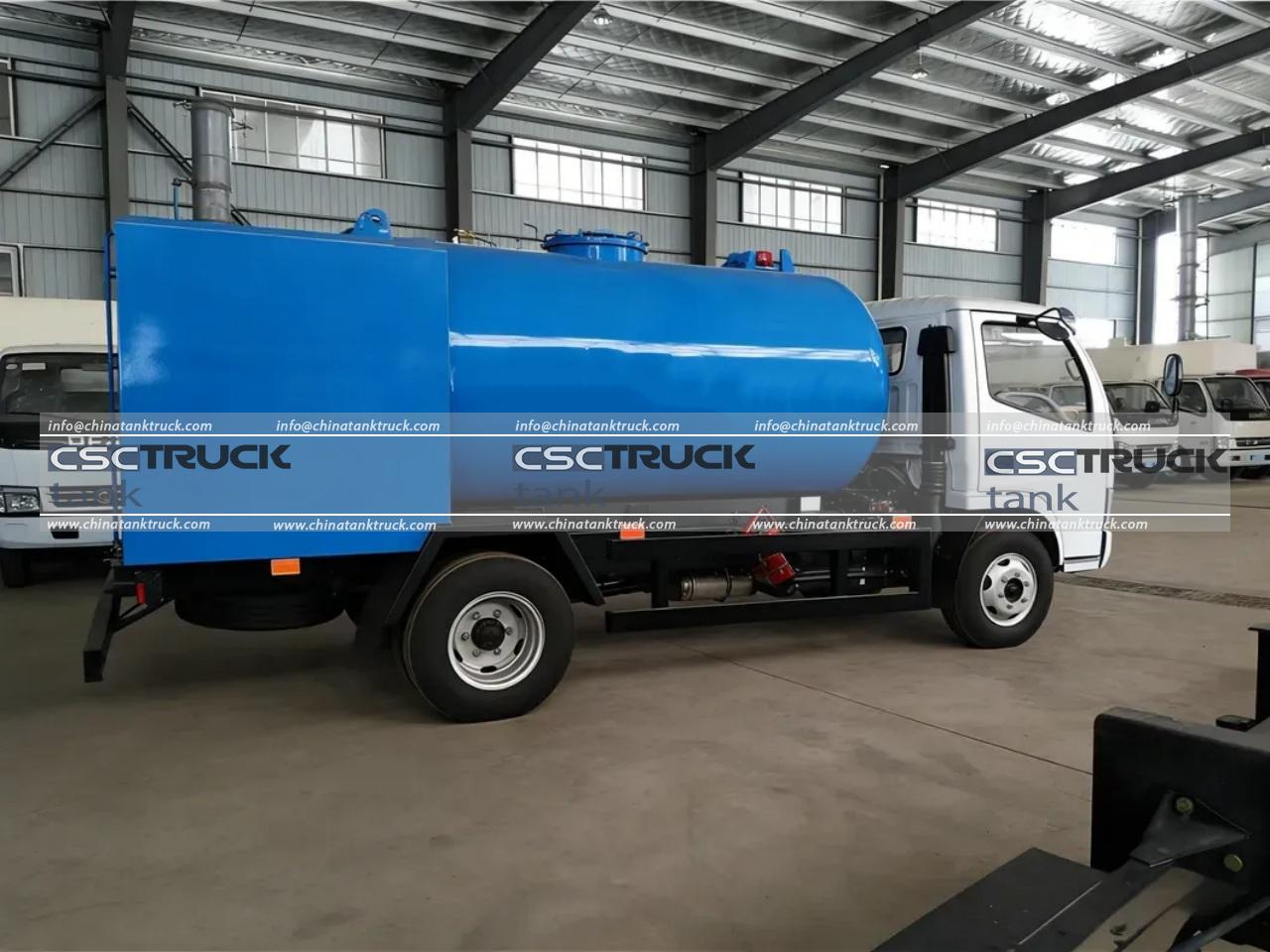

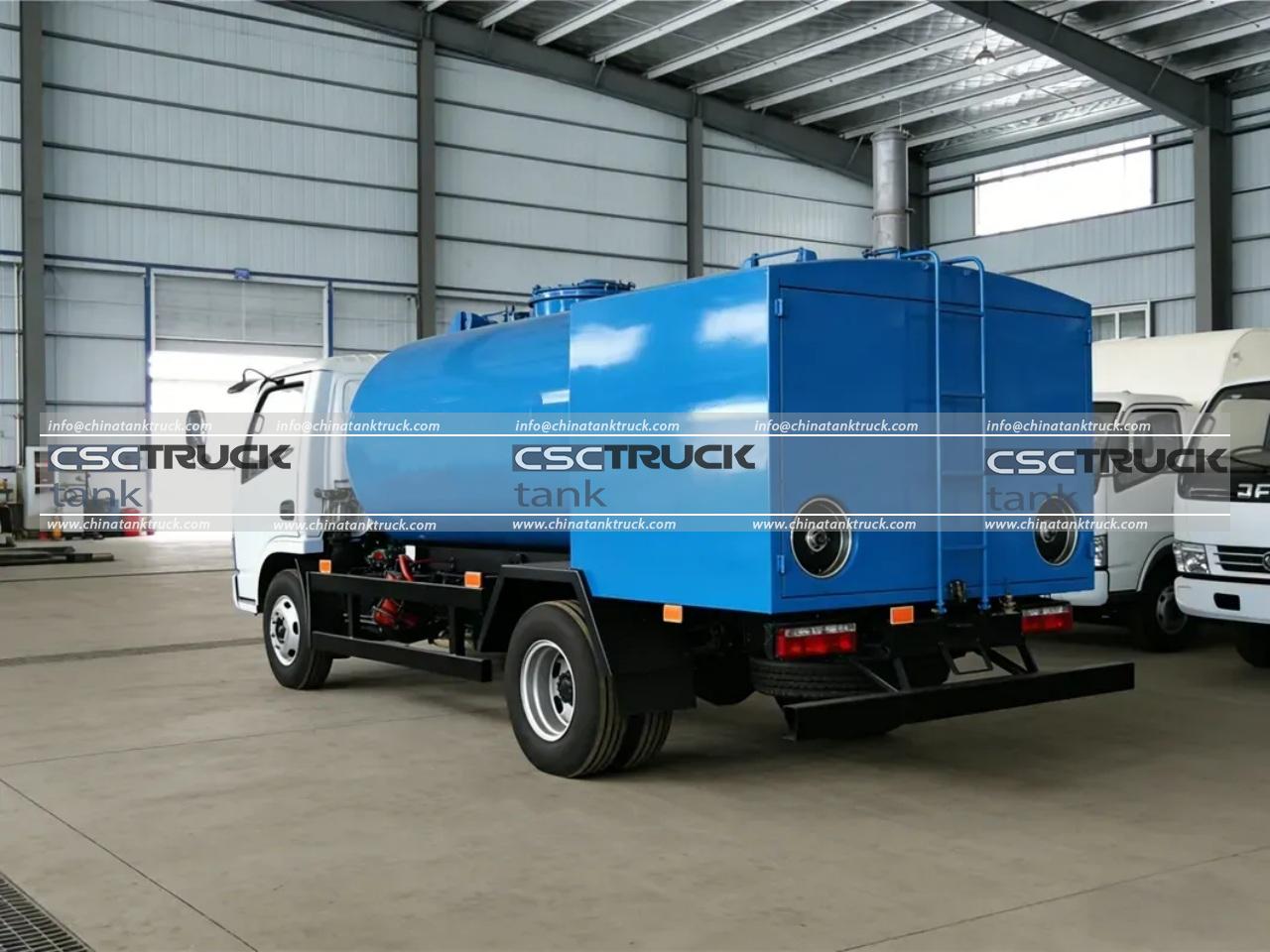

Designed for urban and rural LPG cylinder refilling, small distribution depots, residential communities, restaurants, and temporary gas supply points, the 5000L Small LPG Refill Truck produced by CSCTRUCK China Tank Truck is a compact, efficient, and safety-focused mobile LPG distribution solution. Its moderate tank capacity and maneuverable chassis make it ideal for door-to-door delivery and decentralized gas supply operations where flexibility and accessibility are essential.
The small LPG Refill Truck features overall dimensions of 6,200 × 2,350 × 2,850 mm, with a Gross Vehicle Weight of 8,000 kg and a curb weight of 4,000 kg, ensuring a balanced payload capacity while maintaining stability during transport. Built on a reliable Dongfeng 4×2 chassis with a 3,360 mm wheelbase, it offers dependable performance and easy maneuverability in narrow city streets. The vehicle is powered by a 120HP engine, achieving a maximum speed of 89 km/h, and is equipped with 295/80R22.5 tires for enhanced load-bearing and road stability.
The 5,000-liter LPG tank is manufactured from Q345R pressure vessel steel, designed with a working pressure of 1.77 MPa and a hydraulic test pressure of 2.66 MPa. The tank undergoes PWHT (Post-Weld Heat Treatment) to ensure structural integrity and durability. With a corrosion allowance of 1.00 mm and a tank mass of 1,860 kg, it meets stringent safety and operational standards.
For safety assurance, the small LPG Refill Truck is equipped with an emergency cut-off valve (manual operation, 10-second closing time), a high-performance safety valve, and a float-type liquid level indicator for accurate monitoring. The load and unload system features quick tie-in connections, DN25 gas-phase piping, and DN50 liquid-phase piping, ensuring efficient and secure LPG transfer operations.
FEATURES
- Versatile Applications – Ideal for urban and rural LPG cylinder refilling, small distribution depots, residential communities, restaurants, and temporary gas supply points, providing flexible and decentralized gas delivery.
- Compact and Maneuverable Design – Built on a Dongfeng 4×2 chassis with a 3,360 mm wheelbase, the truck’s moderate dimensions (6,200 × 2,350 × 2,850 mm) allow safe navigation through narrow streets while maintaining stability.
- Reliable Performance – Powered by a 120HP engine with a top speed of 89 km/h and equipped with 295/80R22.5 tires, the truck ensures dependable operation and excellent road stability under load.
- Durable LPG Tank – Features a 5,000-liter Q345R steel pressure vessel tank with a working pressure of 1.77 MPa, hydraulic test pressure of 2.66 MPa, and PWHT treatment for enhanced structural integrity and long-term durability.
- Advanced Safety Systems – Equipped with an emergency cut-off valve, high-performance safety valve, float-type liquid level indicator, and efficient load/unload connections (DN25 gas-phase, DN50 liquid-phase), ensuring safe and efficient LPG transfer operations.
SPECIFICATION
| Product name | 5000L Small LPG Refill Truck |
| Overall Dimensions(LxWxH) |
6,200×2,350×2,850mm
|
| GVW |
8,000 Kg
|
| Curb Weight |
4,000 Kg
|
| Front/Rear Overhang |
1,525/2,600 mm
|
| Cab Seating Capacity |
2-3 Persons
|
| CHASSIS | |
| Chassis Model | Dongfeng |
| Axle Load |
7,000/19,000 (Two-Axle Group)Kg
|
| Axle Configuration |
4X2
|
| Wheel Base |
3,360 mm
|
| Tire | 295/80R22.5 |
| Engine Brand | 120HP |
| Max. Speed |
89Â km/h
|
| UPPER STRUCTURE | |
| Engine horsepower |
Fuel Such as Diesel/Gasoline/Engine Oil
|
| Displacement |
Customized
|
| Engine Structure |
Q304 stainless steel tank or Q235 Carbon Steel/
|
| UPPER STRUCTURE |
4-8Â mm (customizable)
|
| LPG Tank Parameter | Design Pressure: 1.77Mpa Design temperature: 50° Tank capacity: 5,000 liters Filling medium: LPG(Propane) Tank material: Q345R Corrosion allowance: 1.00 mm Heat treatment method: PWHT Tankmass: 1,860kg Hydraulic test pressure: 2.66Mpa External Dimensions(ln-Diameter*Thickness*length): 1,500*10(8)*3,600mm Vessel’s sort: The third kind |
| Emergency Cut-off Valve Parameter | Model: QGJ43F-2.5 Nominal Pressure: PN2.5Mpa Nominal Diameter: Gas Phase DN25mm Liquid Phase DN50 Operation Way: Manual Closing Time:10s Melting switch temperature: 70±5° |
| Safety Valve Parameter | Model: A412F-2.5, Inner full liff Nominal Pressure: PN2.5MPa Nominal Diameter: DN80mm Opening Pressure: 1.86-1.95MPa Closing Pressure:>1.49MPa Complete Opening Pressure: <2.12MPa |
| Indicator For Liquid Level Parameter | Model: UQZ-2.5-1500, Float type Nominal Pressure: PN2.5MPa Surveying range: 0-1500 Precision: 2.5 Grade |
| Load and Unload System Parameter | Valve type: Q41F-2.5P/CQA41F-2.5p Nominal Pressure: PN2.5MPa Tie-in model: Quick tie-in Gas phase pipe: DN25mm Liquid phase pipe: DN59mm |
