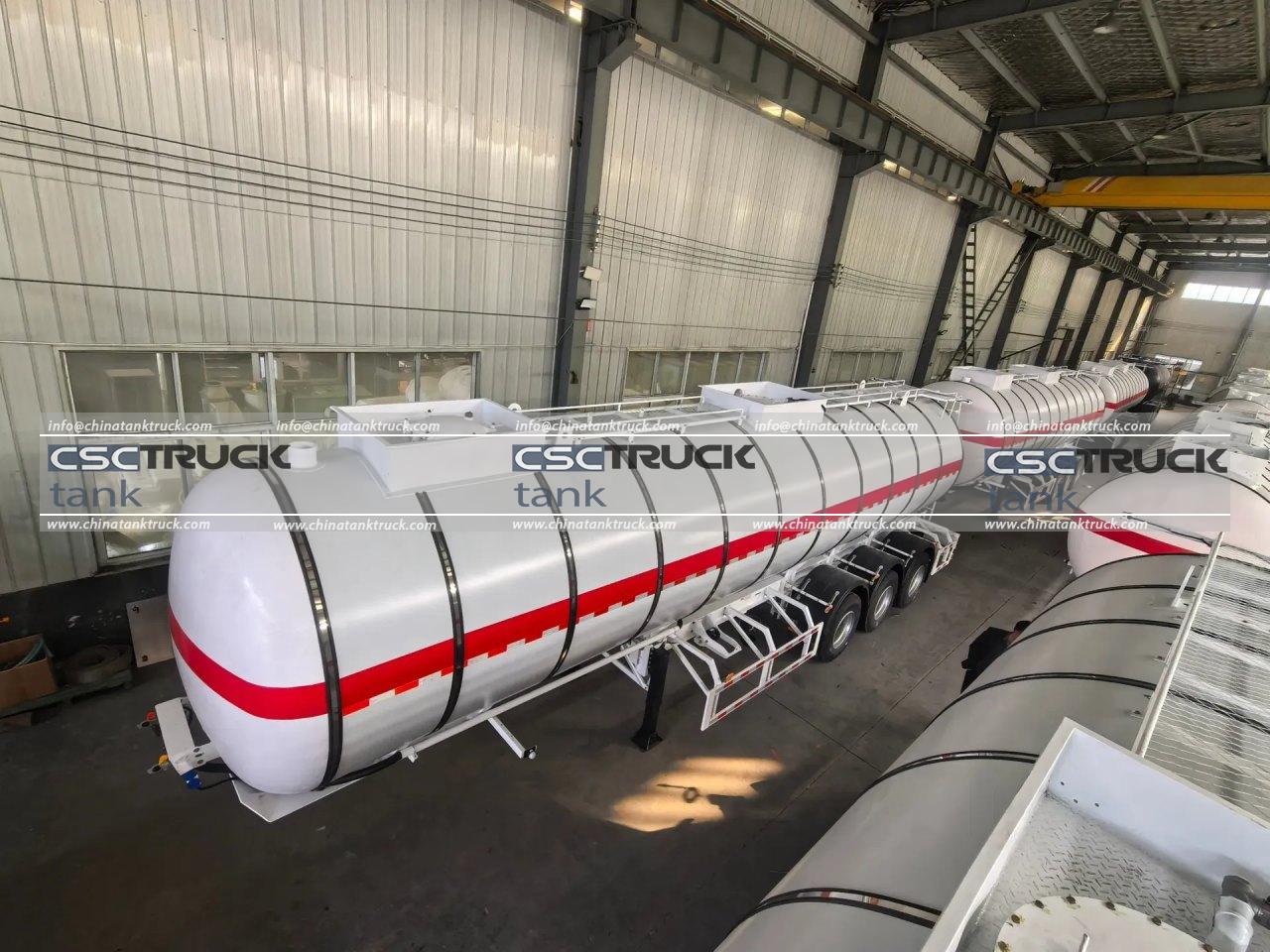

30000L Tri Axles Heat Bitumen Tanker Semi-Trailer

BRIEF

The 30,000L tri-axles heat bitumen tanker semi-trailer, produced by CSCTRUCK China Tank Truck, is a robust and highly efficient transport solution designed for the safe delivery of hot bitumen used in road construction and infrastructure projects. With a tank capacity of 30,000 liters, the tanker features a practical square-round shape with a single compartment, ensuring optimal load distribution and ease of operation.

Constructed from high-quality carbon steel Q235B, the tank offers excellent durability and resistance to high temperatures and harsh working conditions. The tank body thickness is engineered for strength, with the shell at 5mm and reinforced ends exceeding 6mm, providing enhanced structural integrity during transport. To maintain the temperature of bitumen, the tanker is equipped with an 80mm thermal insulation layer made of insulation cotton, covered by a 0.5mm galvanized sheet available in black or white, effectively minimizing heat loss.

The heating system includes an internal single-tube heating design powered by a reliable USA BECKETT combustion engine, ensuring efficient and consistent heating performance. For safe access and operation, the tanker is fitted with a carbon steel anti-skid walkway on top, along with a low guardrail and ladder system.

The unloading system features a 6-inch carbon steel pipeline and a 6-inch butterfly valve, enabling smooth and controlled discharge of bitumen. The 30,000L tri-axles heat bitumen tanker semi-trailer is built on a sturdy steel frame and supported by three FUWA 13-ton axles with a durable steel suspension system, ensuring stability and load-bearing capacity. It is also equipped with 12 high-performance 12.00R22.5 tires, a Jost kingpin, and Jost E100 landing gear for reliable coupling and parking operations.

Additional safety and utility features include two 8kg fire extinguishers, side guards, a spare tire carrier, and customizable paint options, making it a dependable and versatile solution for bitumen transport needs.

FEATURES

1. High-Capacity and Efficient Design
   With a 30,000-liter tank and a square-round single-compartment structure, the tanker ensures optimal load distribution, improved stability, and efficient transport of hot bitumen for large-scale road construction projects.
2. Durable Carbon Steel Construction
   Built from high-quality Q235B carbon steel, with a 5mm thick tank body and reinforced ends exceeding 6mm, the tanker delivers excellent strength, durability, and resistance to high temperatures and harsh operating conditions.
3. Advanced Thermal Insulation System
   Equipped with an 80mm insulation layer made of thermal cotton and covered by a 0.5mm galvanized sheet, the tanker effectively minimizes heat loss, maintaining the bitumen at the required temperature during transport.
4. Reliable Heating and Discharge System
   Featuring an internal single-tube heating system powered by a USA BECKETT burner, along with a 6-inch pipeline and butterfly valve, the tanker ensures consistent heating and smooth, controlled unloading operations.
5. Robust Chassis and Safety Features
   Supported by three FUWA 13-ton axles, steel suspension, and 12 durable 12.00R22.5 tires, the trailer offers excellent stability and load capacity. Additional safety elements such as anti-skid walkways, guardrails, fire extinguishers, and Jost landing gear enhance operational safety and reliability.

SPECIFICATION
