A pressure vessel is one of the most fundamental, yet critical, components in modern industrial processes. From generating the power that lights our cities to manufacturing the chemicals that create everyday products, these containers are the workhorses holding and processing fluids—liquids, gases, or vapors—at a pressure substantially different from the ambient pressure.
The design, fabrication, and maintenance of pressure vessels are strictly regulated due to the inherent safety risks associated with storing high-energy fluids. A failure in a pressure vessel can lead to catastrophic explosions, resulting in severe injury, loss of life, and massive property damage. Understanding what a pressure vessel is, where it’s used, and, crucially, how to maintain its safety is paramount for any industrial operation.
What is a Pressure Vessel?
In simple terms, a pressure vessel is a closed container designed to hold gases or liquids at a pressure significantly above or below the surrounding atmospheric pressure. They are distinguishable from storage tanks by their functional design to withstand internal or external pressure differentials.
Defining Characteristics
-
Pressure Differential: They operate at pressures that would cause a standard, unpressurized storage tank to fail. These can range from a few pounds per square inch (psi) above atmospheric to thousands of psi.
-
Geometry: While they come in various shapes, the most common designs are spherical and cylindrical (both vertical and horizontal) because these geometries are structurally efficient at containing internal pressure. A sphere has the greatest surface area for a given volume, making it the most efficient shape for high internal pressure.
-
Components: A typical pressure vessel consists of a shell (the main body), heads (or end caps, such as hemispherical, ellipsoidal, or torispherical), and nozzles (connections for inlets, outlets, instrumentation, and safety devices).
-
Material: The material selection is critical, often involving various grades of carbon steel, stainless steel, or exotic alloys, chosen based on the operating temperature, pressure, and the corrosive nature of the fluid being contained.
Governing Codes and Standards
The primary globally recognized standard for the design, construction, and inspection of pressure vessels is the ASME Boiler and Pressure Vessel Code (BPVC), particularly Section VIII, Division 1. This code provides rules for designing vessels to safely withstand the intended operating pressure and temperature, ensuring a robust safety factor against failure. Compliance with such codes is a legal requirement in most industrial jurisdictions.
🏭 Industrial Applications of Pressure Vessels
Pressure vessels are ubiquitous across the industrial landscape. Their application is necessary anytime a process requires pressure to drive a chemical reaction, separate components, or simply transfer a fluid efficiently.
1. Power Generation
-
Boilers/Steam Drums: Crucial components in conventional power plants. A boiler is a heat exchanger that creates high-pressure steam by boiling water, and the steam drum separates steam from water. This high-pressure steam then drives turbines to generate electricity.
-
Heat Exchangers: Used to transfer heat between two fluids, one or both of which may be under pressure.
2. Chemical and Petrochemical Industry
This sector relies heavily on pressure vessels for a multitude of process steps:
-
Reactors: Vessels where chemical reactions occur, often under high pressure and temperature to enhance reaction speed and yield. Examples include catalytic reactors in oil refining.
-
Distillation Columns: Tall, cylindrical vessels used to separate components of a liquid mixture (like crude oil) based on their differing boiling points. The pressure and temperature profiles within the column are tightly controlled.
-
Separators (e.g., Flash Drums): Used to separate phases of a fluid (e.g., gas from liquid) by exploiting pressure changes.
-

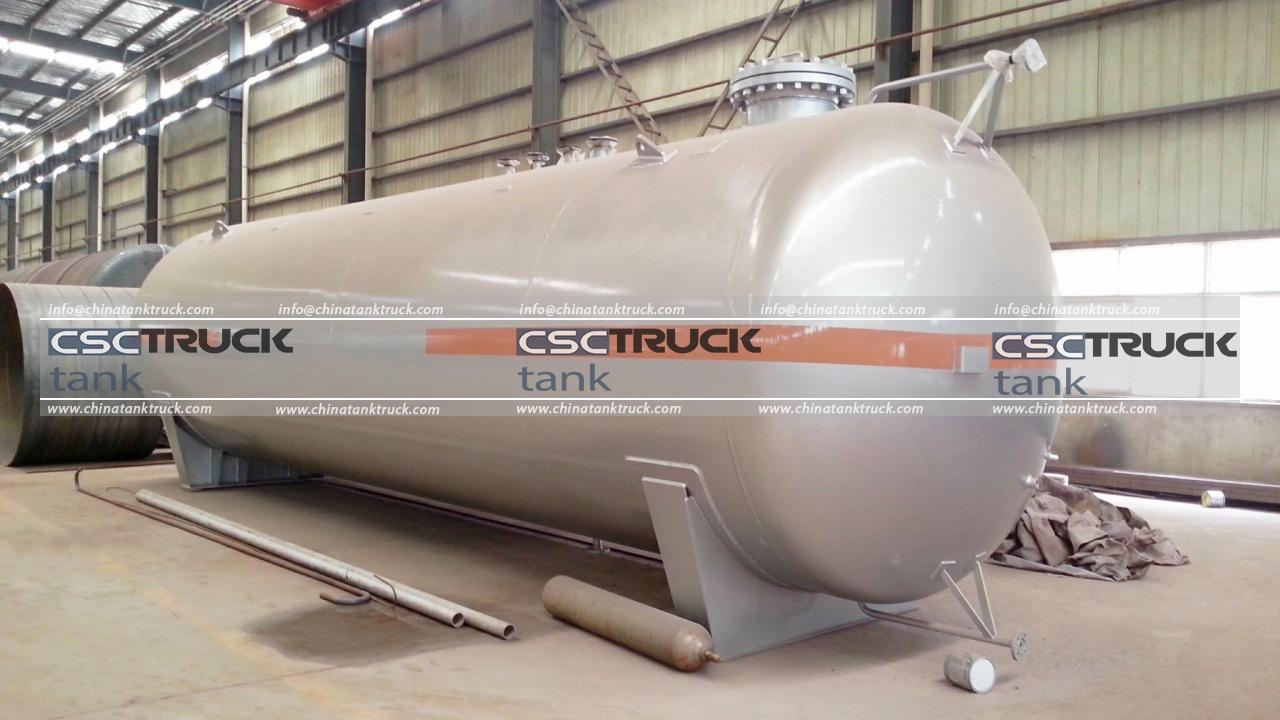

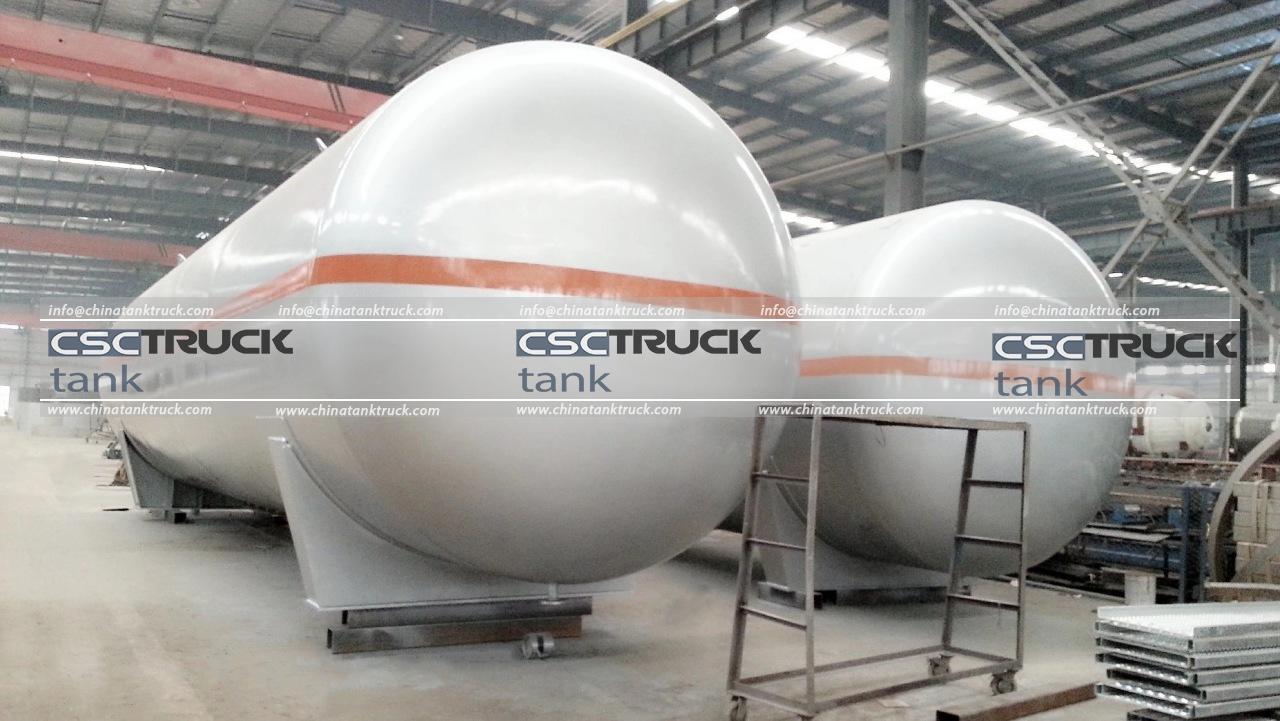

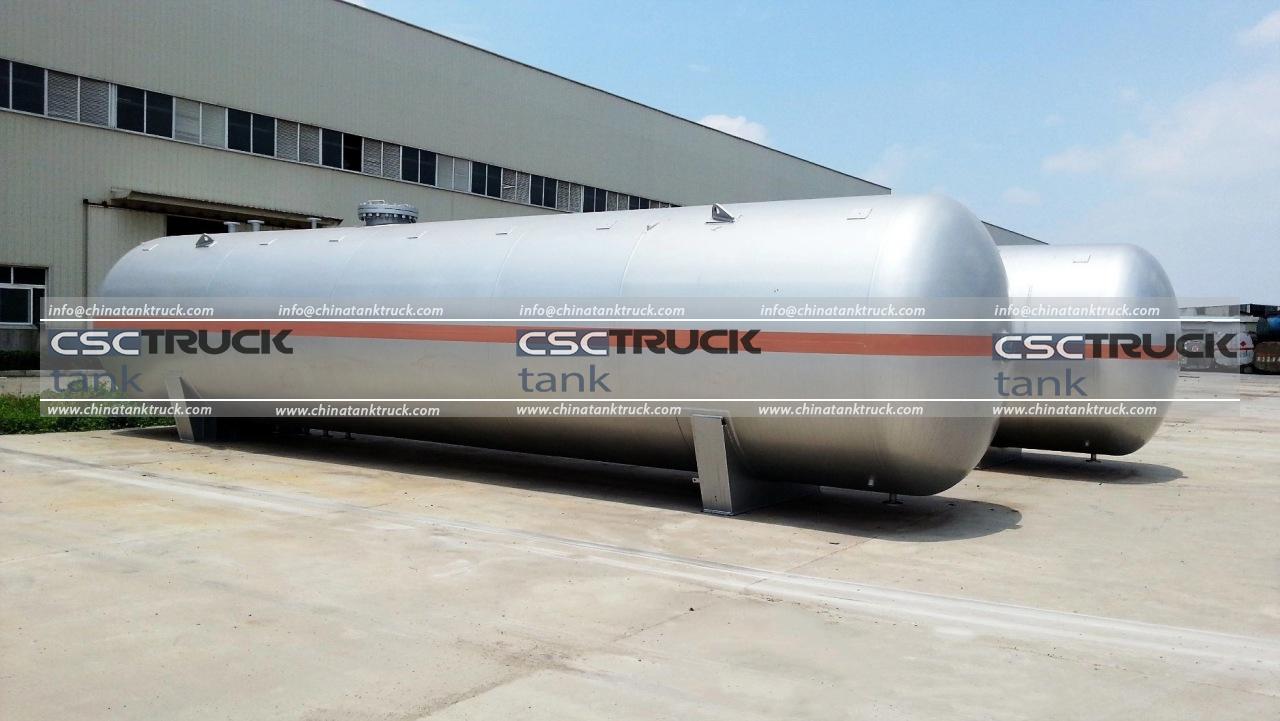

Storage Tanks: Used for storing liquefied gases, such as Liquefied Petroleum Gas (LPG) or ammonia, which must be kept under pressure to remain in a liquid state at ambient temperatures.
3. Oil and Gas Production
-
Wellhead Separators: Located at the oil or gas well, they separate the raw produced fluid (oil, gas, and water) before it is sent further for processing.
-
Dehydration Units: Pressure vessels that remove water vapor from natural gas to prevent corrosion and hydrate formation in pipelines.
4. Other Industries
-
Air Receivers: Found in virtually every factory, these vessels store compressed air generated by a compressor, providing a stable supply and dampening pulsations.
-
Sterilizers/Autoclaves: Used in the medical and food processing industries to sterilize equipment or food products using high-pressure steam.
-
Nuclear Reactors: The massive reactor vessel is perhaps the most critical type of pressure vessel, containing the nuclear fuel and core.
🛡️ Pressure Safety Maintenance Guide
Safety in pressure vessel operation is non-negotiable. Maintenance is governed by stringent codes (like ASME BPVC Section VIII, Division 1 and API 510 for in-service inspection), and a robust program must cover inspection, repair, and operational procedures.
1. In-Service Inspection
Regular inspection is the cornerstone of pressure vessel safety. The standard typically requires a certified API 510 Pressure Vessel Inspector to perform the checks.
-
Visual Inspection: Looking for external signs of damage, corrosion, bulging, leaks, or deformation. Pay close attention to welds and nozzle connections.
-
Non-Destructive Testing (NDT): Techniques used to assess the internal integrity without damaging the vessel.
-
Ultrasonic Testing (UT): Measures wall thickness to detect thinning due to corrosion or erosion. This is one of the most critical safety checks.
-
Radiographic Testing (RT): Uses X-rays or gamma rays to find internal flaws, cracks, or welding defects.
-
Magnetic Particle Testing (MPT) and Liquid Penetrant Testing (LPT): Used to find surface cracks and defects.
-
-
Internal Inspection: Where feasible and safe, the vessel is opened and thoroughly inspected internally for pitting, scaling, and lining damage.
2. Safety Relief Devices (PSVs)
The most critical safety component on a pressure vessel is the Pressure Safety Valve (PSV) or Safety Relief Valve (SRV).
-
Function: PSVs are designed to automatically open and vent the contents (usually to a flare system or a safe location) when the internal pressure exceeds a set maximum allowable working pressure (MAWP), preventing catastrophic over-pressurization.
-
Maintenance: PSVs must be regularly tested, calibrated, and certified (typically every 1 to 5 years, depending on service and regulation) to ensure they will open precisely at their designated set point. A malfunctioning PSV is a major safety hazard.
3. Corrosion Management
Corrosion and erosion are the primary causes of vessel failure due to wall thinning.
-
Corrosion Allowance: Vessels are originally designed with an extra layer of thickness called the corrosion allowance to account for material loss over time. Maintenance involves tracking the remaining thickness against this allowance.
-
Cathodic Protection/Coatings: For vessels containing corrosive media, internal coatings (like glass linings or epoxies) or cathodic protection systems may be used and must be inspected for integrity.
-
Corrosion Under Insulation (CUI): An insidious form of localized corrosion that occurs when moisture enters the thermal insulation. Regular inspection of the vessel shell under the insulation is required.
4. Operational Procedures
-
Start-up and Shut-down: Procedures must be strictly followed to control the rate of pressure and temperature change, minimizing stress on the material.
-
Pressure Testing: Periodically, a vessel may undergo a hydrostatic test, where it is filled with an incompressible liquid (usually water) and pressurized to a level significantly higher than the MAWP to confirm its structural integrity. This is often done after major repairs or at statutory intervals.
-
Record Keeping: All inspection reports, repair records, NDT results, and PSV certifications must be meticulously documented and retained for the life of the vessel as proof of compliance and safety.
Conclusion
Pressure vessels are indispensable assets that literally hold modern industry together. They enable processes ranging from boiling water to complex catalytic reactions. Given their role in storing immense potential energy, their design and operation are governed by the strictest engineering codes. Pressure safety is not merely a compliance issue; it is a fundamental operational necessity. A comprehensive maintenance program, centered on regular inspection, meticulous wall thickness monitoring, and the infallible function of safety relief devices, is the only way to ensure these industrial workhorses continue to operate safely, efficiently, and reliably for decades.
