The SHACMAN M6000 fuel tank lorry is equipped with the Weichai WP350E68 engine, meeting the EURO VI emission standards, and paired with the Fast SF10JS180TA 10-speed manual gearbox.
-
Futuristic Exterior Design Highlights:
The front design looks quite advanced, resembling concept cars. Departing from the traditional square-headed truck style, the M6000 fuel tank lorry presents a futuristic appearance.

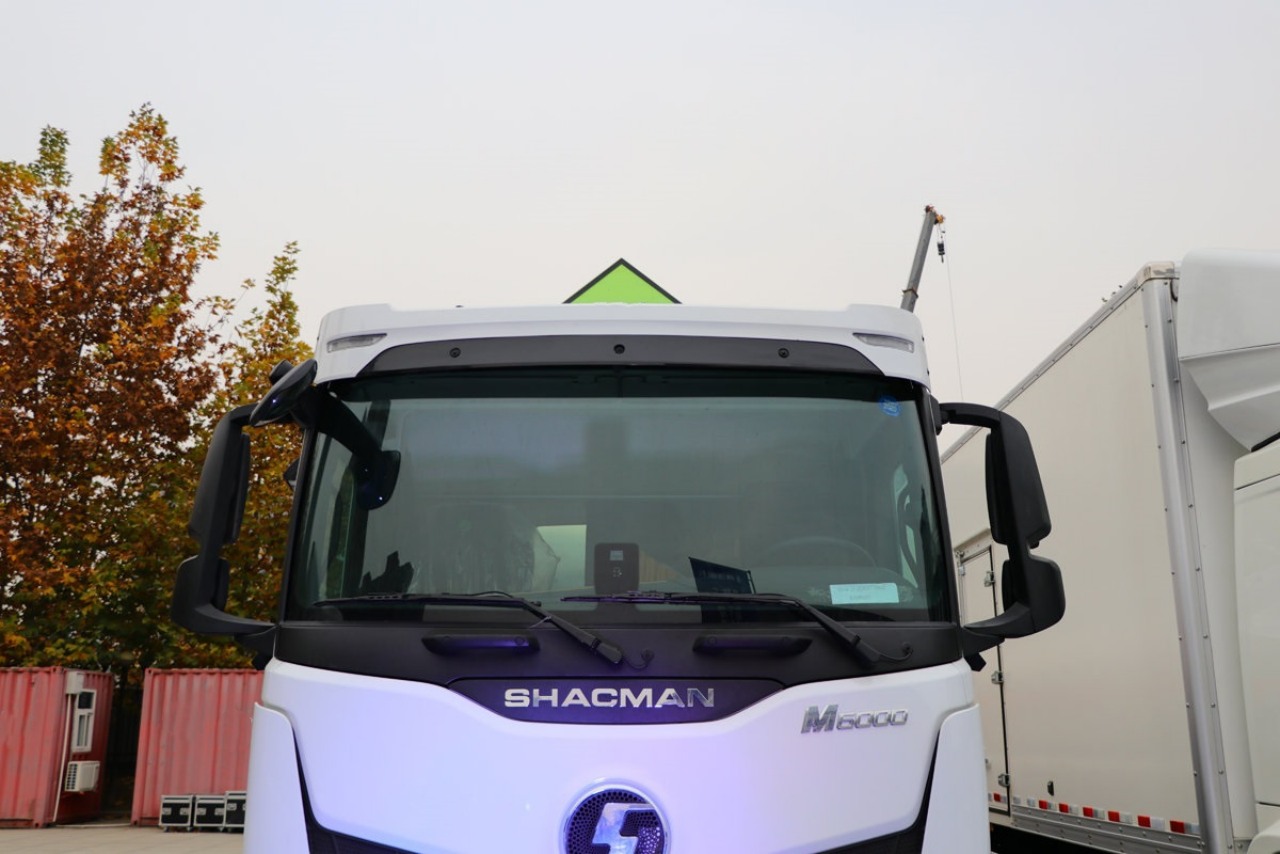

The windshield area performs well, with a neat layout and 2 handles at the bottom for drivers to grip while cleaning the glass.

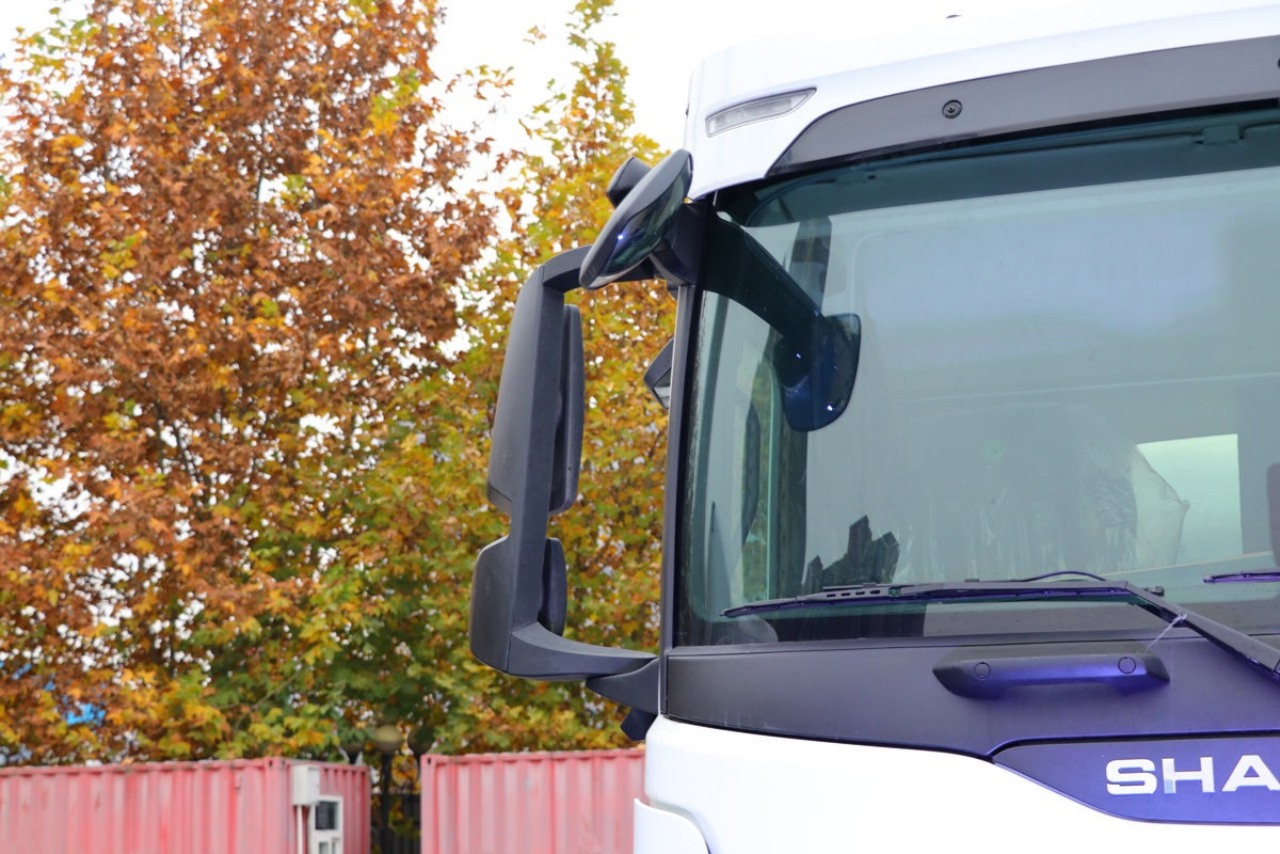

The side mirrors support electric adjustment, and the plastic brackets add a touch of class compared to typical metal ones, fitting the model’s positioning.

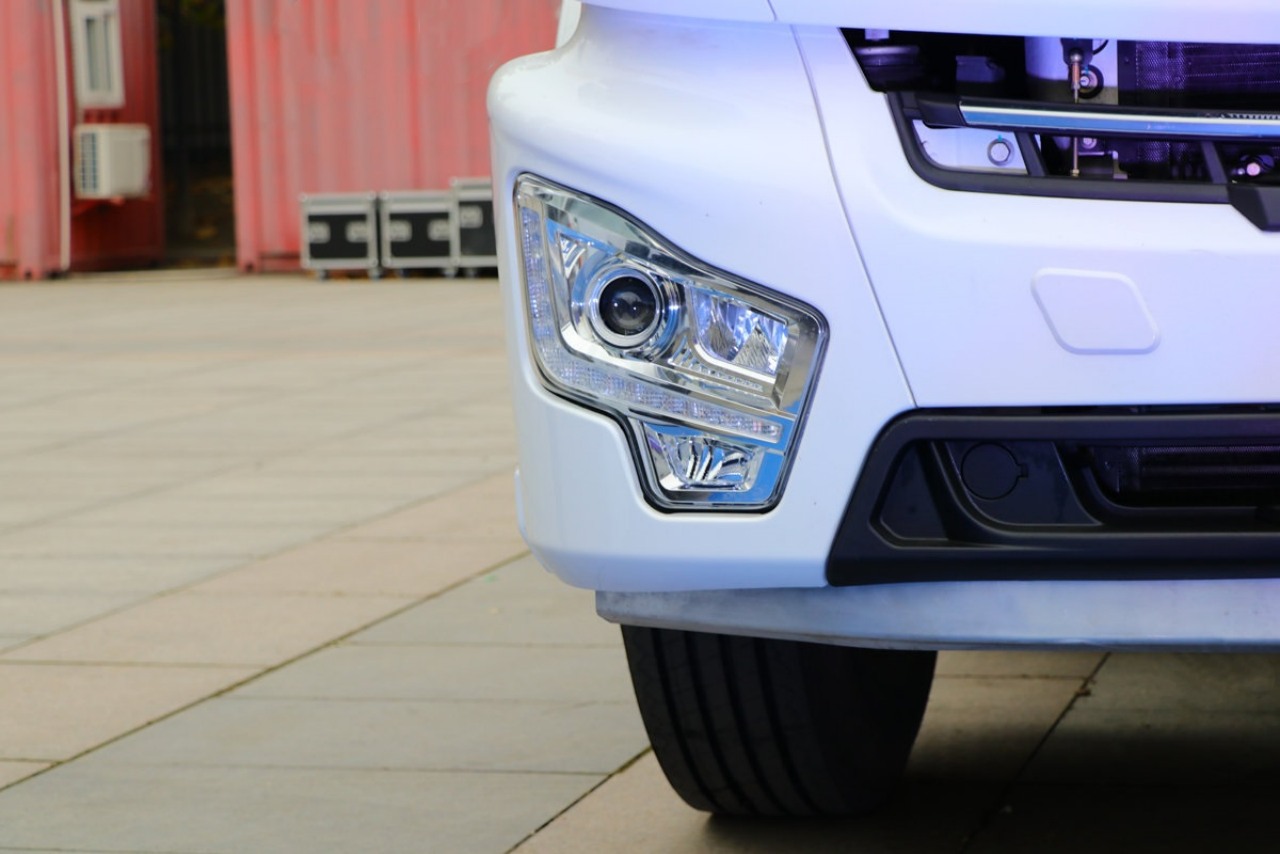

The headlights feature an integrated design with lens-equipped low beams that focus light beams to prevent dazzling oncoming drivers, ensuring safety. Additionally, the model is equipped with daytime running lights.

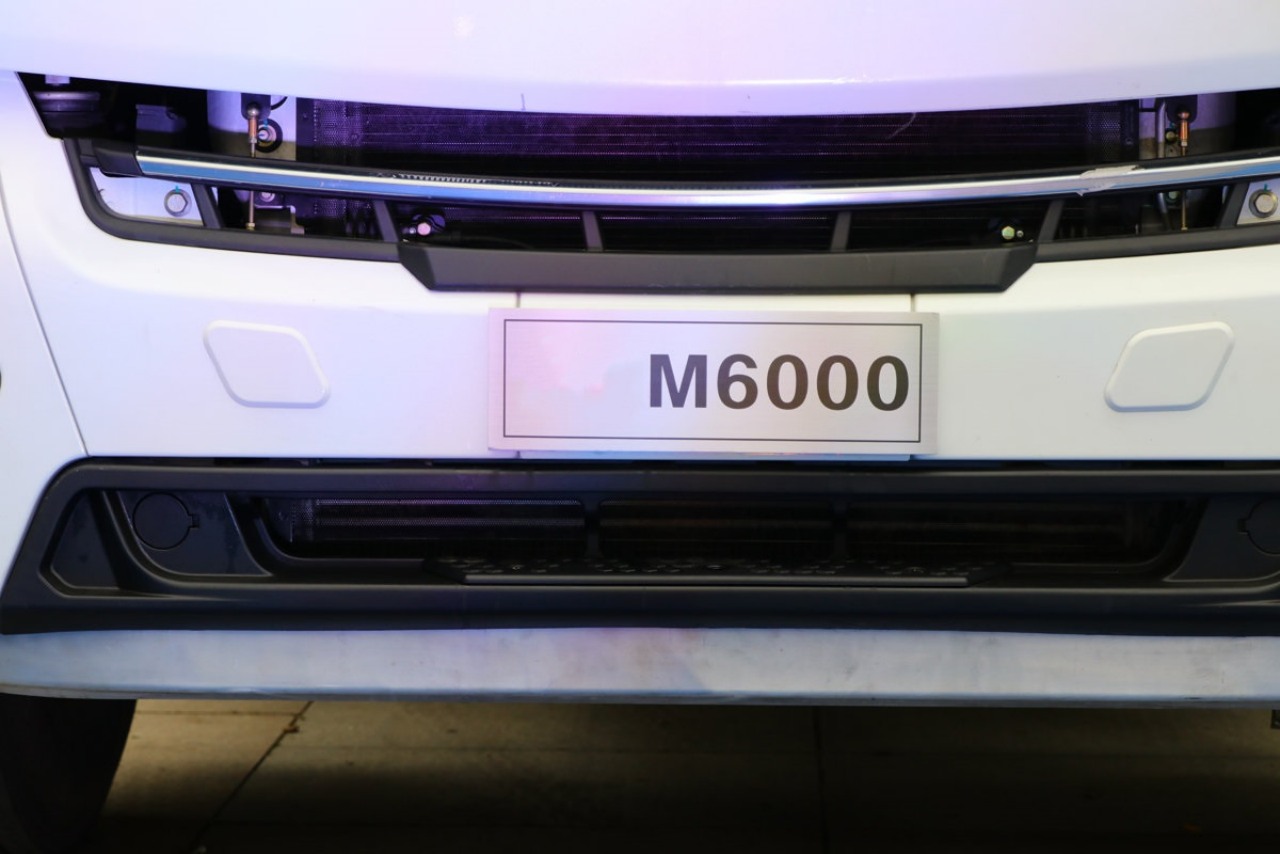

The grille incorporates a chrome strip design, and there are pedals below for drivers to step on when wiping the front windshield.

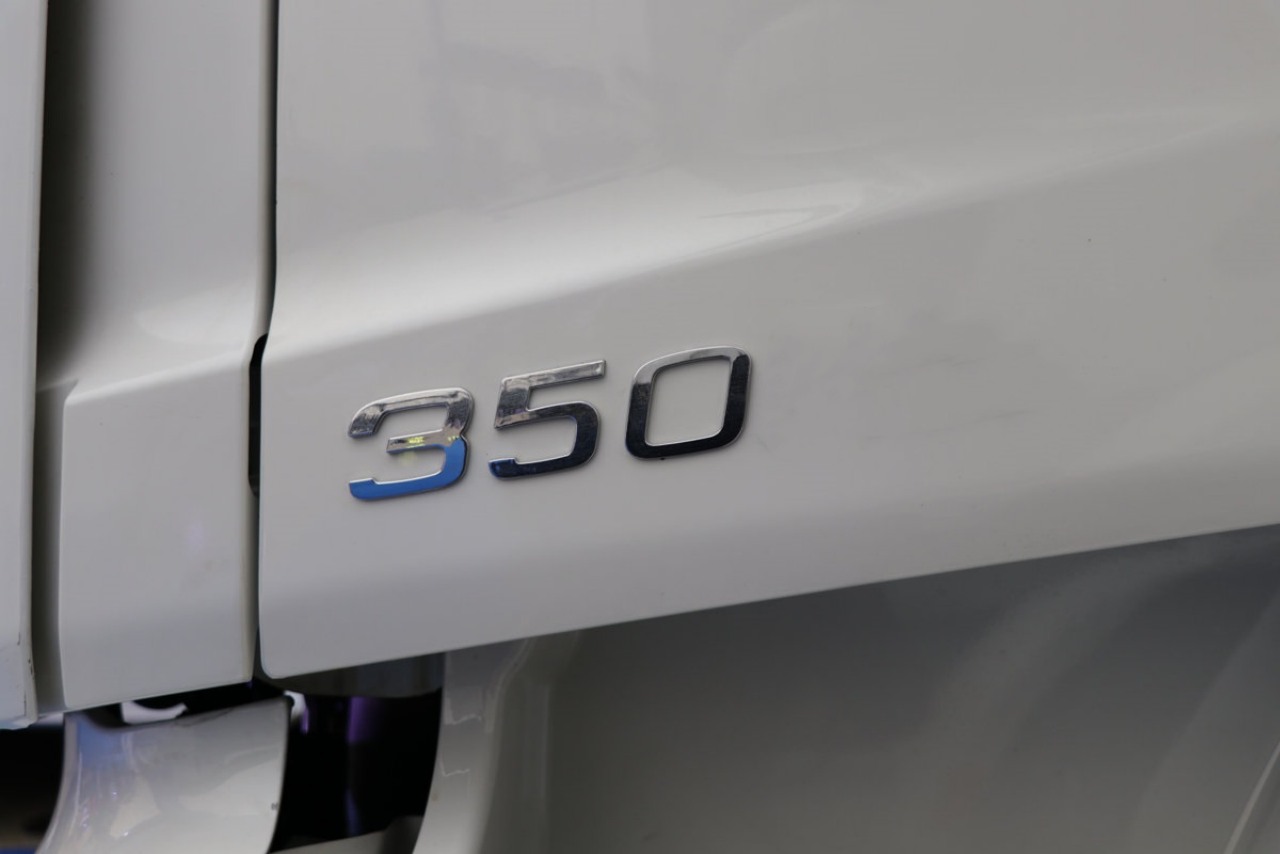

The “350” emblem on the doors signifies this model’s 350 horsepower.

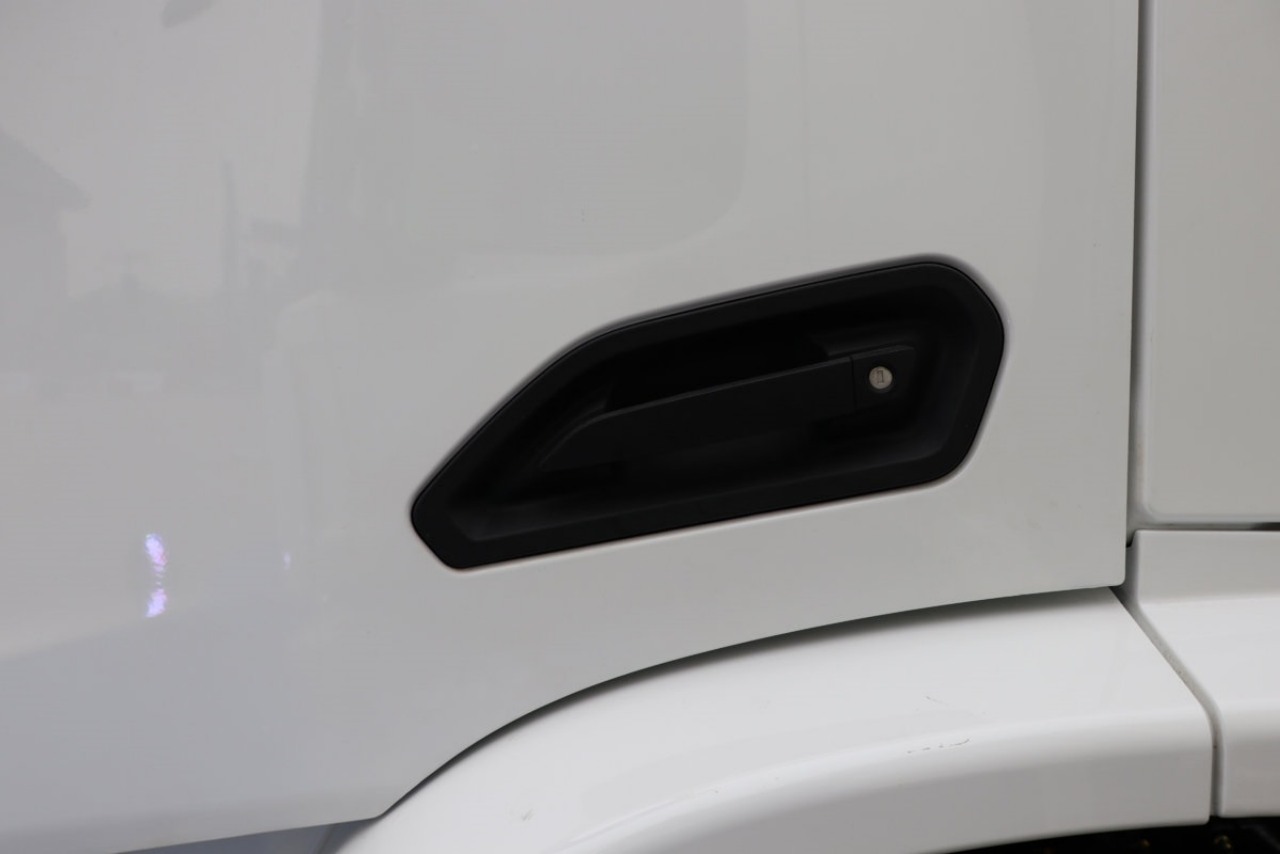

The door handles maintain a unique style and support remote unlocking.

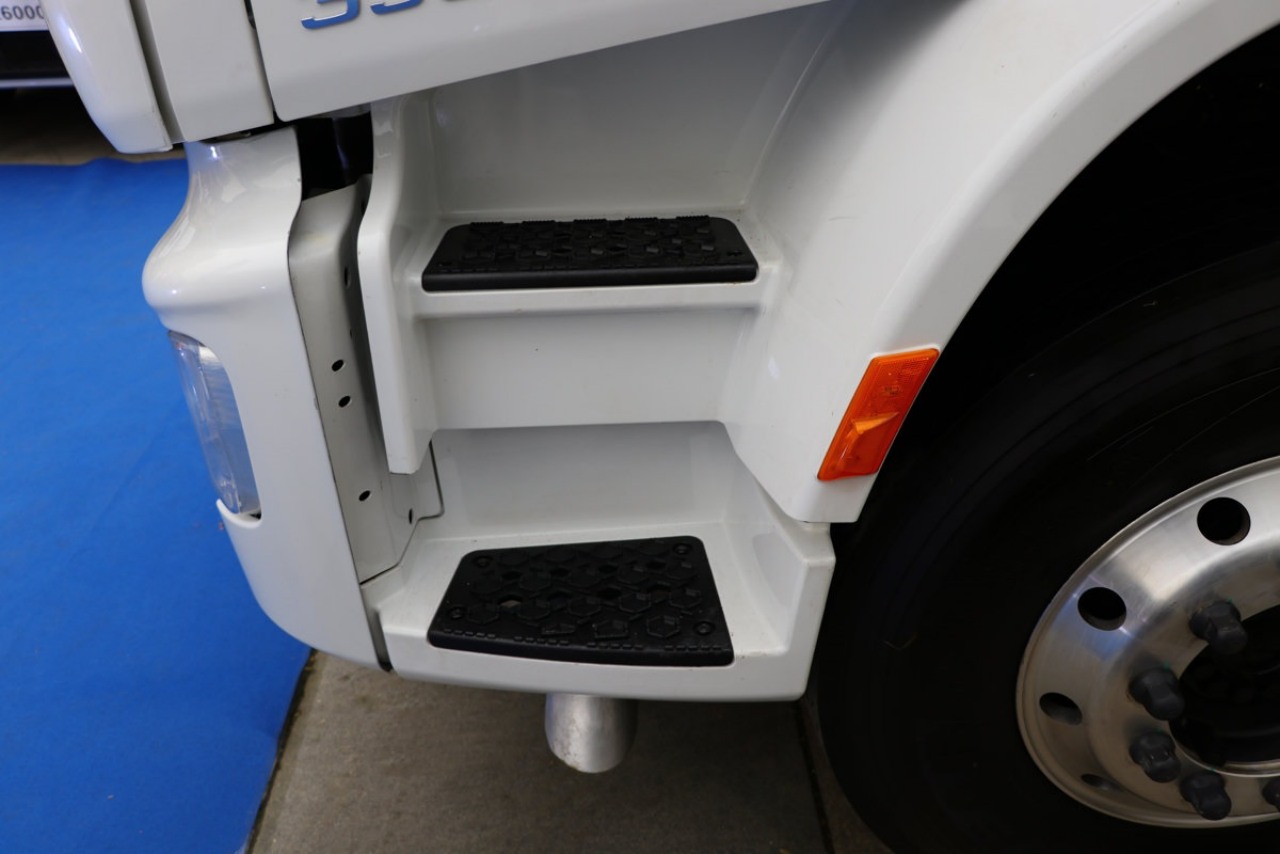

The boarding step features an anti-slip design, though attention is needed to the exhaust port beneath when boarding.
Exterior Review: The stylish, avant-garde design language gives this inherently bulky truck a technological feel, departing from the traditional boxy design, thus upgrading the M6000’s appearance qualitatively.
-
Excellent Interior Design Performance:

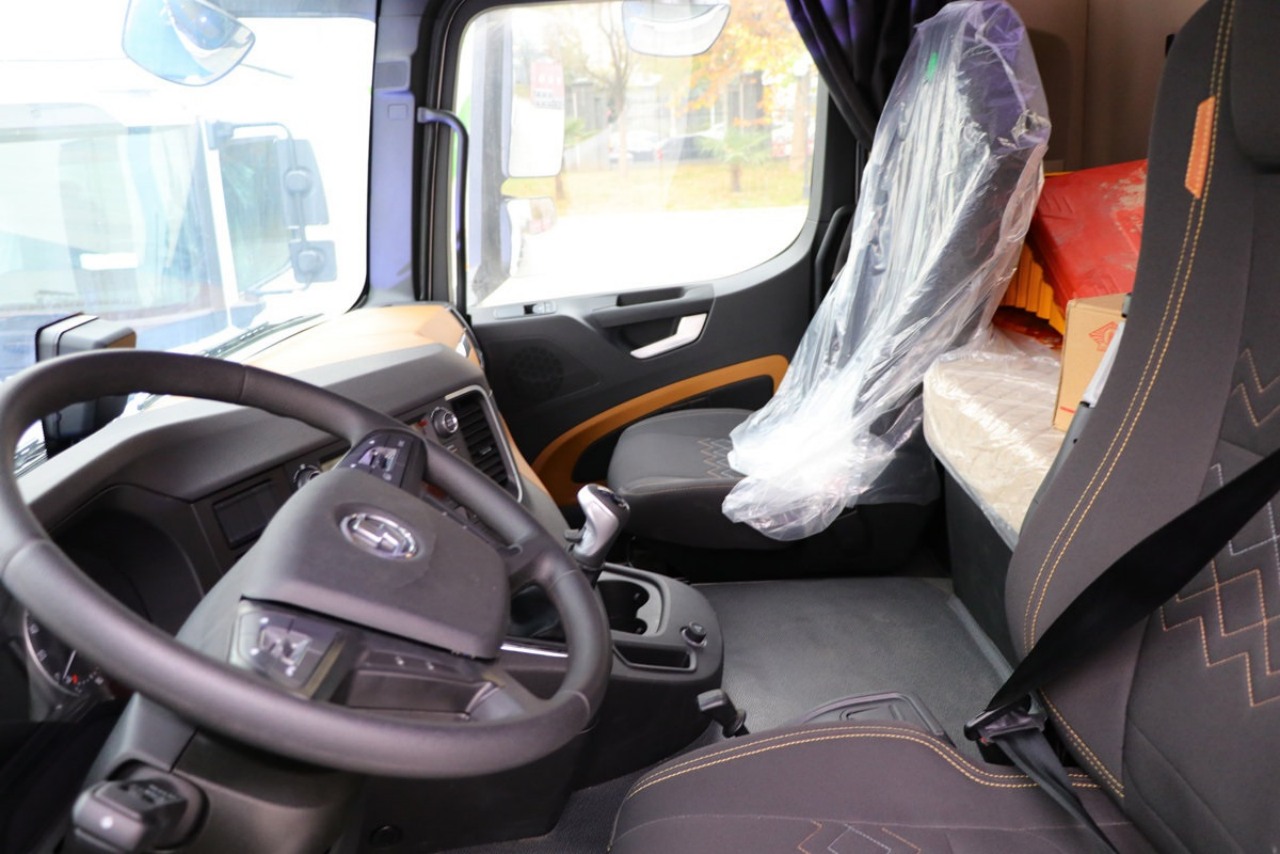

The interior layout is simple and atmospheric, with a dual-tone design that shows craftsmanship. Moreover, behind the co-driver’s cabin, there’s space for a temporary driver to rest.
The 4-spoke multifunction steering wheel integrates menu controls, Bluetooth phone connectivity, and other features that enhance driver safety comprehensively.

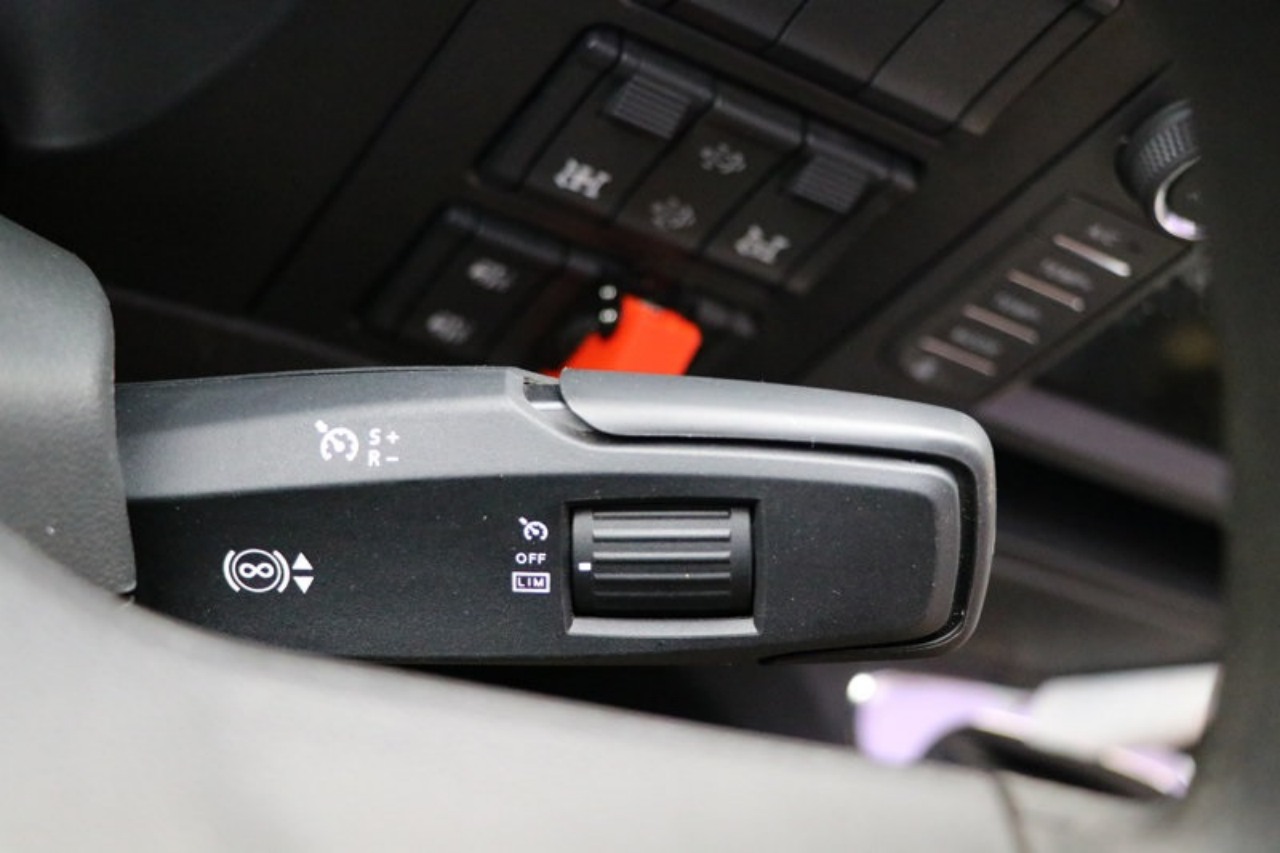

The auxiliary brake function and cruise control are on the right lever, essential for long downhill stretches.
The instrument panel combines mechanical pointer-style gauges with an LCD screen displaying RPM, speed, fuel level, water temperature, and other basic driving information.

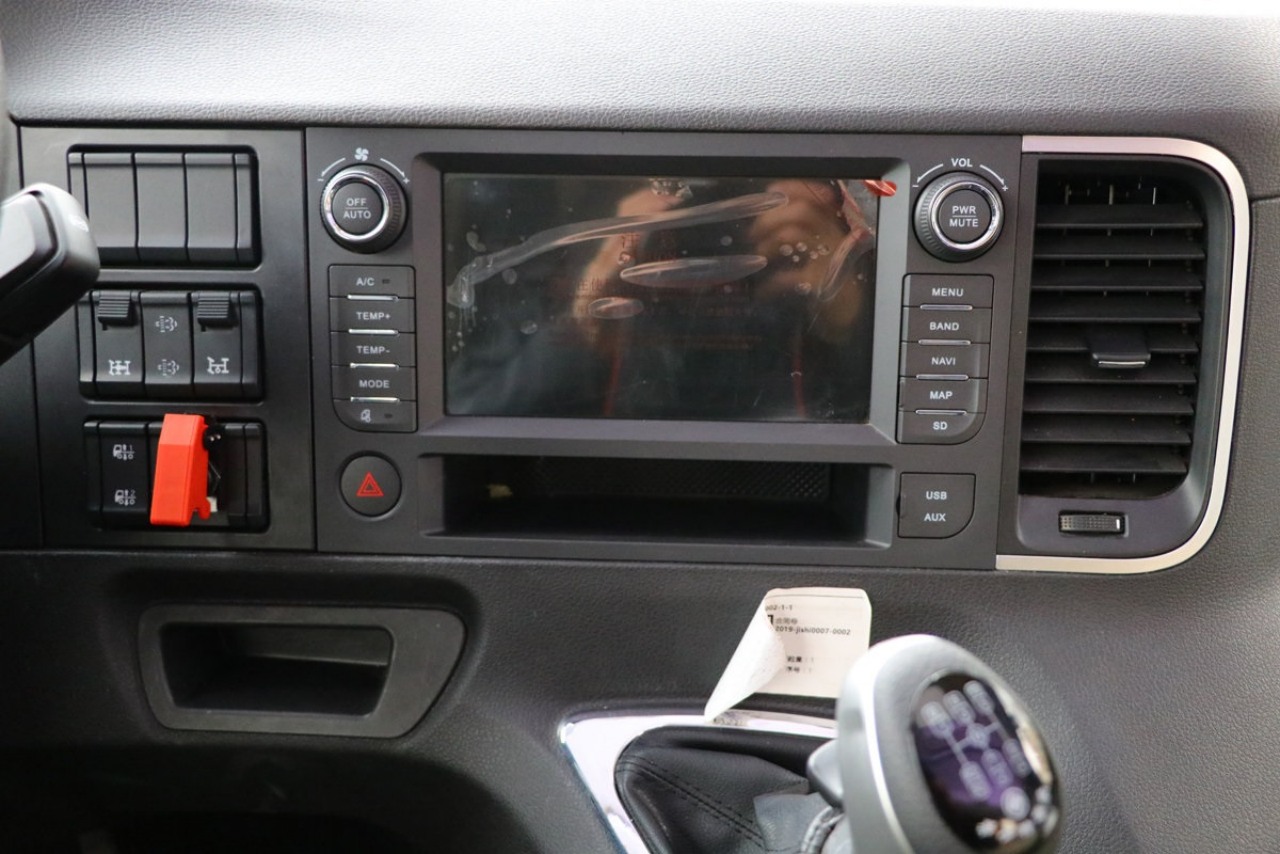

The center console features an LCD screen with a knob and physical buttons, offering intuitive control. Below the center console is a spacious storage compartment, with axle differential lock, airbag height control, and DPF regeneration button placed to the left of the multimedia, with additional blank buttons above for future owner modifications.

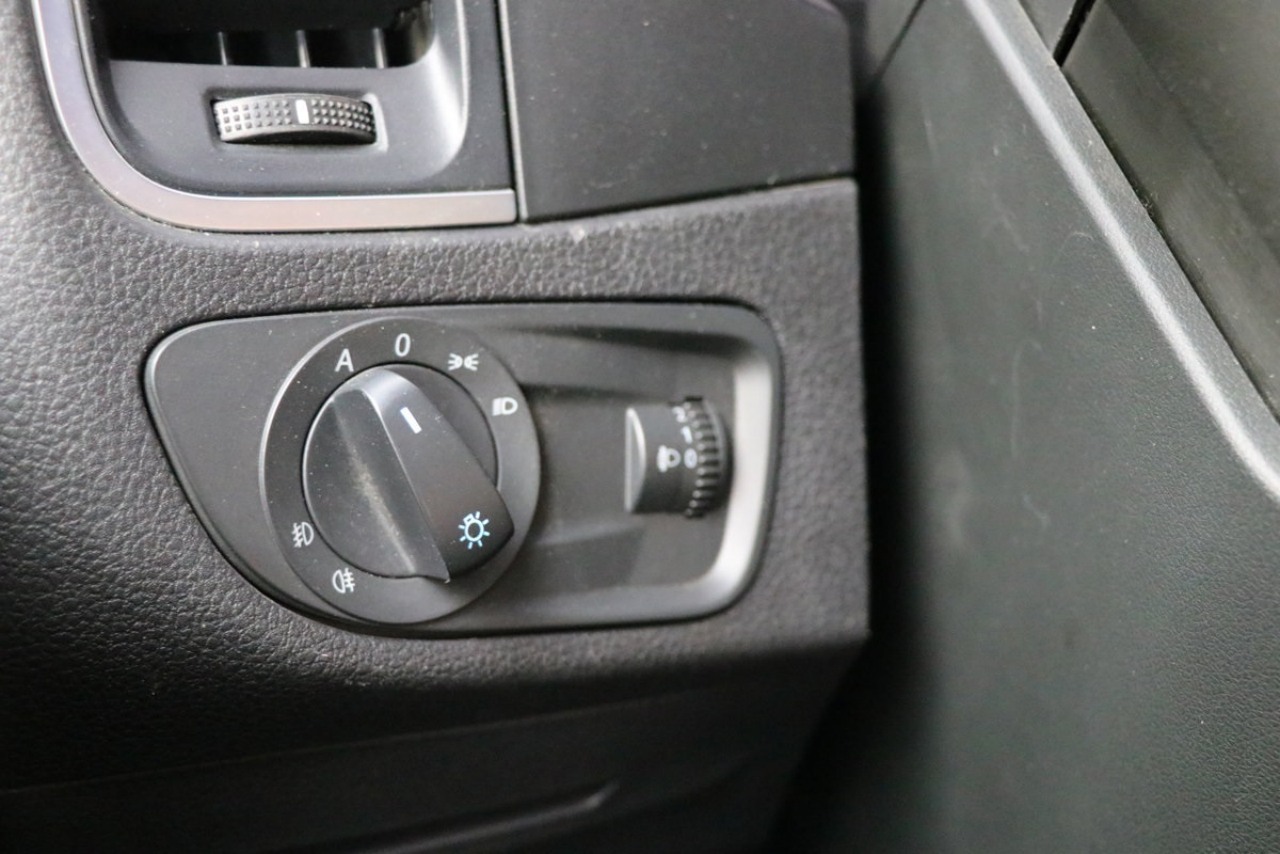

Automatic headlights elevate the model’s sophistication, although headlight height adjustment remains manual.

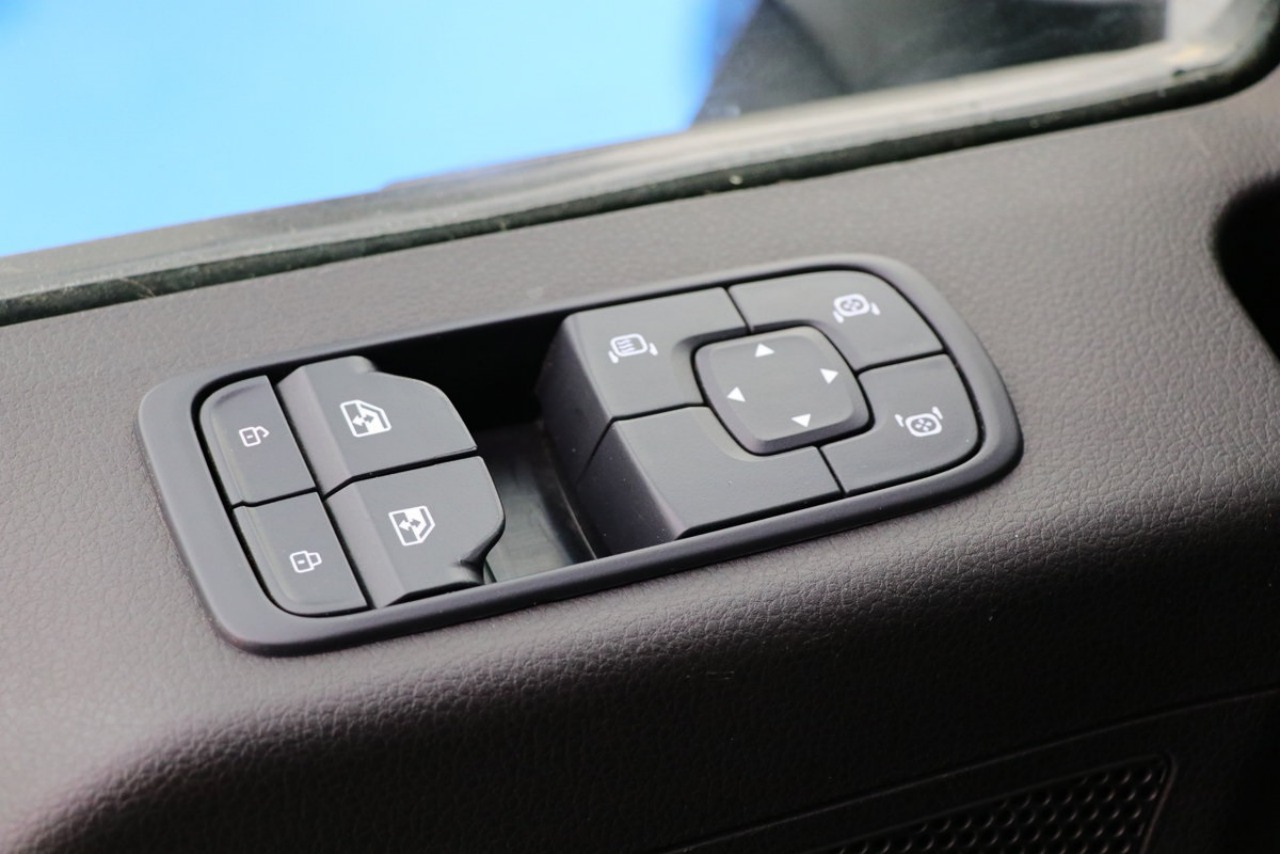

Equipped with power windows and electronically adjustable rearview mirrors further enhances the luxury feel.

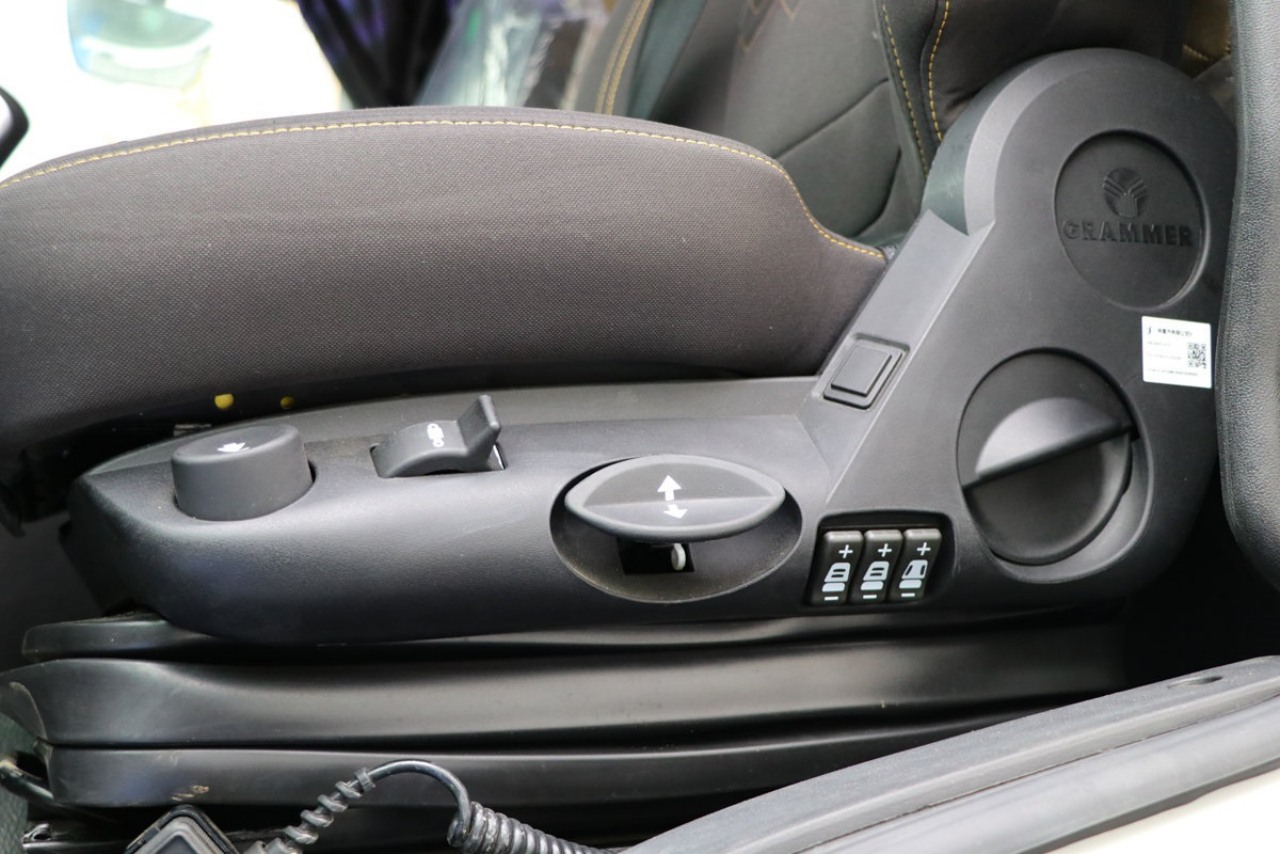

The airbag seats support multi-directional adjustment and one-touch inflation/deflation, crucial for long-distance truck drivers.

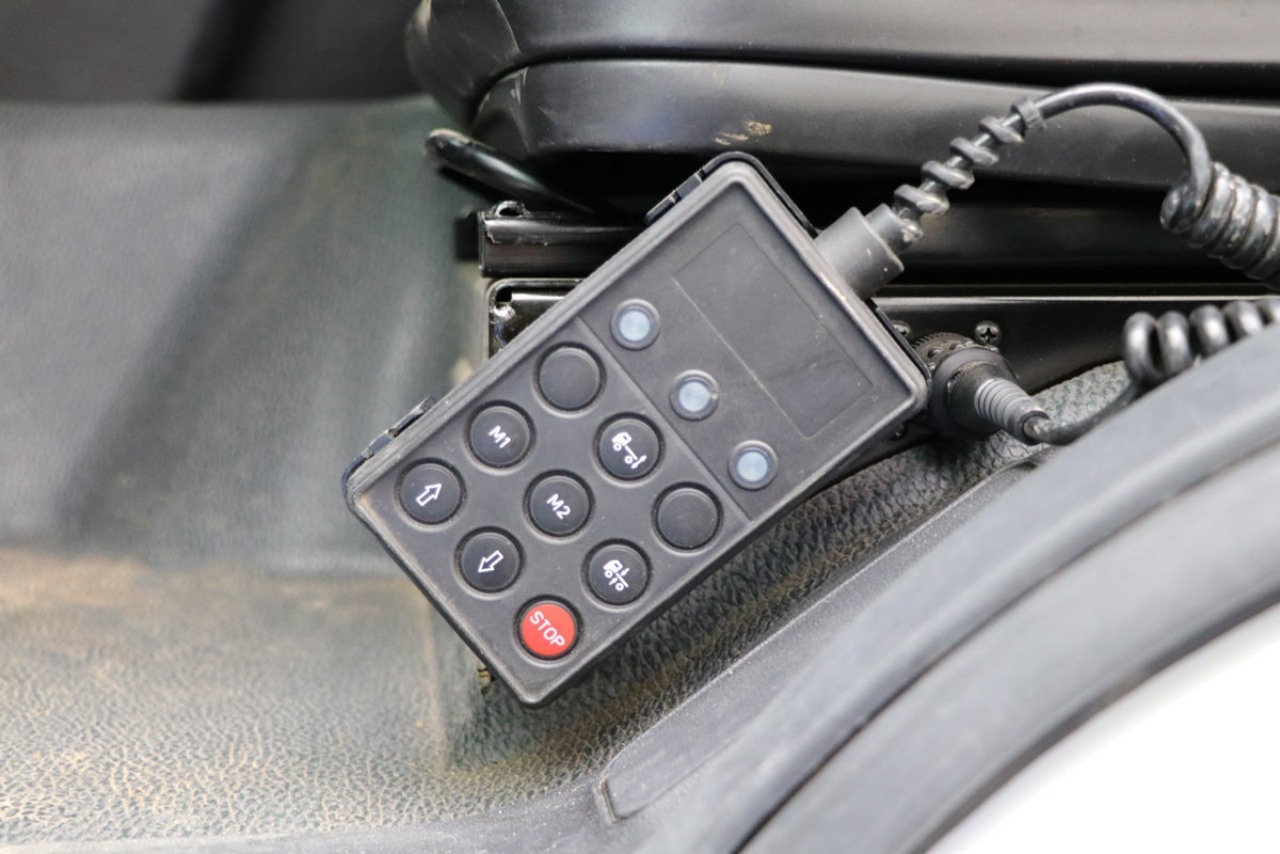

Under the seat is the ECAS control handle for adjusting the vehicle’s chassis height, facilitating cargo handling.

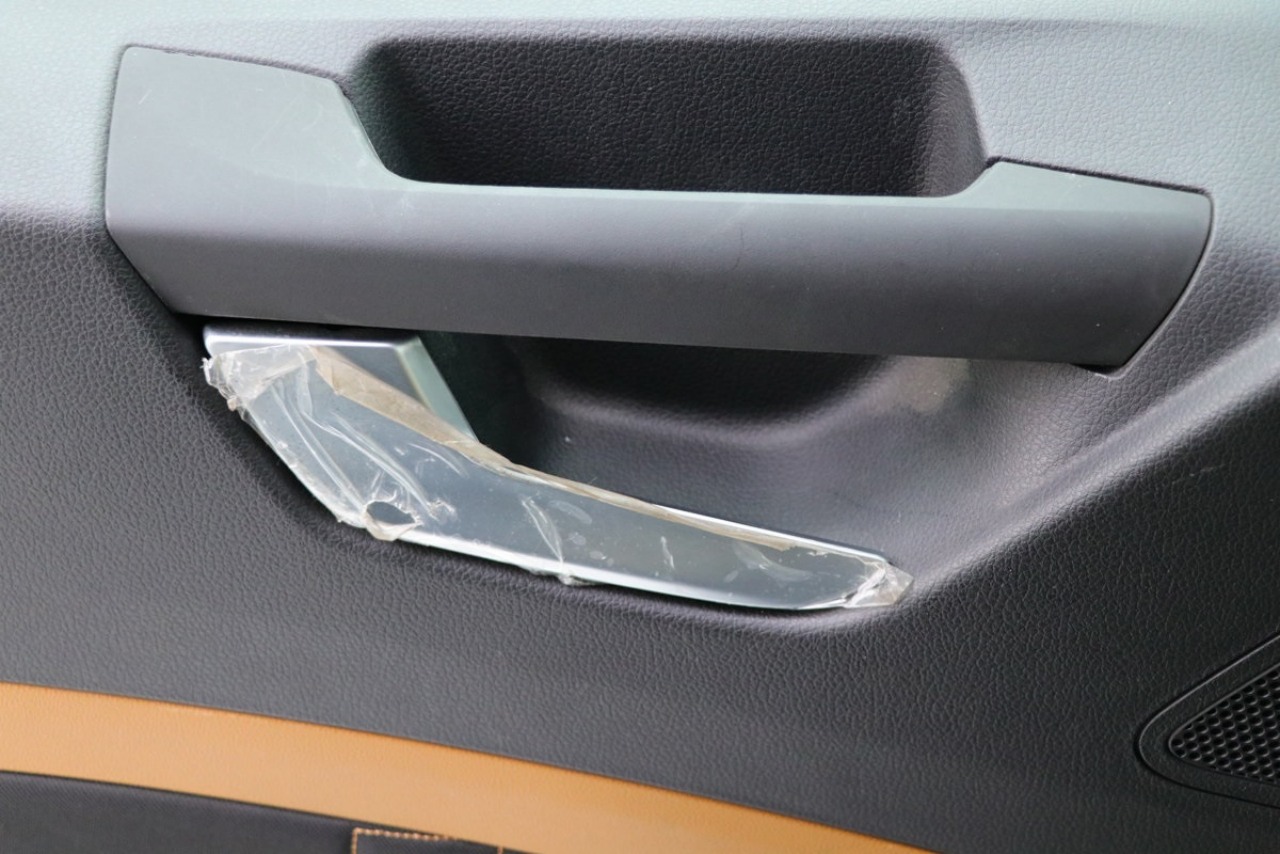

Thoughtful details, such as integrating door switches and handles, make opening doors convenient.

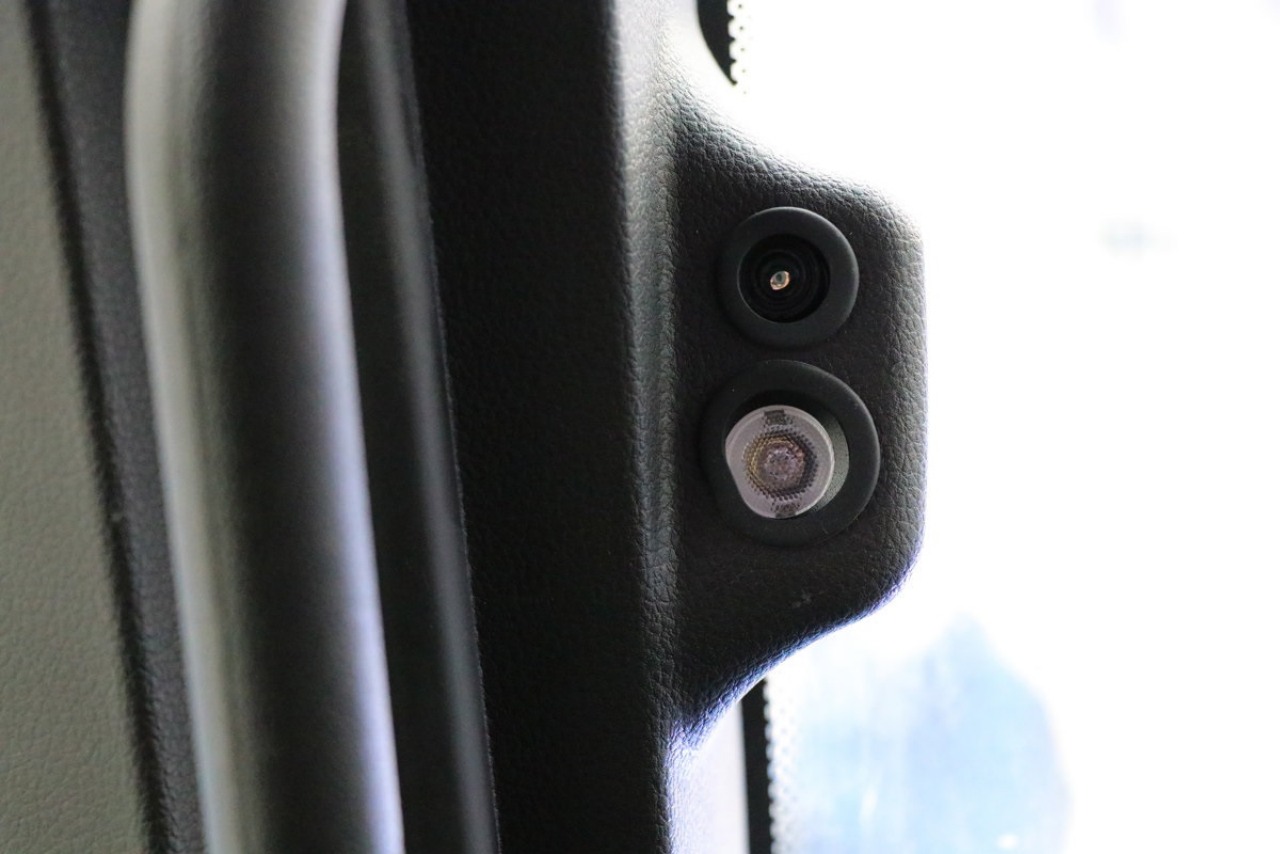

The A-pillar includes a fatigue driving prevention system that emits alerts when the driver maintains a posture for an extended period, ensuring safety, as this system cannot be disabled for safety reasons.
The sunroof is essential for truck drivers who smoke, and its design with a dust-proof net enhances the interior’s premium feel.

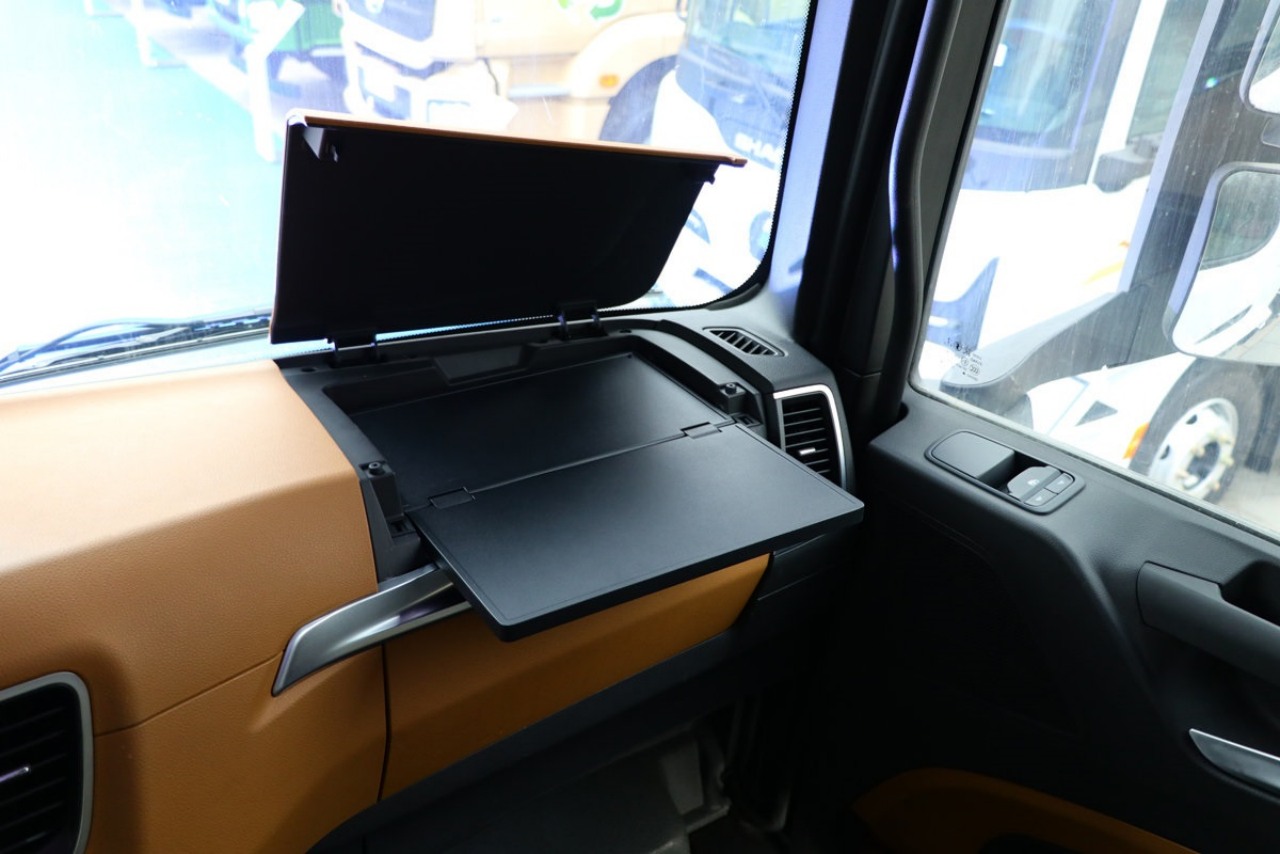

Ahead of the co-driver, there’s a foldable tablet that, when fully opened, serves as a practical writing desk, with small design details always bringing pleasant surprises to users.

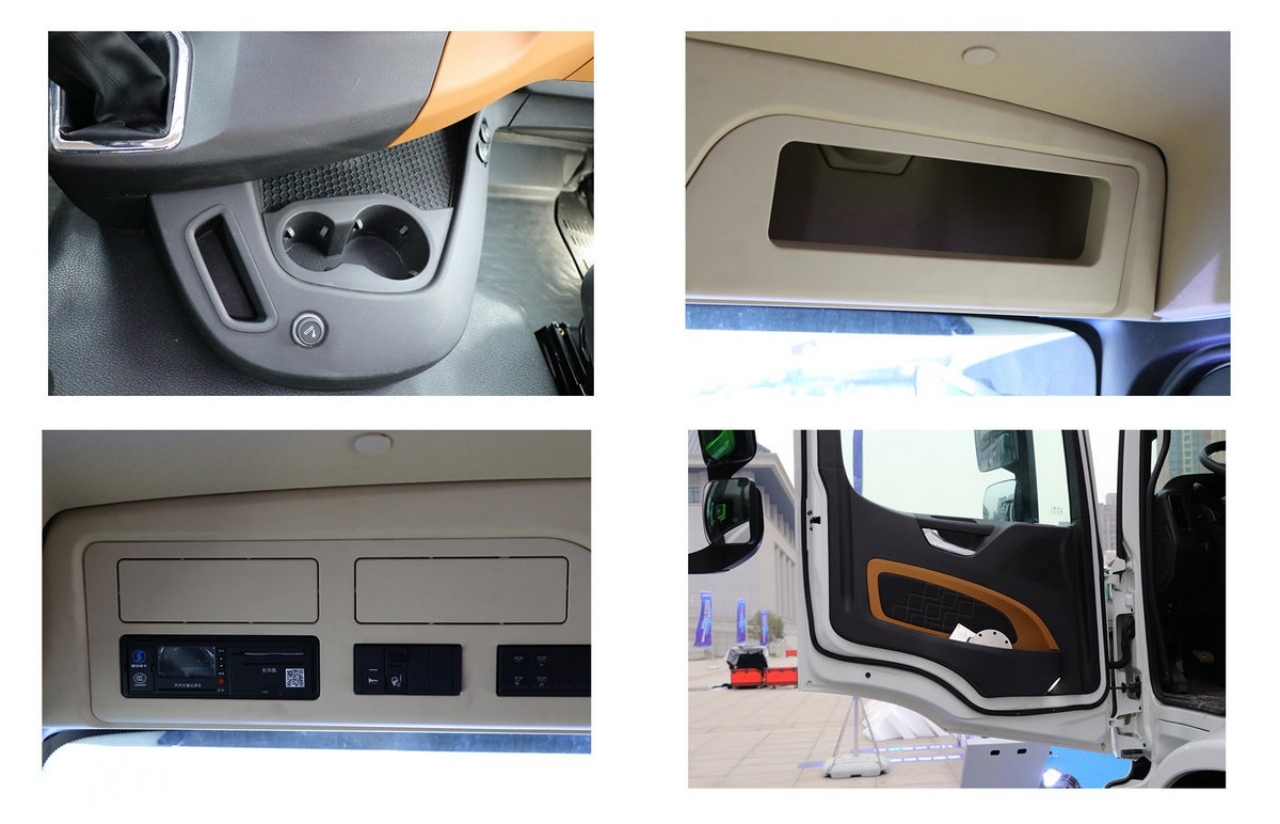

Main storage spaces are located under the gear lever, roof section, and door panels, with good-sized compartments sufficient for storing essential documents, tools, and daily necessities.
Interior Review: Overall, the SHACMAN M6000‘s configuration fully meets its flagship positioning, with superior workmanship and innovative design style destined for the high-end market segment.
In addition, the inclusion of driver-friendly features such as ESC (Electronic Stability Control), ACC (Adaptive Cruise Control), EBS (Electronic Braking System), and the electronic parking brake also helps reduce driver fatigue to some extent.
-
Powerful Engine and Robust Chassis:
| Specification | Details |
|---|---|
| Vehicle Model | SHACMAN M6000 Fuel Tank Lorry |
| Engine Model | Weichai WP8.350E68 |
| Emission Standard | EURO VI |
| Engine Type | Diesel |
| Maximum Power | 350 hp |
| Peak Torque | 1,400 N·m |
| Series | Blue Engine Series |
| Performance Note | Highest cost-effectiveness in the Blue Engine series based on liter power. |

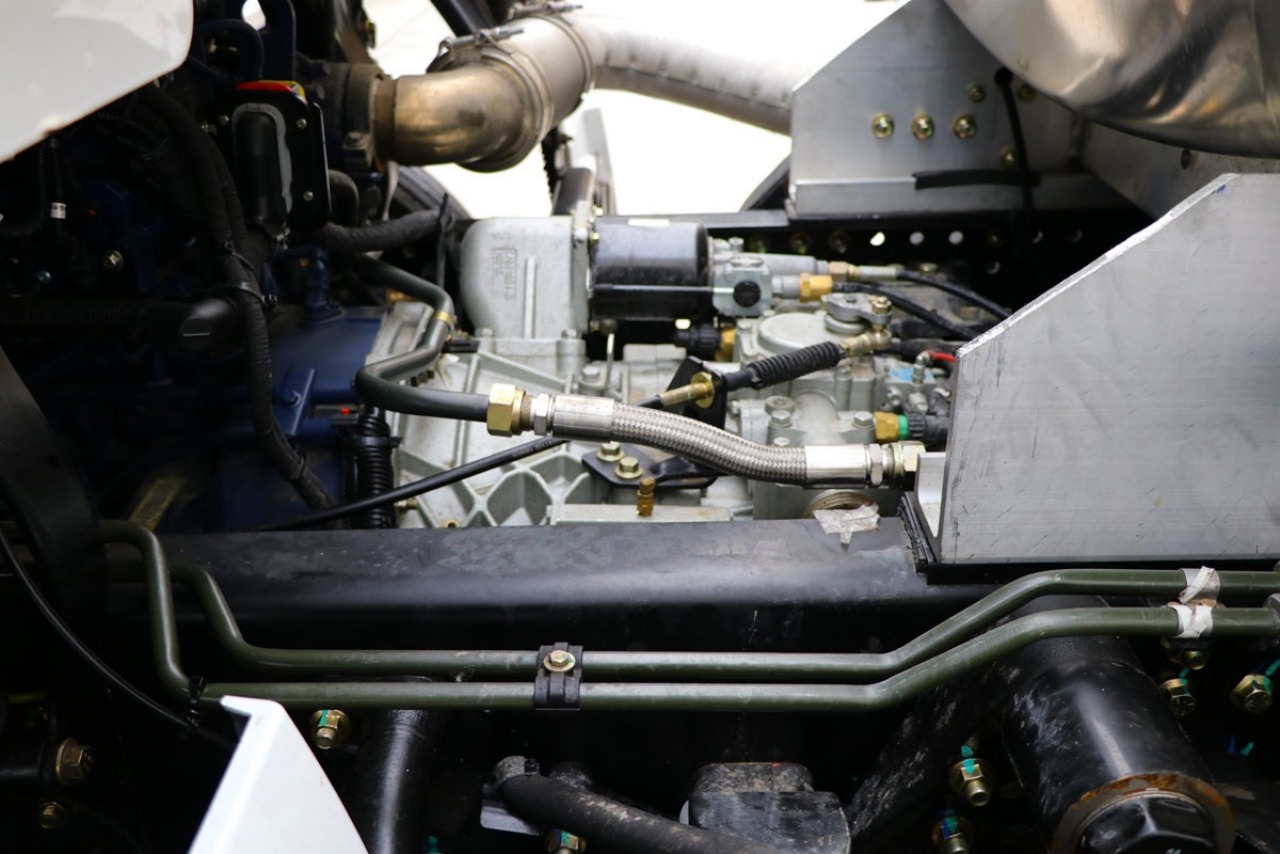

Transmission is paired with the Shaanxi Fast SF10JS180TA 10-speed manual gearbox, capable of handling torque inputs up to 1,800 N·m as indicated by its model.

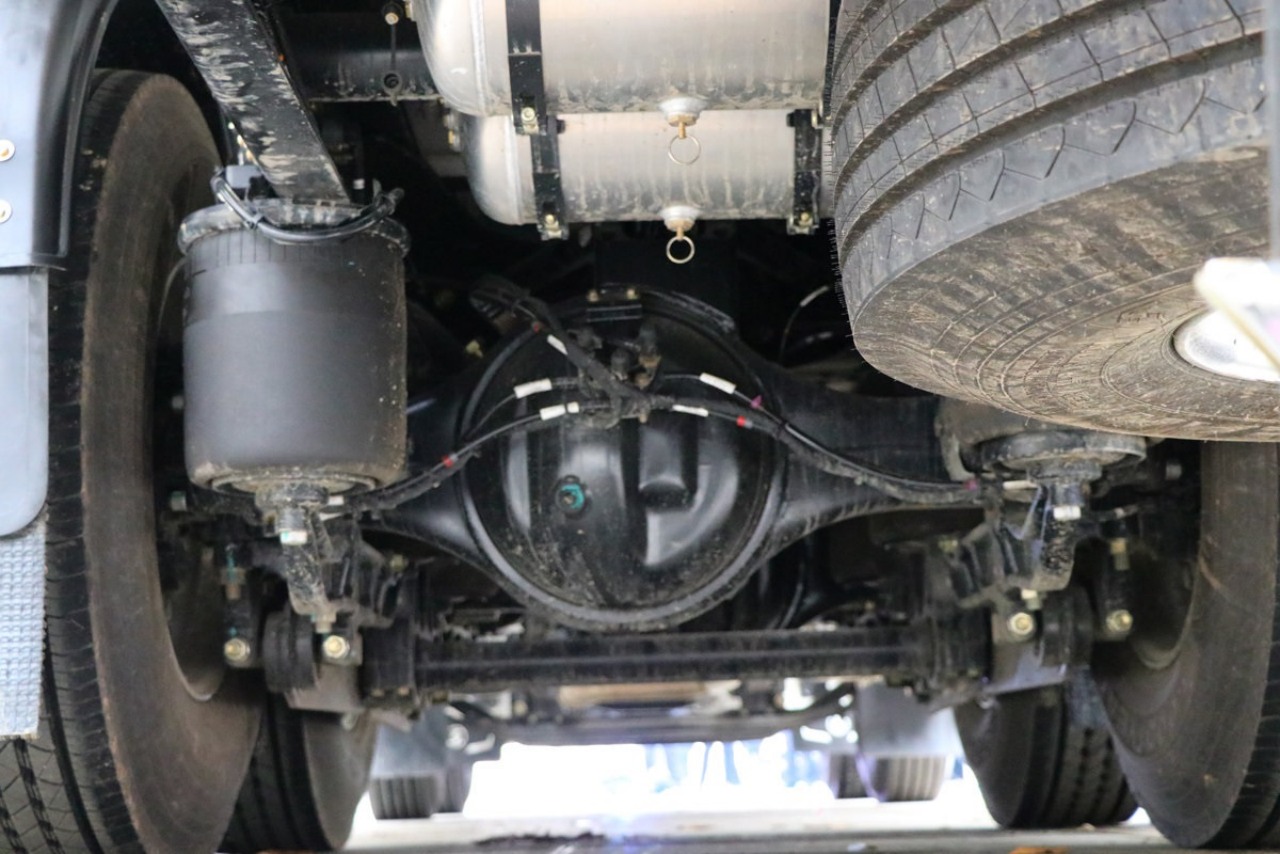

The rear axle is equipped with Shaanxi Hande’s 10T single-stage reduction axle, ensuring high load-bearing capacity. The 8×4 drive configuration enables adaptability and passability on poor road surfaces.

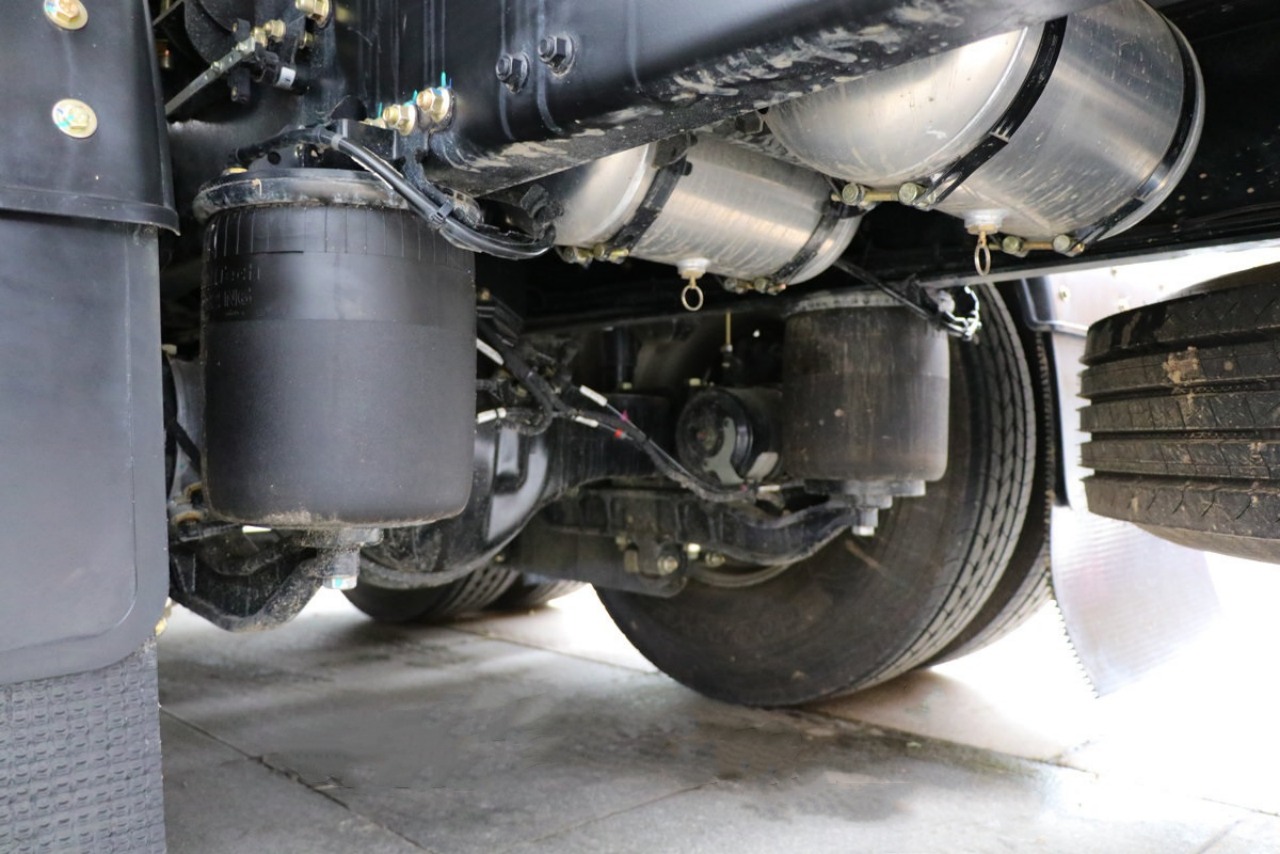

Suspension combines front leaf springs with rear air suspension, ensuring safety during hazardous chemical transport, crucial for vehicle safety.
Furthermore, both front and rear wheels are equipped with disc brakes, offering superior performance and heat dissipation compared to drum brakes. When used with a hydraulic retarder, it enhances safety to a certain extent.

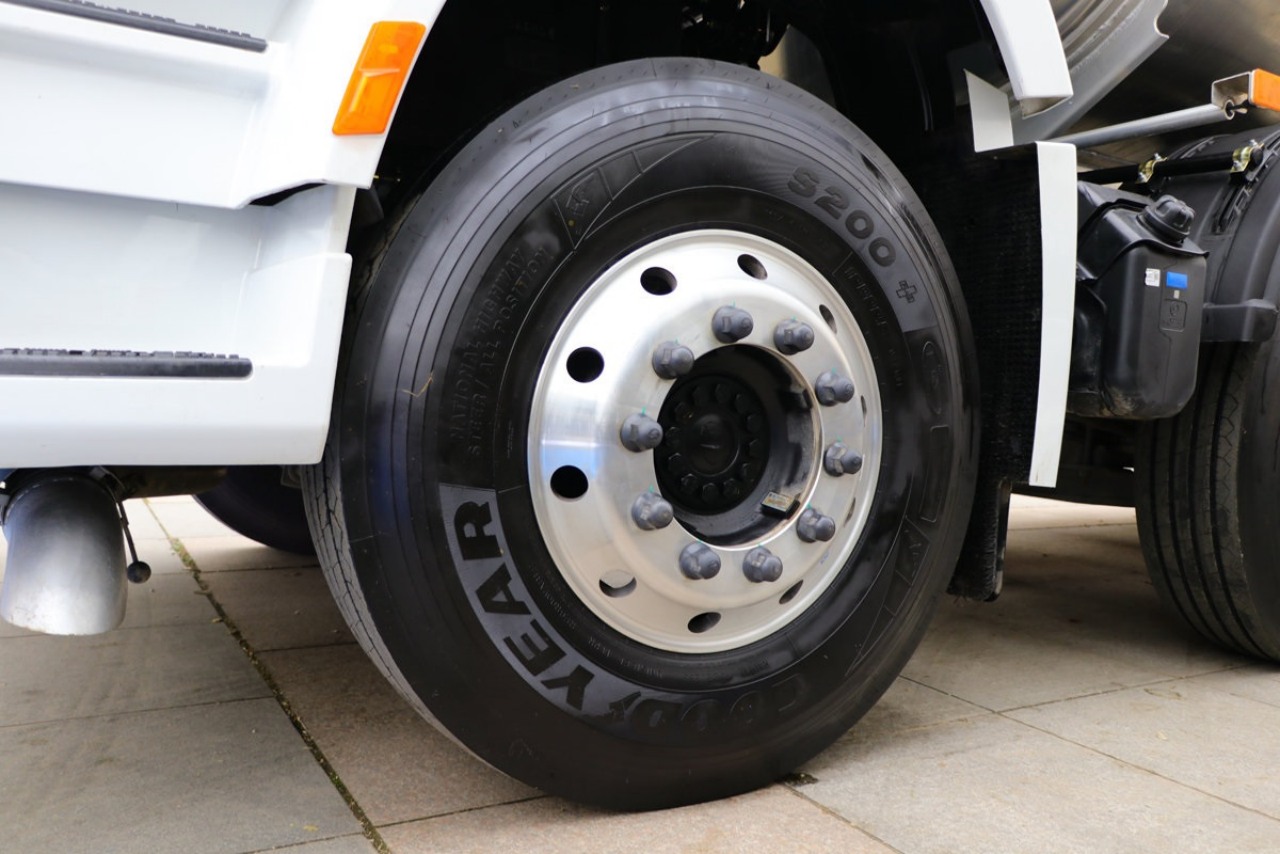

The tires are 12R22.5 special tires from Goodyear, ensuring higher reliability and stronger adaptability to different road conditions. The aluminum alloy wheel rims contribute to the lightweight design to some extent.

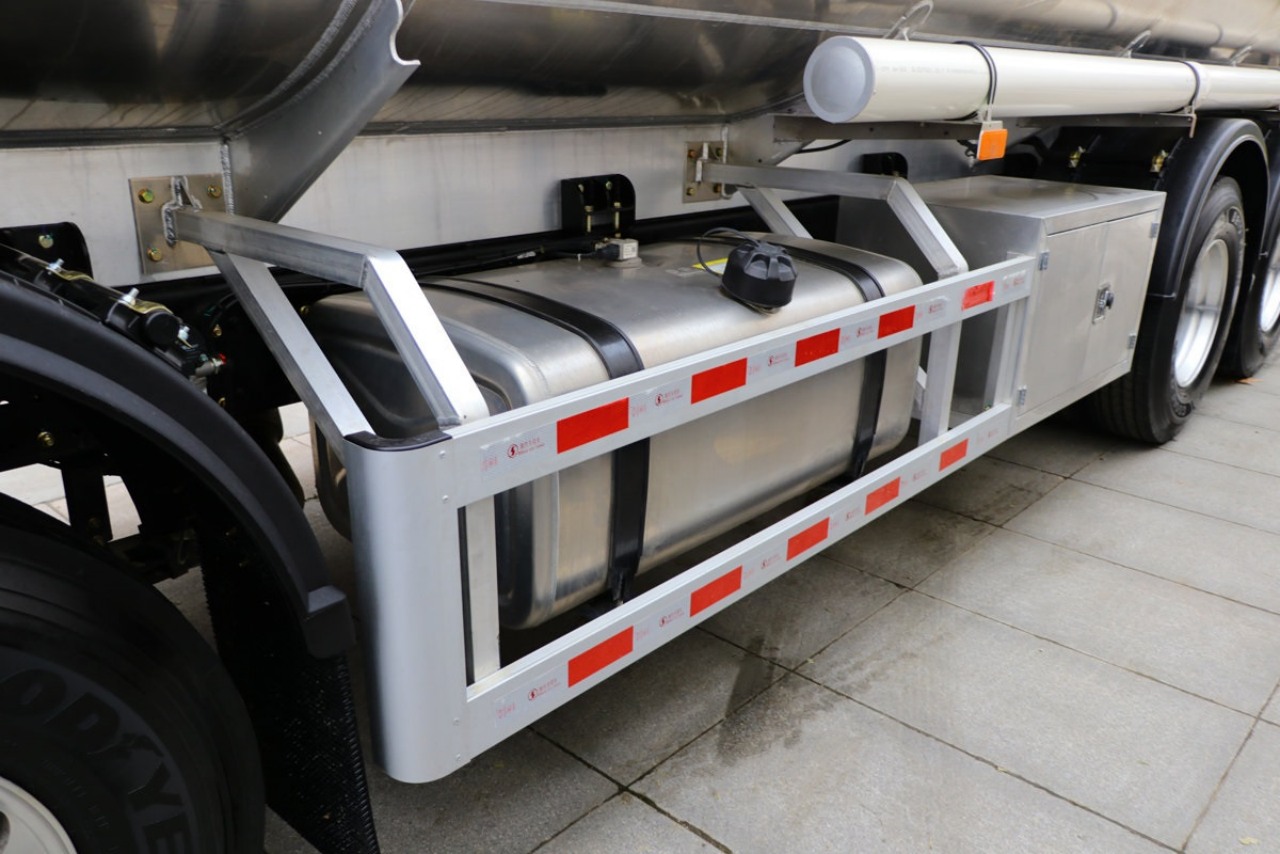

The fuel tank has a capacity of up to 400L, complying with regulations. Its aluminum alloy construction contributes to vehicle weight reduction, while additional reinforcement and protective devices ensure reliability. The tank is conveniently located next to the oil discharge port for easy loading and unloading.

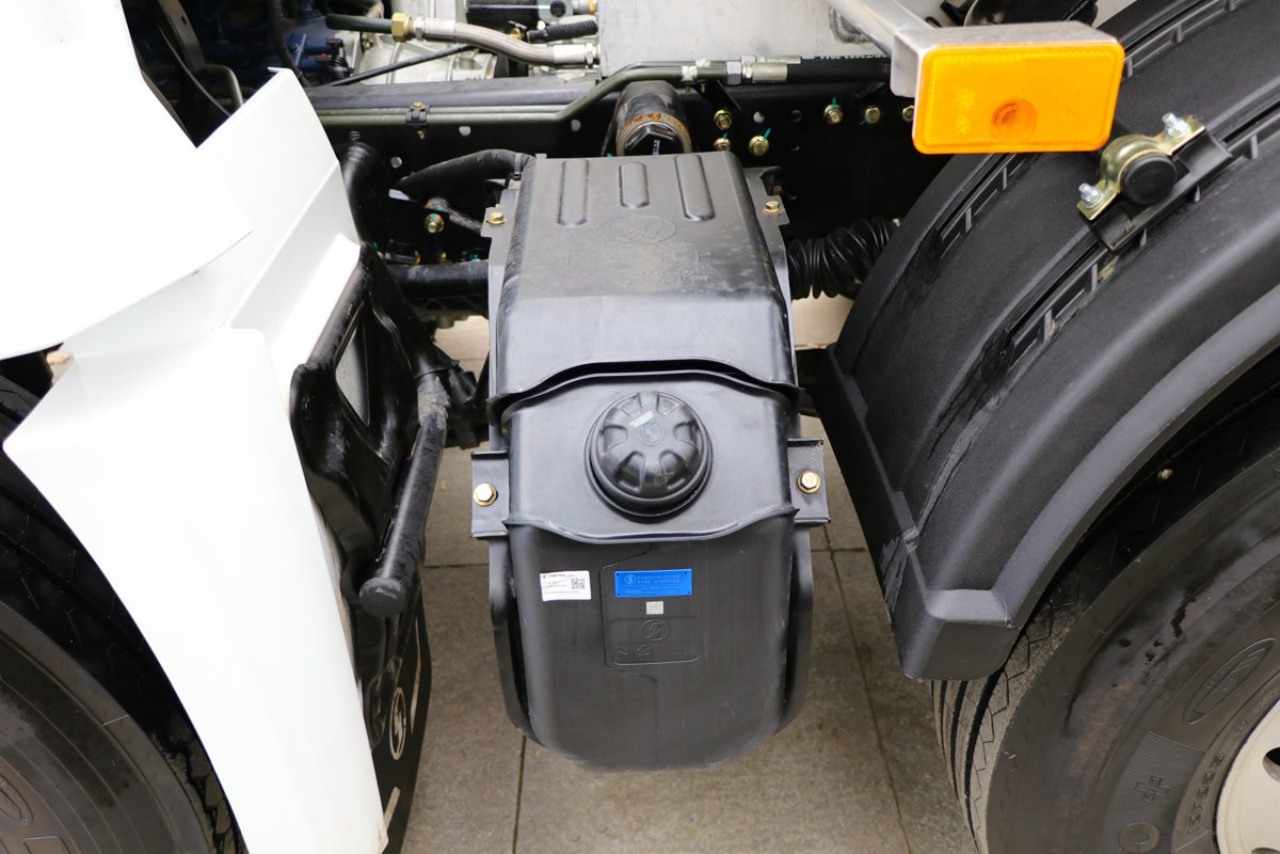

The urea tank is positioned between the wheels, saving space and facilitating refueling.

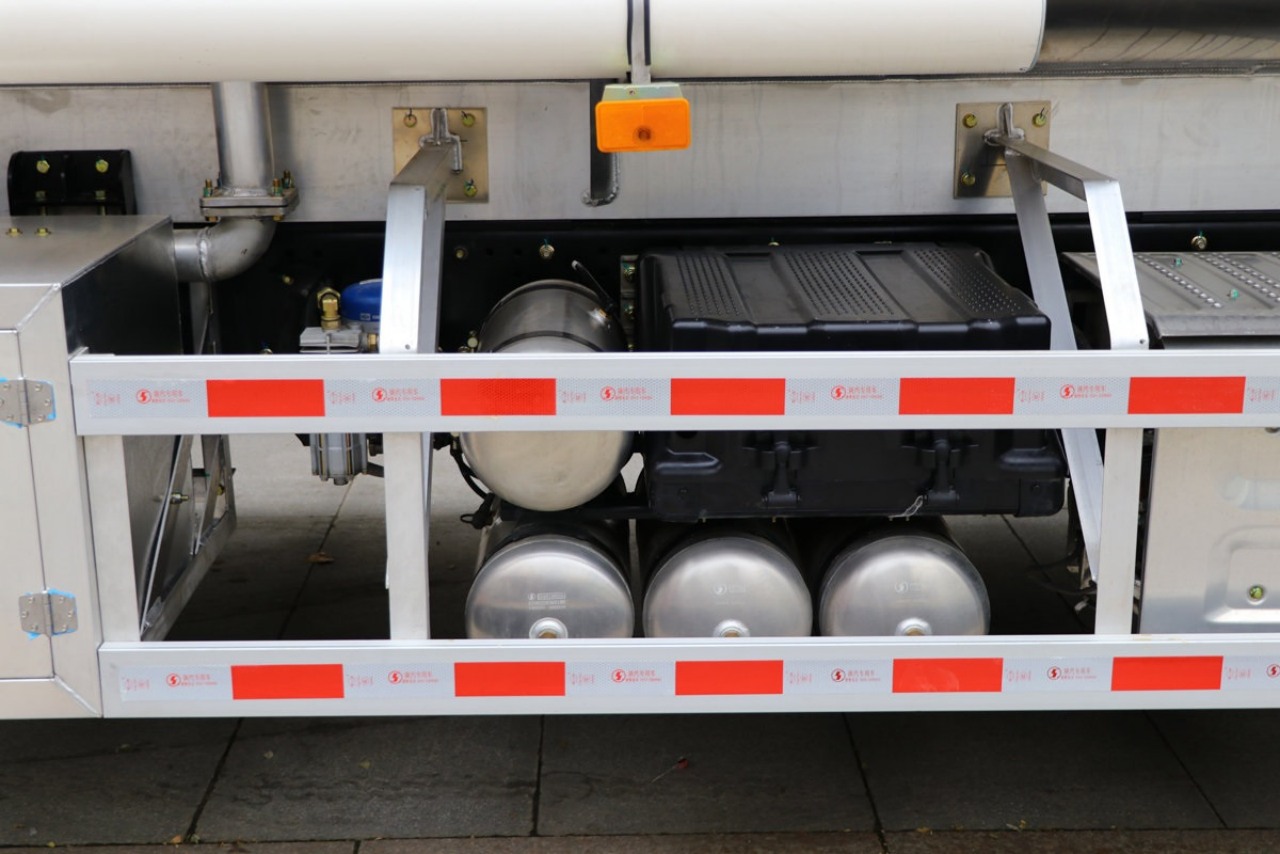

The air tank is located on the right side of the chassis, with its aluminum alloy construction contributing to vehicle lightweighting. Additionally, the 180Ah maintenance-free battery ensures long-term vehicle use.

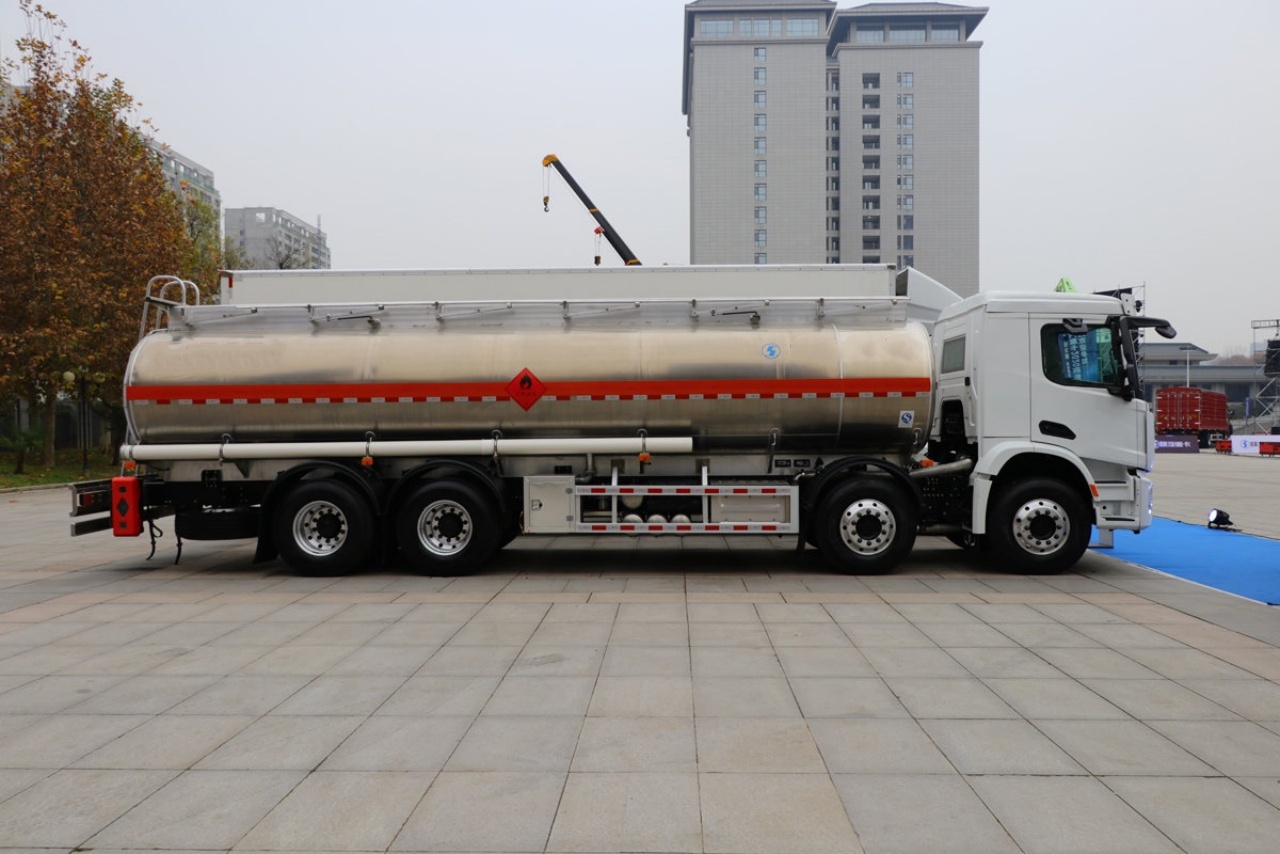

Tank Capacity: The effective volume of the tank reaches 26.9 cubic meters, with the interior walls specially treated to significantly enhance corrosion resistance, according to manufacturer claims.
Powertrain Review: Considering the gearbox ratio, this model mainly targets low-speed road conditions. With hazardous goods vehicles limited to 80 km/h, the 350 horsepower engine fully meets daily operational needs.
Moreover, extensive use of aluminum alloy materials and key configuration reinforcement design further enhances vehicle safety. After all, safety always takes precedence for hazardous goods transport vehicles, so in terms of powertrain and chassis configuration, the Shacman M6000 demonstrates considerable integrity.
